Description

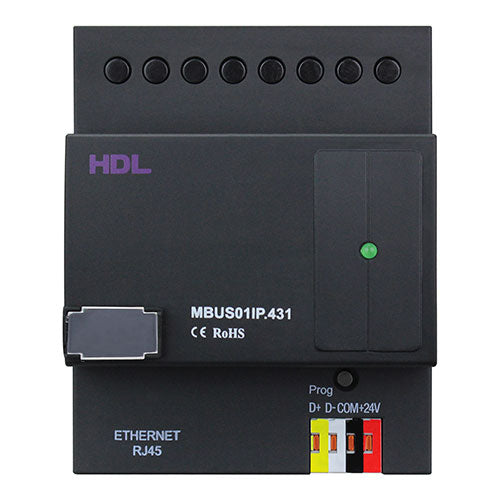

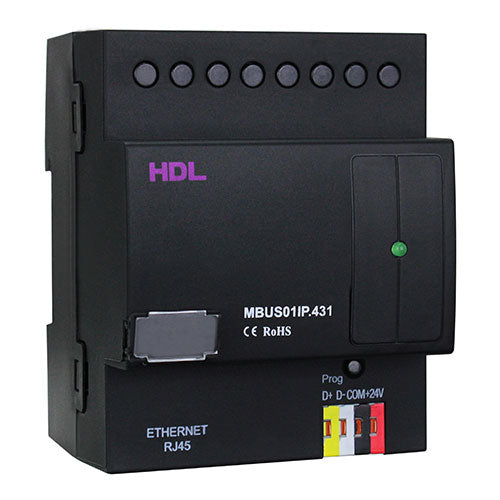

HDL 1 Port Programming Gateway HDL-MBUS01IP.431
1 Port Programming Gateway is a gateway between HDL Buspro system and Ethernet which enables bidirectional data exchange between HDL Buspro and Ethernet.
Bidirectional data exchange between HDL Buspro and Ethernet.
- Supports local control (default), p2p control, and remote control
- Up to 4 devices (iPad, iPhone, Touchlife, HDL Buspro Setup Tool, etc.) connection supported for remote control.
Basic Parameters
- Working voltage 12~30V DC
- Working current 40mA/24V DC
- Communication HDL Buspro
- RJ45 connection RJ45-UDP/IP network interface
External Environment
- Working temperature -5℃~45℃
- Working relative humidity ≤90%
- Storage temperature -20℃~60℃
- Storage relative humidity ≤93%
Specifications
- Dimensions 72mm×90mm×64mm
- Net weight 124g
- Housing material Nylon
- Installation 35mm DIN rail installation
- Protection rating (Compliant with EN 60529) IP20
