Description

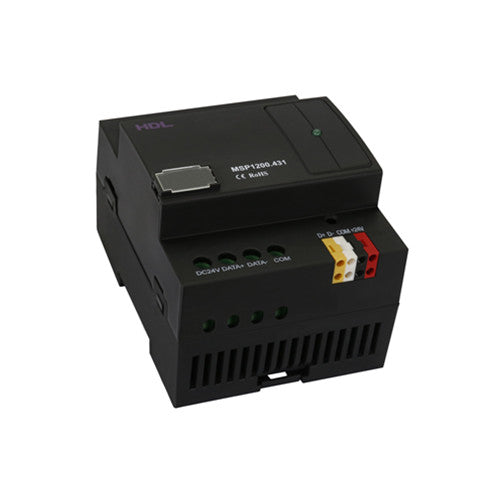

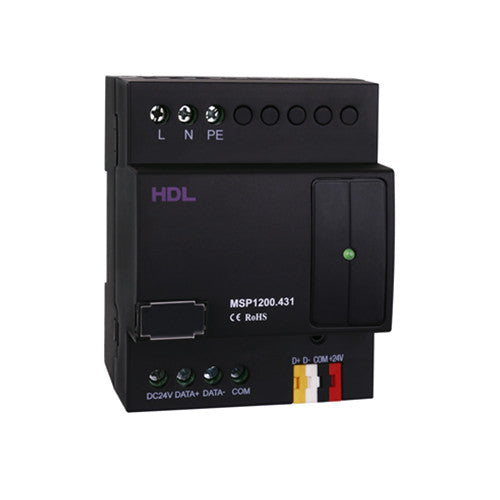

HDL 1200mA Power Supply Module MSP1200.431
1200mA Power Supply Module can provide 24V DC voltage, 1200mA current with 2 connection types. The total current can reach 1200mA.
- Protection: Short circuit and over current protection
- Power Supply: 24V DC, 1200mA
- Ripple Wave: Less than 150mV
Basic Parameters
- Input voltage AC100-240V(50/60Hz)
- Output current 1200mA
- Output voltage 24V DC
- Output ripple wave Less than 150mV
External Environment
- Working temperature -5℃~45℃
- Working relative humidity ≤90%
- Storage temperature -20℃~60℃
- Storage relative humidity ≤93%
Specifications
- Dimensions 72mm×90mm×64mm
- Net weight 188g
- Housing material Nylon, PC
- Installation 35mm DIN rail installation
- Protection rating (Compliant with EN 60529) IP20
