Description

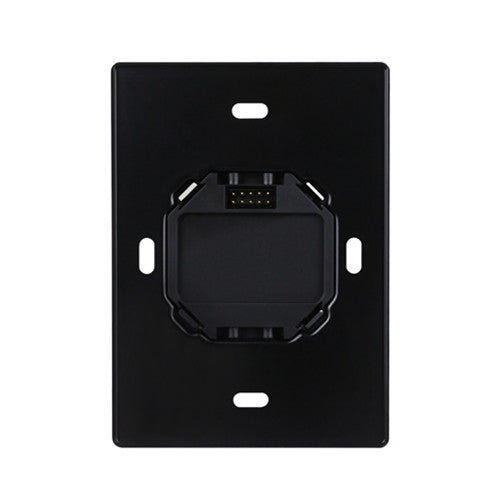

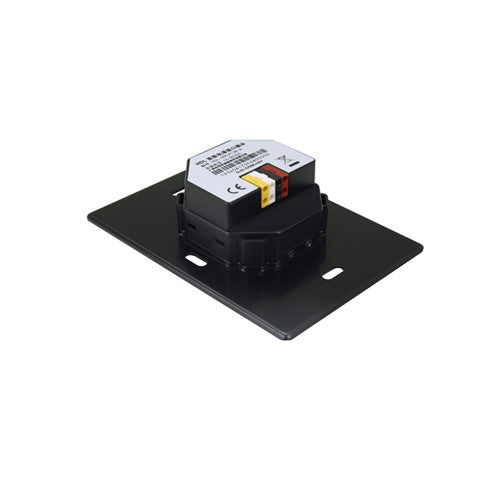

HDL Panel Power Interface US MPLPI.46-A
Panel Power Interface US provides DC power and communicates with panel switch, and supports different US types of panels and sensors.
- Provides DC power and communicates with panel switch and sensor
- HDL Buspro interface supported (CAT5E or dedicated HDL Buspro cable required)
Basic Parameters
- Working voltage 12~30V DC
- Communication HDL Buspro
External Environment
- Working temperature -5℃~45℃
- Working relative humidity ≤90%
- Storage temperature -20℃~60℃
- Storage relative humidity ≤93%
Specifications
- Dimensions 80×110.5×28.5(mm) (US)
- Net weight EU: 58g US: 77g
- Housing material Steel, ABS
- Installation Wall box
- Protection rating (Compliant with EN 60529) IP20
