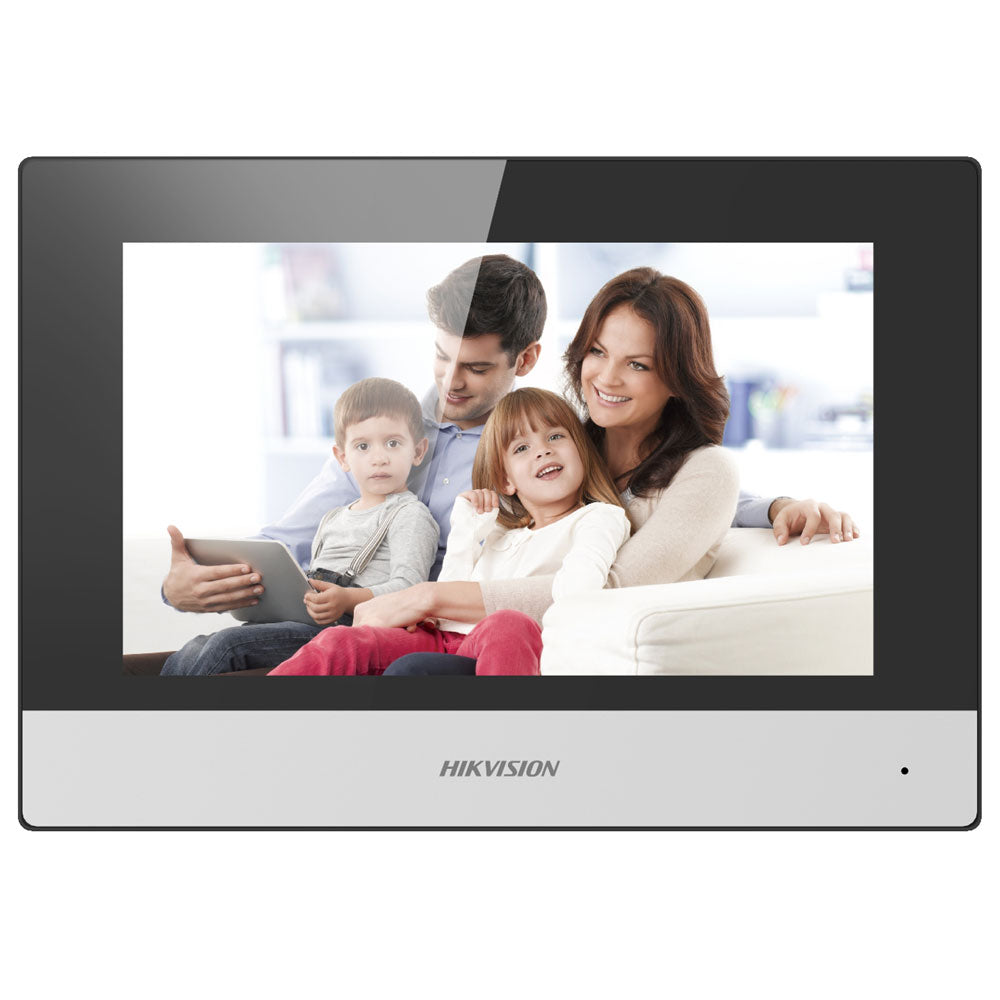

Hikvision DS-KH6320-WTE1 Gen2 7-Inch Touch Screen Wi-Fi IP Video Intercom Indoor Station
The Hikvision DS-KH6320-WTE1 Gen2 Indoor Station is a premium 7-inch IP video intercom monitor designed to provide seamless communication, remote access and intelligent visitor management. Featuring a high-resolution capacitive touch screen, built-in Wi-Fi and Hik-Connect compatibility, it enables users to answer door calls, remotely unlock doors, monitor live video and communicate with visitors from anywhere using their smartphone. It is the ideal indoor monitor for Hikvision IP video intercom systems in residential and commercial applications.
Powered by Hikvision's 2nd Generation IP intercom platform, the DS-KH6320-WTE1 features a modern user interface, hands-free full-duplex communication with noise suppression and echo cancellation, and supports viewing live video from compatible Hikvision door stations and up to 16 IP cameras. With built-in Wi-Fi and Standard PoE support, installation is flexible and straightforward for both new installations and system upgrades.
The indoor station also supports TF card storage for visitor snapshots and messages, alarm integration, intercom extension and remote control through the Hik-Connect App. Whether used in a home, apartment, office or commercial building, the DS-KH6320-WTE1 provides a reliable and intuitive interface for complete access control and visitor management.
Key Features
- 7-inch Colour TFT Capacitive Touch Screen
- 1024 × 600 HD Resolution
- Built-in Wi-Fi (2.4GHz)
- Standard PoE (Power over Ethernet)
- Hik-Connect Remote Access
- Remote Door Unlock Function
- Full Duplex Two-Way Audio
- Noise Suppression and Echo Cancellation
- New UI V2.0 User Interface
- Supports Live View of Door Stations
- Supports Live View of up to 16 Hikvision IP Cameras
- TF Card Storage for Visitor Snapshots and Messages
- Supports Multiple Indoor Stations
- Embedded Linux Operating System
- Surface Mount Installation
- Modern Slim Design
Specifications
Display
- Model: DS-KH6320-WTE1 Gen2
- Display Size: 7-inch Colour TFT
- Resolution: 1024 × 600
- Operation: Capacitive Touch Screen
Audio
- Built-in Omnidirectional Microphone
- Built-in Loudspeaker
- Full Duplex Communication
- Noise Suppression
- Echo Cancellation
- Audio Compression: G.711U, G.711A, G.722.1
- Adjustable Volume
Network
- Built-in Wi-Fi (2.4GHz IEEE 802.11 b/g/n)
- Standard IEEE 802.3af PoE
- 10/100 Mbps RJ45 Ethernet
-
Network Protocols:
- TCP/IP
- SIP
- RTSP
Storage & Capacity
- TF Card Support
- Stores Visitor Messages and Snapshots
- Supports up to 16 Indoor Extensions
- Supports up to 17 Door Stations
- Supports Live View of up to 16 Network Cameras
Device Interfaces
- 8 Alarm Inputs
- 2 Relay Outputs
- RJ45 Ethernet Port
System
- Embedded Linux Operating System
- Power Supply: Standard PoE or 12V DC
- Surface Mount Installation
Applications
Perfect for:
- Residential Homes
- Villas
- Apartments
- Townhouses
- Office Buildings
- Commercial Buildings
- Medical Centres
- Gated Communities
Benefits
- Crystal-clear 7-inch HD touch screen
- Convenient Wi-Fi connectivity
- Remote answering and door unlocking through Hik-Connect
- Live monitoring of compatible Hikvision CCTV cameras
- Clear hands-free communication
- Easy installation using PoE or 12V DC
- Expandable for larger multi-door systems
- Reliable visitor management for residential and commercial properties
- Modern interface with intuitive operation
The Hikvision DS-KH6320-WTE1 Gen2 Indoor Station is a professional IP video intercom monitor that combines HD video communication, remote smartphone access and seamless integration with Hikvision's security ecosystem. Whether upgrading an existing intercom or installing a new system, it delivers dependable performance, intuitive operation and enhanced convenience for modern access control.
