Description
Hikvision 2 Wire IP Video Intercom Kit DS-KIS702-P
The Hikvision DS-KIS702-P 2 Wire IP Video Intercom Kit is a complete digital two-wire IP video intercom solution designed for villas, homes, apartments and small commercial properties. Ideal for upgrading existing analogue intercom systems, it allows installers to reuse existing two-wire cabling while providing the advanced functionality of Hikvision's IP intercom platform. The kit includes a 2MP HD modular door station, a 7-inch indoor touch-screen monitor, a two-wire video/audio distributor and all essential accessories for a simple plug-and-play installation.
The outdoor door station features a 2MP HD fisheye camera with a 180° viewing angle, IR night vision, IP65 weather protection and full-duplex two-way audio, delivering clear visitor identification both day and night. The indoor monitor offers a responsive 7-inch capacitive touch screen, hands-free communication, visitor snapshots and support for viewing up to 16 compatible Hikvision or ONVIF IP cameras. When connected to the Hik-Connect App, users can receive calls, communicate with visitors and remotely unlock the door from anywhere.
Designed specifically for retrofit applications, the included two-wire distributor enables reliable digital communication over existing cabling, reducing installation time and cost while providing all the advantages of a modern IP video intercom system. The DS-KIS702-P is an excellent solution for residential and light commercial properties requiring a professional, reliable and expandable door entry system.
Key Features
- Complete Hikvision Two Wire IP Video Intercom Kit
- Reuses Existing Two-Wire Cabling
- Plug-and-Play Installation
- 2MP HD Outdoor Door Station
- 180° Wide-Angle Fisheye Camera
- 7-inch TFT Capacitive Touch Screen Indoor Monitor
- Hik-Connect Remote Access
- Remote Door Unlock Function
- Full Duplex Two-Way Audio
- Noise Suppression and Echo Cancellation
- IR Night Vision
- IP65 Weatherproof Outdoor Station
- Supports Live View of up to 16 Compatible IP Cameras
- ONVIF Camera Support
- Visitor Snapshot Function
- Includes Two-Wire Video/Audio Distributor
- Expandable IP Intercom Platform
Specifications

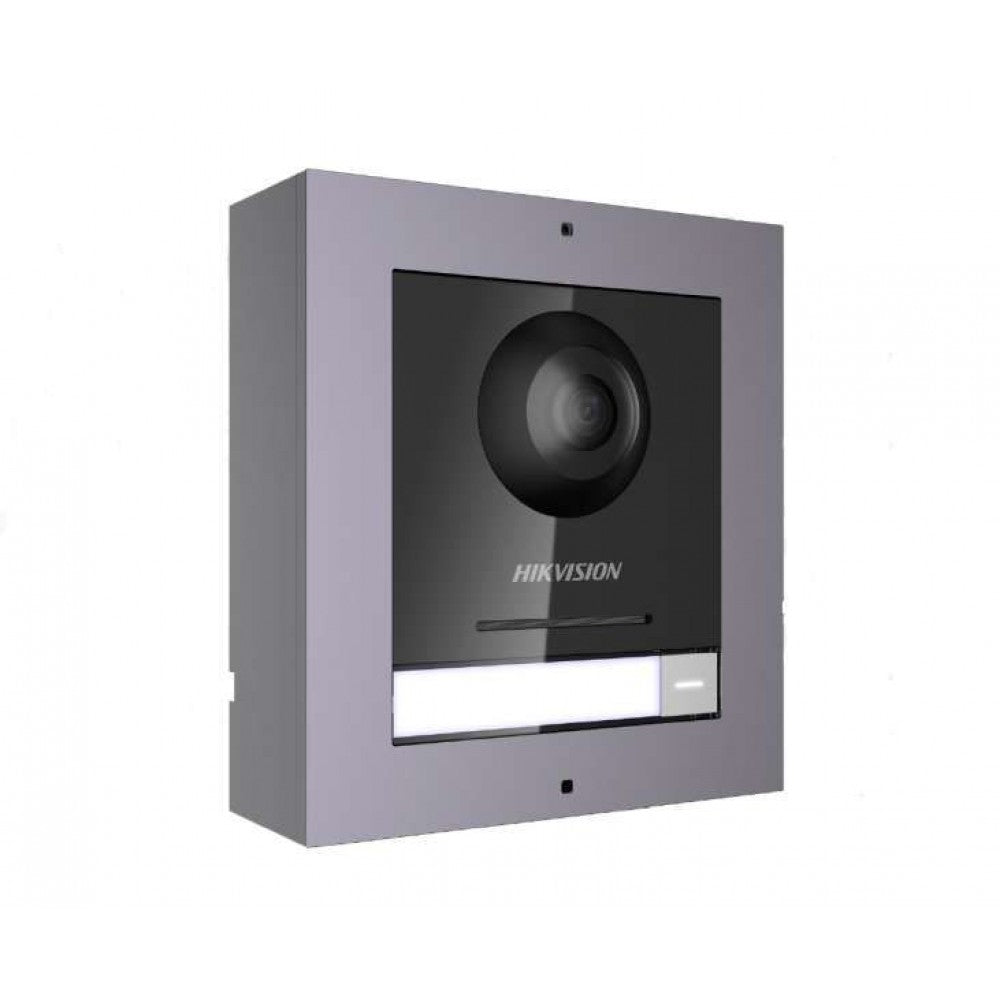

Outdoor Door Station
- Model: DS-KD8003-IME2
- Camera Resolution: 2MP HD
- Lens: 180° Fisheye
- Video Compression: H.264
- IR Night Vision
- Full Duplex Audio
- Built-in Microphone and Speaker
- Relay Outputs: 2
- Alarm Inputs: 4
- Two-Wire Digital Interface
- Network Protocols: TCP/IP, RTSP
- Protection Rating: IP65
- Mounting: Surface Mount
- Operating Temperature: -40°C to +60°C

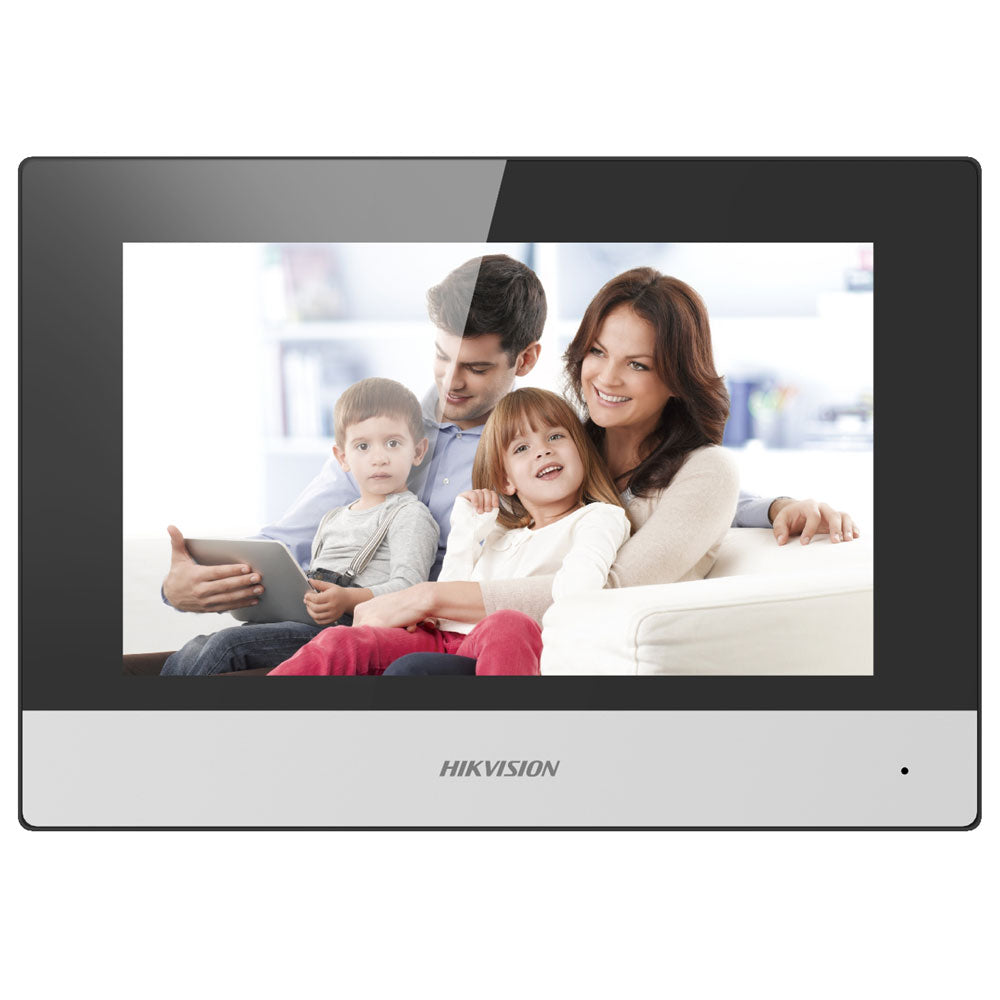

Indoor Monitor
- Model: DS-KH6320-WTE2
- Display: 7-inch TFT Capacitive Touch Screen
- Resolution: 1024 × 600
- Built-in Wi-Fi
- Full Duplex Audio
- Built-in Microphone and Speaker
- Supports Live View of up to 16 IP Cameras
- Alarm Inputs: 8
- Relay Outputs: 2
- TF Card Support: Up to 32GB
- Network Protocols: TCP/IP, SIP, RTSP
- Operating System: Embedded Linux

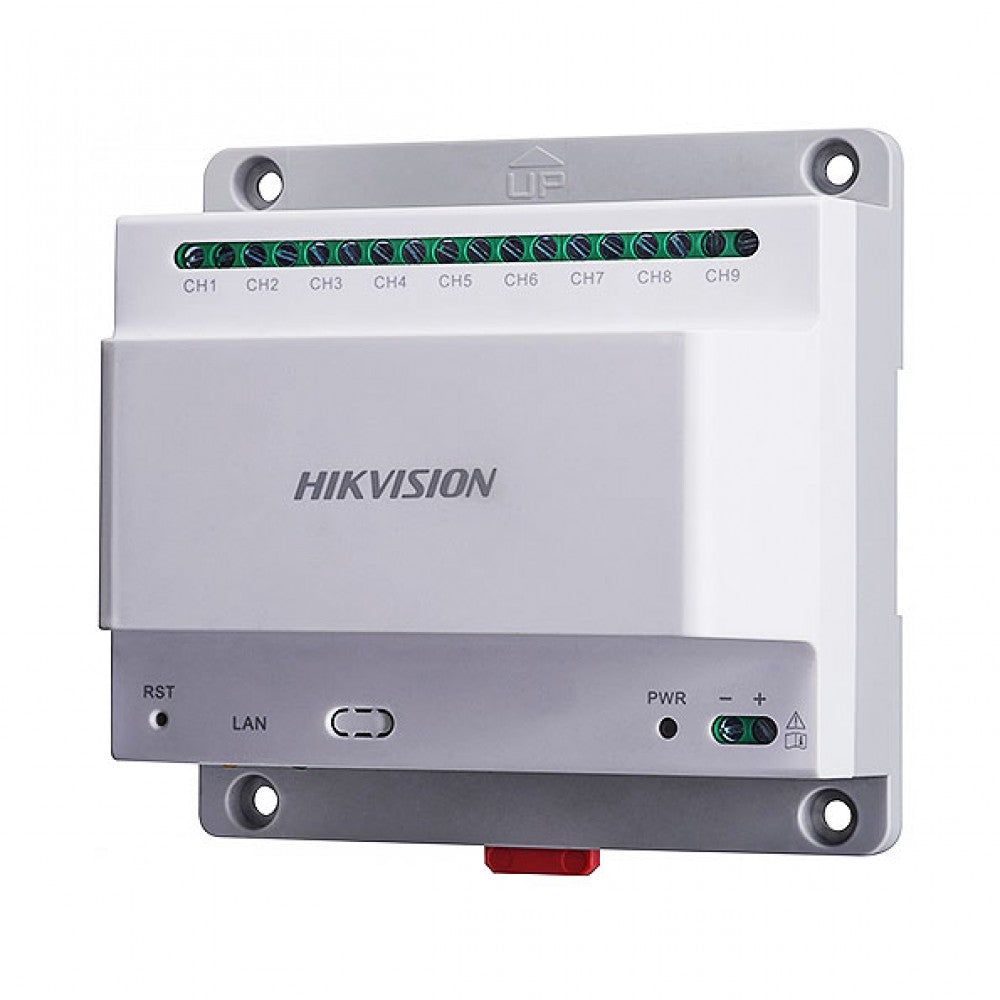

Video/Audio Distributor
- Model: DS-KAD704
- Two-Wire Digital Communication
- Four Device Outputs
- Two-Wire Power Distribution
- Simplified Retrofit Installation

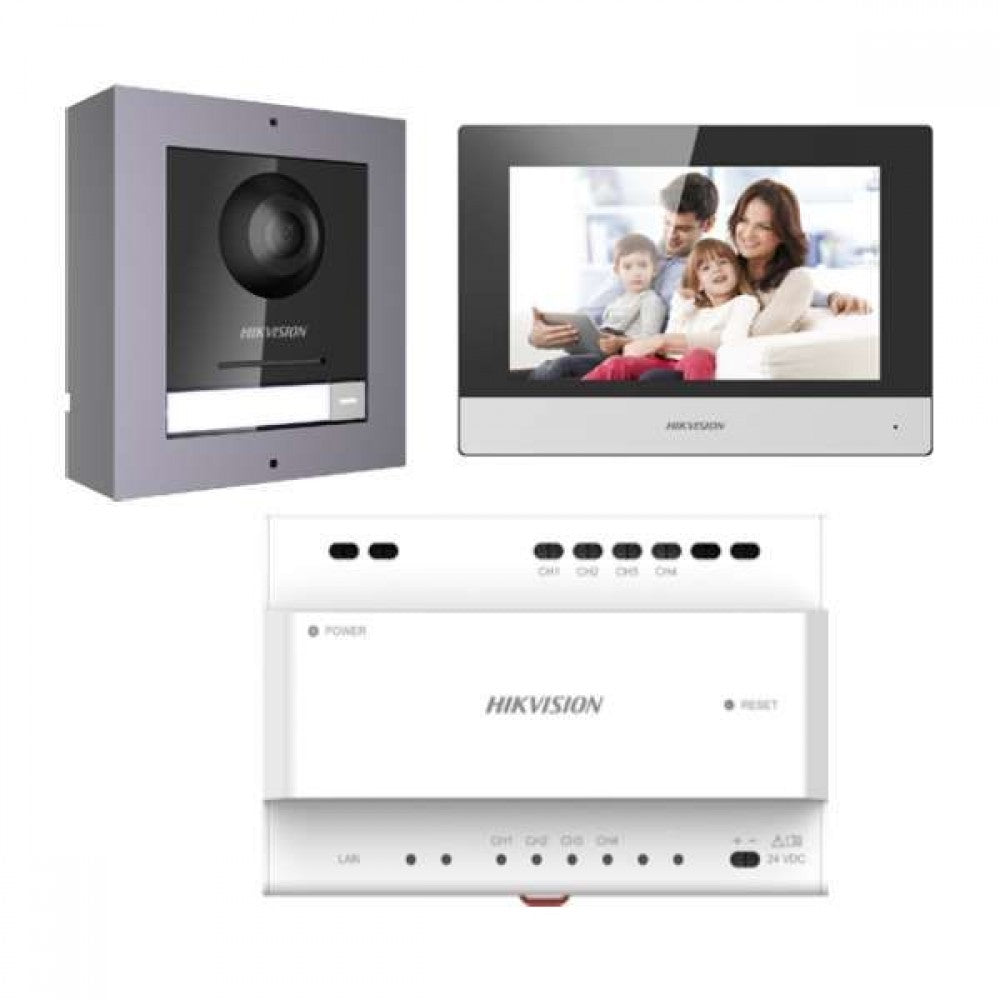

Kit Includes
- 1 × DS-KD8003-IME2 2MP Outdoor Door Station
- 1 × DS-KH6320-WTE2 7-inch Indoor Touch Monitor
- 1 × DS-KAD704 Two-Wire Video/Audio Distributor
- 1 × Power Supply
- Installation Accessories
- Quick Start Guide
Applications
Perfect for:
- Residential Homes
- Villas
- Apartments
- Townhouses
- Offices
- Medical Clinics
- Small Businesses
- Existing Two-Wire Intercom Upgrades
Benefits
- Upgrade existing analogue intercom systems without replacing cabling
- Crystal-clear 2MP HD video with a 180° viewing angle
- Remote answering and door unlocking via Hik-Connect
- Reliable two-way audio with noise suppression
- Supports live viewing of compatible IP cameras
- Weatherproof outdoor station for Australian conditions
- Fast and cost-effective retrofit installation
- Professional IP intercom performance over existing two-wire infrastructure
- Expandable Hikvision intercom solution
The Hikvision DS-KIS702-P 2 Wire IP Video Intercom Kit provides a cost-effective way to modernise existing intercom systems without extensive rewiring. Combining HD video, reliable two-way communication, smartphone connectivity and seamless integration with the Hik-Connect platform, it delivers secure and convenient visitor management for modern homes and businesses.
Villa Two Wire Kit
- 2-wire digital IP video intercom kit for villa or house, only one call button
- DS-KD8003-IME2/Surface x1
- DS-KH6320-WTE2 x1
- DS-KAD704 x1
- DS-KAW30-2N x1
- 16GB TF card x1
