Description
Hikvision 2nd Gen DS-KIS603-P Wi-Fi Video Intercom Kit

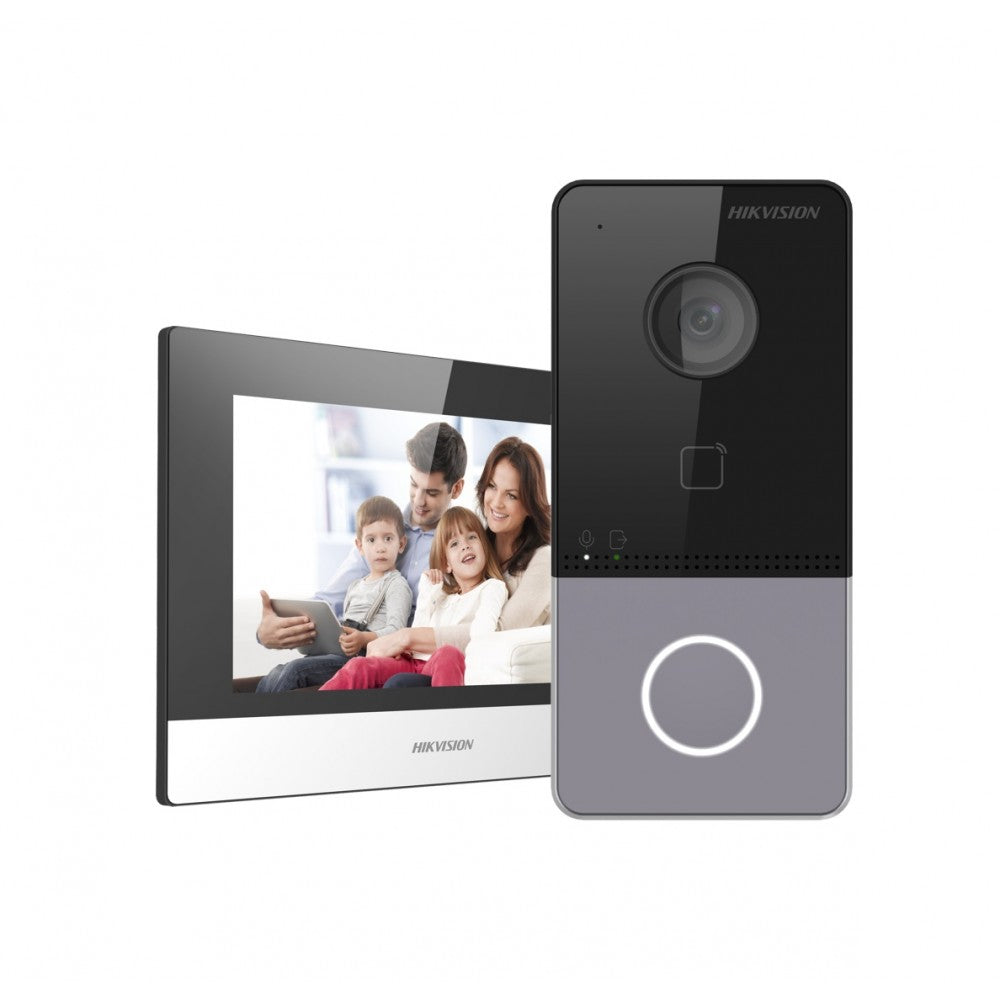

The Hikvision 2nd Gen DS-KIS603-P Wi-Fi Video Intercom Kit is a complete one-to-one IP video intercom solution designed for villas, homes, apartments and small businesses. The kit includes a 2MP HD outdoor villa door station, a 7-inch colour touch-screen indoor monitor and two power adapters, providing a simple, cost-effective solution for secure visitor management. With built-in Wi-Fi and Hik-Connect integration, users can answer calls, unlock doors and communicate with visitors from anywhere using their smartphone.

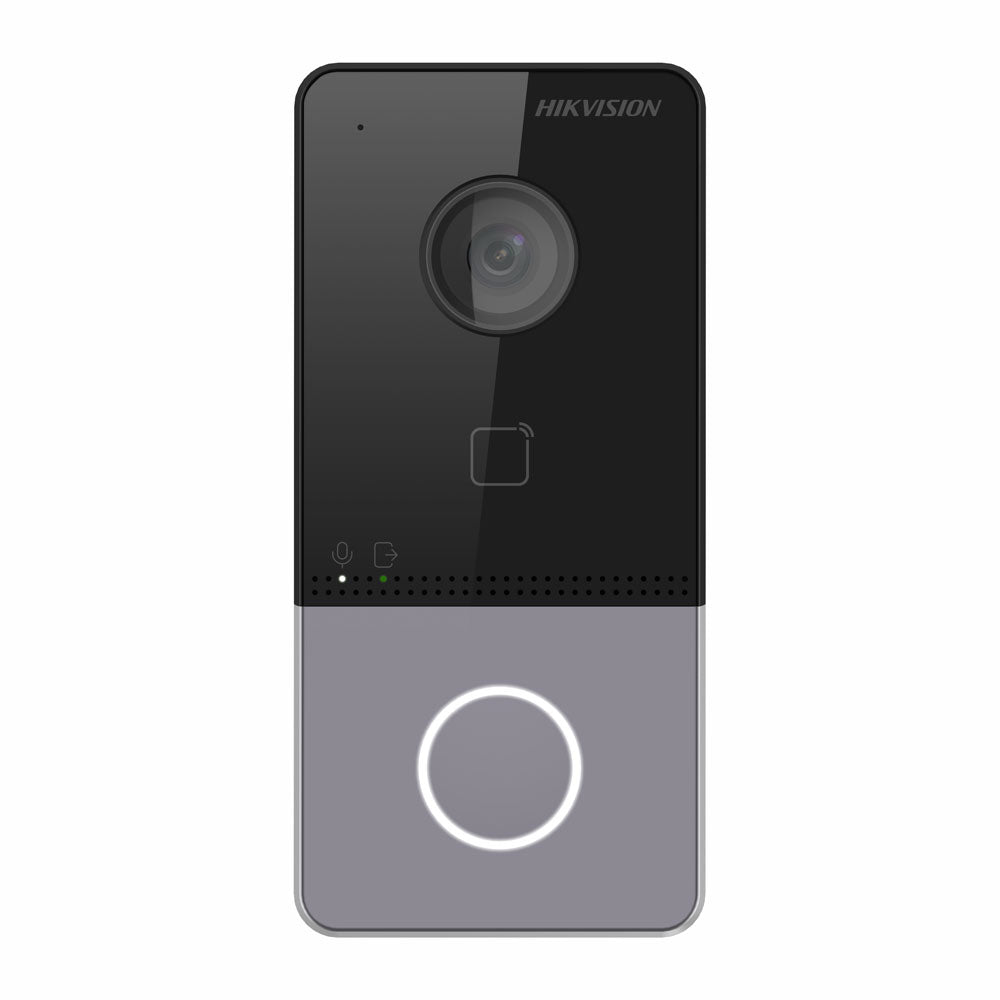

The outdoor door station features a 2MP HD camera with a 131° horizontal viewing angle, True WDR, IR night vision, IP65 weather protection and a built-in MIFARE card reader for secure access control. Full-duplex two-way audio with noise suppression and echo cancellation ensures clear communication, while the integrated relay output allows convenient control of electric door strikes or gate locks.

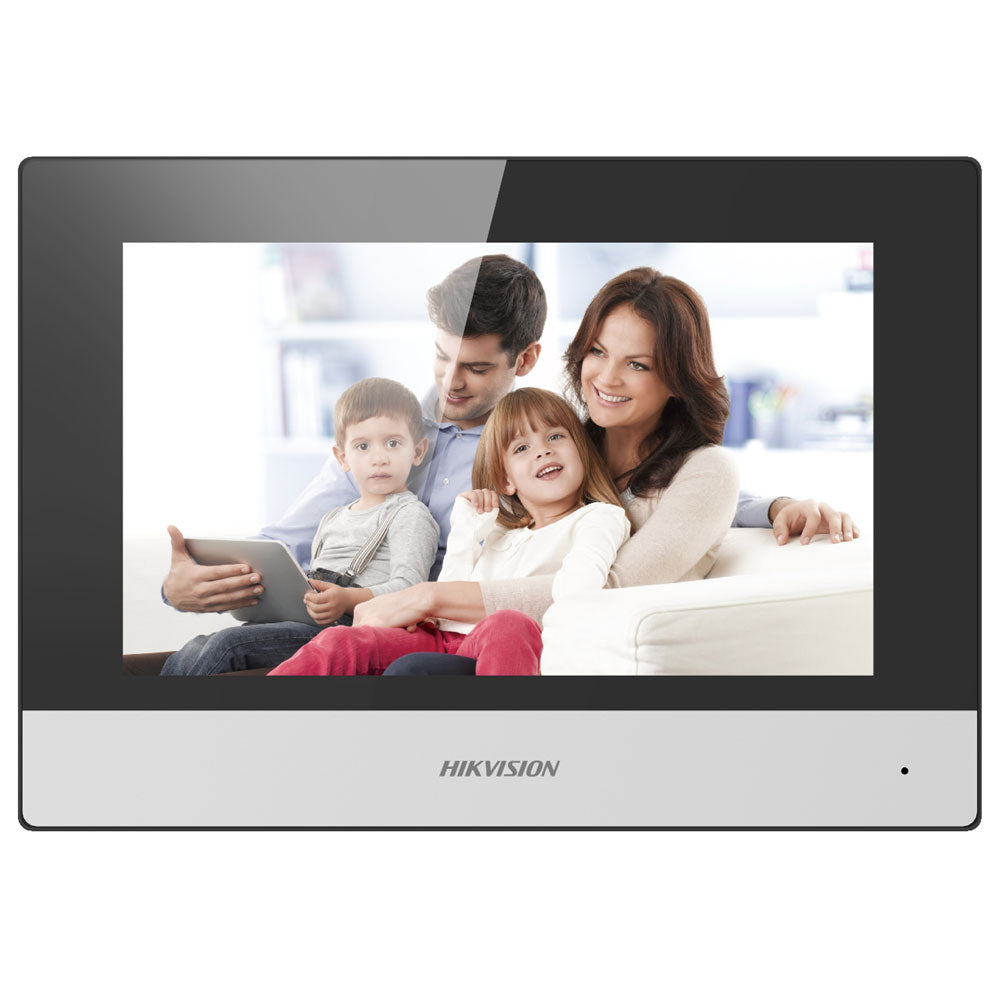

The included 7-inch indoor monitor offers a 1024 × 600 capacitive touch screen with built-in Wi-Fi, hands-free communication and support for viewing compatible Hikvision IP cameras. Through the Hik-Connect App, users receive instant visitor notifications, remotely answer calls, unlock doors and monitor their entrance from virtually anywhere. The monitor also supports TF card storage for visitor snapshots and messages, making it an ideal solution for modern residential and light commercial applications.
Key Features
- Complete Hikvision 2nd Generation IP Video Intercom Kit
- 2MP HD Villa Door Station
- 7-inch Colour TFT Capacitive Touch Screen Indoor Monitor
- Built-in Wi-Fi
- Hik-Connect Remote Access
- Remote Door Unlock Function
- One-Touch Call Button
- Full Duplex Two-Way Audio
- Noise Suppression and Echo Cancellation
- True WDR Technology
- IR Night Vision
- Built-in MIFARE Card Reader
- IP65 Weatherproof Outdoor Station
- Supports Live View of Compatible Hikvision IP Cameras
- TF Card Support for Messages and Snapshots
- PoE or 12V DC Powered
- Surface Mount Installation
- Simple Plug-and-Play Configuration
Specifications
Outdoor Door Station
- Model: DS-KV6113-WPE1(C)
- Camera Resolution: 2MP HD
- Viewing Angle: 131° Horizontal, 78° Vertical
- Video Compression: H.264 / H.265 / MJPEG
- Night Vision: IR Supplement Light (Up to 3 m)
- True WDR
- Motion Detection
- Built-in Omnidirectional Microphone
- Built-in Loudspeaker
- Noise Suppression and Echo Cancellation
- Built-in MIFARE Card Reader
- Network: 10/100 Mbps Ethernet
- Wi-Fi Support
- Relay Output: 1
- Alarm Inputs: 4
- RS-485 Interface
- Tamper Alarm
- Protection Rating: IP65
- Power Supply: IEEE 802.3af PoE or 12V DC
- Power Consumption: <10 W
- Installation: Surface Mount
Indoor Monitor
- Model: DS-KH6320-WTE1
- Display: 7-inch TFT Capacitive Touch Screen
- Resolution: 1024 × 600
- Built-in Wi-Fi (802.11 b/g/n)
- Built-in Microphone and Speaker
- Two-Way Audio
- Alarm Inputs: 8
- Relay Outputs: 2
- TF Card Support: Up to 32GB
- Live View of Compatible Hikvision IP Cameras
- Network: 10/100 Mbps Ethernet
- Operating System: Embedded Linux
- Power Consumption: ≤6W
Kit Includes
- 1 × Hikvision DS-KV6113-WPE1(C) 2MP Villa Door Station
- 1 × Hikvision DS-KH6320-WTE1 7-inch Indoor Touch Monitor
- 2 × Power Adapters
- Wall Mounting Accessories
- Quick Start Guide
Applications
Perfect for:
- Residential Homes
- Villas
- Townhouses
- Apartments
- Offices
- Medical Clinics
- Small Businesses
- Gated Properties
Benefits
- Complete ready-to-install IP video intercom solution
- Crystal-clear 2MP HD video with wide-angle coverage
- Remote answering and door unlocking via Hik-Connect
- High-quality full duplex two-way communication
- Flexible Wi-Fi or Ethernet connectivity
- Weatherproof IP65 outdoor station for Australian conditions
- Secure MIFARE card access control
- View compatible Hikvision CCTV cameras from the indoor monitor
- Reliable visitor management for homes and businesses
The Hikvision 2nd Gen DS-KIS603-P Wi-Fi Video Intercom Kit combines HD video, secure access control and remote smartphone connectivity in a compact, easy-to-install package. Designed for residential and light commercial applications, it delivers professional visitor management with seamless Hik-Connect integration and dependable performance.
