Description
Hikvision 2nd Gen IP DS-KIS602(B) Video Intercom Kit with Surface Mount
The Hikvision 2nd Gen IP DS-KIS602(B) Video Intercom Kit with Surface Mount is a complete IP video intercom solution designed for villas, homes, apartments and small commercial properties. Combining a 2MP HD modular outdoor door station, a 7-inch colour touch-screen indoor monitor, a 4-port PoE switch and a 16GB TF card, this kit delivers professional visitor management with crystal-clear video, two-way audio and convenient remote access via the Hik-Connect App. It is ideal for new installations requiring a reliable and expandable IP intercom system.
The 2nd Generation IP intercom platform provides exceptional image quality with a 2MP camera, 146° wide-angle viewing, IR night vision, WDR, motion detection and IP65 weather protection. The outdoor station also features a built-in omnidirectional microphone, loudspeaker, tamper alarm, dual relay outputs and support for Hikvision modular expansion, making it suitable for secure residential and commercial entrances.
The included 7-inch indoor monitor features a high-resolution capacitive touch screen, built-in Wi-Fi, hands-free communication and remote door unlocking through the Hik-Connect App. Users can answer visitors, monitor live video, store visitor snapshots and messages on the included TF card, and view compatible Hikvision IP cameras directly from the indoor monitor. The included 4-port PoE switch simplifies installation by supplying both power and network connectivity to the system.
Key Features
- Complete Hikvision 2nd Generation IP Video Intercom Kit
- 2MP HD Modular Outdoor Door Station
- Surface Mount Installation
- 7-inch Colour TFT Capacitive Touch Screen Indoor Monitor
- Built-in Wi-Fi
- Hik-Connect Remote Access
- Remote Door Unlock Function
- Full Duplex Two-Way Audio
- Noise Suppression and Echo Cancellation
- 146° Wide-Angle Camera
- IR Night Vision
- Wide Dynamic Range (WDR)
- Motion Detection
- Built-in Tamper Alarm
- IP65 Weatherproof Outdoor Station
- Includes 4-Port Standard PoE Switch
- Includes 16GB TF Card
- Supports Live View of Compatible Hikvision IP Cameras
- Supports Expansion with Hikvision Modular Accessories
- Plug-and-Play Installation
Specifications

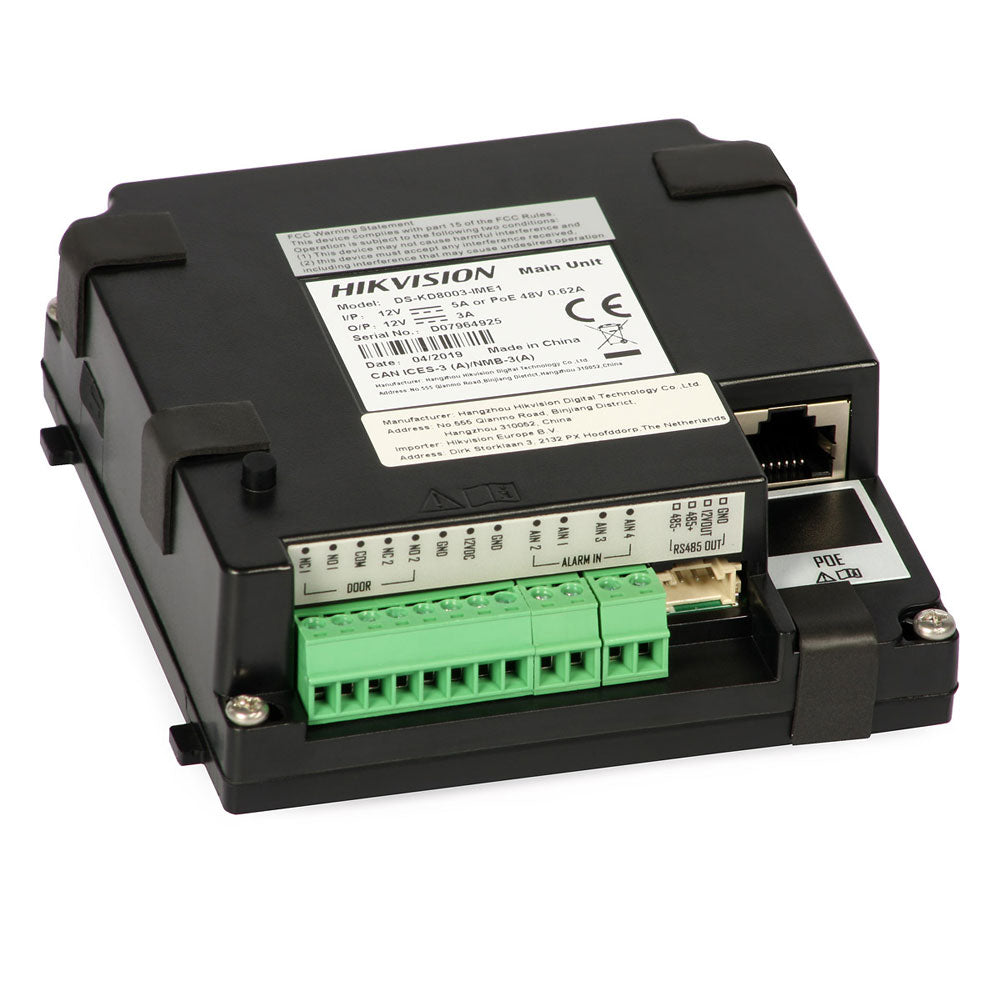

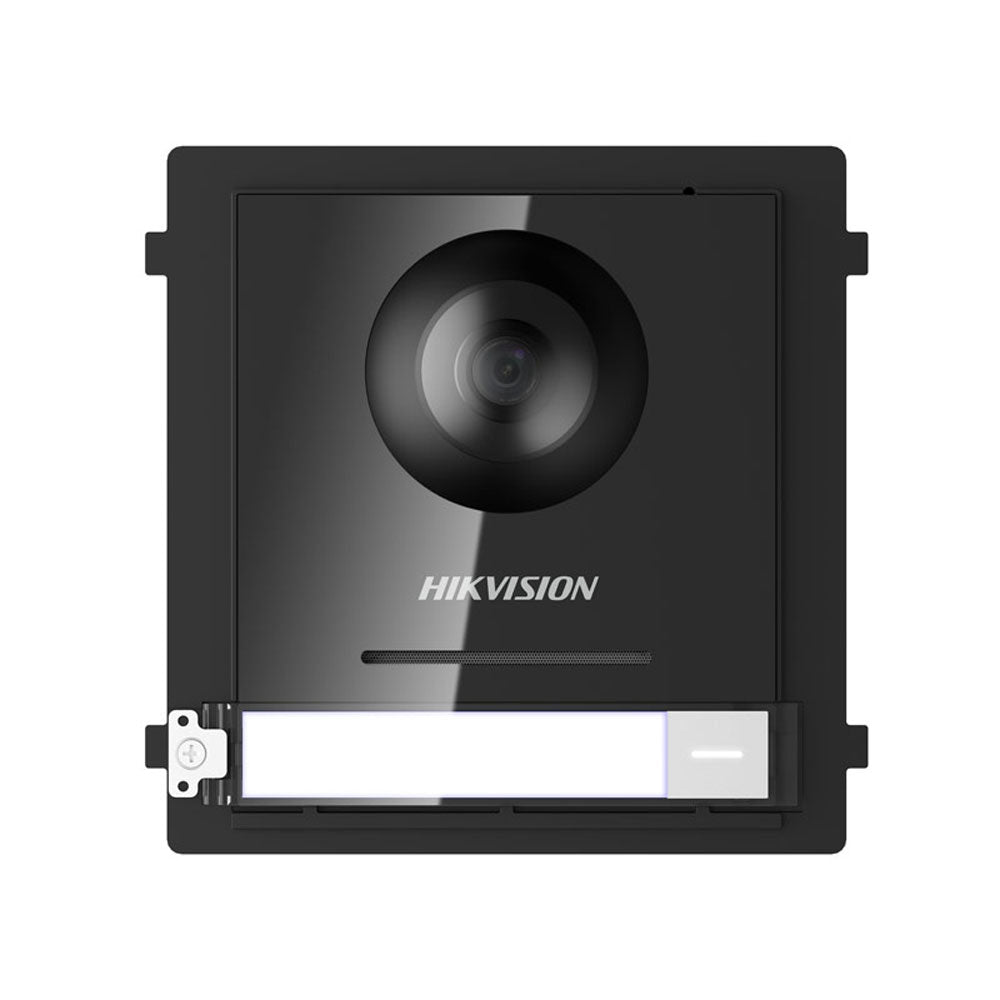

Outdoor Door Station
- Model: DS-KD8003-IME1(B) Surface
- Camera Resolution: 2MP HD
- Viewing Angle: 146° Horizontal, 82° Vertical
- Video Compression: H.264 / H.265 / MJPEG
- Night Vision: IR Supplement Light (Up to 3m)
- WDR and Digital Noise Reduction
- Motion Detection
- Audio: Built-in Omnidirectional Microphone and Speaker
- Audio Compression: G.711U, G.711A, G.726, AAC, OPUS
- Network: 10/100 Mbps Ethernet
- Network Protocols: TCP/IP, RTSP, ONVIF, IPv6
- Relay Outputs: 2
- Alarm Inputs: 4
- RS-485 Interface
- Tamper Alarm
- Protection Rating: IP65

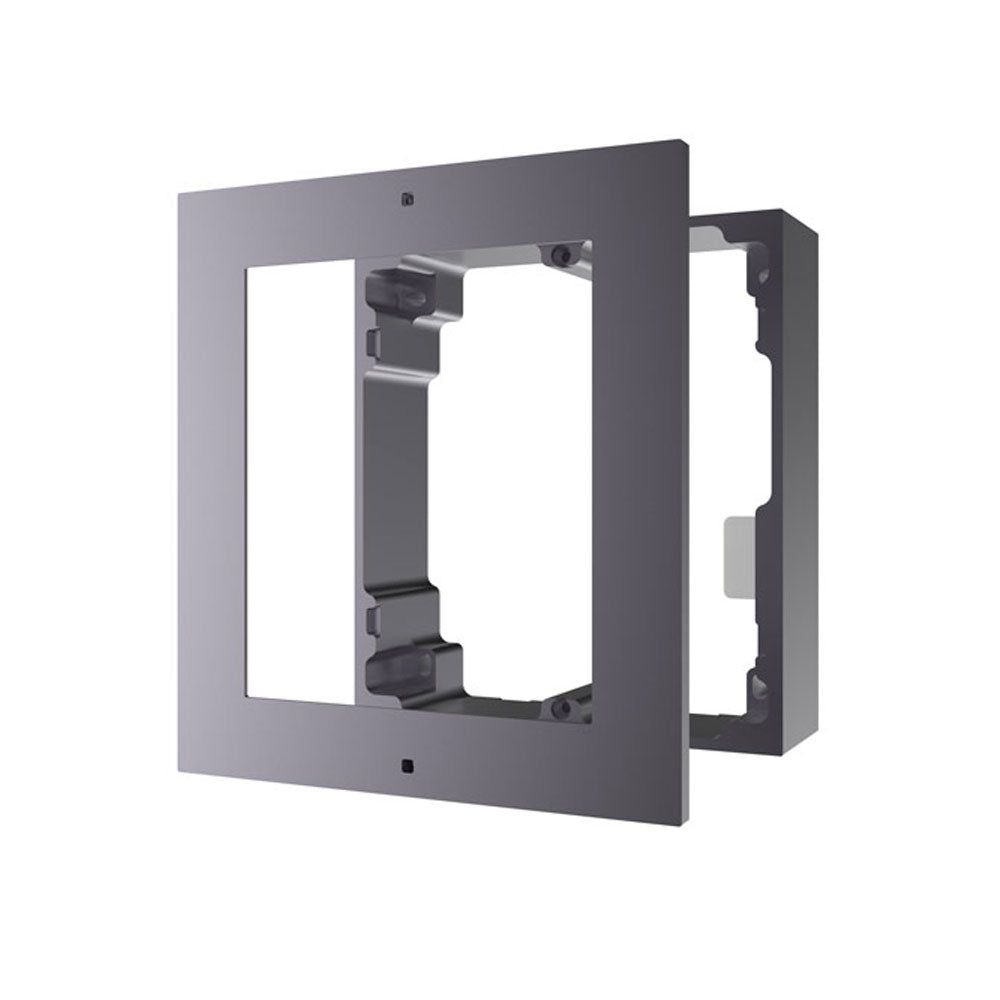

- Mounting: Surface Mount
- Power Supply: IEEE 802.3af PoE or 12V DC
- Operating Temperature: -40°C to +60°C

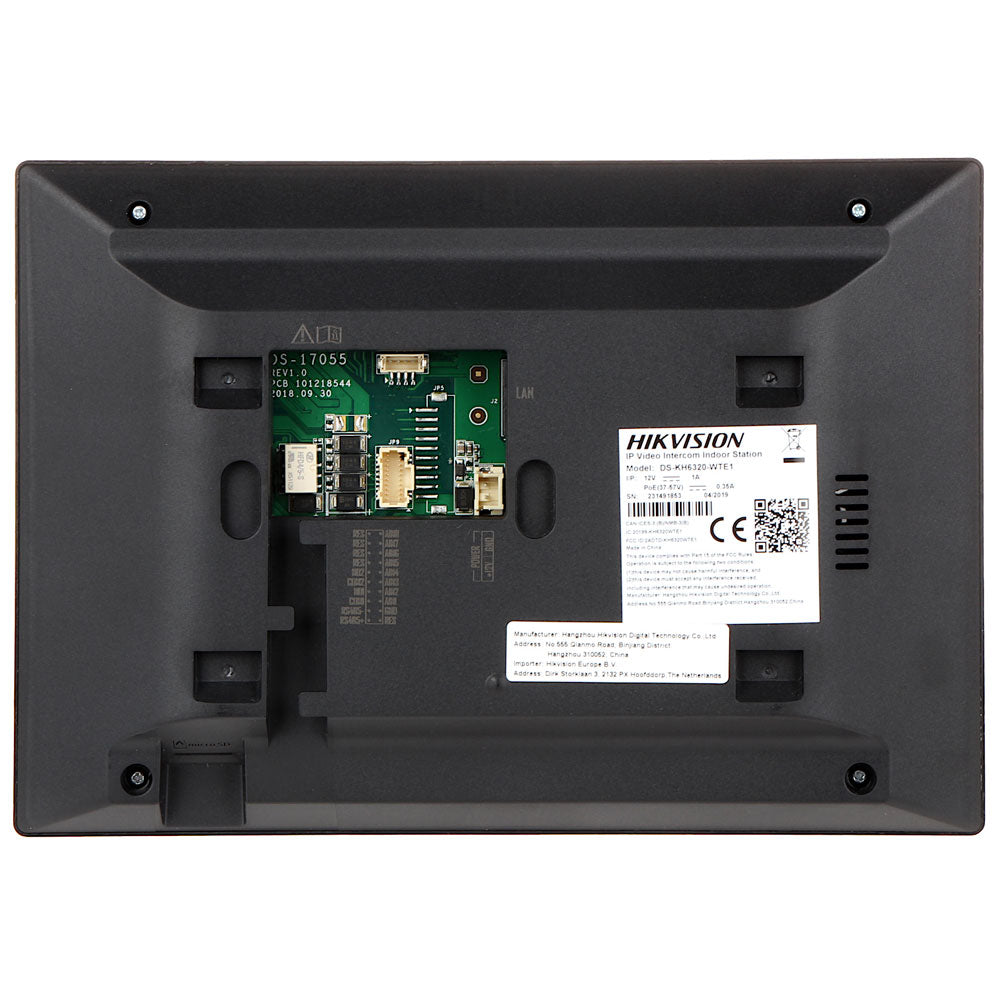

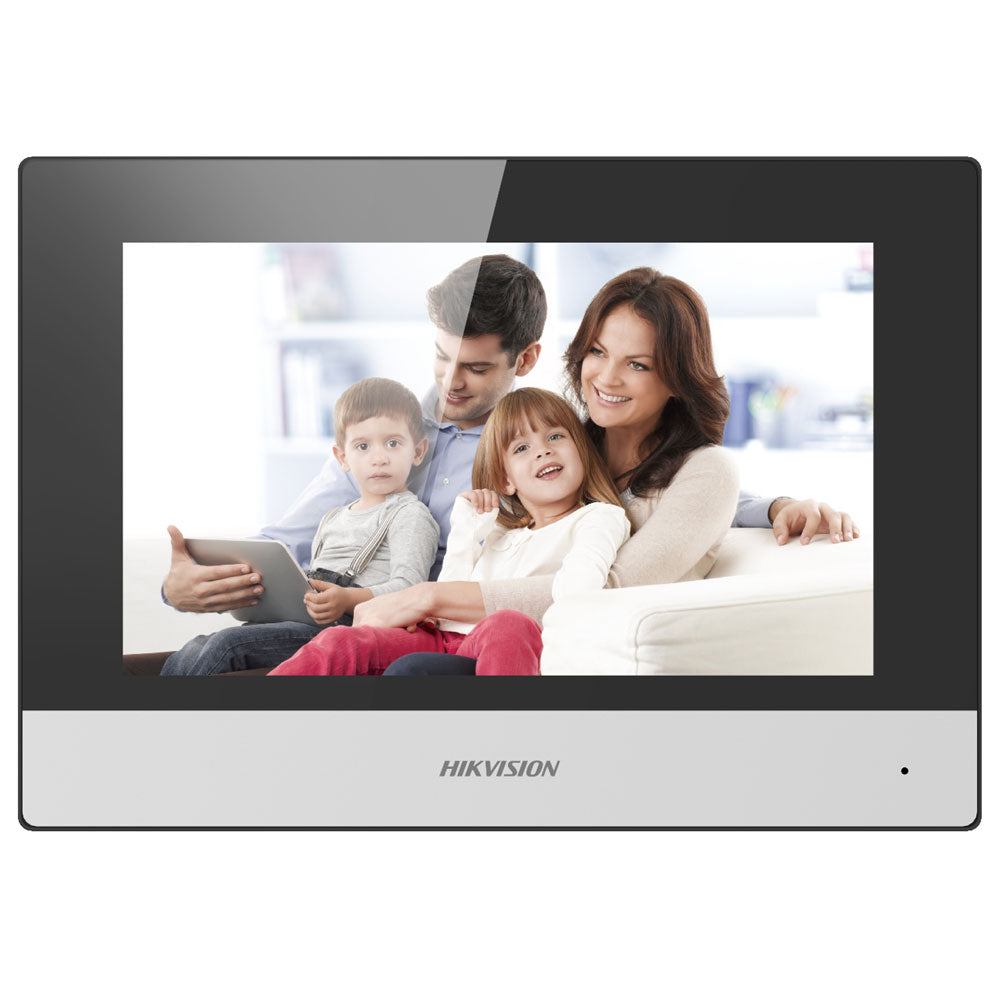

Indoor Monitor
- Model: DS-KH6320-WTE1
- Display: 7-inch TFT Capacitive Touch Screen
- Resolution: 1024 × 600
- Built-in Wi-Fi (802.11 b/g/n)
- Built-in Microphone and Speaker
- Two-Way Audio
- Alarm Inputs: 8
- Relay Outputs: 2
- TF Card Support: Up to 32GB
- Network: 10/100 Mbps Ethernet
- Operating System: Embedded Linux
- Power Consumption: ≤6W
Included Accessories

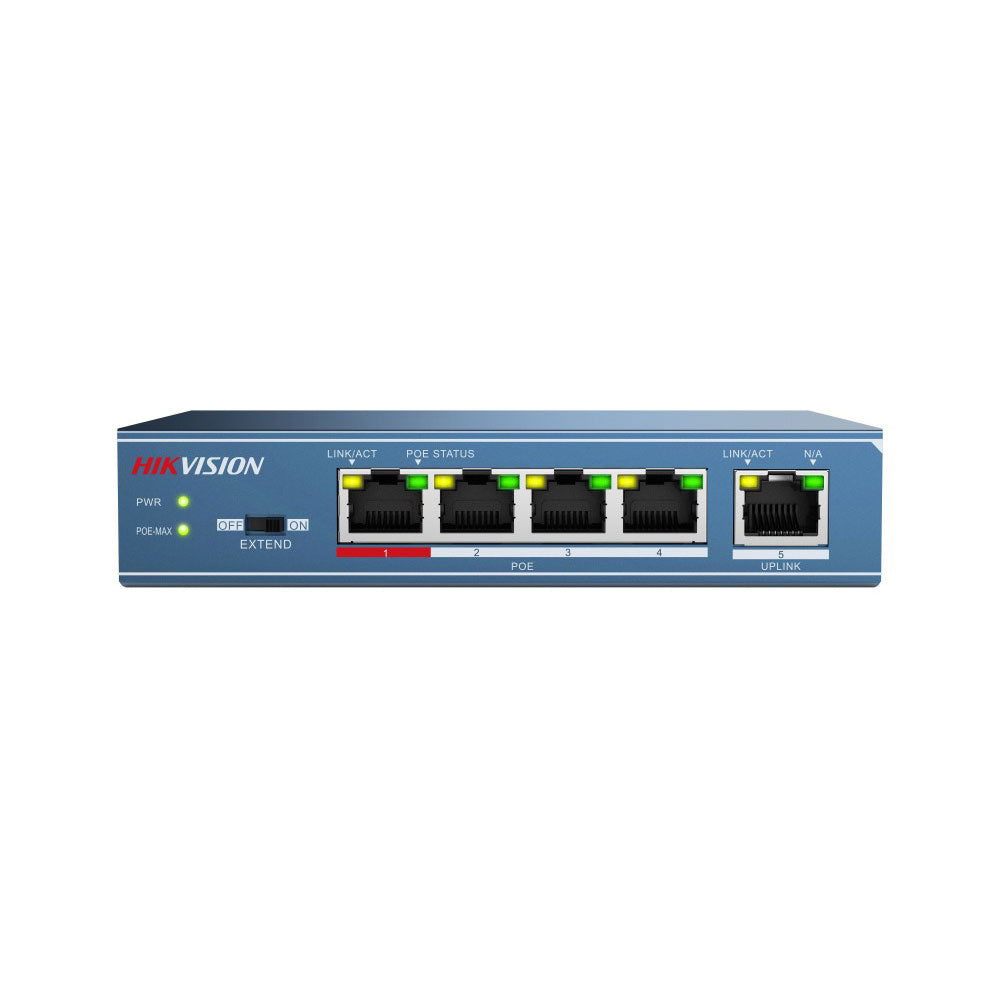

- 4-Port Standard PoE Switch
- 16GB TF Card
- Power Adapter
- Mounting Accessories
- Quick Start Guide

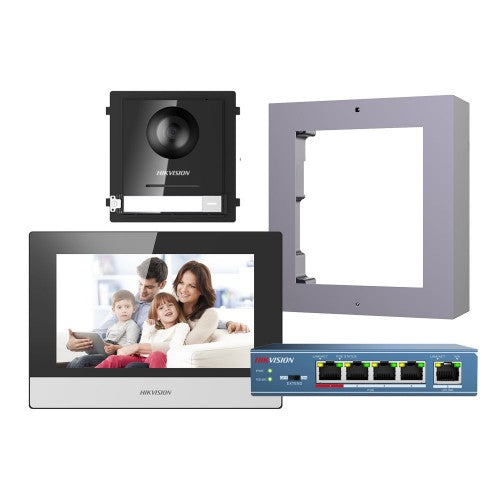

Kit Includes
- 1 × DS-KD8003-IME1(B) Surface Mount Door Station
- 1 × DS-KH6320-WTE1 7-inch Indoor Touch Monitor
- 1 × 4-Port Standard PoE Switch
- 1 × 16GB TF Card
- 1 × Power Adapter
- Installation Accessories
- Quick Start Guide
Applications
Perfect for:
- Residential Homes
- Villas
- Townhouses
- Apartments
- Offices
- Medical Clinics
- Small Businesses
- Gated Communities
Benefits
- Complete ready-to-install IP video intercom solution
- High-definition 2MP video with wide-angle coverage
- Remote answering and door unlocking via Hik-Connect
- Crystal-clear full duplex two-way communication
- Reliable PoE-powered installation
- Built-in Wi-Fi for flexible network connectivity
- Weatherproof IP65 outdoor station for Australian conditions
- Expandable modular design for future upgrades
- View compatible Hikvision CCTV cameras from the indoor monitor
The Hikvision 2nd Gen IP DS-KIS602(B) Video Intercom Kit with Surface Mount delivers a professional and feature-rich visitor management solution for modern homes and businesses. With HD video, intelligent communication, remote smartphone access and seamless integration with compatible Hikvision security products, it provides reliable access control and convenience in a complete, easy-to-install package.
