Description

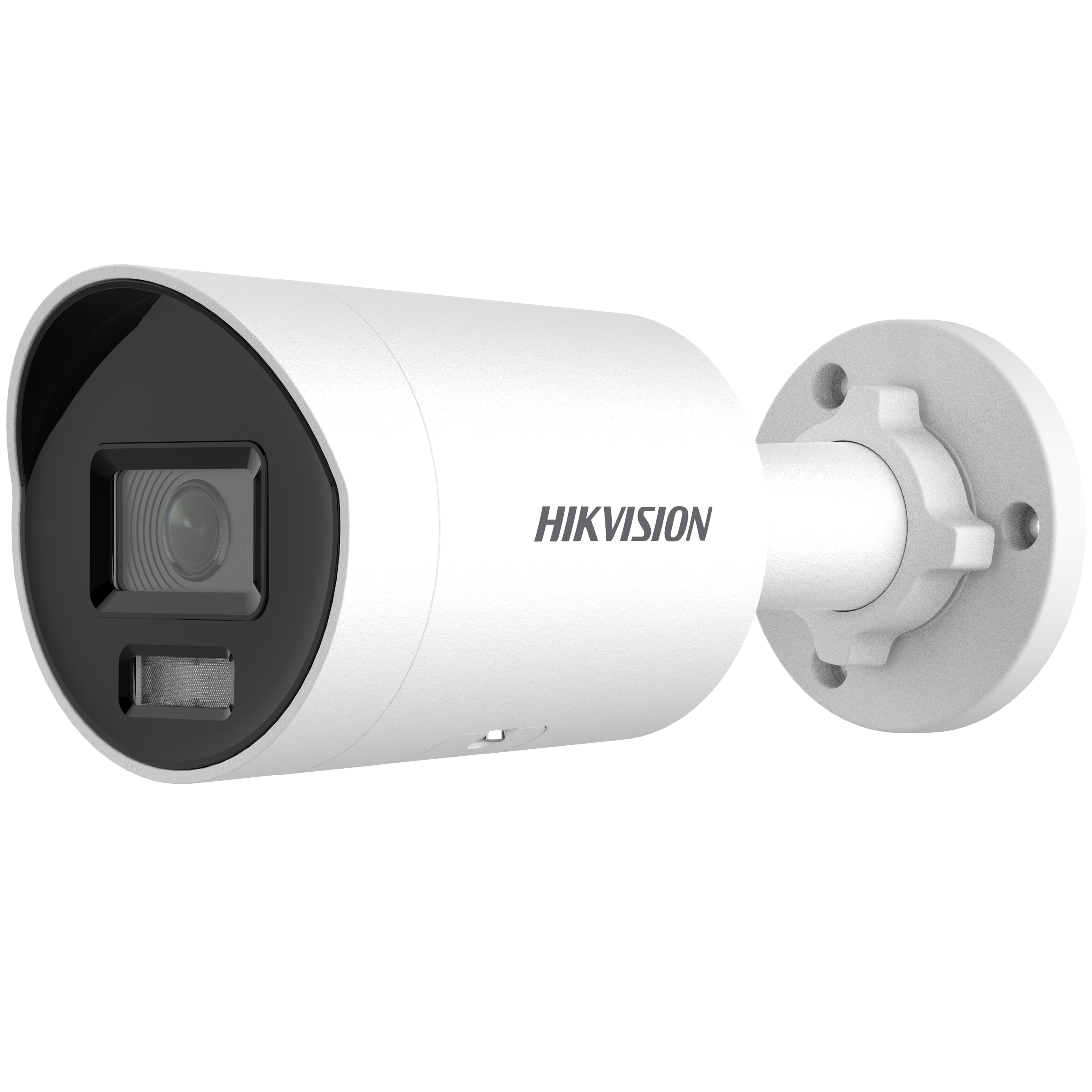

Hikvision DS-2CD2066G2H-IU 6MP AcuSense DarkFighter Fixed Mini Bullet Network Camera with Microphone
The Hikvision DS-2CD2066G2H-IU is a professional 6MP Powered-by-DarkFighter Fixed Mini Bullet Network Camera designed for high-quality residential and commercial CCTV surveillance.
Combining 3200 × 1800 resolution, Powered-by-DarkFighter low-light technology, an ultra-wide F1.0 aperture, 120dB True WDR and deep-learning human and vehicle classification, the DS-2CD2066G2H-IU delivers detailed surveillance footage across challenging daytime and low-light conditions.
The -IU version incorporates a built-in microphone for real-time audio security, while Smart IR night vision up to 40 metres, H.265+ compression, PoE connectivity and IP67 weather protection make it an excellent choice for professional indoor and outdoor CCTV installations.
Key Features
- 6MP High-Resolution Imaging
- Maximum Resolution: 3200 × 1800
- Powered-by-DarkFighter Technology
- Deep-Learning Human & Vehicle Classification
- 1/2.4" Progressive Scan CMOS Sensor
- Ultra-Wide F1.0 Aperture
- Ultra-Low-Light Colour Imaging
- 0.001 Lux Colour Sensitivity
- 120dB True WDR
- Smart IR Night Vision
- Up to 40m IR Range
- Built-In Microphone
- Environmental Noise Filtering
- Motion Detection with Human/Vehicle Classification
- Line Crossing Detection
- Intrusion Detection
- Region Entrance Detection
- Region Exit Detection
- Face Capture
- H.265+ Video Compression
- 2.8mm or 4mm Fixed Lens Options
- Multiple Video Streams
- PoE Connectivity
- Hik-Connect Support
- ONVIF Compatibility
- IP67 Weather Resistance
- Compact Mini Bullet Design
- Indoor & Outdoor Applications
6MP High-Resolution Imaging
The DS-2CD2066G2H-IU captures surveillance footage at a maximum resolution of:
3200 × 1800
For Australian 50Hz systems, the camera supports up to 25fps at full 3200 × 1800 resolution, providing detailed and smooth surveillance footage.
The 6MP resolution provides an excellent balance between image detail, recording storage and network bandwidth.
Higher-resolution footage can assist when reviewing:
- People
- Clothing
- Vehicles
- Driveways
- Entrances
- Property Activity
- Commercial Areas
- Objects
- Security Incidents
Powered-by-DarkFighter Technology
The DS-2CD2066G2H-IU features Hikvision's Powered-by-DarkFighter technology, designed to improve image performance in challenging low-light environments.
The combination of a high-performance 1/2.4-inch Progressive Scan CMOS sensor and ultra-wide F1.0 aperture enables the camera to capture more available light.
Hikvision specifies minimum illumination of:
Colour: 0.001 Lux @ F1.0, AGC ON
B/W: 0 Lux with IR
This makes the camera particularly suitable for areas where ambient lighting may be limited.
Ultra-Wide F1.0 Aperture
The camera incorporates an exceptionally bright F1.0 fixed-aperture lens.
The wide aperture allows more available light to reach the image sensor, supporting better image quality in challenging low-light environments.
Typical applications include:
- Driveways
- Car Parks
- Building Entrances
- Warehouses
- Side Access
- Commercial Properties
- Property Perimeters
- Low-Light Outdoor Areas
Deep-Learning Human & Vehicle Classification
The DS-2CD2066G2H-IU uses deep-learning technology to distinguish between human and vehicle targets during supported security events.
Rather than treating all movement within the scene as equally important, the camera can focus supported event detection on:
- Humans
- Vehicles
This can help reduce unnecessary security events caused by irrelevant movement such as:
- Animals
- Leaves
- Rain
- Shadows
- Changing Lighting
- Other Non-Target Movement
Intelligent Motion Detection
Human and vehicle target classification can be used with compatible motion detection functions to provide more meaningful security events.
When correctly configured with a compatible Hikvision NVR or surveillance platform, this can help improve:
- Event Accuracy
- Security Notifications
- Recorded Event Searching
- CCTV Monitoring Efficiency
Intelligent Perimeter Protection
The DS-2CD2066G2H-IU supports intelligent security functions including:
- Line Crossing Detection
- Intrusion Detection
- Region Entrance Detection
- Region Exit Detection
Supported events can classify specified human and vehicle targets.
This allows professional installers to create intelligent monitoring rules around:
- Driveways
- Gates
- Property Boundaries
- Side Access
- Restricted Areas
- Car Parks
- Loading Areas
- Building Entrances
Face Capture
The camera supports face capture functionality.
Face capture should not be confused with facial recognition. Face capture allows the camera to capture facial images, while facial recognition and database matching depend on compatible back-end equipment and system configuration.
120dB True Wide Dynamic Range
The DS-2CD2066G2H-IU features 120dB True WDR, helping maintain usable image detail where bright and dark areas appear simultaneously within the same scene.
This is particularly useful around:
- Building Entrances
- Garage Entrances
- Covered Driveways
- Shopfronts
- Loading Areas
- Areas Facing Bright Daylight
- High-Contrast Indoor/Outdoor Scenes
Smart IR Night Vision – Up to 40m
The DS-2CD2066G2H-IU incorporates 850nm infrared supplementary lighting with a specified range of up to 40 metres.
This provides greater IR reach than many standard fixed turret cameras and makes the mini bullet particularly suitable for monitoring longer outdoor areas.
Smart Supplement Light technology helps optimise IR illumination according to the monitored scene.
Typical applications include:
- Long Driveways
- Side Access
- Building Perimeters
- Car Parks
- Warehouses
- Loading Areas
- Commercial Properties
- Outdoor Access Routes
Built-In Microphone
The -IU version includes a built-in microphone for real-time audio security.
This allows compatible Hikvision recording systems to capture audio together with surveillance footage, providing additional context when reviewing security incidents.
Integrated audio can be useful around:
- Building Entrances
- Driveways
- Warehouses
- Retail Premises
- Offices
- Workshops
- Commercial Properties
Audio recording should always be configured and used in accordance with applicable privacy and surveillance requirements.
2.8mm & 4mm Fixed Lens Options
The DS-2CD2066G2H-IU is available with 2.8mm and 4mm fixed lens options.
2.8mm Lens
Approximate field of view:
- Horizontal: 114.8°
- Vertical: 60°
- Diagonal: 143.5°
The 2.8mm lens is generally suitable for wider surveillance areas such as:
- Driveways
- Front Yards
- Entrances
- General Outdoor Areas
- Wide Indoor Areas
4mm Lens
Approximate field of view:
- Horizontal: 94°
- Vertical: 50.2°
- Diagonal: 112°
The 4mm lens provides a narrower field of view for more concentrated surveillance areas.
DORI Distance
Hikvision specifies approximate DORI performance as follows:
2.8mm Lens
- Detect: 64m
- Observe: 25m
- Recognise: 12m
- Identify: 6m
4mm Lens
- Detect: 77m
- Observe: 30m
- Recognise: 15m
- Identify: 7m
Actual performance depends on camera position, installation height, lighting, target movement and environmental conditions.
H.265+ Video Compression
The camera supports Hikvision's efficient H.265+ video compression technology, helping reduce network bandwidth and recording storage requirements.
Supported compression includes:
- H.265+
- H.265
- H.264+
- H.264
- MJPEG on supported streams
The main video stream supports a configurable bit rate from 32 Kbps to 16 Mbps.
Multiple Video Streams
The DS-2CD2066G2H-IU supports multiple video streams for different recording and viewing requirements.
These can be used for:
- High-Resolution NVR Recording
- Remote Viewing
- Mobile Viewing
- Secondary Monitoring
- Bandwidth Management
A third stream is supported under certain camera settings.
Hik-Connect Remote Access
When connected to a compatible Hikvision system and correctly configured, the DS-2CD2066G2H-IU can form part of a remote surveillance system using Hik-Connect.
Depending on the complete system configuration, users can access functions such as:
- Live Viewing
- Recorded Playback
- Event Monitoring
- Security Notifications
- Audio Monitoring
PoE Network Connectivity
Power over Ethernet allows both network data and operating power to be delivered over a single Ethernet cable when connected to compatible PoE equipment.
This simplifies professional installation and makes the camera suitable for connection to:
- Hikvision PoE NVRs
- PoE Network Switches
- Professional IP CCTV Networks
IP67 Weather Resistance
The DS-2CD2066G2H-IU carries an IP67 water and dust resistance rating, making it suitable for properly installed outdoor CCTV applications.
Typical locations include:
- Driveways
- Building Entrances
- Car Parks
- Warehouses
- Loading Areas
- Commercial Buildings
- Side Access
- Property Perimeters
Compact Mini Bullet Design
The compact mini bullet form factor provides a professional and clearly visible CCTV presence without requiring the larger housing of a traditional full-size bullet camera.
The adjustable mounting design allows:
- Pan: 0° to 360°
- Tilt: 0° to 90°
- Rotation: 0° to 360°
This provides flexibility when positioning the camera for walls, ceilings and other suitable mounting surfaces.
Main Specifications
- Model: DS-2CD2066G2H-IU
- Camera Type: Fixed Mini Bullet Network Camera
- Resolution: 6MP
- Maximum Resolution: 3200 × 1800
- Maximum Frame Rate: 25fps @ 3200 × 1800 (50Hz)
- Image Sensor: 1/2.4" Progressive Scan CMOS
- Technology: Powered-by-DarkFighter
- Minimum Colour Illumination: 0.001 Lux @ F1.0, AGC ON
- B/W Illumination: 0 Lux with IR
- Lens Options: 2.8mm / 4mm Fixed
- Aperture: F1.0
- 2.8mm Horizontal FOV: 114.8°
- 4mm Horizontal FOV: 94°
- WDR: 120dB True WDR
- IR Range: Up to 40m
- IR Wavelength: 850nm
- Smart Supplement Light: Yes
- Human Classification: Yes
- Vehicle Classification: Yes
- Line Crossing: Yes
- Intrusion Detection: Yes
- Region Entrance Detection: Yes
- Region Exit Detection: Yes
- Face Capture: Yes
- Built-In Microphone: Yes
- Environmental Noise Filtering: Yes
- Video Compression: H.265+ / H.265 / H.264+ / H.264
- Video Bit Rate: 32 Kbps to 16 Mbps
- Multiple Streams: Yes
- Network: RJ45 Ethernet
- Hik-Connect: Supported
- PoE: Supported
- Weather Protection: IP67
- Adjustment: Pan 360° / Tilt 90° / Rotation 360°
- Application: Indoor & Outdoor
Ideal For
- Residential Homes
- Long Driveways
- Front Yards
- Side Access
- Apartment Buildings
- Retail Stores
- Offices
- Warehouses
- Workshops
- Car Parks
- Building Entrances
- Loading Areas
- Commercial Properties
- Property Perimeters
- Low-Light CCTV Applications
- Professional Indoor & Outdoor CCTV Systems
Benefits
- High-detail 6MP surveillance
- Powered-by-DarkFighter technology
- Ultra-bright F1.0 aperture
- Excellent 0.001 Lux colour sensitivity
- Deep-learning human and vehicle classification
- Intelligent perimeter protection
- Face capture
- 120dB True WDR
- Extended 40m Smart IR night vision
- Built-in microphone
- Environmental noise filtering
- H.265+ compression
- Multiple video streams
- Hik-Connect support
- PoE connectivity
- IP67 weather resistance
- Compact professional mini bullet design
The Hikvision DS-2CD2066G2H-IU 6MP Powered-by-DarkFighter Fixed Mini Bullet Network Camera provides an excellent combination of high-resolution surveillance, strong low-light performance and intelligent human and vehicle classification.
With 6MP resolution, Powered-by-DarkFighter technology, F1.0 aperture, 0.001 Lux colour sensitivity, deep-learning analytics, 120dB True WDR, built-in microphone and extended Smart IR night vision up to 40 metres, it is particularly well suited to professional residential and commercial CCTV installations requiring a compact bullet camera with excellent night-time coverage.
- High quality imaging with 6 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle classification based on deep learning
- -U: Built-in microphone for real-time audio security
-
Water and dust resistant (IP67)
