Key Features

• 6MP High-Resolution Imaging
• Maximum Resolution: 3200 × 1800
• Hikvision ColorVu 3.0 Technology
• HikAI-ISP Advanced Image Processing
• Large 1/1.8" Progressive Scan CMOS Sensor
• Ultra-Wide F1.0 Aperture
• Ultra-Low 0.0005 Lux Colour Sensitivity
• 24/7 Colour Imaging
• Smart Hybrid Light
• Integrated IR & White Supplementary Lighting
• Up to 40m Supplement Light Range
• Three Supplementary Lighting Modes
• 130dB Scene-Adaptive WDR
• Deep-Learning Human & Vehicle Classification
• Intelligent Perimeter Protection
• Arrayed Dual Built-In Microphones
• Smart PA Speaker
• Real-Time Two-Way Audio
• Active Strobe Light
• Built-In Audible Warning
• H.265+ Video Compression
• 2.8mm or 4mm Fixed Lens Options
• Multiple Video Streams
• Hik-Connect Support
• PoE Connectivity
• IP67 Weather Resistance
• NEMA 4X Anti-Corrosion Design
• Compact Mini Bullet Design
• Indoor & Outdoor Applications

6MP High-Resolution Imaging

The DS-2CD2067G3-LI2UY/SL captures surveillance footage at a maximum resolution of:

3200 × 1800

For Australian 50Hz systems, the camera supports up to 25fps at full 3200 × 1800 resolution, providing smooth and highly detailed surveillance footage.

The 6MP resolution provides an excellent balance between image detail, bandwidth and recording storage requirements.

High-resolution footage can assist when reviewing:

• People
• Clothing
• Vehicles
• Driveways
• Building Entrances
• Property Activity
• Commercial Areas
• Objects
• Security Incidents

ColorVu 3.0 Technology

The DS-2CD2067G3-LI2UY/SL incorporates Hikvision's advanced ColorVu 3.0 technology.

ColorVu technology combines an advanced high-performance sensor, ultra-wide F1.0 optics, intelligent image processing and supplementary lighting to maximise available light and retain valuable colour information.

Colour surveillance can provide additional evidence that may be lost in conventional monochrome night footage, including:

• Clothing Colour
• Vehicle Colour
• Object Colour
• Property Features
• Environmental Details

This makes ColorVu particularly valuable where accurate visual evidence is important.

HikAI-ISP Advanced Image Processing

A major advancement of Hikvision's G3 ColorVu generation is HikAI-ISP.

HikAI-ISP uses advanced intelligent image processing to deliver excellent noise reduction and improved image quality under difficult lighting conditions.

This helps produce cleaner and more usable surveillance footage where conventional cameras may experience:

• Excessive Image Noise
• Motion Blur
• Reduced Detail
• Poor Low-Light Definition

The combination of ColorVu 3.0 + HikAI-ISP + F1.0 optics provides exceptional low-light surveillance performance.

Large 1/1.8" Image Sensor

The DS-2CD2067G3-LI2UY/SL incorporates a large 1/1.8-inch Progressive Scan CMOS sensor.

Combined with the ultra-wide F1.0 lens, the sensor maximises available light and supports outstanding image performance in challenging low-light environments.

This makes the camera particularly suitable for:

• Long Driveways
• Car Parks
• Building Entrances
• Warehouses
• Side Access
• Commercial Properties
• Property Perimeters
• Low-Light Outdoor Areas

Ultra-Wide F1.0 Aperture

The camera incorporates an ultra-wide F1.0 aperture, allowing significantly more available light to reach the image sensor.

Hikvision specifies minimum illumination of:

Colour: 0.0005 Lux @ F1.0, AGC ON

0 Lux with supplementary light

The combination of the large 1/1.8" sensor and F1.0 optics is fundamental to the camera's exceptional ColorVu low-light performance.

Smart Hybrid Light

The DS-2CD2067G3-LI2UY/SL incorporates Hikvision Smart Hybrid Light, combining:

• 850nm Infrared Light
• Visible White Light

within one intelligent supplementary lighting system.

Three supplementary lighting modes provide flexibility according to the security requirements of the installation.

This enables the system to balance discreet infrared surveillance with full-colour visible-light imaging and active deterrence.

Up to 40m Smart Hybrid Light

A major advantage of this mini bullet design is its extended supplementary lighting range.

The DS-2CD2067G3-LI2UY/SL provides IR and white supplementary lighting up to 40 metres.

This makes it particularly suitable for longer surveillance areas such as:

• Long Driveways
• Side Access
• Property Boundaries
• Car Parks
• Loading Areas
• Warehouses
• Commercial Properties
• Building Perimeters

Three Supplementary Lighting Modes

Smart Hybrid Light provides three operating approaches to suit different applications.

The camera can use infrared lighting for discreet night monitoring or visible white light where colour information is required.

In intelligent applications, the system can be configured to take advantage of both technologies according to security events and scene requirements.

This provides substantially more flexibility than conventional IR-only cameras.

24/7 Colour Surveillance

ColorVu technology is designed to maximise colour information around the clock.

Retaining colour can provide additional evidence when identifying:

• Vehicle Colour
• Clothing Colour
• Object Colour
• Property Details
• People & Vehicle Activity

Where ambient light is insufficient, the camera's integrated white supplementary lighting can assist with full-colour imaging.

130dB Scene-Adaptive WDR

The DS-2CD2067G3-LI2UY/SL features 130dB scene-adaptive Wide Dynamic Range.

This helps the camera maintain useful detail where extremely bright and dark areas appear simultaneously within the same scene.

Typical applications include:

• Building Entrances
• Garage Entrances
• Shopfronts
• Covered Driveways
• Loading Areas
• Areas Facing Bright Daylight
• High-Contrast Indoor/Outdoor Scenes

Scene-adaptive image processing helps optimise performance according to the actual surveillance environment.

Deep-Learning Human & Vehicle Classification

The camera incorporates deep-learning technology to focus supported security events on:

• Humans
• Vehicles

This can help reduce unnecessary event triggers caused by irrelevant environmental movement such as:

• Animals
• Leaves
• Rain
• Shadows
• Changing Lighting
• Other Non-Target Movement

Human and vehicle classification can provide more relevant security notifications and improve event searching when used with a compatible Hikvision surveillance system.

Intelligent Perimeter Protection

Deep-learning target classification can be used with supported intelligent security events to monitor important areas such as:

• Driveways
• Gates
• Property Boundaries
• Side Access
• Restricted Areas
• Car Parks
• Loading Zones
• Building Entrances

This provides a more intelligent security solution than conventional motion-only detection.

Active Strobe Light

The DS-2CD2067G3-LI2UY/SL incorporates an active strobe light for proactive security deterrence.

When a configured security event occurs, the camera can activate a visual warning to alert people that the area is being actively monitored.

This can be particularly useful around:

• Driveways
• Front Yards
• Warehouses
• Restricted Areas
• Car Parks
• Commercial Properties
• Loading Areas
• Building Perimeters

Built-In Audible Warning

The camera also provides an integrated audio alarm.

When appropriately configured, supported security events can trigger an audible warning to provide an immediate response.

The combination of:

AI Detection + Strobe Warning + Audible Warning

allows the camera to proactively respond to selected security events rather than simply recording them.

Real-Time Two-Way Audio

The DS-2CD2067G3-LI2UY/SL provides built-in real-time two-way audio.

This enables compatible users to listen and communicate through the camera when the system is correctly configured.

Potential applications include communicating with:

• Visitors
• Delivery Drivers
• Staff
• Contractors
• People Entering Restricted Areas
• Persons Detected Around a Property

Arrayed Dual Built-In Microphones

The camera incorporates an arrayed dual-microphone system designed for high-quality real-time audio security.

The dual microphones provide integrated audio capture without requiring a separate external microphone for standard surveillance applications.

Audio can provide valuable additional context when reviewing events around:

• Entrances
• Driveways
• Warehouses
• Retail Premises
• Offices
• Commercial Buildings

Audio recording should always be configured and used in accordance with applicable privacy and surveillance requirements.

Smart PA Speaker

The /SL model incorporates Hikvision's Smart PA speaker, providing powerful integrated audio functionality for both communication and proactive deterrence.

The speaker supports:

• Real-Time Two-Way Communication
• Audible Security Warnings
• Active Deterrence
• Remote Voice Communication

Combined with the arrayed dual microphones, the camera provides a complete onboard audio security solution.

2.8mm & 4mm Fixed Lens Options

The DS-2CD2067G3-LI2UY/SL is available with 2.8mm and 4mm fixed lens options.

2.8mm Lens

Approximate field of view:

• Horizontal: 108.8°
• Vertical: 56.4°
• Diagonal: 134.3°

The 2.8mm lens is generally ideal for wider surveillance areas such as:

• Driveways
• Front Yards
• Entrances
• General Outdoor Areas
• Wide Indoor Areas

4mm Lens

Approximate field of view:

• Horizontal: 93.3°
• Vertical: 47.2°
• Diagonal: 114.2°

The 4mm lens provides a narrower view for more concentrated target areas.

DORI Distance

Hikvision specifies approximate DORI performance of:

2.8mm Lens

• Detect: 89m
• Observe: 35m
• Recognise: 17m
• Identify: 8m

4mm Lens

• Detect: 109m
• Observe: 43m
• Recognise: 21m
• Identify: 10m

Actual performance depends on installation height, camera angle, lighting, target movement and environmental conditions.

H.265+ Video Compression

The camera supports Hikvision's efficient H.265+ video compression technology, helping reduce network bandwidth and recording storage requirements.

Supported compression includes:

• H.265+
• H.265
• H.264+
• H.264
• MJPEG on supported streams

Video bit rate is configurable from 32 Kbps to 16 Mbps.

Multiple Video Streams

The DS-2CD2067G3-LI2UY/SL supports multiple video streams, allowing different settings to be used for:

• High-Resolution NVR Recording
• Remote Viewing
• Mobile Viewing
• Secondary Monitoring
• Bandwidth Management

A third stream is available under supported configurations.

Hik-Connect Remote Access

When connected to a compatible Hikvision system and correctly configured, the camera can form part of a remote surveillance solution through Hik-Connect.

Depending on system configuration, remote functions can include:

• Live Viewing
• Recorded Playback
• Event Monitoring
• Security Notifications
• Audio Monitoring
• Two-Way Communication

PoE Network Connectivity

Power over Ethernet allows both network data and operating power to be delivered through a single Ethernet cable when connected to compatible PoE equipment.

This simplifies professional installation with:

• Hikvision PoE NVRs
• PoE Network Switches
• Professional IP CCTV Networks

IP67 Weather Resistance

The DS-2CD2067G3-LI2UY/SL carries an IP67 water and dust resistance rating, making it suitable for properly installed outdoor CCTV applications.

Typical locations include:

• Driveways
• Building Entrances
• Car Parks
• Warehouses
• Loading Areas
• Commercial Buildings
• Side Access
• Property Perimeters

NEMA 4X Anti-Corrosion Design

The camera incorporates an anti-corrosion design rated to NEMA 4X, providing improved reliability and longevity compared with standard camera construction in demanding environments.

This is particularly beneficial for professional outdoor installations subject to ongoing environmental exposure.

Flexible Mini Bullet Adjustment

The camera provides flexible physical adjustment for professional installation:

• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°

This allows the mini bullet to be accurately positioned for the required surveillance area.

Main Specifications

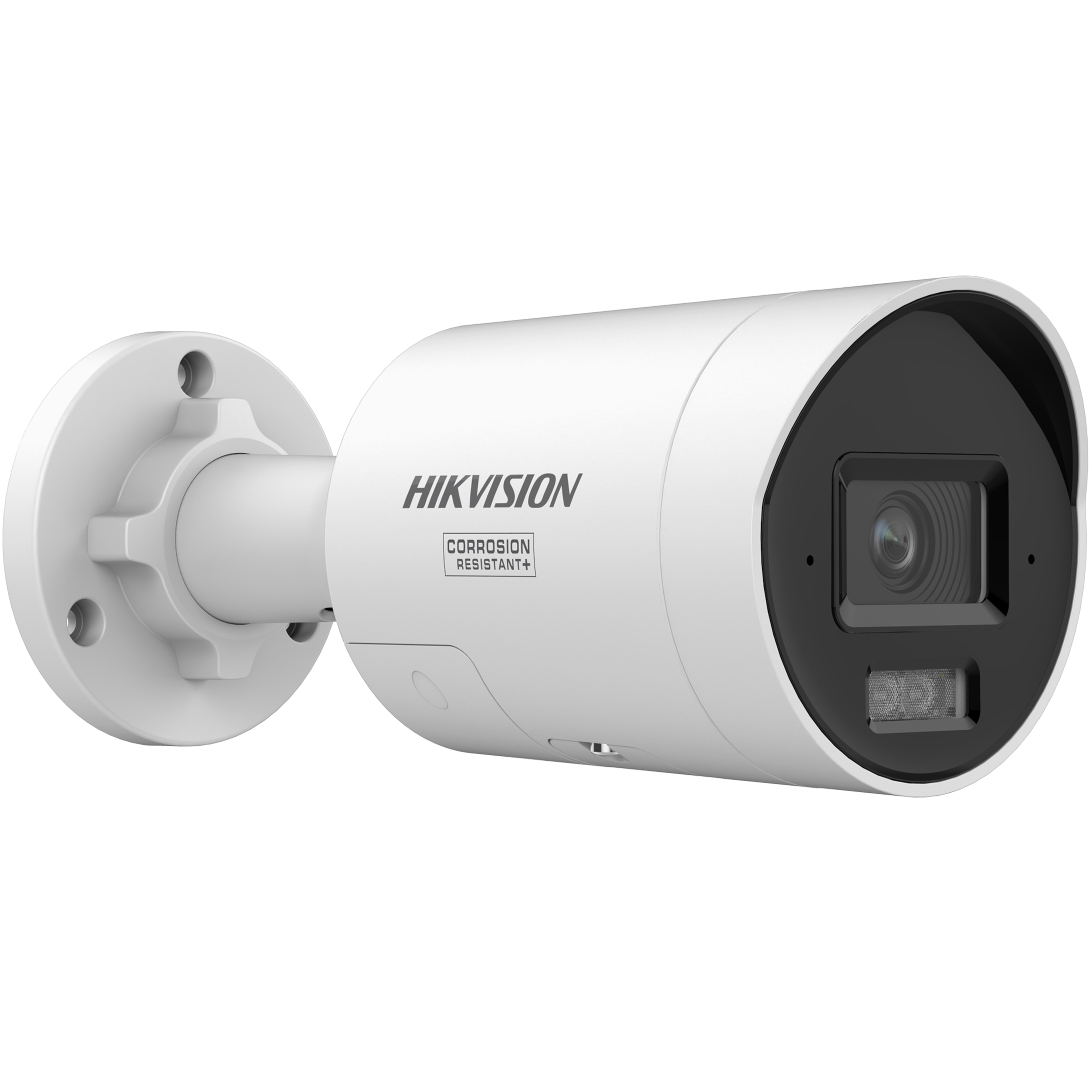

• Model: DS-2CD2067G3-LI2UY/SL
• Camera Type: Smart Hybrid Light Fixed Mini Bullet Network Camera
• Technology: ColorVu 3.0
• Resolution: 6MP
• Maximum Resolution: 3200 × 1800
• Maximum Frame Rate: 25fps @ 3200 × 1800 (50Hz)
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Image Processing: HikAI-ISP
• Minimum Colour Illumination: 0.0005 Lux @ F1.0, AGC ON
• Lens Options: 2.8mm / 4mm Fixed
• Aperture: F1.0
• 2.8mm Horizontal FOV: 108.8°
• 4mm Horizontal FOV: 93.3°
• Smart Hybrid Light: Yes
• Supplement Light: IR + White Light
• Supplement Light Range: Up to 40m
• IR Wavelength: 850nm
• WDR: 130dB Scene-Adaptive WDR
• Human Classification: Yes
• Vehicle Classification: Yes
• Deep Learning: Yes
• Built-In Microphones: Arrayed Dual Microphones
• Built-In Speaker: Smart PA Speaker
• Two-Way Audio: Yes
• Active Deterrence: Yes
• Strobe Warning: Yes
• Audio Warning: Yes
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• Multiple Streams: Yes
• Network: Ethernet
• PoE: Supported
• Hik-Connect: Supported
• Weather Protection: IP67
• Anti-Corrosion: NEMA 4X
• Adjustment: Pan 360° / Tilt 90° / Rotation 360°
• Application: Indoor & Outdoor

Ideal For

• Residential Homes
• Long Driveways
• Front Yards
• Side Access
• Apartment Buildings
• Retail Stores
• Offices
• Warehouses
• Workshops
• Car Parks
• Building Entrances
• Loading Areas
• Commercial Properties
• Property Perimeters
• Full-Colour Night Surveillance
• Active Deterrence CCTV Systems
• Low-Light CCTV Applications
• Professional Indoor & Outdoor CCTV Systems

Benefits

• Latest-generation ColorVu 3.0 technology
• High-detail 6MP resolution
• HikAI-ISP intelligent image processing
• Large 1/1.8-inch image sensor
• Ultra-wide F1.0 aperture
• Exceptional 0.0005 Lux colour sensitivity
• 24/7 vivid colour imaging
• Smart Hybrid IR + white lighting
• Extended 40m supplementary lighting
• Three supplementary lighting modes
• 130dB scene-adaptive WDR
• Deep-learning human and vehicle classification
• Active strobe deterrence
• Built-in audible warning
• Real-time two-way audio
• Arrayed dual built-in microphones
• Smart PA speaker
• H.265+ compression
• Multiple video streams
• PoE connectivity
• Hik-Connect support
• IP67 weather resistance
• NEMA 4X anti-corrosion design
• Compact professional mini bullet housing

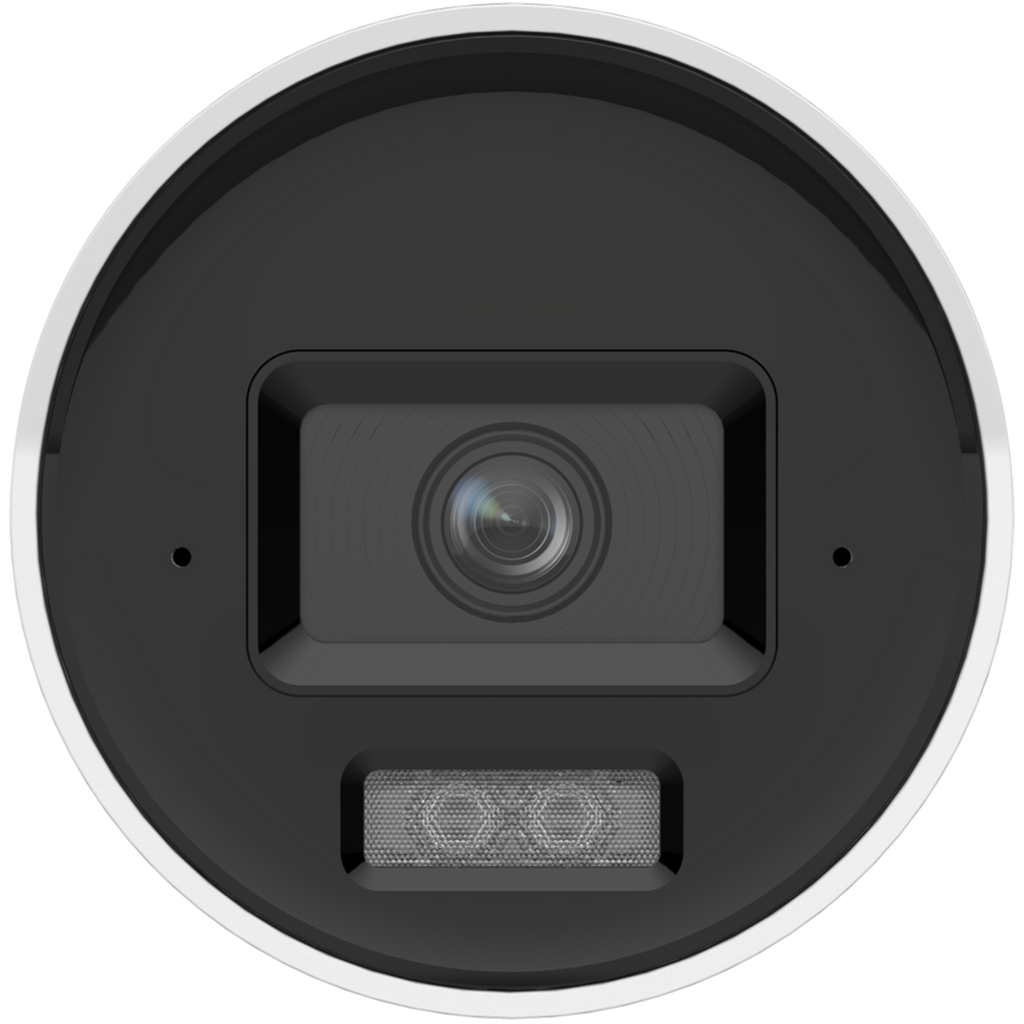

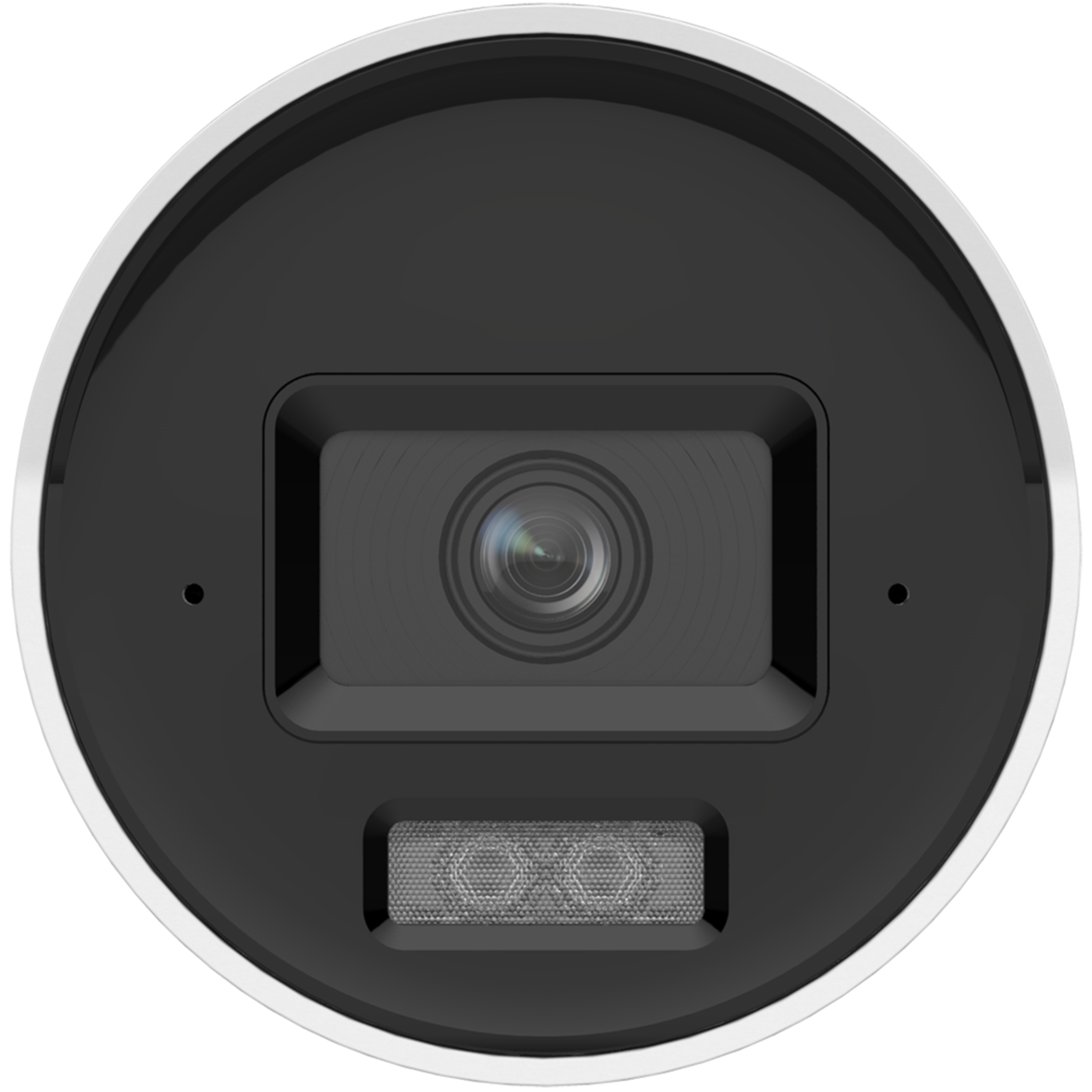

The Hikvision DS-2CD2067G3-LI2UY/SL 6MP ColorVu 3.0 Smart Hybrid Light Fixed Mini Bullet Network Camera combines Hikvision's latest low-light imaging technology with intelligent target classification and proactive security functions.

With 6MP resolution, ColorVu 3.0, HikAI-ISP, a large 1/1.8-inch sensor, F1.0 aperture, 0.0005 Lux colour sensitivity, Smart Hybrid Light up to 40m, 130dB scene-adaptive WDR, human and vehicle classification, dual microphones, Smart PA speaker, two-way audio, strobe and audible warning, it is an excellent premium option for professional residential and commercial CCTV installations.

DS-2CD2067G3-LI2UY/SL
