Key Features

• 8MP / 4K Ultra HD Resolution
• Maximum Resolution: 3840 × 2160
• Hikvision ColorVu 3.0 Technology
• HikAI-ISP Advanced Image Processing
• Large 1/1.8" Progressive Scan CMOS Sensor
• Ultra-Wide F1.0 Aperture
• Ultra-Low 0.0005 Lux Colour Sensitivity
• 24/7 Colour Imaging
• Smart Hybrid Light
• Integrated IR & White Supplementary Lighting
• Up to 40m Supplement Light Range
• Three Supplementary Lighting Modes
• 130dB Wide Dynamic Range
• Deep-Learning Human & Vehicle Classification
• Intelligent Perimeter Protection
• Face Capture
• Arrayed Dual Built-In Microphones
• Built-In 2W Speaker
• Real-Time Two-Way Audio
• Active White Strobe Light
• Built-In Audible Warning
• H.265+ Video Compression
• 2.8mm or 4mm Fixed Lens Options
• microSD Storage up to 512GB
• Hik-Connect Support
• ONVIF Profiles S, G & T
• PoE+ Connectivity
• IP67 Weather Resistance
• NEMA 4X Anti-Corrosion Protection
• Metal Camera Body & Bracket
• Indoor & Outdoor Applications

8MP 4K Ultra HD Imaging

The DS-2CD2087G3-LI2UY/SL provides a maximum resolution of:

3840 × 2160

delivering true 8MP / 4K Ultra HD surveillance.

For Australian 50Hz systems, the camera supports up to 25fps at full 3840 × 2160 resolution, providing smooth, high-detail surveillance footage.

The additional resolution is particularly useful when reviewing:

• People
• Clothing
• Vehicles
• Driveways
• Building Entrances
• Property Activity
• Commercial Areas
• Objects
• Security Incidents

ColorVu 3.0 Technology

The DS-2CD2087G3-LI2UY/SL incorporates Hikvision's advanced ColorVu 3.0 technology.

ColorVu combines a high-performance image sensor, ultra-wide F1.0 optics, advanced image processing and intelligent supplementary lighting to maximise available light and retain valuable colour information.

Colour surveillance can provide additional evidence that may be lost in conventional monochrome night footage, including:

• Clothing Colour
• Vehicle Colour
• Object Colour
• Property Features
• Environmental Details

This makes ColorVu particularly valuable for security applications where accurate visual evidence is important.

HikAI-ISP Advanced Image Processing

A major technology advancement of the G3 ColorVu generation is HikAI-ISP.

HikAI-ISP provides advanced intelligent image processing and excellent noise reduction to improve surveillance footage under difficult lighting conditions.

This helps produce cleaner and more usable images where conventional cameras may experience:

• Excessive Image Noise
• Motion Blur
• Reduced Detail
• Poor Low-Light Definition

Combined with ColorVu 3.0, the large 1/1.8" sensor and F1.0 optics, HikAI-ISP provides outstanding low-light surveillance performance.

Large 1/1.8" Image Sensor

The DS-2CD2087G3-LI2UY/SL uses a large 1/1.8-inch Progressive Scan CMOS sensor.

The larger sensor helps maximise available light and supports excellent image quality in challenging environments.

Combined with F1.0 optics, this makes the camera particularly suitable for:

• Long Driveways
• Car Parks
• Building Entrances
• Warehouses
• Side Access
• Commercial Properties
• Property Perimeters
• Low-Light Outdoor Areas

Ultra-Wide F1.0 Aperture

The camera incorporates an ultra-wide F1.0 aperture, allowing significantly more available light to reach the image sensor.

Minimum illumination is:

Colour: 0.0005 Lux @ F1.0, AGC ON

0 Lux with supplementary light

This combination of F1.0 optics and a large 1/1.8" sensor is fundamental to the camera's exceptional ColorVu low-light performance.

Smart Hybrid Light

The DS-2CD2087G3-LI2UY/SL features Smart Hybrid Light, integrating:

• 850nm Infrared Light
• Visible White Light

within one intelligent supplementary lighting system.

The camera provides three supplementary lighting modes, allowing the surveillance system to be configured according to the requirements of each installation.

This provides considerably more flexibility than conventional IR-only CCTV cameras.

Up to 40m Smart Hybrid Light

The mini bullet design provides an extended supplementary lighting range of up to:

40 metres

for its integrated IR and white lighting system.

This makes the DS-2CD2087G3-LI2UY/SL particularly suitable for longer surveillance areas such as:

• Long Driveways
• Side Access
• Property Boundaries
• Car Parks
• Loading Areas
• Warehouses
• Commercial Properties
• Building Perimeters

24/7 Colour Surveillance

ColorVu technology is designed to maximise useful colour information around the clock.

Retaining colour can provide valuable additional evidence when identifying:

• Vehicle Colour
• Clothing Colour
• Object Colour
• Property Details
• People & Vehicle Activity

Where available ambient light becomes insufficient, integrated supplementary lighting can assist the camera in maintaining useful surveillance footage.

130dB Wide Dynamic Range

The DS-2CD2087G3-LI2UY/SL provides 130dB WDR, helping retain useful image detail where very bright and dark areas occur simultaneously.

This is particularly useful for:

• Building Entrances
• Garage Entrances
• Shopfronts
• Covered Driveways
• Loading Areas
• Areas Facing Bright Daylight
• High-Contrast Indoor/Outdoor Scenes

Deep-Learning Human & Vehicle Classification

The camera uses deep-learning technology to classify supported security targets as:

• Humans
• Vehicles

This allows supported security events to focus on important targets rather than treating all scene movement equally.

It can help reduce unnecessary event triggers caused by movement such as:

• Animals
• Leaves
• Rain
• Shadows
• Changing Lighting
• Other Non-Target Movement

Intelligent Motion Detection

Motion detection supports alarm triggering by specified target types including human and vehicle.

When correctly configured with a compatible Hikvision system, this can help improve:

• Event Accuracy
• Security Notifications
• Recorded Event Searching
• CCTV Monitoring Efficiency

Intelligent Perimeter Protection

The DS-2CD2087G3-LI2UY/SL supports intelligent perimeter functions including:

• Line Crossing Detection
• Intrusion Detection
• Region Entrance Detection
• Region Exit Detection

These functions support alarm triggering according to specified human and vehicle target types.

This enables intelligent monitoring around:

• Driveways
• Gates
• Property Boundaries
• Side Access
• Restricted Areas
• Car Parks
• Loading Zones
• Building Entrances

Face Capture

The camera also supports face capture.

Face capture should not be confused with facial recognition. The camera can capture facial images, while identification against a face database requires compatible back-end equipment and appropriate system configuration.

Active White Strobe Light

The DS-2CD2087G3-LI2UY/SL incorporates an active white flashing strobe light.

When a configured security event occurs, the camera can activate the strobe to provide an immediate visual warning.

This transforms the camera from a passive recording device into part of a proactive security solution.

The strobe can be particularly useful around:

• Driveways
• Front Yards
• Restricted Areas
• Warehouses
• Car Parks
• Commercial Properties
• Loading Areas
• Building Perimeters

Built-In Audible Warning

The camera can also trigger an audible warning as part of supported event linkage.

The combination of:

AI Detection + White Strobe + Audible Warning

allows the camera to actively respond when configured security conditions are detected.

Real-Time Two-Way Audio

The DS-2CD2087G3-LI2UY/SL provides built-in real-time two-way audio.

This allows compatible users to listen and communicate through the camera when the surveillance system is correctly configured.

Potential applications include communicating with:

• Visitors
• Delivery Drivers
• Staff
• Contractors
• People Entering Restricted Areas
• Persons Detected Around a Property

Arrayed Dual Built-In Microphones

The camera incorporates an arrayed dual-microphone system for high-quality real-time audio security.

The integrated microphones provide audio capture without requiring a separate external microphone for standard surveillance applications.

Environmental noise filtering is also supported.

Audio recording should always be configured and used in accordance with applicable privacy and surveillance requirements.

Powerful Built-In Speaker

The DS-2CD2087G3-LI2UY/SL incorporates a built-in speaker with:

• Maximum Power Consumption: 2W
• Maximum Sound Pressure Level: 110dB at 10cm

The speaker supports:

• Real-Time Two-Way Communication
• Audible Security Warnings
• Active Deterrence
• Remote Voice Communication

Combined with the dual microphones, this creates a comprehensive onboard audio security solution.

2.8mm & 4mm Fixed Lens Options

The DS-2CD2087G3-LI2UY/SL is available with 2.8mm and 4mm fixed lens options.

2.8mm Lens

Approximate field of view:

• Horizontal: 108.8°
• Vertical: 56.4°
• Diagonal: 134.3°

The 2.8mm lens is generally suitable for wider surveillance areas such as driveways, entrances, front yards and general outdoor areas.

4mm Lens

Approximate field of view:

• Horizontal: 93.3°
• Vertical: 47.2°
• Diagonal: 114.2°

The 4mm lens provides a narrower field of view for more concentrated target areas.

DORI Distance

2.8mm Lens

• Detect: 89m
• Observe: 35m
• Recognise: 17m
• Identify: 8m

4mm Lens

• Detect: 109m
• Observe: 43m
• Recognise: 21m
• Identify: 10m

Actual performance depends on installation height, camera angle, lighting, target movement and environmental conditions.

H.265+ Video Compression

The camera supports efficient H.265+ video compression, helping reduce bandwidth and recording storage requirements.

Supported compression includes:

• H.265+
• H.265
• H.264+
• H.264
• MJPEG on supported streams

Video bit rate is configurable from 32 Kbps to 16 Mbps.

Multiple Video Streams

Multiple video streams allow different video settings to be used for:

• High-Resolution NVR Recording
• Remote Viewing
• Mobile Viewing
• Secondary Monitoring
• Bandwidth Management

A third stream is supported under compatible settings.

microSD Storage up to 512GB

The DS-2CD2087G3-LI2UY/SL incorporates a built-in memory card slot supporting:

• microSD
• microSDHC
• microSDXC

with capacity up to 512GB.

Edge storage can be useful for:

• Event Recording
• Backup Recording
• Standalone Applications
• Additional Recording Resilience
• Network Interruption Protection

Memory card sold separately.

Hik-Connect Remote Access

The camera supports Hik-Connect as part of a correctly configured Hikvision surveillance system.

Depending on the complete system configuration, remote functionality can include:

• Live Viewing
• Recorded Playback
• Event Monitoring
• Security Notifications
• Audio Monitoring
• Two-Way Communication

ONVIF & Professional Integration

The camera supports:

• ONVIF Profile S
• ONVIF Profile G
• ONVIF Profile T
• ISAPI
• SDK
• ISUP

This provides flexibility for professional CCTV and network-security integration.

PoE+ Connectivity

The DS-2CD2087G3-LI2UY/SL can be powered using:

• 12V DC ±25%
• PoE – IEEE 802.3at Class 4

Maximum specified consumption is:

• 15W using 12V DC
• 18W using PoE

PoE allows network data and operating power to be delivered through a single Ethernet cable when connected to compatible equipment.

IP67 Weather Resistance

The DS-2CD2087G3-LI2UY/SL carries an IP67 water and dust resistance rating, making it suitable for properly installed outdoor CCTV applications.

NEMA 4X Anti-Corrosion Protection

The camera also provides NEMA 4X anti-corrosion protection, helping improve reliability and longevity compared with standard construction in demanding outdoor environments.

This is particularly useful for professional outdoor installations subject to ongoing environmental exposure.

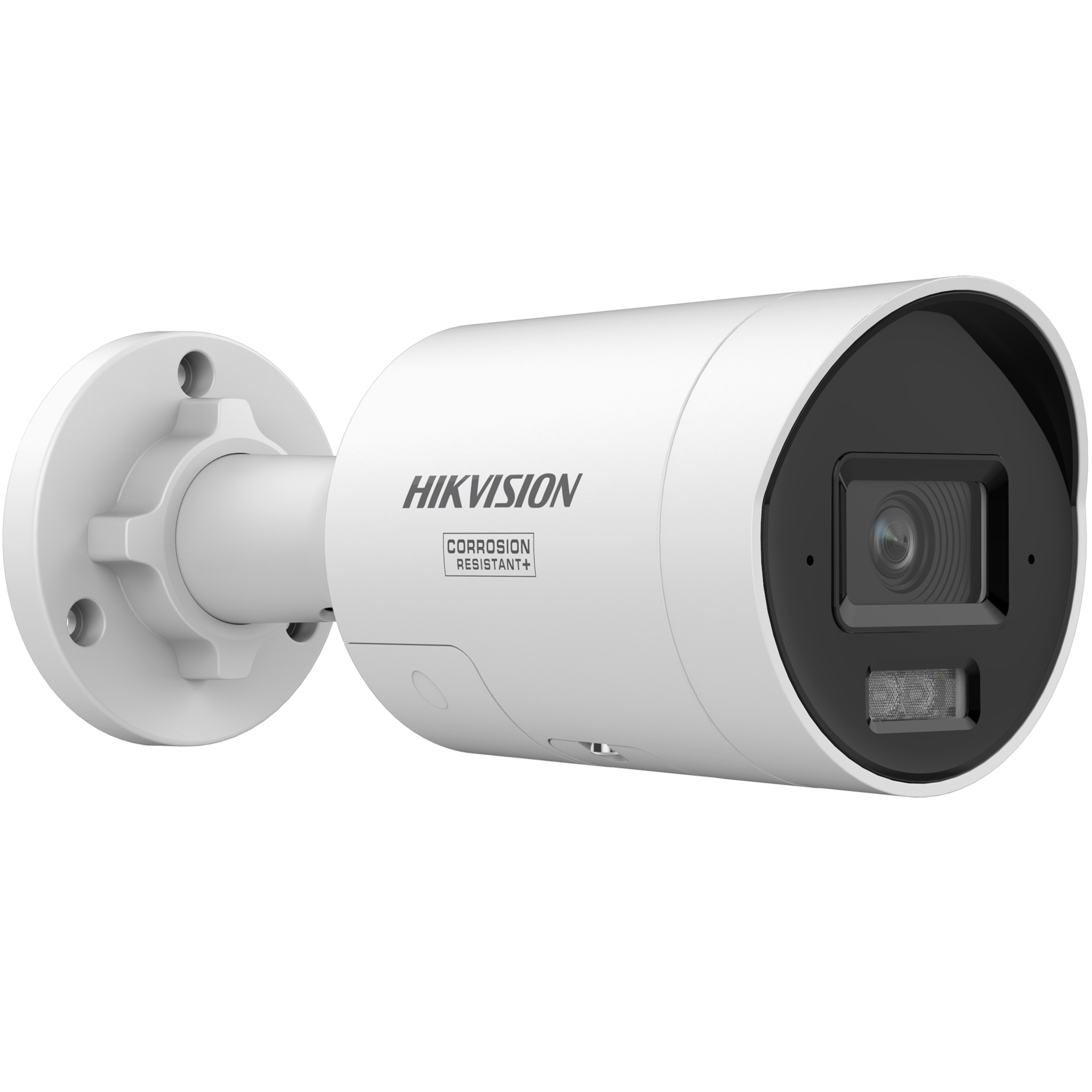

Robust Metal Construction

The camera features:

• Metal Front Cover
• Metal Camera Body
• Metal Mounting Bracket

Dimensions are approximately:

Ø74.4 × 176.3mm

Camera weight is approximately:

530g

Operating temperature is:

-30°C to +60°C

Flexible Mini Bullet Adjustment

The mounting assembly provides:

• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°

This provides excellent flexibility when positioning the camera for walls, ceilings and other suitable mounting surfaces.

Main Specifications

• Model: DS-2CD2087G3-LI2UY/SL
• Camera Type: Smart Hybrid Light Fixed Mini Bullet Network Camera
• Technology: ColorVu 3.0
• Resolution: 8MP / 4K
• Maximum Resolution: 3840 × 2160
• Maximum Frame Rate: 25fps @ 3840 × 2160 (50Hz)
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Image Processing: HikAI-ISP
• Minimum Colour Illumination: 0.0005 Lux @ F1.0, AGC ON
• Lens Options: 2.8mm / 4mm Fixed
• Aperture: F1.0
• 2.8mm Horizontal FOV: 108.8°
• 4mm Horizontal FOV: 93.3°
• Smart Hybrid Light: Yes
• Supplement Light: IR + White Light
• Supplement Light Range: Up to 40m
• IR Wavelength: 850nm
• WDR: 130dB
• Human Classification: Yes
• Vehicle Classification: Yes
• Motion Detection Target Filtering: Human & Vehicle
• Line Crossing: Yes
• Intrusion Detection: Yes
• Region Entrance Detection: Yes
• Region Exit Detection: Yes
• Face Capture: Yes
• Built-In Microphones: Arrayed Dual Microphones
• Environmental Noise Filtering: Yes
• Built-In Speaker: Yes – 2W
• Speaker Output: Up to 110dB at 10cm
• Two-Way Audio: Yes
• Active Deterrence: Yes
• Strobe: White Flashing Light on /SL
• Audible Warning: Yes
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• Local Storage: microSD up to 512GB
• Hik-Connect: Supported
• ONVIF: Profiles S, G & T
• Network: RJ45 10/100 Ethernet
• Power: 12V DC or PoE+
• PoE: IEEE 802.3at Class 4
• Maximum PoE Consumption: 18W
• Weather Protection: IP67
• Anti-Corrosion: NEMA 4X
• Construction: Metal Front Cover, Body & Bracket
• Dimensions: Ø74.4 × 176.3mm
• Weight: Approx. 530g
• Operating Temperature: -30°C to +60°C
• Application: Indoor & Outdoor

Ideal For

• Residential Homes
• Long Driveways
• Front Yards
• Side Access
• Apartment Buildings
• Retail Stores
• Offices
• Warehouses
• Workshops
• Car Parks
• Building Entrances
• Loading Areas
• Commercial Properties
• Property Perimeters
• Full-Colour Night Surveillance
• Active Deterrence CCTV Systems
• 4K CCTV Systems
• Professional Indoor & Outdoor CCTV

Benefits

• True 8MP / 4K Ultra HD surveillance
• Latest-generation ColorVu 3.0 technology
• HikAI-ISP intelligent image processing
• Large 1/1.8-inch sensor
• Ultra-wide F1.0 aperture
• Exceptional 0.0005 Lux colour sensitivity
• Smart Hybrid IR + white lighting
• Extended 40m supplementary lighting
• 130dB WDR
• Deep-learning human and vehicle classification
• Intelligent perimeter protection
• Face capture
• Active white strobe deterrence
• Built-in audible warning
• Real-time two-way audio
• Arrayed dual built-in microphones
• Powerful 2W built-in speaker
• H.265+ compression
• Up to 512GB microSD storage
• Hik-Connect support
• ONVIF compatibility
• PoE+ connectivity
• IP67 weather resistance
• NEMA 4X anti-corrosion protection
• Robust all-metal construction

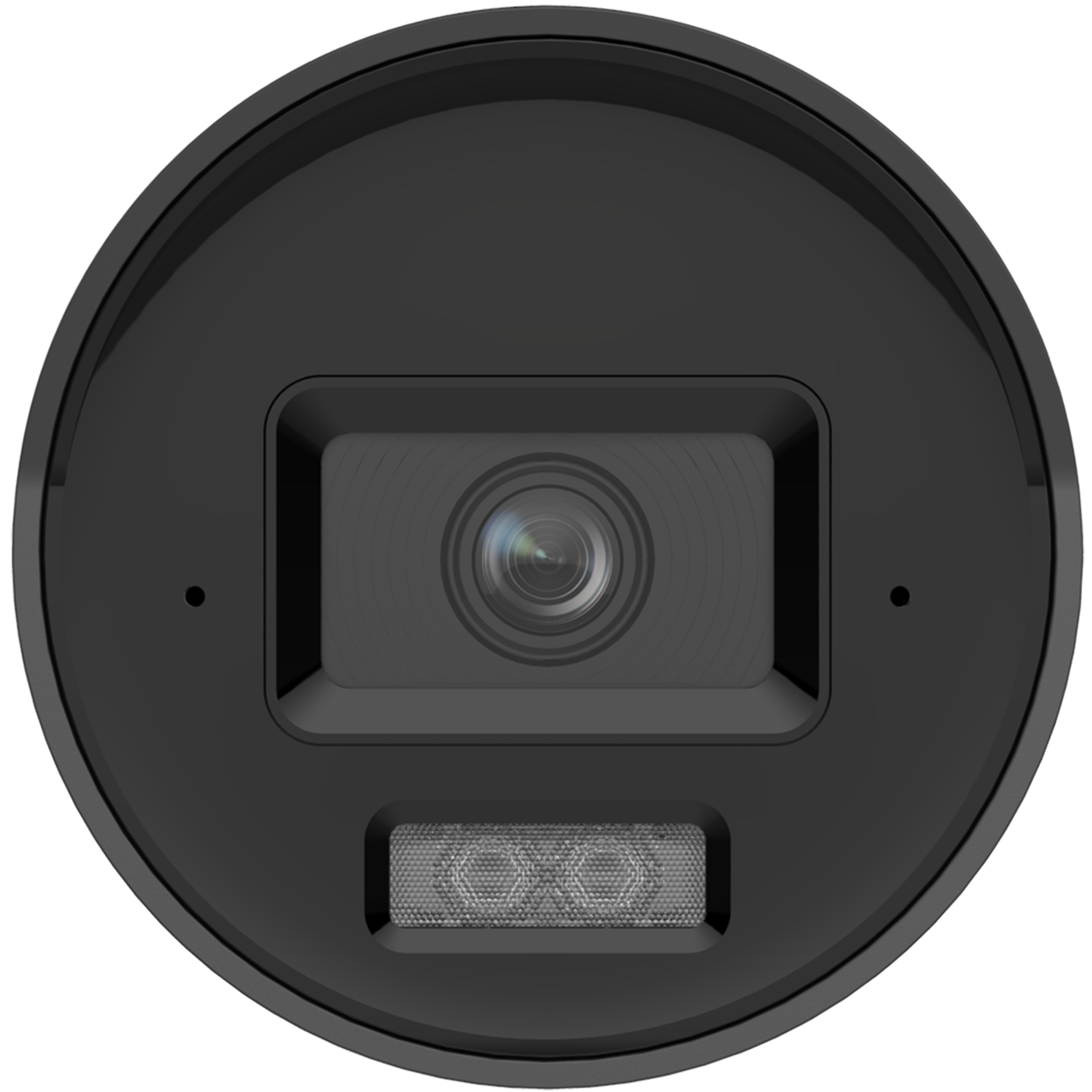

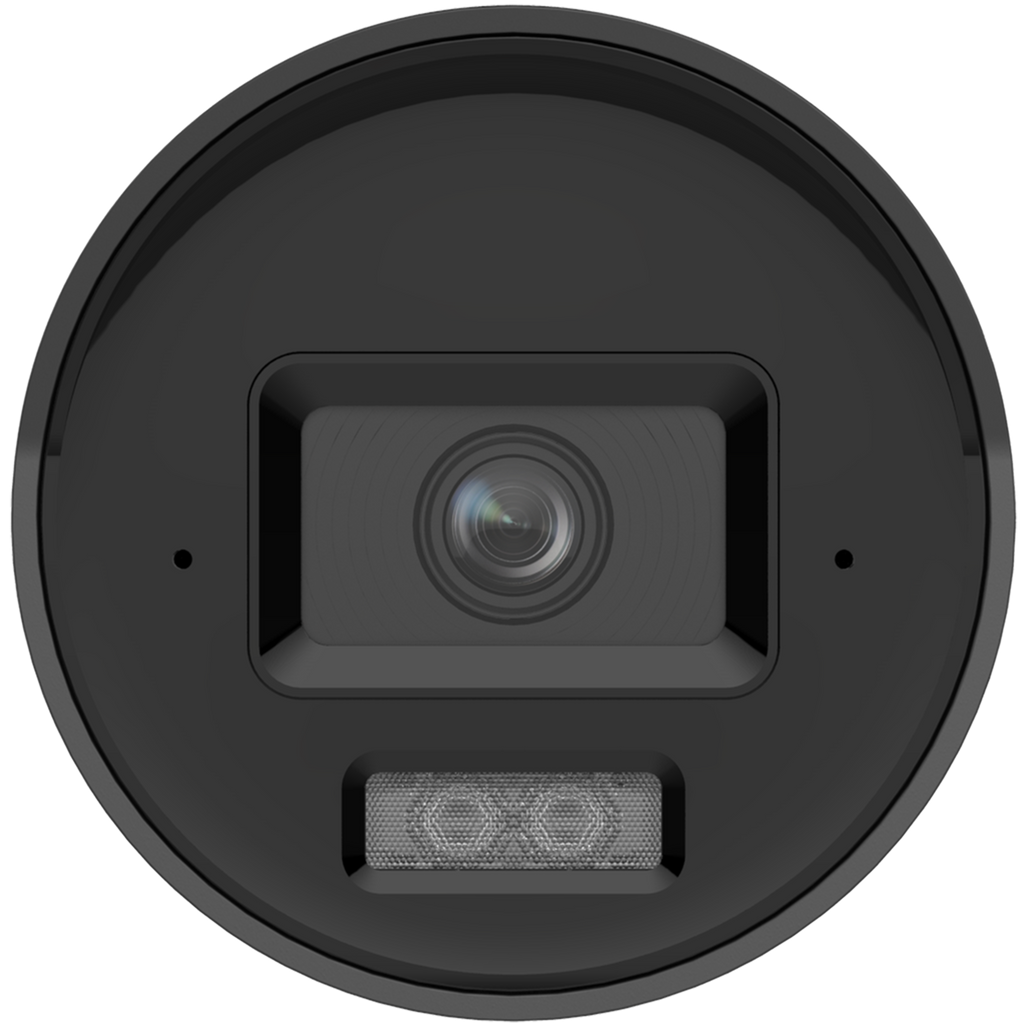

The Hikvision DS-2CD2087G3-LI2UY/SL 8MP 4K ColorVu 3.0 Smart Hybrid Light Fixed Mini Bullet Network Camera combines Hikvision's latest-generation low-light imaging with high-resolution 4K surveillance, intelligent target classification and proactive security deterrence.

With 8MP 4K resolution, ColorVu 3.0, HikAI-ISP, a large 1/1.8" sensor, F1.0 aperture, 0.0005 Lux colour sensitivity, Smart Hybrid Light up to 40m, 130dB WDR, human/vehicle classification, dual microphones, powerful built-in speaker, two-way audio, white strobe and audible warning, it is an excellent premium choice for professional residential and commercial CCTV systems.

DS-2CD2087G3-LI2UY/SL
