Key Features

• 8MP / 4K Ultra HD Resolution
• Maximum Resolution: 3840 × 2160
• Hikvision AcuSense Technology
• Powered-by-DarkFighter Technology
• Large 1/1.8" Progressive Scan CMOS Sensor
• Ultra-Wide F1.0 Aperture
• Ultra-Low 0.0008 Lux Colour Sensitivity
• 120dB True WDR
• Deep-Learning Human & Vehicle Classification
• Intelligent Perimeter Protection
• Smart IR Night Vision
• 2I Version: Up to 60m IR
• 4I Version: Up to 80m IR
• 850nm Infrared Illumination
• 2.8mm or 4mm Fixed Lens Options
• H.265+ Video Compression
• Multiple Video Streams
• Hik-Connect Support
• ONVIF Compatibility
• PoE Connectivity
• IP67 Weather Resistance
• Professional Long-Range Bullet Design
• Indoor & Outdoor Applications

8MP 4K Ultra HD Imaging

The DS-2CD2T86G2H-2I/4I delivers a maximum resolution of:

3840 × 2160

providing true 8MP / 4K Ultra HD surveillance.

For Australian 50Hz systems, the camera supports up to 25fps at full 3840 × 2160 resolution, delivering smooth and detailed surveillance footage.

The increased resolution is particularly useful when reviewing:

• People
• Clothing
• Vehicles
• Driveways
• Building Entrances
• Property Activity
• Commercial Areas
• Objects
• Security Incidents

Powered-by-DarkFighter Technology

The DS-2CD2T86G2H-2I/4I features Hikvision's Powered-by-DarkFighter technology, engineered to provide excellent image performance in extremely challenging low-light environments.

The camera combines a large 1/1.8-inch Progressive Scan CMOS sensor with an ultra-wide F1.0 aperture, allowing significantly more available light to reach the image sensor.

Hikvision specifies minimum illumination of:

Colour: 0.0008 Lux @ F1.0, AGC ON

B/W: 0 Lux with IR

This makes the camera an excellent option for locations where ambient lighting is limited.

Large 1/1.8" Image Sensor

The camera uses a large 1/1.8-inch Progressive Scan CMOS sensor.

Combined with its F1.0 lens, the large sensor helps maximise available light and maintain useful image detail in challenging conditions.

This makes the camera particularly suitable for:

• Long Driveways
• Car Parks
• Warehouses
• Building Perimeters
• Commercial Properties
• Loading Areas
• Industrial Sites
• Low-Light Outdoor Locations

Ultra-Wide F1.0 Aperture

The F1.0 aperture is a significant advantage of the G2H model.

A wider aperture allows more available light to reach the image sensor, improving low-light image quality and helping the camera retain valuable image detail.

Combined with Powered-by-DarkFighter technology, this makes the DS-2CD2T86G2H-2I/4I particularly effective for demanding night-time CCTV applications.

Hikvision AcuSense Technology

The DS-2CD2T86G2H-2I/4I incorporates Hikvision AcuSense deep-learning technology.

AcuSense allows supported security events to focus on:

• Humans
• Vehicles

rather than treating every movement within the camera's field of view as equally important.

This can help reduce unnecessary security events caused by movement such as:

• Animals
• Leaves
• Rain
• Shadows
• Changing Lighting
• Other Non-Target Movement

Human & Vehicle Classification

Deep-learning algorithms allow the camera to classify human and vehicle targets during supported security events.

When correctly configured with a compatible Hikvision NVR or surveillance system, this can help improve:

• Event Accuracy
• Security Notifications
• Recorded Event Searching
• Alarm Efficiency
• CCTV Monitoring

Intelligent Perimeter Protection

The camera supports intelligent security functions including:

• Line Crossing Detection
• Intrusion Detection
• Region Entrance Detection
• Region Exit Detection

Supported smart events can apply human and vehicle target classification.

This allows professional installers to establish intelligent security rules around:

• Driveways
• Gates
• Property Boundaries
• Building Perimeters
• Restricted Areas
• Car Parks
• Loading Areas
• Commercial Sites

120dB True Wide Dynamic Range

The DS-2CD2T86G2H-2I/4I incorporates 120dB True WDR, helping maintain usable image detail where bright and dark areas occur simultaneously within the monitored scene.

This is particularly useful for:

• Building Entrances
• Warehouse Doors
• Garage Entrances
• Loading Areas
• Covered Driveways
• Areas Facing Bright Daylight
• High-Contrast Indoor/Outdoor Scenes

Long-Range Smart IR Night Vision

One of the major advantages of the DS-2CD2T86G2H series is its long-range infrared night vision.

The camera uses 850nm infrared illumination with Smart Supplement Light technology.

DS-2CD2T86G2H-2I

Provides Smart IR illumination up to:

60 metres

DS-2CD2T86G2H-4I

Provides extended Smart IR illumination up to:

80 metres

This makes the camera considerably better suited to long-range monitoring than compact turret and mini-bullet cameras with shorter IR ranges.

Ideal Long-Range Surveillance Camera

The extended infrared range makes this camera particularly useful for:

• Long Driveways
• Large Car Parks
• Warehouses
• Industrial Sites
• Commercial Yards
• Loading Areas
• Property Boundaries
• Building Perimeters
• Rural Properties
• Large Residential Properties

The 4I version with up to 80m IR is particularly suitable where the surveillance area extends further from the camera position.

2.8mm & 4mm Fixed Lens Options

The DS-2CD2T86G2H-2I/4I is available with 2.8mm and 4mm fixed lens options.

2.8mm Lens

Approximate field of view:

• Horizontal: 105.1°
• Vertical: 54.8°
• Diagonal: 128.2°

The 2.8mm lens provides wider coverage and is generally suitable for:

• Driveways
• Building Frontages
• Car Parks
• Yards
• Wide Perimeter Areas
• General Outdoor Surveillance

4mm Lens

Approximate field of view:

• Horizontal: 90°
• Vertical: 45.8°
• Diagonal: 109.4°

The 4mm lens provides a narrower field of view and greater concentration on more distant target areas.

DORI Distance

Hikvision specifies approximate DORI distances of:

2.8mm Lens

• Detect: 89m
• Observe: 35m
• Recognise: 17m
• Identify: 8m

4mm Lens

• Detect: 109m
• Observe: 43m
• Recognise: 21m
• Identify: 10m

Actual performance depends on installation height, camera angle, lighting, target movement and environmental conditions.

H.265+ Video Compression

The DS-2CD2T86G2H-2I/4I supports Hikvision's efficient H.265+ video compression technology, helping reduce network bandwidth and recording storage requirements.

Supported video compression includes:

• H.265+
• H.265
• H.264+
• H.264
• MJPEG on supported streams

The video bit rate is configurable from:

32 Kbps to 16 Mbps

Multiple Video Streams

The camera supports multiple video streams for different recording and remote-viewing requirements.

These can be used for:

• 4K NVR Recording
• Remote Viewing
• Mobile Viewing
• Secondary Monitoring
• Bandwidth Management

A third video stream is supported under compatible settings.

Hik-Connect Remote Access

When connected to a compatible Hikvision NVR or surveillance system and correctly configured, the camera can form part of a remote security solution using Hik-Connect.

Depending on system configuration, functionality can include:

• Live Viewing
• Recorded Playback
• Event Monitoring
• Security Notifications
• Remote CCTV Access

Professional Network Integration

The camera supports professional network integration through protocols and interfaces designed for Hikvision and compatible third-party CCTV systems.

This makes it suitable for both standalone IP camera networks and complete Hikvision NVR-based surveillance systems.

PoE Connectivity

Power over Ethernet allows network data and operating power to be delivered through a single Ethernet cable when connected to compatible equipment.

This simplifies professional installation with:

• Hikvision PoE NVRs
• PoE Network Switches
• Professional IP CCTV Networks

IP67 Weather Resistance

The DS-2CD2T86G2H-2I/4I carries an IP67 water and dust resistance rating, making it suitable for properly installed outdoor CCTV applications.

Typical installations include:

• Residential Properties
• Commercial Buildings
• Warehouses
• Car Parks
• Industrial Sites
• Loading Areas
• Long Driveways
• Property Perimeters

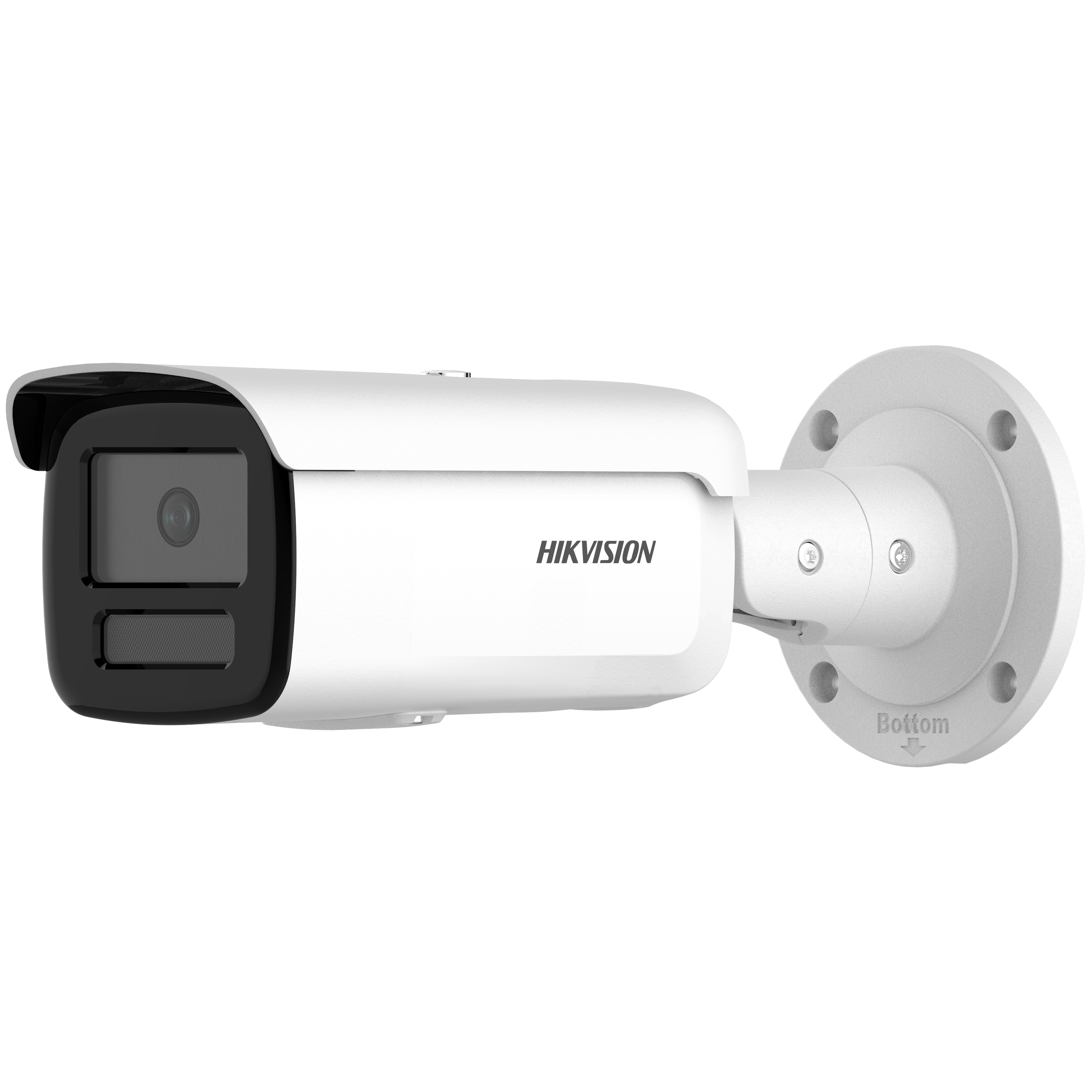

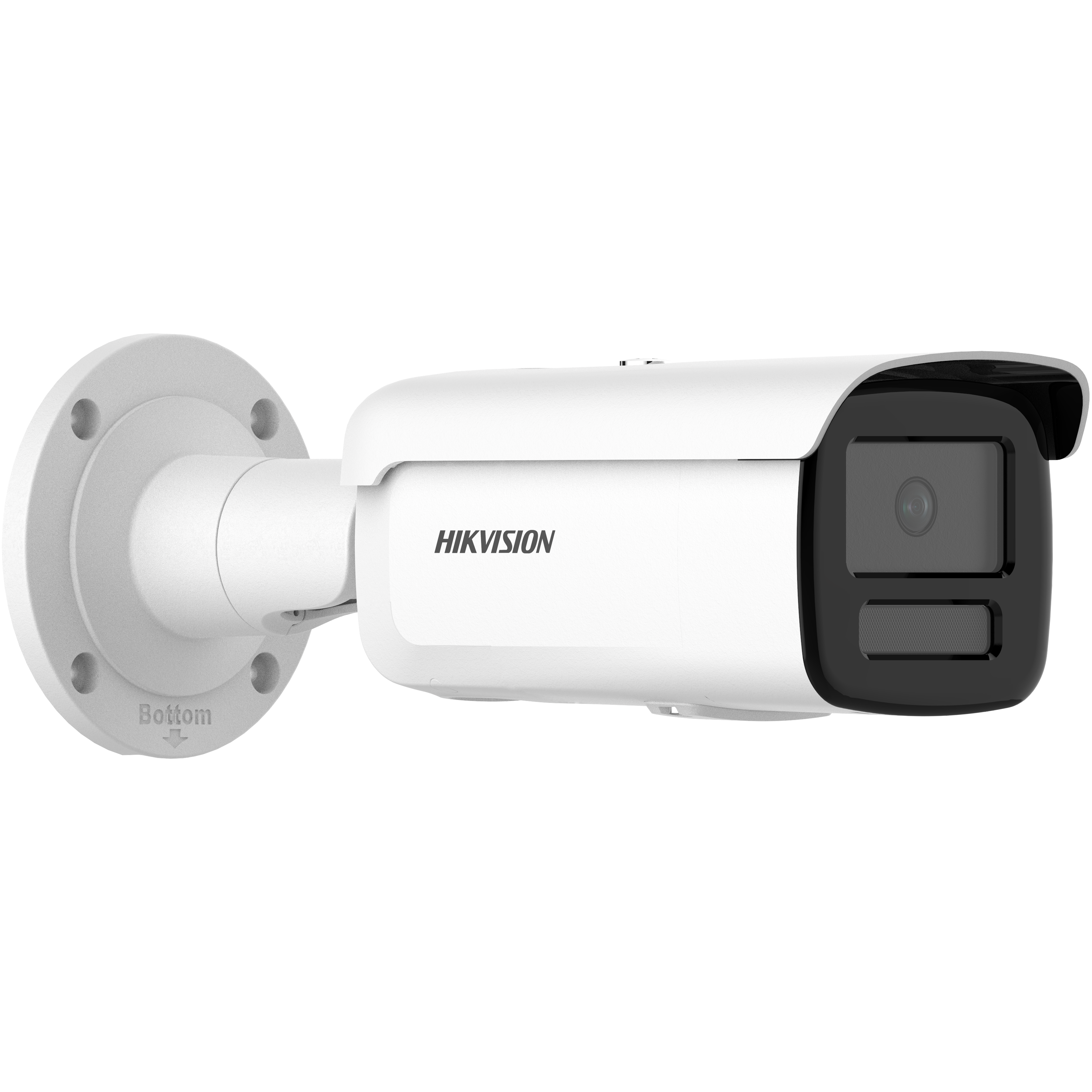

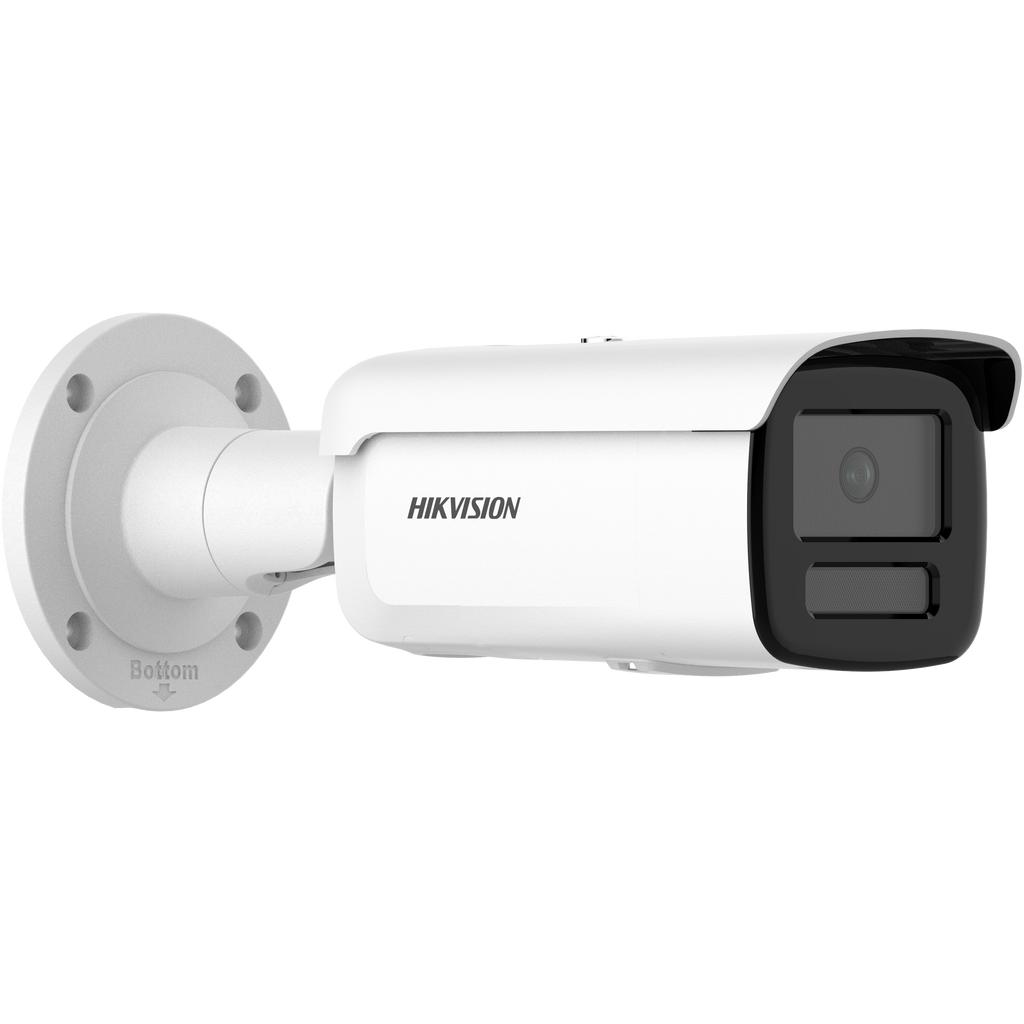

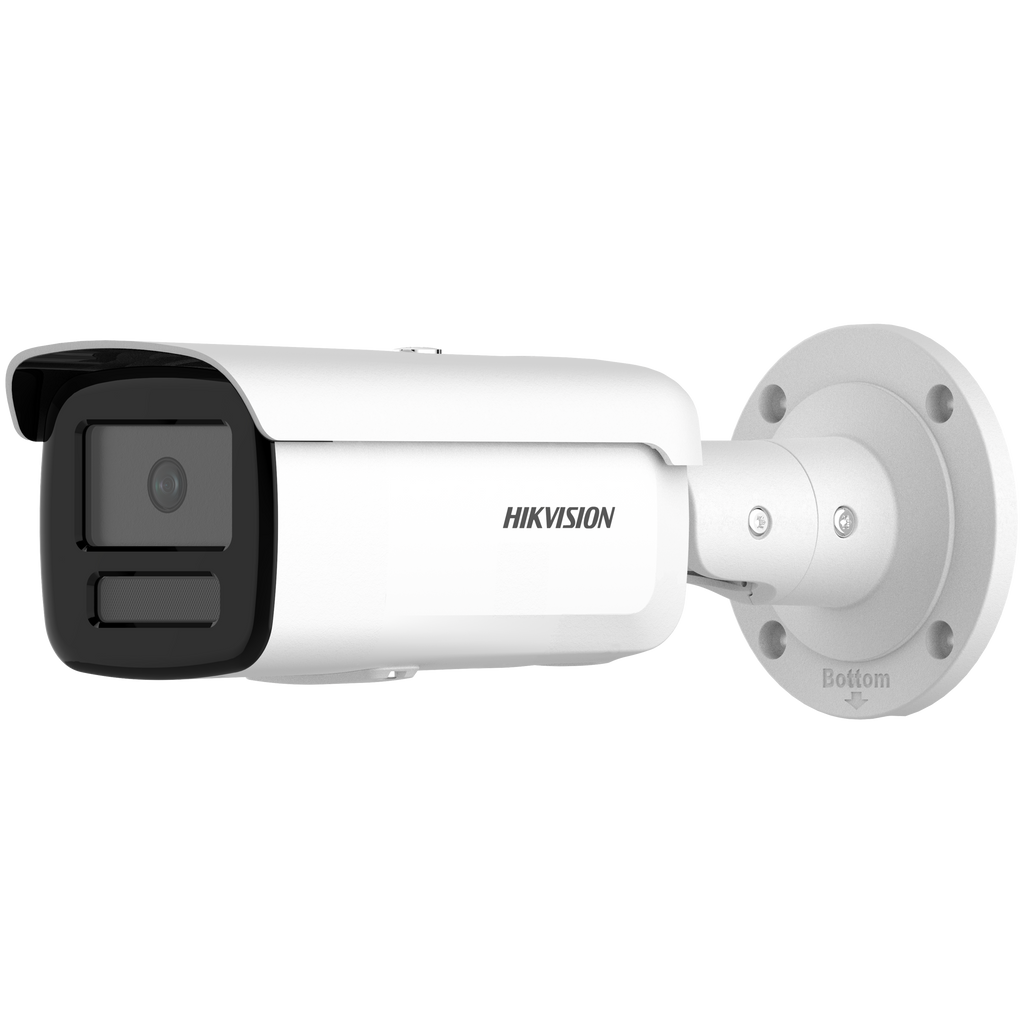

Professional Fixed Bullet Design

The traditional bullet housing provides a highly visible CCTV presence and allows the camera to be accurately aimed towards the required surveillance area.

Camera adjustment provides:

• Pan: 0° to 360°
• Tilt: 0° to 90°
• Rotation: 0° to 360°

This allows flexible positioning across a wide range of professional installations.

Main Specifications

• Model: DS-2CD2T86G2H-2I/4I
• Camera Type: Fixed Bullet Network Camera
• Technology: AcuSense Powered-by-DarkFighter
• Resolution: 8MP / 4K
• Maximum Resolution: 3840 × 2160
• Maximum Frame Rate: 25fps @ 3840 × 2160 (50Hz)
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Minimum Colour Illumination: 0.0008 Lux @ F1.0, AGC ON
• B/W Illumination: 0 Lux with IR
• Lens Options: 2.8mm / 4mm Fixed
• Aperture: F1.0
• 2.8mm Horizontal FOV: 105.1°
• 4mm Horizontal FOV: 90°
• WDR: 120dB True WDR
• Supplement Light: IR
• IR Wavelength: 850nm
• 2I IR Range: Up to 60m
• 4I IR Range: Up to 80m
• Smart Supplement Light: Yes
• AcuSense: Yes
• Human Classification: Yes
• Vehicle Classification: Yes
• Deep Learning: Yes
• Line Crossing: Yes
• Intrusion Detection: Yes
• Region Entrance Detection: Yes
• Region Exit Detection: Yes
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Video Bit Rate: 32 Kbps to 16 Mbps
• Multiple Video Streams: Yes
• Network: Ethernet
• PoE: Supported
• Hik-Connect: Supported
• Weather Protection: IP67
• Adjustment: Pan 360° / Tilt 90° / Rotation 360°
• Application: Indoor & Outdoor

2I vs 4I – Which Version?

DS-2CD2T86G2H-2I

• Up to 60m Smart IR
• Excellent for medium-to-long surveillance distances
• Suitable for residential and commercial perimeter applications

DS-2CD2T86G2H-4I

• Up to 80m Smart IR
• Extended night-time surveillance range
• Particularly suitable for long driveways, large commercial sites, warehouses and property perimeters

The required version should be selected according to the surveillance distance and installation environment.

Ideal For

• Residential Homes
• Large Residential Properties
• Long Driveways
• Commercial Properties
• Warehouses
• Industrial Sites
• Car Parks
• Loading Areas
• Building Perimeters
• Property Boundaries
• Commercial Yards
• Rural Properties
• Low-Light CCTV Applications
• Long-Range Night Surveillance
• 4K CCTV Systems
• Professional Indoor & Outdoor CCTV

Benefits

• True 8MP / 4K Ultra HD surveillance
• AcuSense deep-learning technology
• Powered-by-DarkFighter low-light performance
• Large 1/1.8-inch sensor
• Ultra-wide F1.0 aperture
• Excellent 0.0008 Lux colour sensitivity
• Human and vehicle classification
• Intelligent perimeter protection
• 120dB True WDR
• Long-range Smart IR
• Up to 60m IR with 2I
• Up to 80m IR with 4I
• H.265+ video compression
• Multiple video streams
• Hik-Connect support
• PoE connectivity
• IP67 weather resistance
• Professional long-range bullet design

The Hikvision DS-2CD2T86G2H-2I/4I 8MP 4K AcuSense Powered-by-DarkFighter Fixed Bullet Network Camera is an excellent choice where high-resolution surveillance, exceptional low-light sensitivity and extended night-time coverage are required.

Combining 8MP 4K resolution, a large 1/1.8" sensor, F1.0 aperture, 0.0008 Lux colour sensitivity, AcuSense human and vehicle classification, 120dB True WDR and Smart IR up to 60m or 80m, it is particularly well suited to professional residential, commercial and industrial CCTV systems requiring longer-range surveillance.

DS-2CD2T86G2H-2I/4I
