Description

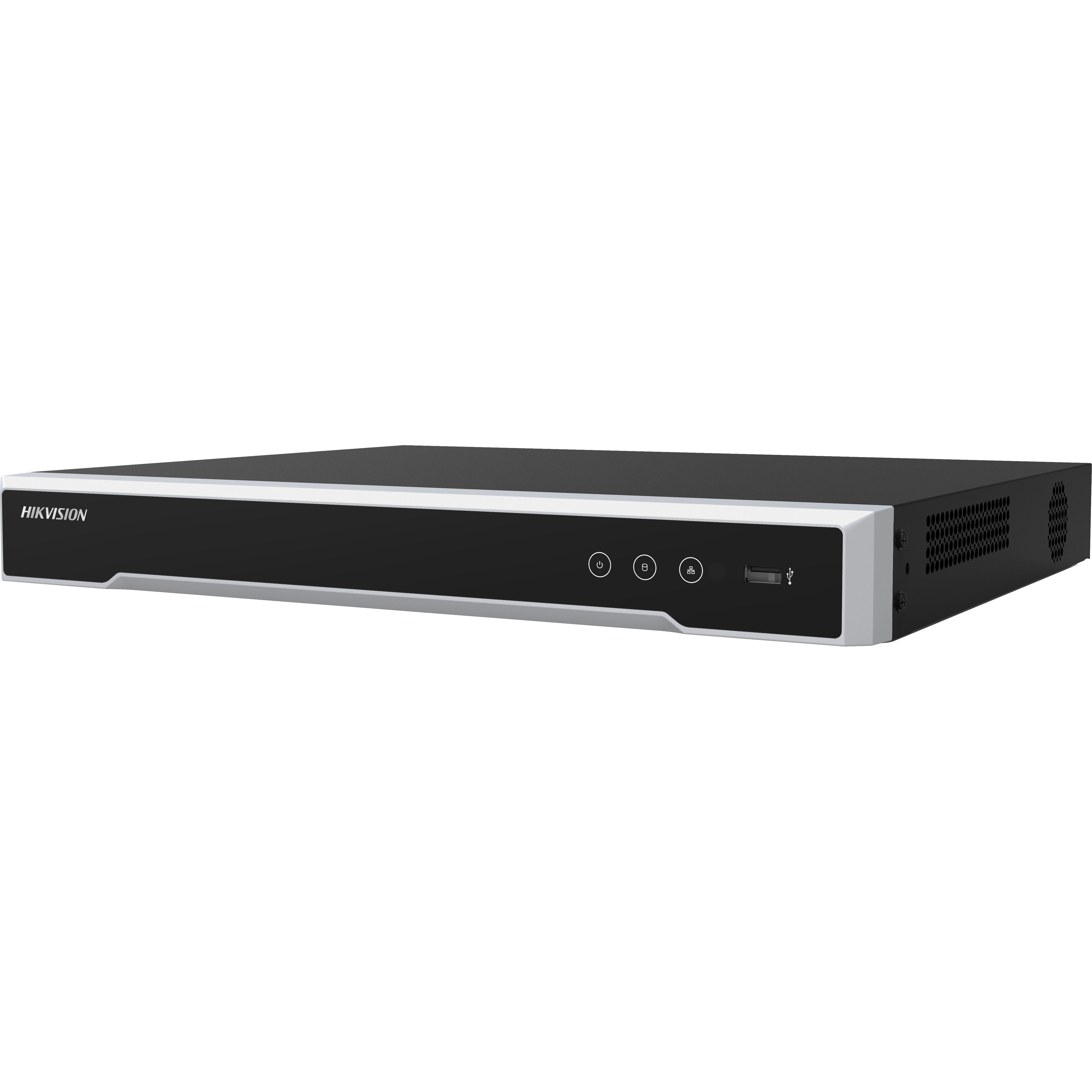

Hikvision DS-7616NI-M2/16P 16-Channel 16 PoE 8K M-Series Network Video Recorder
The Hikvision DS-7616NI-M2/16P is a powerful professional 16-channel M-Series 8K Network Video Recorder (NVR) featuring 16 built-in PoE camera ports, up to 32MP IP camera input, 256Mbps incoming bandwidth, dual HDD storage and advanced H.265+ video compression.
Designed for medium to large residential and commercial CCTV systems, the DS-7616NI-M2/16P allows up to 16 compatible IP cameras to connect directly to the recorder through its integrated PoE interfaces, simplifying installation by delivering camera power and network data over compatible Ethernet cabling.
With 8K HDMI output, high-resolution decoding, 16-channel synchronous playback, dual SATA storage, Gigabit networking and Hik-Connect remote access, this NVR provides an excellent platform for modern Hikvision 4K, ColorVu, AcuSense, DarkFighter and Smart Hybrid Light CCTV systems.
Key Features
- 16-Channel IP Network Video Recorder
- 16 Built-In PoE Camera Ports
- Hikvision M-Series NVR
- IP Camera Input Resolution up to 32MP
- 256Mbps Incoming Bandwidth
- 256Mbps Outgoing Bandwidth
- HDMI Video Output up to 8K
- 4K Ultra HD Display Support
- Independent HDMI & VGA Outputs
- H.265+ Video Compression
- H.265 / H.264+ / H.264 Support
- High-Resolution Multi-Channel Decoding
- 16-Channel Synchronous Playback
- Dual-Stream Recording
- 2 SATA Hard Drive Bays
- Up to 16TB Per HDD
- Up to 32TB Total Raw HDD Capacity
- Gigabit Ethernet Network Interface
- 16 × IEEE 802.3af/at PoE Interfaces
- Up to 200W PoE Power Budget
- 4 Alarm Inputs
- 1 Alarm Output
- RCA Audio Output
- Two-Way Audio Interface
- CVBS Video Output
- Hik-Connect Remote Access
- ONVIF & RTSP Camera Integration
- Support for Compatible Intelligent Cameras
- Compact 1U Design
- Professional Residential & Commercial CCTV Applications
16-Channel IP Camera Recording
The DS-7616NI-M2/16P supports connection of up to:
16 IP Cameras
This provides significantly more system capacity than smaller 4-channel and 8-channel NVRs and makes it suitable for larger surveillance installations.
Typical applications include:
- Large Residential Properties
- Apartment Buildings
- Retail Stores
- Offices
- Warehouses
- Workshops
- Schools
- Commercial Buildings
- Car Parks
- Industrial Sites
- Multi-Camera CCTV Systems
16 Built-In PoE Camera Ports
The recorder incorporates:
16 × RJ45 PoE Camera Interfaces
Compatible PoE cameras can connect directly to the NVR using Ethernet cabling.
A single compatible Cat5e or Cat6 cable can carry:
- Camera Power
- Network Data
- Video
- Audio where supported
- Intelligent Event Information
This provides a clean and efficient architecture for professional IP CCTV installations.
IEEE 802.3af/at PoE Support
The integrated PoE interfaces support:
- IEEE 802.3af
- IEEE 802.3at
with a total PoE power budget of up to:
200W
This allows the NVR to power a wide range of compatible Hikvision network cameras, subject to individual camera consumption and the total available PoE budget.
Up to 32MP IP Camera Input
The M-Series DS-7616NI-M2/16P supports high-resolution IP camera input up to:
32 Megapixels
Supported recording resolutions include:
- 32MP
- 24MP
- 12MP
- 8MP
- 6MP
- 5MP
- 4MP
- 3MP
- 1080p
- Lower Supported Resolutions
Ultra-high-resolution operation is subject to the recorder's supported operating mode and overall system configuration.
This makes the recorder an excellent platform for current and future high-resolution Hikvision CCTV systems.
256Mbps Incoming Bandwidth
The DS-7616NI-M2/16P provides up to:
256Mbps Incoming Bandwidth
This is particularly important in a 16-camera CCTV system where multiple high-resolution cameras may be recording simultaneously.
Higher incoming bandwidth provides greater flexibility when configuring:
- 4K Cameras
- High Frame Rates
- Higher Video Bit Rates
- Multiple High-Resolution Streams
- Large Multi-Camera Systems
Camera settings should still be designed within the recorder's total available bandwidth.
256Mbps Outgoing Bandwidth
The NVR also provides:
256Mbps Outgoing Bandwidth
This supports substantial network capacity for functions such as:
- Remote Viewing
- Multiple Remote Users
- Hik-Connect
- Network Playback
- CCTV Workstations
- Central Monitoring
- Video Export and Management
Actual performance depends on the complete network and surveillance configuration.
HDMI Output up to 8K
The DS-7616NI-M2/16P provides high-resolution HDMI display output up to:
7680 × 4320 @ 30Hz – 8K
Supported HDMI resolutions also include:
- 8K – 7680 × 4320 @ 30Hz
- 4K – 3840 × 2160 @ 60Hz
- 4K – 3840 × 2160 @ 30Hz
- 2K – 2560 × 1440 @ 60Hz
- Full HD – 1920 × 1080 @ 60Hz
- Additional Supported Resolutions
This allows the NVR to be connected to compatible high-resolution monitors and displays for detailed local CCTV monitoring.
Independent HDMI & VGA Outputs
The recorder provides:
- 1 × HDMI Output
- 1 × VGA Output
HDMI and VGA support independent video output.
VGA supports resolutions up to:
1920 × 1080 @ 60Hz
This provides flexibility for professional monitoring configurations.
High-Performance Decoding
The M-Series platform provides substantial decoding capability for high-resolution CCTV systems.
Depending on firmware and operating mode, supported decoding configurations can include multiple simultaneous high-resolution camera streams.
This makes the DS-7616NI-M2/16P suitable for CCTV systems using combinations of:
- 4MP Cameras
- 6MP Cameras
- 8MP / 4K Cameras
- Ultra-High-Resolution Cameras
16-Channel Synchronous Playback
The NVR supports:
16-Channel Synchronous Playback
This allows recorded footage from multiple cameras to be reviewed simultaneously.
This is particularly valuable when investigating an incident that has moved through several monitored areas, such as:
- Entrances
- Driveways
- Corridors
- Car Parks
- Warehouses
- Building Perimeters
H.265+ Video Compression
The DS-7616NI-M2/16P supports Hikvision's efficient H.265+ video compression.
Supported video formats include:
- H.265+
- H.265
- H.264+
- H.264
H.265+ can substantially reduce storage and bandwidth requirements compared with older compression methods, depending on the scene, camera and recording configuration.
This is especially valuable in larger 16-camera systems where storage requirements can otherwise become significant.
Dual-Stream Recording
The recorder supports dual-stream recording, providing greater flexibility for balancing:
- High-Quality Main Recording
- Remote Viewing
- Mobile Viewing
- Network Bandwidth
- Storage Requirements
Dual SATA Hard Drive Storage
The DS-7616NI-M2/16P incorporates:
2 × SATA HDD Interfaces
Each SATA interface supports a surveillance hard drive capacity of up to:
16TB Per HDD
This provides a maximum raw installed capacity of up to:
32TB across two HDDs
subject to compatible HDD selection and recorder firmware.
Selectable Surveillance Storage
When purchasing this NVR as part of a configured CCTV system:
HDD: Select storage capacity from available options
Storage requirements depend on:
- Number of Cameras
- Camera Resolution
- Frame Rate
- Video Bit Rate
- H.265+ Configuration
- Scene Activity
- Continuous vs Event Recording
- Required Retention Period
For 16-camera systems, selecting the appropriate HDD capacity is particularly important to achieve the required recording retention.
Hik-Connect Remote Access
When connected to the internet and correctly configured, the DS-7616NI-M2/16P supports Hik-Connect remote surveillance.
Depending on connected cameras and system configuration, users can access functions including:
- Live Camera Viewing
- Recorded Playback
- Event Notifications
- Remote CCTV Access
- Audio Monitoring
- Two-Way Communication with Compatible Equipment
Gigabit Network Interface
The recorder incorporates:
1 × RJ45 10/100/1000Mbps Gigabit Ethernet Interface
The Gigabit LAN connection supports:
- Internet Connectivity
- Hik-Connect
- Local Network Access
- Remote Viewing
- Network Management
- CCTV Workstations
- Compatible Network Camera Integration
Intelligent Camera Integration
The DS-7616NI-M2/16P can work with compatible Hikvision intelligent cameras and supported VCA functions.
Depending on the connected camera model and system configuration, supported applications can include:
- Motion Detection
- Line Crossing Detection
- Intrusion Detection
- Human & Vehicle Classification
- Heat Mapping
- People Counting
- ANPR
- Other Camera-Side Intelligent Analytics
Available functionality depends on the connected camera, firmware and complete CCTV system configuration.
Hikvision ColorVu Compatibility
The recorder is an excellent platform for compatible Hikvision ColorVu and ColorVu 3.0 cameras.
A correctly configured system can combine high-quality recording with camera functions such as:
- 24/7 Colour Imaging
- Smart Hybrid Light
- Human & Vehicle Detection
- Active Deterrence
- Strobe Warning
- Audible Warning
- Two-Way Audio
Actual features depend on the connected camera model.
Hikvision AcuSense Compatibility
Compatible Hikvision AcuSense cameras can provide deep-learning human and vehicle classification to help reduce unnecessary security events.
Depending on the camera and system configuration, this can provide more efficient:
- Event Notifications
- Recorded Event Searching
- Perimeter Monitoring
- Human Detection
- Vehicle Detection
Hikvision DarkFighter Compatibility
The NVR can also be paired with compatible Powered-by-DarkFighter cameras for professional low-light CCTV applications.
This makes it suitable for locations requiring improved night-time surveillance such as:
- Car Parks
- Warehouses
- Commercial Properties
- Long Driveways
- Industrial Sites
- Building Perimeters
IP Speaker Support
Compatible versions of the DS-7616NI-M2/16P support connection of up to:
8 IP Speakers
This can be useful for professional security systems requiring integrated remote audio and warning functions.
Actual functionality depends on firmware, compatible devices and system configuration.
Two-Way Audio Interface
The recorder supports a 1-channel RCA two-way audio interface using the audio input.
It also provides:
1 × RCA Audio Output
Actual audio functionality depends on connected cameras, microphones, speakers and system configuration.
Alarm Inputs & Output
For professional security integration, the recorder provides:
- 4 Alarm Inputs
- 1 Alarm Output
These interfaces can be used with compatible external security equipment such as:
- Door Contacts
- Sensors
- External Alarms
- Security Triggers
- Warning Devices
CVBS Video Output
In addition to HDMI and VGA, the NVR provides:
1 × BNC CVBS Video Output
This provides additional flexibility for specialised monitoring and integration applications.
USB Connectivity
The NVR provides:
- 1 × USB 2.0 – Front
- 1 × USB 3.0 – Rear
USB connectivity can be used for supported functions such as:
- Footage Export
- System Backup
- Firmware Management
- Compatible Peripheral Devices
The rear USB 3.0 interface provides higher transfer performance for compatible storage devices.
Network Protocol Support
The DS-7616NI-M2/16P supports a comprehensive range of professional network protocols, including:
- TCP/IP
- DHCP
- IPv4
- IPv6
- DNS
- DDNS
- NTP
- RTSP
- SADP
- SMTP
- SNMP
- NFS
- iSCSI
- ISUP
- HTTP
- HTTPS
ONVIF & RTSP Integration
The recorder supports compatible network camera integration through industry-standard protocols including ONVIF and RTSP.
This provides additional flexibility when designing professional IP CCTV systems.
Compatibility and available functionality should always be confirmed for the specific third-party camera model before installation.
Professional 1U Design
Despite supporting 16 cameras, 16 PoE interfaces and dual HDD storage, the DS-7616NI-M2/16P uses a compact 1U chassis.
Approximate dimensions:
384 × 317 × 52mm
Weight without HDD:
≤ 3kg
Operating temperature:
-10°C to +55°C
This makes it suitable for installation in compatible CCTV cabinets, communications rooms and equipment racks.
Main Specifications
- Model: DS-7616NI-M2/16P
- Product Type: Network Video Recorder
- Series: Hikvision M-Series
- Form Factor: 1U
- IP Camera Inputs: 16 Channels
- Maximum Camera Input Resolution: Up to 32MP
- Built-In PoE Ports: 16
- PoE Interface: 16 × RJ45 10/100Mbps
- PoE Standard: IEEE 802.3af/at
- PoE Power Budget: Up to 200W
- Incoming Bandwidth: Up to 256Mbps
- Outgoing Bandwidth: Up to 256Mbps
- Video Compression: H.265+ / H.265 / H.264+ / H.264
- Dual-Stream Recording: Supported
- Synchronous Playback: 16 Channels
- HDMI Output: Yes
- Maximum HDMI Resolution: 8K – 7680 × 4320 @ 30Hz
- 4K HDMI: Up to 3840 × 2160 @ 60Hz
- VGA Output: Yes
- Maximum VGA Resolution: 1920 × 1080 @ 60Hz
- HDMI/VGA Independent Output: Supported
- CVBS Output: 1 × BNC
- Audio Output: 1 × RCA
- Two-Way Audio: 1 × RCA
- SATA Interfaces: 2
- Maximum HDD Capacity: Up to 16TB Per HDD
- Maximum Raw HDD Capacity: Up to 32TB
- Network Interface: 1 × Gigabit Ethernet
- Remote Connections: Up to 128
- IP Speaker Support: Up to 8 Channels on supported configuration
- Alarm Inputs: 4
- Alarm Outputs: 1
- USB: 1 × USB 2.0 Front + 1 × USB 3.0 Rear
- Hik-Connect: Supported
- ONVIF: Supported
- RTSP: Supported
- Dimensions: Approx. 384 × 317 × 52mm
- Weight: ≤ 3kg Without HDD
- Operating Temperature: -10°C to +55°C
- Application: Professional Residential & Commercial IP CCTV Systems
Ideal For
- 16-Camera CCTV Systems
- Large Residential Properties
- Apartment Buildings
- Retail Stores
- Offices
- Warehouses
- Workshops
- Schools
- Commercial Buildings
- Car Parks
- Industrial Sites
- Building Perimeters
- Multi-Camera Security Systems
- Hikvision ColorVu Systems
- Hikvision ColorVu 3.0 Systems
- Hikvision AcuSense Systems
- Hikvision DarkFighter Systems
- Hikvision Smart Hybrid Light Systems
- 6MP CCTV Systems
- 8MP / 4K CCTV Systems
- Professional High-Resolution CCTV Installations
Benefits
- Professional 16-channel M-Series NVR
- 16 integrated PoE camera ports
- Up to 32MP IP camera input
- High 256Mbps incoming bandwidth
- 256Mbps outgoing bandwidth
- 8K HDMI video output
- 4K HDMI up to 60Hz
- 16-channel synchronous playback
- Efficient H.265+ compression
- Dual-stream recording
- 2 HDD bays
- Up to 16TB per HDD
- Up to 32TB total raw HDD capacity
- Gigabit network interface
- Hik-Connect remote access
- ONVIF integration
- Up to 200W PoE budget
- Compatible intelligent camera integration
- Compact 1U chassis
- Suitable for professional residential and commercial installations
The Hikvision DS-7616NI-M2/16P 16-Channel 16 PoE M-Series 8K Network Video Recorder provides the recording performance, storage capacity and network bandwidth required for demanding modern IP CCTV installations.
With 16 built-in PoE interfaces, up to 32MP camera input, 256Mbps incoming and outgoing bandwidth, 8K HDMI output, 16-channel synchronous playback, H.265+ compression, dual HDD storage and Hik-Connect remote access, it provides an excellent foundation for larger Hikvision ColorVu, AcuSense, DarkFighter and high-resolution 4K CCTV systems.

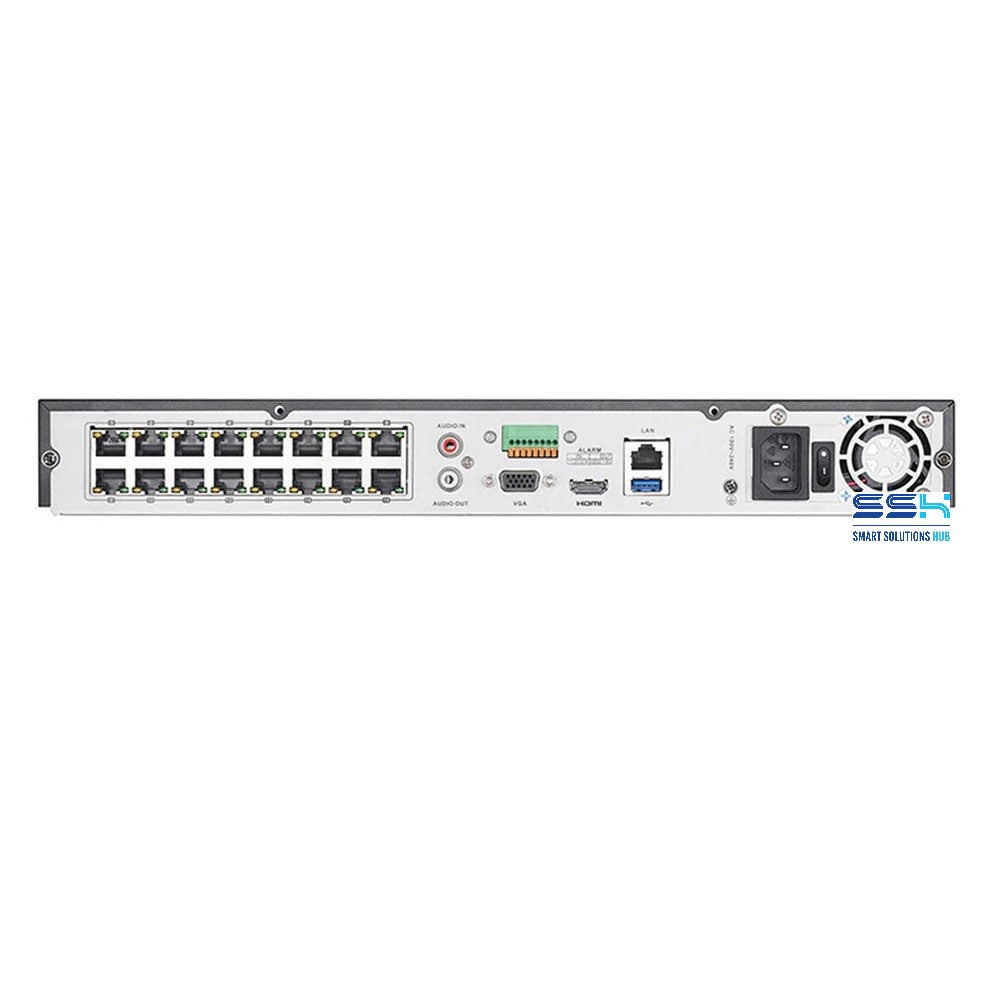

DS-7616NI-M2/16P
16-ch 1U 16 PoE 8K NVR
- H.265+/H.265/H.264+/H.264 video formats
- Up to 16-ch IP camera inputs
- Up to 16-ch@4MP decoding capacity
- Up to 256 Mbps incoming bandwidth
- Up to 8-ch IP speakers can be connected
