Description

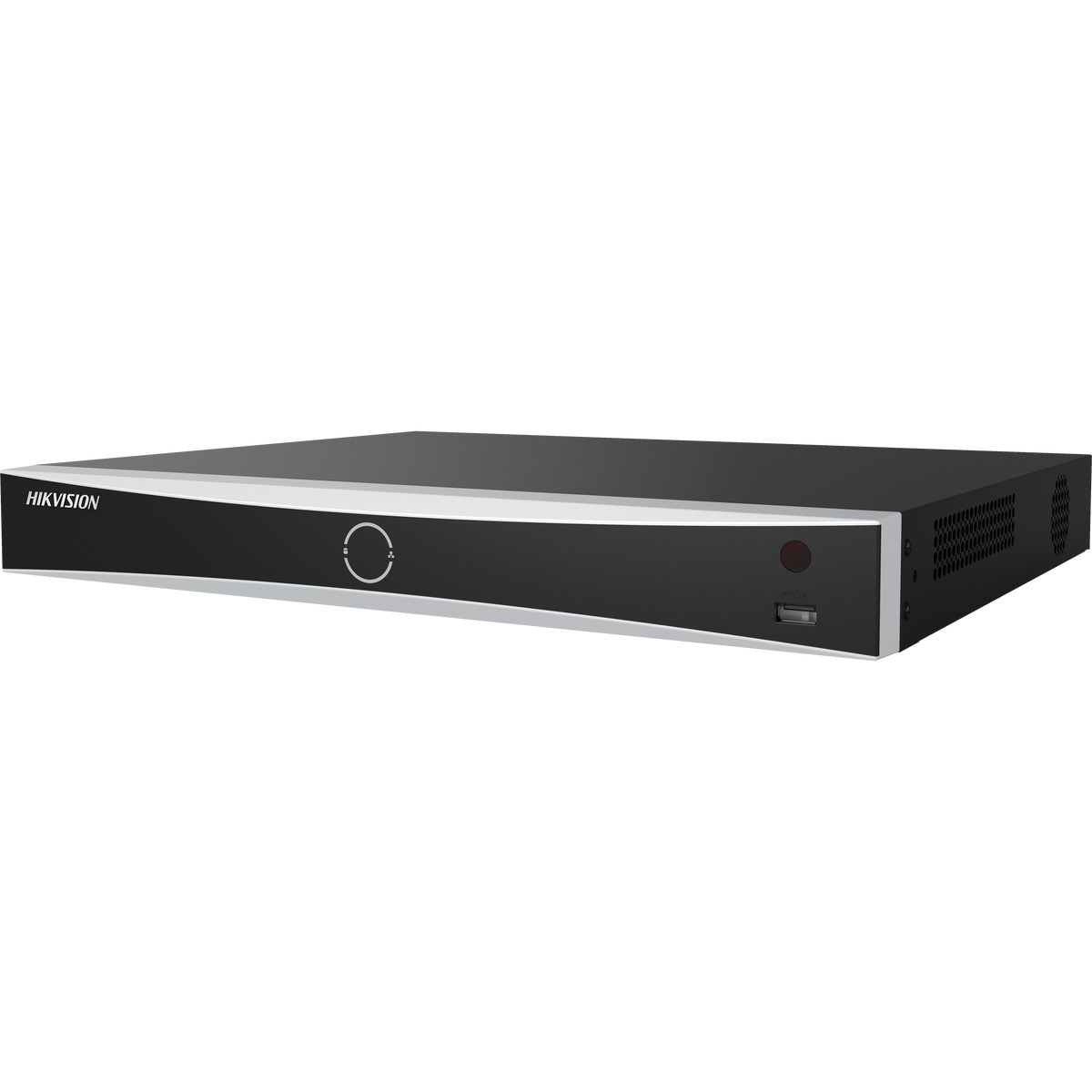

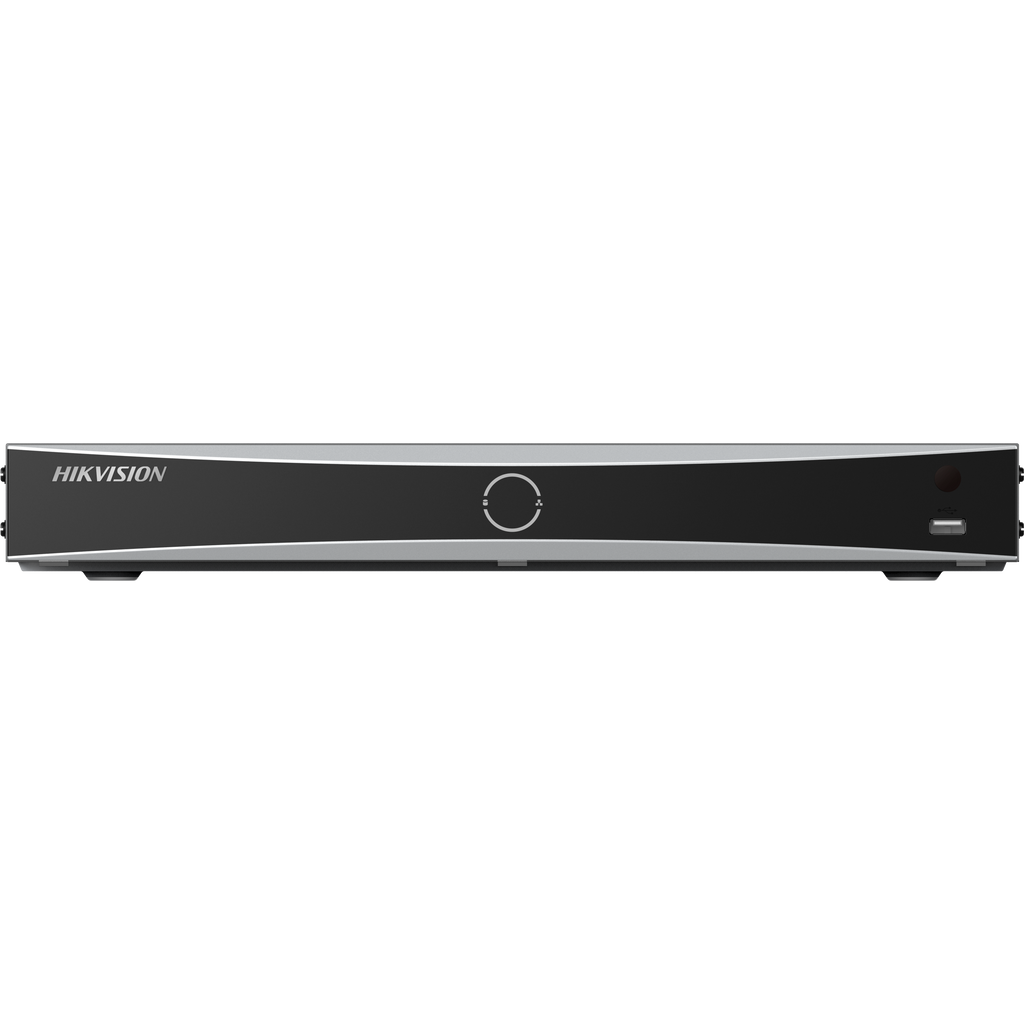

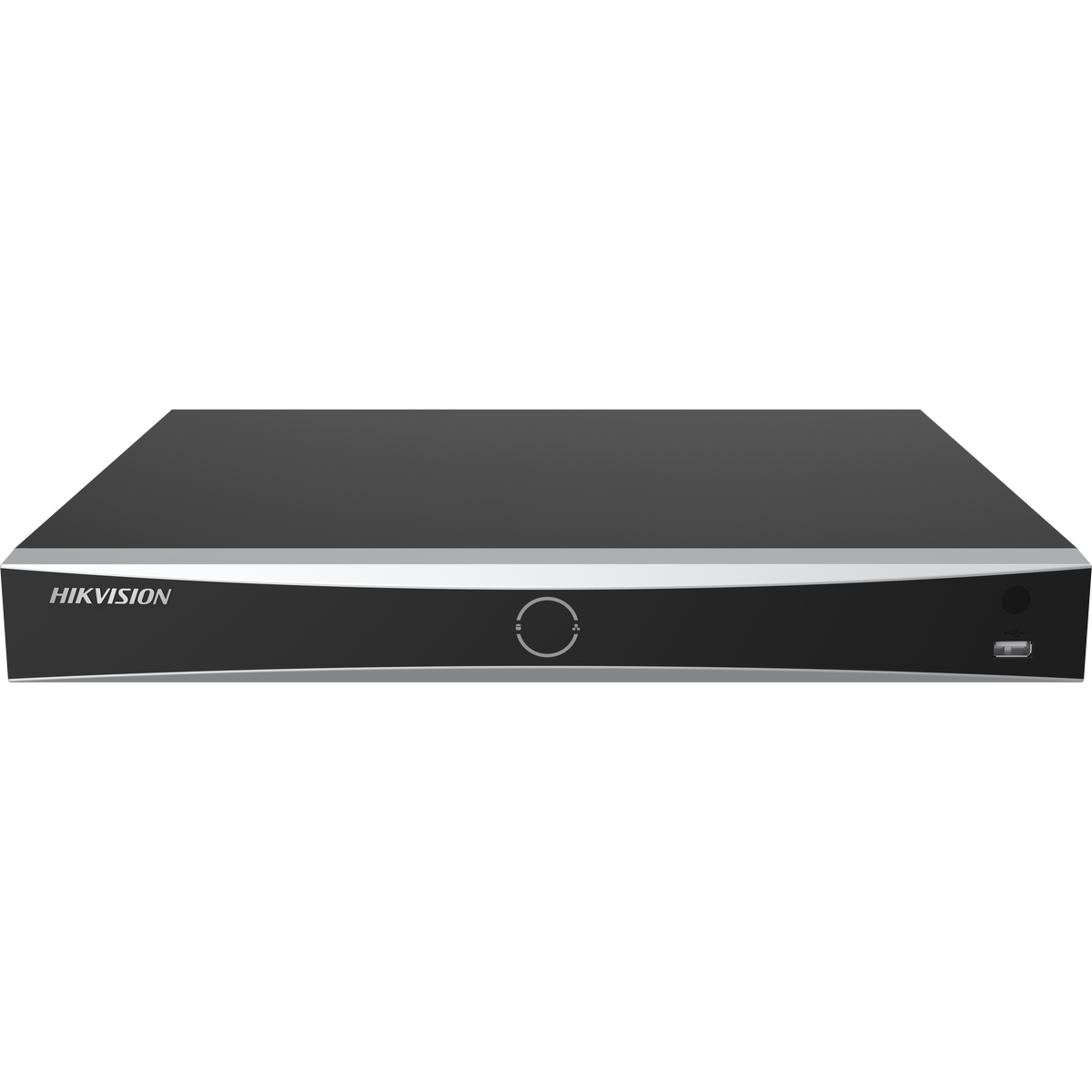

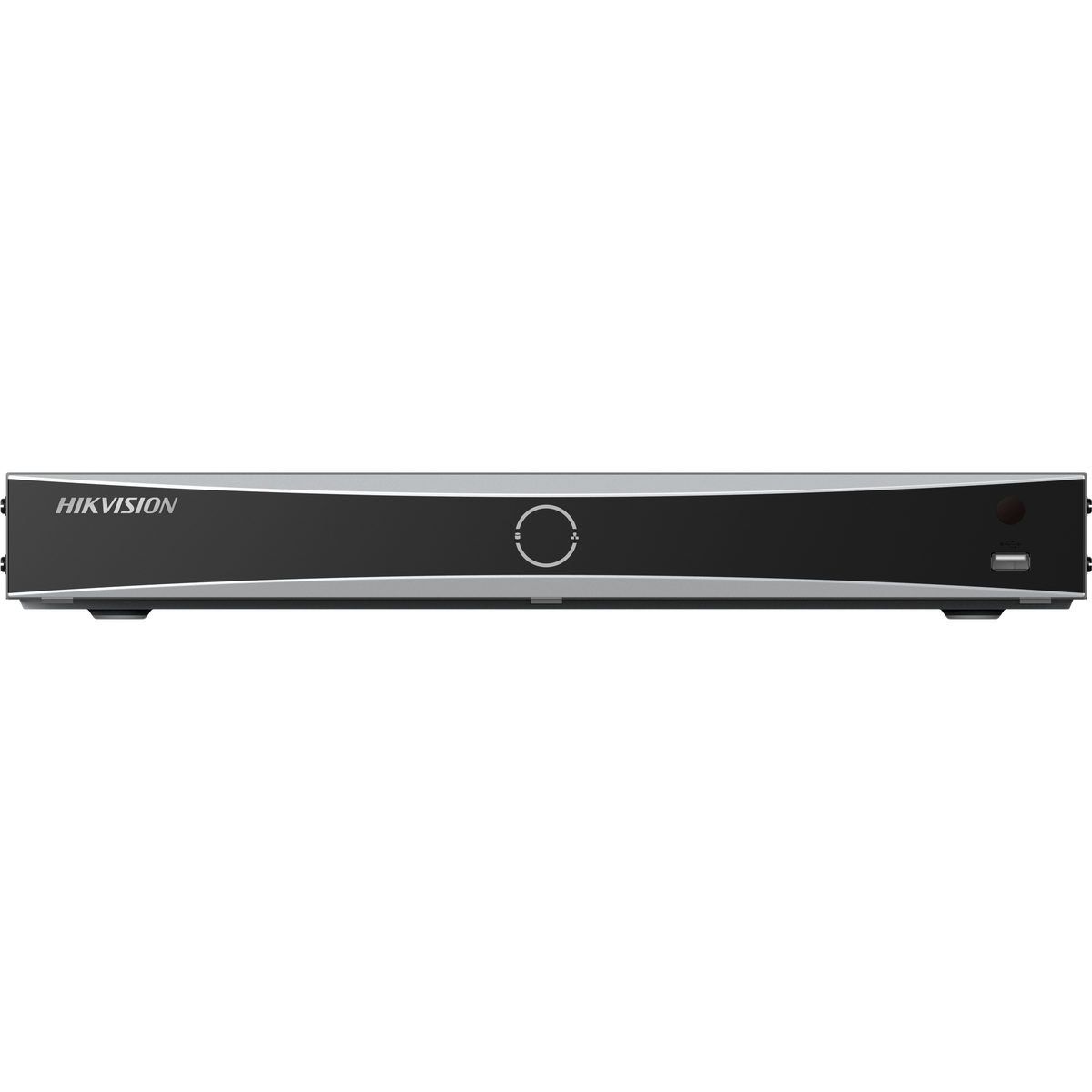

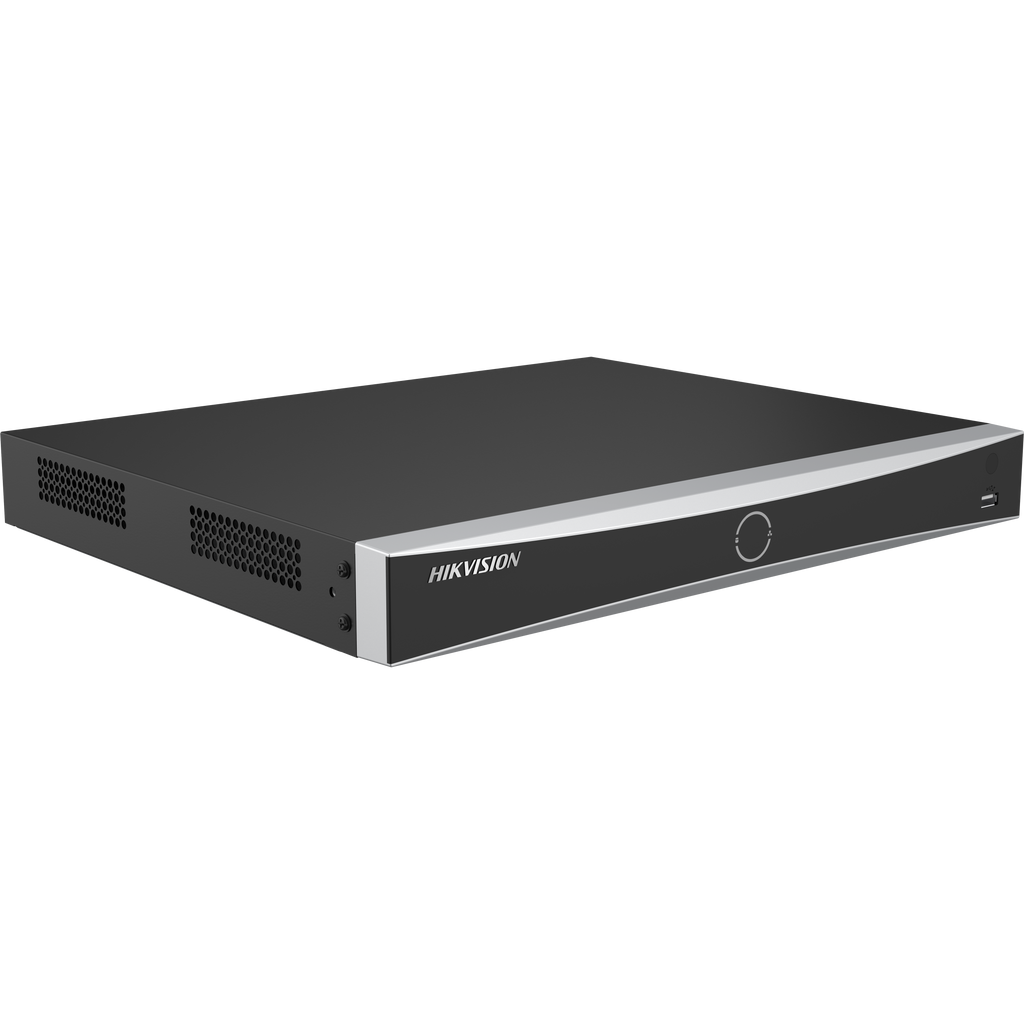

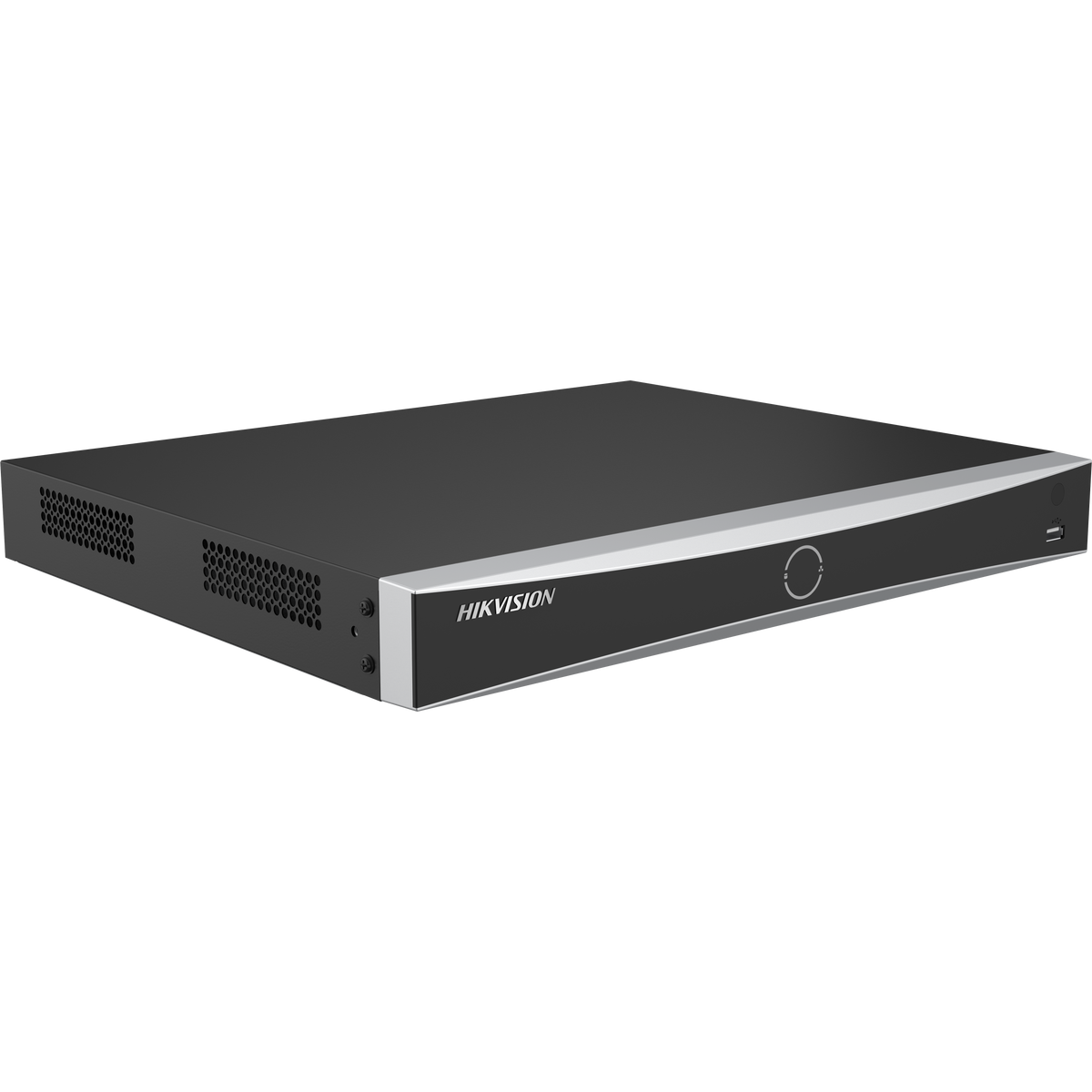

Hikvision DS-7616NXI-I2/16P/VPro 16-Channel I/VPro Series NVR with AcuSeek – 16 PoE, Guanlan AI & AcuSearch
The Hikvision DS-7616NXI-I2/16P/VPro is an advanced 16-channel I/VPro Series AcuSeek Network Video Recorder, combining professional high-capacity IP CCTV recording with Hikvision's latest AI-powered video investigation technology.
Powered by Hikvision Guanlan Large-Scale AI Models, the VPro platform introduces AcuSeek natural-language video search, allowing users to describe a person, vehicle or event using everyday language and rapidly search compatible recorded footage for matching targets.
Combined with AcuSearch, facial recognition, perimeter protection, Motion Detection 2.0, ANPR and compatible camera-side intelligent analytics, the DS-7616NXI-I2/16P/VPro provides a powerful surveillance platform for commercial buildings, warehouses, retail premises, schools, industrial facilities and larger residential installations.
With 16 IP camera channels, 16 built-in PoE interfaces, 192Mbps incoming bandwidth, up to 32MP recording resolution, 16-channel synchronous playback and dual-HDD storage, this NVR is designed for professional CCTV systems where both recording performance and fast video investigation are important.
Key Features
- 16-Channel IP Network Video Recorder
- 16 × Built-In PoE Camera Ports
- Hikvision I/VPro Series
- AcuSeek AI Video Search
- AcuSearch Intelligent Target Search
- Powered by Guanlan Large-Scale AI Models
- Up to 16-Channel AcuSeek
- Up to 16-Channel AcuSearch
- Natural-Language Video Search
- Up to 8-Channel Face Picture Comparison
- Facial Recognition
- Perimeter Protection
- Motion Detection 2.0
- Video Structuralisation with Compatible Cameras
- ANPR Support with Compatible Cameras
- People Counting with Compatible Cameras
- Up to 32MP Recording Resolution
- 192Mbps Incoming Bandwidth
- 256Mbps Outgoing Bandwidth
- Up to 32-Channel 1080p Decoding
- H.265+ Video Compression
- 4K HDMI Output
- Independent HDMI & VGA Outputs
- Dual-Stream Recording
- 16-Channel Synchronous Playback
- 2 × SATA HDD Interfaces
- Gigabit Network Interface
- Alarm Input / Output
- USB 3.0
- Remote Viewing & Playback
- Hik-Connect Support
- Professional AI-Powered CCTV Recording
AcuSeek – Natural-Language CCTV Video Search
The defining feature of the DS-7616NXI-I2/16P/VPro is:
Hikvision AcuSeek
Traditional CCTV investigation often requires an operator to identify the correct camera, select a time period and manually review large amounts of recorded footage.
AcuSeek introduces a more intuitive approach.
Users can enter a natural-language description of the target they are looking for, and the AI system searches compatible recorded footage for targets matching that description.
Instead of manually reviewing hours of video, searches can be based around descriptions such as:
- Person Wearing Particular Clothing
- Person Carrying a Specific Object
- Vehicle with Particular Characteristics
- Person Appearing in a Specific Area
- Other Visually Describable Targets
This can dramatically reduce the time required to investigate recorded CCTV footage.
Search by Text
AcuSeek introduces what Hikvision describes as a:
Search by Text
approach to video investigation.
The user describes the target rather than relying exclusively on conventional event filters.
The Guanlan AI engine then applies text-image understanding to identify potentially relevant recorded targets.
This provides a significantly more intuitive way to investigate large amounts of CCTV footage.
Powered by Hikvision Guanlan AI
The VPro platform uses:
Hikvision Guanlan Large-Scale AI Models
These models are designed to provide cross-modal understanding between:
Text + Video Images
This allows the NVR to interpret descriptive search requests and compare them against compatible video targets.
The result is a more flexible CCTV search platform than conventional metadata-only investigation.
Up to 16-Channel AcuSeek
The DS-7616NXI-I2/16P/VPro supports:
AcuSeek Across All 16 Channels
when used with compatible Hikvision AcuSense cameras with the required functionality enabled.
This is particularly valuable in larger surveillance systems.
Instead of limiting intelligent search to only a small number of cameras, compatible systems can provide AI-assisted investigation across the complete sixteen-camera installation.
Up to 300,000 Targets Per Day
With compatible AcuSense cameras and the required functionality enabled, the VPro platform is capable of modelling up to:
300,000 Targets Per Day
for AcuSeek/AcuSearch applications.
This makes the system particularly useful in busy environments generating substantial volumes of recorded activity.
AcuSearch Intelligent Target Search
The recorder also supports:
Hikvision AcuSearch
AcuSearch allows users to identify a human or vehicle target in recorded footage and rapidly search for matching appearances.
This can help investigators trace a target across multiple cameras.
Potential applications include investigating:
- Theft
- Trespassing
- Suspicious Activity
- Vehicle Incidents
- Unauthorised Access
- Property Damage
- Workplace Incidents
- Security Events
AcuSeek vs AcuSearch
The two technologies complement each other.
AcuSeek
Search using a natural-language description of the target.
AcuSearch
Select an identified person or vehicle and search for matching appearances.
A typical investigation could therefore begin with AcuSeek to identify a target and then use AcuSearch to trace that target through additional recorded footage.
Dual AI Engines
The VPro platform incorporates:
2 Dedicated AI Engines
The architecture allocates:
- One Engine for Face Picture Processing & AcuSearch
- One Engine for AcuSeek
This dedicated AI processing provides the computing capability required for advanced video investigation.
Advanced AI Analytics
Depending on connected camera models and system configuration, supported intelligent functions include:
- AcuSeek
- AcuSearch
- Facial Recognition
- Face Capture
- Perimeter Protection
- Motion Detection 2.0
- Video Structuralisation
- ANPR
- People Counting
Some functions are processed by the NVR while others require compatible camera-side analytics.
Feature availability therefore depends on the connected cameras, firmware and system configuration.
Facial Recognition
The DS-7616NXI-I2/16P/VPro supports advanced facial recognition functionality.
Supported features include:
- Face Picture Comparison
- Human Face Capture
- Face Picture Search
The recorder supports up to:
8 Channels of Face Picture Comparison
and up to:
4 Channels of Human Face Capture
with compatible camera streams.
Face Picture Libraries
The NVR supports up to:
16 Face Picture Libraries
with up to:
50,000 Face Pictures in Total
This provides substantial capacity for compatible facial-recognition applications.
Facial recognition must be configured and used in accordance with applicable privacy and surveillance requirements.
Perimeter Protection
Compatible systems support intelligent perimeter-protection functions designed to identify relevant security targets.
Applications can include:
- Line Crossing
- Intrusion Detection
- Restricted Area Monitoring
- Perimeter Monitoring
Human and vehicle classification can help reduce unnecessary alarms generated by environmental activity.
Motion Detection 2.0
Motion Detection 2.0 provides intelligent human and vehicle analysis for supported motion events.
Compared with conventional motion detection, this can help reduce unnecessary events caused by:
- Trees
- Leaves
- Rain
- Shadows
- Animals
- Changing Lighting
- Other Environmental Movement
ANPR Support
When connected to compatible Hikvision ANPR cameras, the recorder can support advanced vehicle information.
Depending on the connected camera, available information can include:
- Number Plate
- Plate Colour
- Plate Type
- Vehicle Brand
- Vehicle Colour
- Vehicle Type
This makes the NVR suitable for compatible vehicle-monitoring applications.
16 IP Camera Channels
The DS-7616NXI-I2/16P/VPro supports:
16 × IP Camera Inputs
providing a professional platform for surveillance installations requiring up to sixteen network cameras.
Compatible cameras can include selected:
- Hikvision AcuSense Cameras
- Hikvision ColorVu Cameras
- Hikvision ColorVu 3.0 Cameras
- Hikvision DeepinView Cameras
- Hikvision ANPR Cameras
- Standard Hikvision IP Cameras
- Compatible Third-Party IP Cameras
Advanced AI functionality depends on camera compatibility.

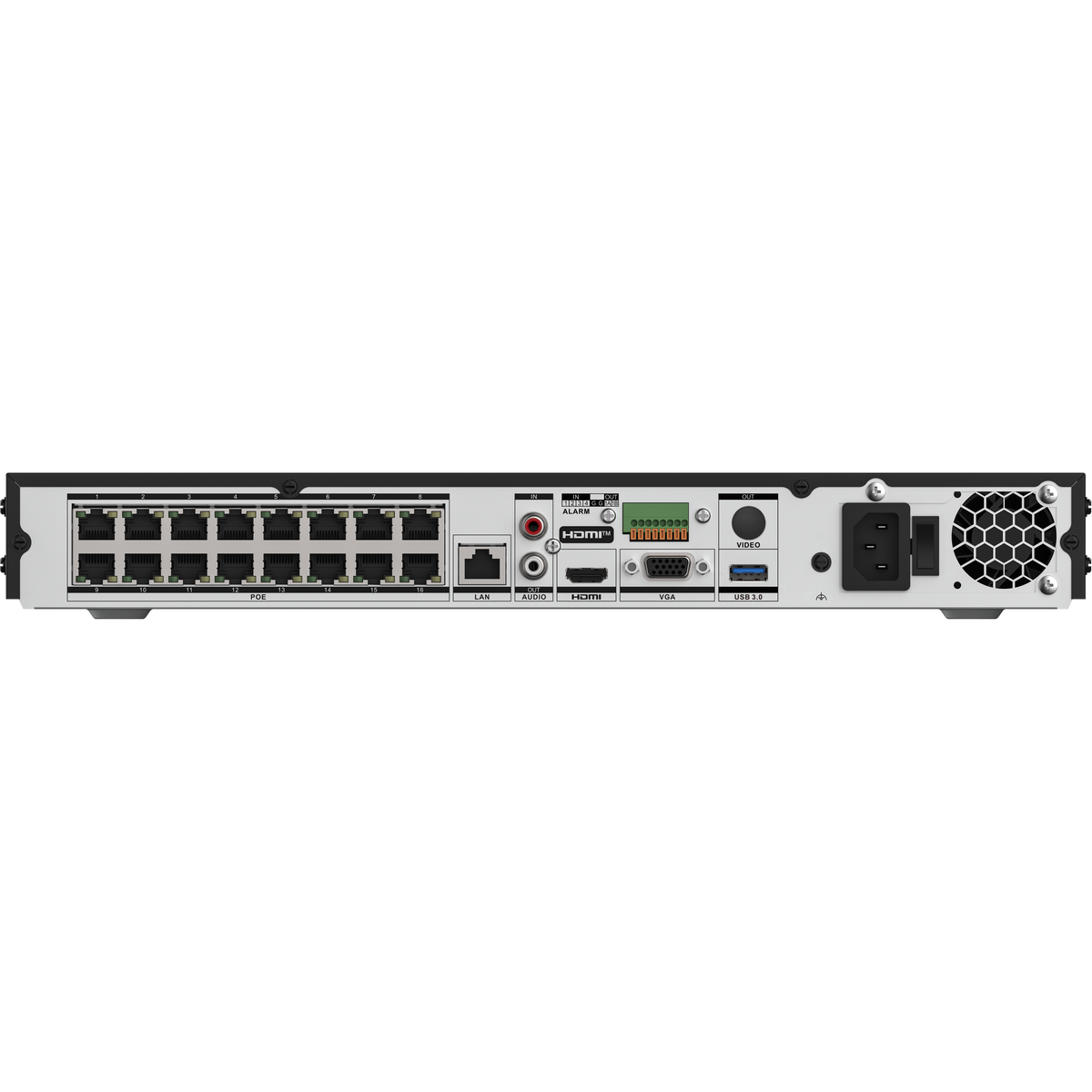

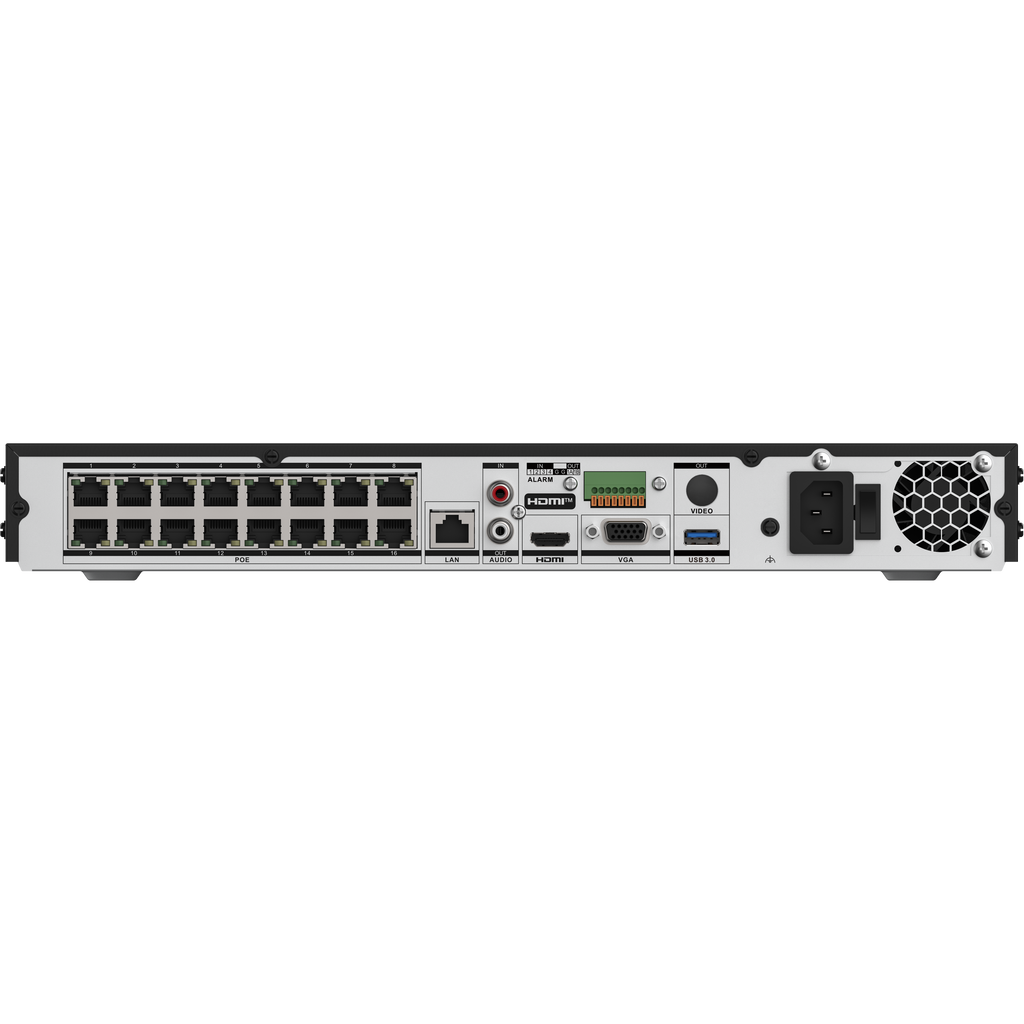

16 Built-In PoE Camera Ports
The /16P version incorporates:
16 × Built-In PoE Interfaces
This allows compatible PoE cameras to connect directly to the NVR.
PoE – Power over Ethernet – carries both electrical power and network data over compatible Ethernet cabling.
This reduces the requirement for:
- Separate Camera Power Supplies
- Individual PoE Injectors
- Additional Camera Power Cabling
The recorder therefore provides a central connection, power and recording platform for a professional sixteen-camera IP CCTV system.
Plug-and-Play Camera Connectivity
Compatible Hikvision cameras can connect directly to the recorder's PoE interfaces.
A typical installation uses:
IP Camera → Cat5e/Cat6 → NVR PoE Port
for each camera.
This simplifies system architecture and provides a convenient central point for CCTV management.
Up to 32MP Recording Resolution
The recorder supports video recording resolutions up to:
32 Megapixels
Supported resolutions include:
- 32MP
- 24MP
- 12MP
- 8MP
- 7MP
- 6MP
- 5MP
- 4MP
- 3MP
- 1080p
- Lower Supported Resolutions
This allows the NVR to accommodate a wide range of high-resolution Hikvision IP cameras.
192Mbps Incoming Bandwidth
The DS-7616NXI-I2/16P/VPro provides up to:
192Mbps Incoming Bandwidth
This is a major consideration for a professional sixteen-camera system, particularly where multiple high-resolution cameras are being recorded.
Camera stream configuration should consider:
- Number of Cameras
- Resolution
- Frame Rate
- Video Bit Rate
- Audio
- Compression
- Intelligent Functions
256Mbps Outgoing Bandwidth
The recorder provides up to:
256Mbps Outgoing Bandwidth
supporting demanding local and remote video applications.
Powerful Decoding Capability
The VPro platform provides powerful local decoding performance.
The recorder supports up to:
32 Channels of 1080p Decoding
with high-resolution decoding configurations available according to the connected streams.
This provides strong local display and playback capability for professional multi-camera installations.
16-Channel Synchronous Playback
The NVR supports:
16-Channel Synchronous Playback
allowing recorded footage from all sixteen camera channels to be reviewed simultaneously.
This can be extremely useful when investigating an incident involving movement across multiple areas of a property.
H.265+ Video Compression
The recorder supports:
- H.265+
- H.265
- H.264+
- H.264
- MPEG4
Efficient H.265+ compression can help reduce network bandwidth and HDD storage requirements compared with older compression formats.
Actual savings depend on camera settings, scene activity and recording configuration.
Dual-Stream Recording
The recorder supports:
Dual-Stream Recording
allowing different video streams to be used according to recording, playback and remote-viewing requirements.
This can help optimise network bandwidth and remote-access performance.
4K HDMI Output
The DS-7616NXI-I2/16P/VPro provides HDMI output up to:
3840 × 2160 / 4K @ 30Hz
Additional supported HDMI resolutions include:
- 2560 × 1440 @ 60Hz
- 1920 × 1080 @ 60Hz
- 1280 × 720 @ 60Hz
This provides high-resolution local display for professional surveillance applications.
Independent HDMI & VGA Outputs
The NVR provides:
Independent HDMI and VGA Video Outputs
allowing greater flexibility when configuring local monitoring displays.
VGA output supports up to:
1920 × 1080 @ 60Hz
Dual HDD Storage
The recorder provides:
2 × SATA HDD Interfaces
allowing two surveillance-rated hard drives to be installed.
Dual HDD capability provides greater storage flexibility than single-drive NVRs and is particularly valuable for sixteen-camera systems.
HDD: Select storage capacity from available options
High-Capacity Recording
The appropriate HDD capacity depends on:
- Number of Cameras
- Camera Resolution
- Frame Rate
- Video Bit Rate
- Audio Recording
- H.265+ Compression
- Continuous or Event Recording
- Required Retention Period
A sixteen-camera system can generate substantial recording data, so storage capacity should be selected according to the required retention period.
Gigabit Ethernet
The recorder includes a:
10/100/1000Mbps Gigabit Ethernet Interface
for connection to the local network.
This supports:
- Remote Viewing
- Network Management
- Camera Integration
- Hik-Connect
- Remote Playback
- System Configuration
Alarm Inputs & Output
The recorder provides physical alarm connectivity for integration with compatible security devices.
This allows supported external alarm devices and security systems to interact with the NVR.
USB Connectivity
The NVR provides front and rear USB connectivity, including:
USB 3.0
for compatible high-speed external storage and video export applications.
Remote Viewing with Hik-Connect
When connected to the internet and correctly configured, the recorder supports Hikvision remote-access functionality.
Compatible remote functions can include:
- Live Camera Viewing
- Recorded Playback
- Event Notifications
- Multi-Camera Viewing
- Remote CCTV Monitoring
- System Management
This allows authorised users to access their surveillance system while away from the property.
Ideal for Larger CCTV Systems
The combination of sixteen channels and advanced AI investigation makes the DS-7616NXI-I2/16P/VPro particularly suitable for:
- Warehouses
- Retail Stores
- Commercial Buildings
- Offices
- Schools
- Workshops
- Factories
- Industrial Sites
- Car Parks
- Storage Facilities
- Building Perimeters
- Large Residential Properties
- Multi-Area Surveillance Systems
Why Choose VPro with AcuSeek?
Conventional NVRs primarily record and store CCTV footage.
The VPro platform adds advanced AI-assisted investigation.
The combination of:
AcuSeek + AcuSearch + Guanlan AI + Advanced Camera Analytics
provides a much more efficient way to search and investigate large volumes of recorded footage.
This becomes increasingly valuable in a sixteen-camera installation where manually reviewing footage across every camera can be extremely time-consuming.
Main Specifications
- Model: DS-7616NXI-I2/16P/VPro
- Series: Hikvision I/VPro Series
- Product Type: AcuSeek Network Video Recorder
- IP Camera Inputs: 16
- PoE Camera Interfaces: 16
- Maximum Recording Resolution: Up to 32MP
- Incoming Bandwidth: 192Mbps
- Outgoing Bandwidth: 256Mbps
- AI Platform: Hikvision Guanlan Large-Scale AI Models
- AI Engines: 2
- AcuSeek: Up to 16 Channels with Compatible Cameras
- AcuSearch: Up to 16 Channels with Compatible Cameras
- Target Modelling: Up to 300,000 Targets/Day with Compatible Configuration
- Face Picture Comparison: Up to 8 Channels
- Human Face Capture: Up to 4 Channels
- Face Picture Libraries: Up to 16
- Maximum Face Pictures: Up to 50,000
- Perimeter Protection: Supported
- Motion Detection 2.0: Supported
- Video Structuralisation: Supported with Compatible Cameras
- ANPR: Supported with Compatible Cameras
- People Counting: Supported with Compatible Cameras
- Maximum Decoding: Up to 32 × 1080p
- Synchronous Playback: 16 Channels
- Video Compression: H.265+ / H.265 / H.264+ / H.264 / MPEG4
- Dual-Stream Recording: Supported
- HDMI Output: Up to 4K / 3840 × 2160 @ 30Hz
- VGA Output: Up to 1920 × 1080 @ 60Hz
- HDMI/VGA: Independent Output
- Audio Output: 1 × RCA
- Two-Way Audio: 1 × RCA
- SATA Interfaces: 2
- Network Interface: 1 × Gigabit RJ45
- PoE: 16 × Built-In Interfaces
- USB: USB 2.0 + USB 3.0
- Remote Viewing: Supported
- Hik-Connect: Supported
- Application: Professional AI-Powered IP CCTV Recording
Ideal For
- Hikvision AcuSense CCTV Systems
- Hikvision ColorVu CCTV Systems
- Hikvision ColorVu 3.0 Systems
- Advanced AI CCTV Installations
- Commercial CCTV
- Warehouse Surveillance
- Retail Security
- Office Security
- Industrial Surveillance
- Schools
- Car Parks
- Building Perimeters
- Large Residential Properties
- 16-Camera CCTV Systems
- AI Video Investigation
- AcuSeek Video Search
- AcuSearch CCTV Systems
- Professional Security Installations
Benefits
- Advanced Hikvision VPro platform
- Guanlan Large-Scale AI Models
- Natural-language AcuSeek video search
- Up to 16-channel AcuSeek
- Up to 16-channel AcuSearch
- Up to 300,000 targets/day modelling
- Advanced facial recognition
- Up to 50,000 face pictures
- Perimeter protection
- Motion Detection 2.0
- ANPR compatibility
- People-counting compatibility
- 16 IP camera channels
- 16 built-in PoE interfaces
- Up to 32MP recording
- 192Mbps incoming bandwidth
- 256Mbps outgoing bandwidth
- Up to 32-channel 1080p decoding
- 16-channel synchronous playback
- H.265+ compression
- 4K HDMI output
- Independent HDMI and VGA
- Dual HDD storage
- Gigabit Ethernet
- Alarm connectivity
- USB 3.0
- Hik-Connect remote access
- Professional AI-assisted video investigation
The Hikvision DS-7616NXI-I2/16P/VPro 16-Channel I/VPro Series NVR with AcuSeek is designed for professional surveillance systems where efficiently finding an incident is just as important as recording it.
Combining 16 IP camera channels, 16 PoE interfaces, 192Mbps incoming bandwidth, up to 32MP recording, 16-channel synchronous playback and dual-HDD storage with Hikvision's Guanlan-powered AcuSeek and AcuSearch technology, the DS-7616NXI-I2/16P/VPro provides a powerful AI-assisted recording and investigation platform for larger CCTV installations.
