Description

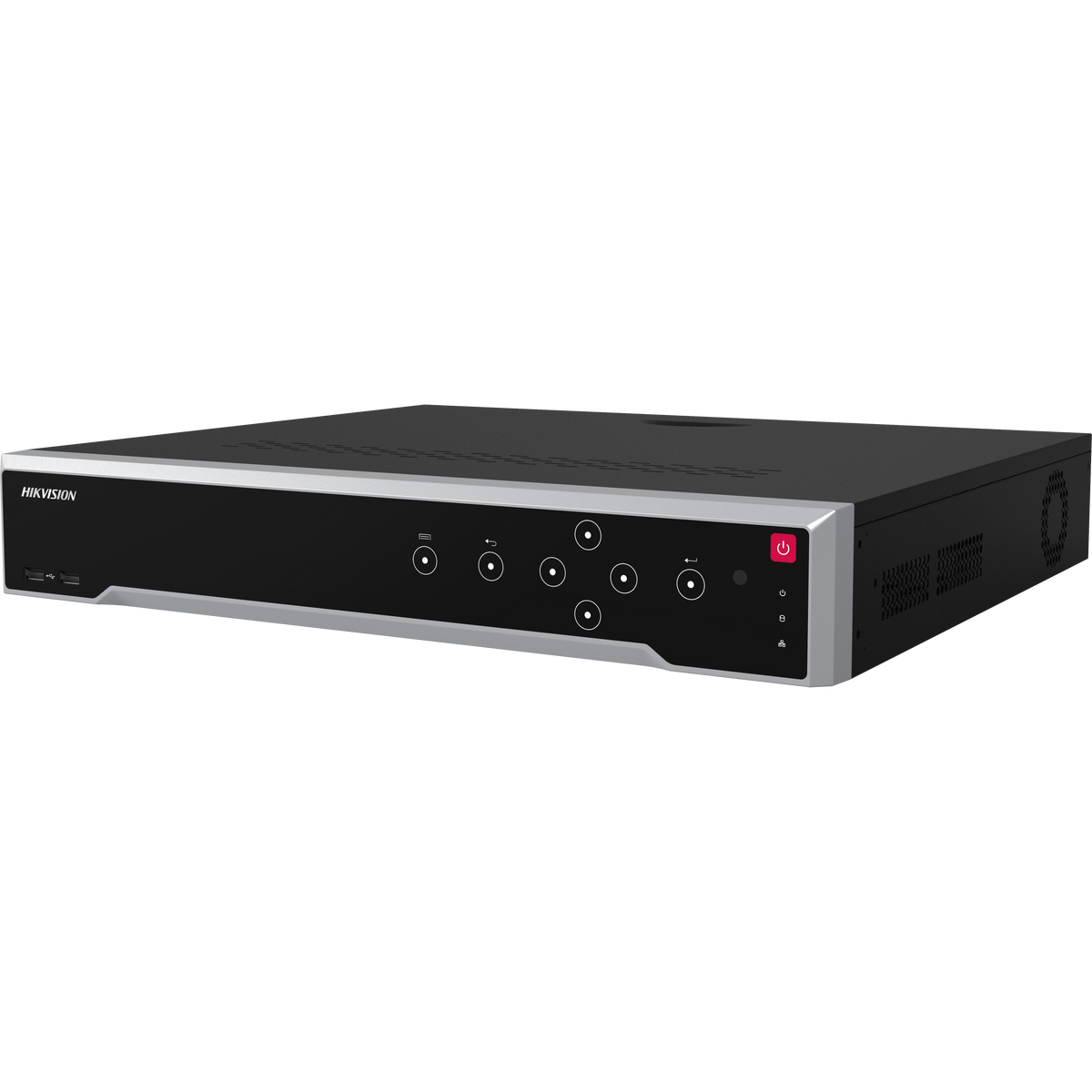

Hikvision DS-7732NI-M4/16P 32-Channel 1.5U 16-PoE 8K NVR – 32MP, 320Mbps & 4 HDD
The Hikvision DS-7732NI-M4/16P is a professional 32-channel M-Series 8K Network Video Recorder, designed for large residential, commercial and industrial IP CCTV installations requiring high camera capacity, substantial recording bandwidth, powerful decoding and expandable surveillance storage.
Supporting up to 32 IP cameras, the recorder incorporates 16 built-in PoE interfaces for direct connection of compatible PoE cameras. Additional cameras can be connected through suitable external network infrastructure to utilise the recorder's full 32-channel capacity.
With up to 32MP camera input, 320Mbps incoming bandwidth, 400Mbps outgoing bandwidth, true 8K HDMI output, up to 10-channel 8MP decoding, four SATA HDD bays and 16-channel synchronous playback, the DS-7732NI-M4/16P provides a powerful recording platform for demanding professional CCTV systems.
Key Features
- 32-Channel IP Network Video Recorder
- Hikvision M-Series 8K NVR
- 16 × Built-In PoE Camera Ports
- Up to 32 IP Camera Inputs
- Up to 32MP Camera Resolution
- 320Mbps Incoming Bandwidth
- 400Mbps Outgoing Bandwidth
- True 8K HDMI Output
- HDMI 1 Up to 7680 × 4320 @ 30Hz
- HDMI 2 Up to 4K @ 60Hz
- Up to 10 × 8MP @ 30fps Decoding
- Up to 20 × 4MP @ 30fps Decoding
- Up to 40 × 1080p @ 30fps Decoding
- 16-Channel Synchronous Playback
- H.265+ Video Compression
- Dual-Stream Recording
- Independent Video Output Options
- 4 × SATA HDD Interfaces
- Up to 16TB Per HDD
- Up to 64TB Potential Internal Storage
- eSATA Interface
- 16 Alarm Inputs
- 9 Alarm Outputs
- Gigabit Ethernet
- Up to 128 Remote Connections
- USB 3.0
- RS-232 & RS-485
- POS Integration
- Hik-Connect Support
- 19-Inch Rack-Mountable 1.5U Chassis
- Professional Commercial CCTV Recording
32 IP Camera Channels
The DS-7732NI-M4/16P supports:
Up to 32 IP Camera Inputs
making it suitable for large surveillance installations requiring substantial camera capacity.
Compatible cameras can include selected:
- Hikvision ColorVu Cameras
- Hikvision ColorVu 3.0 Cameras
- Hikvision AcuSense Cameras
- Hikvision DeepinView Cameras
- Hikvision ANPR Cameras
- Hikvision PTZ Cameras
- Hikvision Panoramic Cameras
- Hikvision Thermal Cameras
- Standard Hikvision IP Cameras
- Compatible Third-Party IP Cameras
Advanced camera-side functionality depends on the connected camera model and system configuration.
16 Built-In PoE Camera Ports
The /16P version provides:
16 × Built-In PoE Network Interfaces
These allow compatible PoE cameras to connect directly to the recorder.
PoE – Power over Ethernet – allows compatible cameras to receive both network data and electrical power through a single compatible Ethernet cable.
A typical direct connection is:
IP Camera → Cat5e/Cat6 Cable → NVR PoE Port
This can significantly simplify professional CCTV installation.
Important – 32 Channels / 16 PoE Ports
The distinction between recording channels and physical PoE ports is important.
Maximum IP Camera Capacity
32 Cameras
Built-In PoE Camera Ports
16
The first sixteen compatible PoE cameras can connect directly to the NVR's built-in PoE interfaces.
To expand the system beyond sixteen cameras, additional network cameras can be connected through suitable external network infrastructure such as compatible PoE network switches.
This allows the recorder to reach its full:
32-Camera Capacity
without requiring 32 physical PoE interfaces on the NVR itself.
Up to 32MP Camera Input
The DS-7732NI-M4/16P supports camera recording resolutions up to:
32 Megapixels
Supported recording resolutions include:
- 32MP
- 24MP
- 12MP
- 8MP / 4K
- 6MP
- 5MP
- 4MP
- 3MP
- 1080p
- Lower Supported Resolutions
In Ultra-HD Resolution Mode, the NVR supports up to eight 32MP / 24MP IP video inputs.
This makes the recorder suitable for professional installations combining standard cameras with extremely high-resolution surveillance cameras.
320Mbps Incoming Bandwidth
The recorder provides:
320Mbps Incoming Bandwidth
This high bandwidth is particularly valuable in large installations using multiple high-resolution cameras.
Available bandwidth is shared across the connected IP camera streams.
System design should therefore consider:
- Number of Cameras
- Camera Resolution
- Frame Rate
- Video Bit Rate
- Audio
- Compression
- Intelligent Functions
- Recording Configuration
400Mbps Outgoing Bandwidth
The DS-7732NI-M4/16P provides:
400Mbps Outgoing Bandwidth
supporting demanding local network, remote-access and video distribution requirements.
Powerful Decoding Capability
The Hikvision M-Series platform provides powerful high-resolution decoding.
Supported configurations include up to:
- 2 × 32MP @ 30fps + 2 × 8MP @ 30fps
- 10 × 8MP @ 30fps
- 20 × 4MP @ 30fps
- 40 × 1080p @ 30fps
This is a significant advantage in professional systems requiring simultaneous display of multiple high-resolution camera streams.
True 8K HDMI Output
One of the standout features of the DS-7732NI-M4/16P is:
True 8K HDMI Video Output
HDMI 1 supports resolutions up to:
7680 × 4320 @ 30Hz
This allows connection to a compatible 8K display for extremely high-resolution local surveillance monitoring.
Unlike NVRs where very high megapixel specifications refer only to camera input, this M-Series recorder genuinely supports an 8K local HDMI display output.
Dual HDMI Outputs
The recorder provides:
2 × HDMI Outputs
HDMI 1
Supports up to:
8K – 7680 × 4320 @ 30Hz
and:
4K – 3840 × 2160 @ 60Hz
HDMI 2
Supports up to:
4K – 3840 × 2160 @ 60Hz
This provides substantial flexibility for professional multi-monitor installations.
VGA Output
The NVR also provides VGA output supporting up to:
1920 × 1080 @ 60Hz
This allows integration with compatible Full HD monitoring equipment.
Independent Display Capability
The recorder provides flexible display configurations through:
- HDMI 1
- HDMI 2
- VGA
- CVBS
This makes the DS-7732NI-M4/16P particularly suitable for:
- Security Control Rooms
- Warehouse Offices
- Reception Areas
- Commercial Monitoring Stations
- Industrial Security Rooms
- Multi-Monitor CCTV Installations
16-Channel Synchronous Playback
The NVR supports:
16-Channel Synchronous Playback
allowing recorded footage from up to sixteen cameras to be reviewed simultaneously.
This can be extremely useful when investigating an event that has moved through multiple camera zones.
H.265+ Video Compression
The recorder supports:
- H.265+
- H.265
- H.264+
- H.264
H.265+ can substantially reduce storage and bandwidth requirements compared with older compression formats, depending on the camera scene and recording configuration.
This is particularly important for large systems recording:
- 8MP / 4K Cameras
- 12MP Cameras
- 24MP Cameras
- 32MP Cameras
Dual-Stream Recording
The DS-7732NI-M4/16P supports:
Dual-Stream Recording
Different streams can therefore be used for different recording, playback and remote-access requirements.
This can improve network efficiency and remote viewing performance.
Four HDD Bays
The recorder provides:
4 × Internal SATA HDD Interfaces
This gives the DS-7732NI-M4/16P substantially greater storage capability than smaller one- or two-HDD NVRs.
Four-drive storage is particularly valuable for large installations with:
- High Camera Counts
- 8MP / 4K Cameras
- Continuous Recording
- Long Retention Requirements
- High Frame Rates
- Audio Recording
Up to 16TB Per HDD
Current Hikvision specifications support:
Up to 16TB Per HDD
With four compatible 16TB surveillance HDDs installed, the recorder can provide a potential internal raw storage capacity of:
Up to 64TB
Actual usable recording capacity and retention depend on the installed HDDs and recording configuration.
eSATA Interface
The NVR also provides:
1 × eSATA Interface
for compatible external storage applications.
This provides additional flexibility for professional surveillance storage configurations.
Storage Requirements
The appropriate HDD capacity depends on:
- Number of Cameras
- Camera Resolution
- Frame Rate
- Video Bit Rate
- H.265+ Compression
- Audio Recording
- Continuous or Event Recording
- Required Recording Retention
For professional CCTV applications, surveillance-rated HDDs are recommended.
Intelligent Camera Functions
The recorder supports integration with compatible camera-generated VCA and smart functions.
Depending on the connected camera, supported intelligent features can include:
- Motion Detection
- Line Crossing Detection
- Intrusion Detection
- Heat Mapping
- ANPR
- People Counting
- Other VCA Events
The exact intelligent functionality depends on the connected camera model and its supported features.
POS Integration
The DS-7732NI-M4/16P supports:
POS – Point of Sale Integration
POS information can be overlaid onto:
- Live View
- Recorded Playback
and POS activity can be used for supported recording and alarm functions.
This can be particularly useful for:
- Retail Stores
- Supermarkets
- Hospitality Venues
- Service Counters
- Commercial Transactions
16 Alarm Inputs
The recorder provides:
16 × Alarm Inputs
allowing compatible external alarm devices to be integrated into the CCTV system.
Potential integrations include appropriately configured:
- Door Contacts
- Sensors
- Alarm Systems
- External Security Devices
9 Alarm Outputs
The NVR provides:
9 × Alarm Outputs
for integration with compatible external warning or control devices.
This gives the recorder substantial physical alarm integration capability for professional security installations.
RS-485 & RS-232
Professional connectivity includes:
- 2 × RS-485 Interfaces
- 1 × RS-232 Interface
These provide additional integration options for compatible security and control equipment.
Gigabit Ethernet
The recorder provides:
1 × 10/100/1000Mbps Gigabit Ethernet Interface
for connection to the site's main network.
This supports:
- Remote Viewing
- Hik-Connect
- Camera Integration
- Network Management
- Remote Playback
- System Configuration
- Third-Party Integration
Up to 128 Remote Connections
The NVR supports up to:
128 Remote Connections
providing substantial network access capability for professional applications.
Hik-Connect Remote Access
When connected to the internet and correctly configured, compatible Hikvision remote-access functionality can provide:
- Live Camera Viewing
- Recorded Playback
- Event Notifications
- Multi-Camera Viewing
- Remote CCTV Monitoring
- System Management
This provides convenient authorised access to the surveillance system while away from the site.
ONVIF & RTSP Compatibility
The NVR supports standard network-camera protocols including:
- ONVIF
- RTSP
This provides additional flexibility when integrating compatible third-party IP cameras.
For maximum functionality and system integration, compatible Hikvision cameras are recommended.
Secure Video Transmission
The M-Series platform supports:
Stream over TLS Encryption
to provide enhanced security for supported video-stream transmission.
The recorder also supports double verification for playback and downloading, providing additional control over access to recorded surveillance footage.
200W PoE Budget
The sixteen built-in PoE interfaces support:
IEEE 802.3af / 802.3at
with a total PoE power budget of up to:
200W
Camera power requirements should be checked when designing the system, particularly where higher-powered PTZ or specialist cameras are being connected.
USB Connectivity
The recorder provides:
- 2 × USB 2.0 – Front
- 1 × USB 3.0 – Rear
USB connectivity can be used with compatible devices for functions such as:
- Video Export
- Configuration
- External Storage
- Mouse Control
1.5U Rack-Mountable Chassis
The DS-7732NI-M4/16P uses a:
19-Inch Rack-Mountable 1.5U Chassis
making it suitable for professional communications and security racks.
Approximate dimensions are:
440 × 389 × 72 mm
This makes the recorder well suited to:
- MDF Rooms
- Communications Racks
- Security Rooms
- Server Rooms
- Commercial CCTV Cabinets
Ideal for Large CCTV Installations
The DS-7732NI-M4/16P is particularly suitable for:
- Warehouses
- Factories
- Commercial Buildings
- Retail Centres
- Schools
- Industrial Facilities
- Large Offices
- Car Parks
- Storage Facilities
- Building Complexes
- Multi-Tenant Properties
- Large Residential Properties
- Multi-Area Surveillance Systems
Why Choose the M-Series?
The Hikvision M-Series is designed for demanding high-resolution surveillance environments.
The DS-7732NI-M4/16P combines:
32 Camera Channels + 16 PoE + 320Mbps Incoming Bandwidth + 8K Output + Powerful Decoding + 4 HDD Bays
This makes it an excellent platform where recording performance, display quality, storage capacity and future camera expansion are priorities.
Main Specifications
- Model: DS-7732NI-M4/16P
- Series: Hikvision M-Series
- Product Type: Professional 8K Network Video Recorder
- Chassis: 19-Inch Rack-Mountable 1.5U
- IP Camera Inputs: 32
- Built-In PoE Interfaces: 16
- PoE Standard: IEEE 802.3af / 802.3at
- PoE Power Budget: Up to 200W
- Maximum Camera Resolution: Up to 32MP
- Incoming Bandwidth: 320Mbps
- Outgoing Bandwidth: 400Mbps
- Recording Resolution: Up to 32MP
- Decoding: Up to 2 × 32MP + 2 × 8MP / 10 × 8MP / 20 × 4MP / 40 × 1080p
- Synchronous Playback: 16 Channels
- Video Compression: H.265+ / H.265 / H.264+ / H.264
- Dual-Stream Recording: Supported
- HDMI Outputs: 2
- HDMI 1: Up to 8K / 7680 × 4320 @ 30Hz
- HDMI 2: Up to 4K / 3840 × 2160 @ 60Hz
- VGA Output: Up to 1920 × 1080 @ 60Hz
- CVBS Output: 1 × BNC
- Audio Output: 1 × RCA
- Two-Way Audio: 1 × RCA
- SATA Interfaces: 4
- Maximum HDD Capacity: Up to 16TB Per HDD
- Potential Internal Storage: Up to 64TB
- eSATA: 1
- Network Interface: Gigabit Ethernet
- Remote Connections: Up to 128
- Alarm Inputs: 16
- Alarm Outputs: 9
- RS-485: 2
- RS-232: 1
- USB: 2 × USB 2.0 + 1 × USB 3.0
- Hik-Connect: Supported
- POS: Supported
- ONVIF: Supported
- RTSP: Supported
- Application: Professional High-Resolution IP CCTV Recording
Ideal For
- Hikvision 8MP / 4K CCTV Systems
- Hikvision High-Resolution CCTV
- 16–32 Camera CCTV Systems
- Large Commercial CCTV Systems
- Warehouse Surveillance
- Factory CCTV
- Industrial Security
- Retail Centres
- Schools
- Office Buildings
- Car Parks
- Building Complexes
- Large Residential Properties
- Control Rooms
- Professional Security Installations
- 8K CCTV Monitoring
- High-Capacity CCTV Recording
Benefits
- 32 IP camera channels
- 16 built-in PoE interfaces
- Up to 32MP camera input
- 320Mbps incoming bandwidth
- 400Mbps outgoing bandwidth
- True 8K HDMI output
- Dual HDMI outputs
- Up to 10 × 8MP decoding
- Up to 40 × 1080p decoding
- 16-channel synchronous playback
- H.265+ compression
- Four HDD bays
- Up to 16TB per HDD
- Up to 64TB potential internal storage
- eSATA connectivity
- 200W PoE budget
- 16 alarm inputs
- 9 alarm outputs
- Gigabit Ethernet
- Up to 128 remote connections
- POS integration
- ONVIF compatibility
- Hik-Connect remote access
- 1.5U rack-mountable design
- Professional high-resolution CCTV platform
The Hikvision DS-7732NI-M4/16P 32-Channel 1.5U 16-PoE 8K NVR is designed for demanding professional surveillance installations where camera capacity, recording bandwidth, high-resolution decoding, storage and display performance are critical.
Combining 32 IP camera channels, 16 built-in PoE ports, 320Mbps incoming bandwidth, true 8K HDMI output, up to 32MP recording, powerful multi-channel decoding and four HDD bays, the DS-7732NI-M4/16P provides a highly capable foundation for large residential, commercial and industrial Hikvision CCTV systems.
