Key Features

• 10.1-Inch Colour IPS Touchscreen
• 1024 × 600 Resolution
• Capacitive Touch Operation
• Embedded Android Operating System
• Supports Compatible Android App Installation
• Open Platform for Third-Party Software Integration
• Built-In Hik-Connect
• All-in-One Hikvision Device Management
• IP Video Intercom Functionality
• Door Station Live View
• CCTV Camera Live View
• Remote Door Unlocking
• Built-In Microphone & Loudspeaker
• Noise Suppression & Echo Cancellation
• Wired Ethernet Connectivity
• 2.4GHz Wi-Fi
• TCP/IP, SIP & RTSP Support
• Connect Up to 16 Network Cameras
• Connect Up to 8 Doorphones
• Supports Up to 5 Indoor Extensions
• 8 Alarm Inputs
• RS-485 Interface
• Relay Interfaces
• Wall-Mount Installation
• 12V DC Power Supply
• Suitable for Indoor Installation

Hikvision designed the KH9 series as an all-in-one interface that brings intercom, security and smart device management onto a single touchscreen.

10.1-Inch IPS Touchscreen

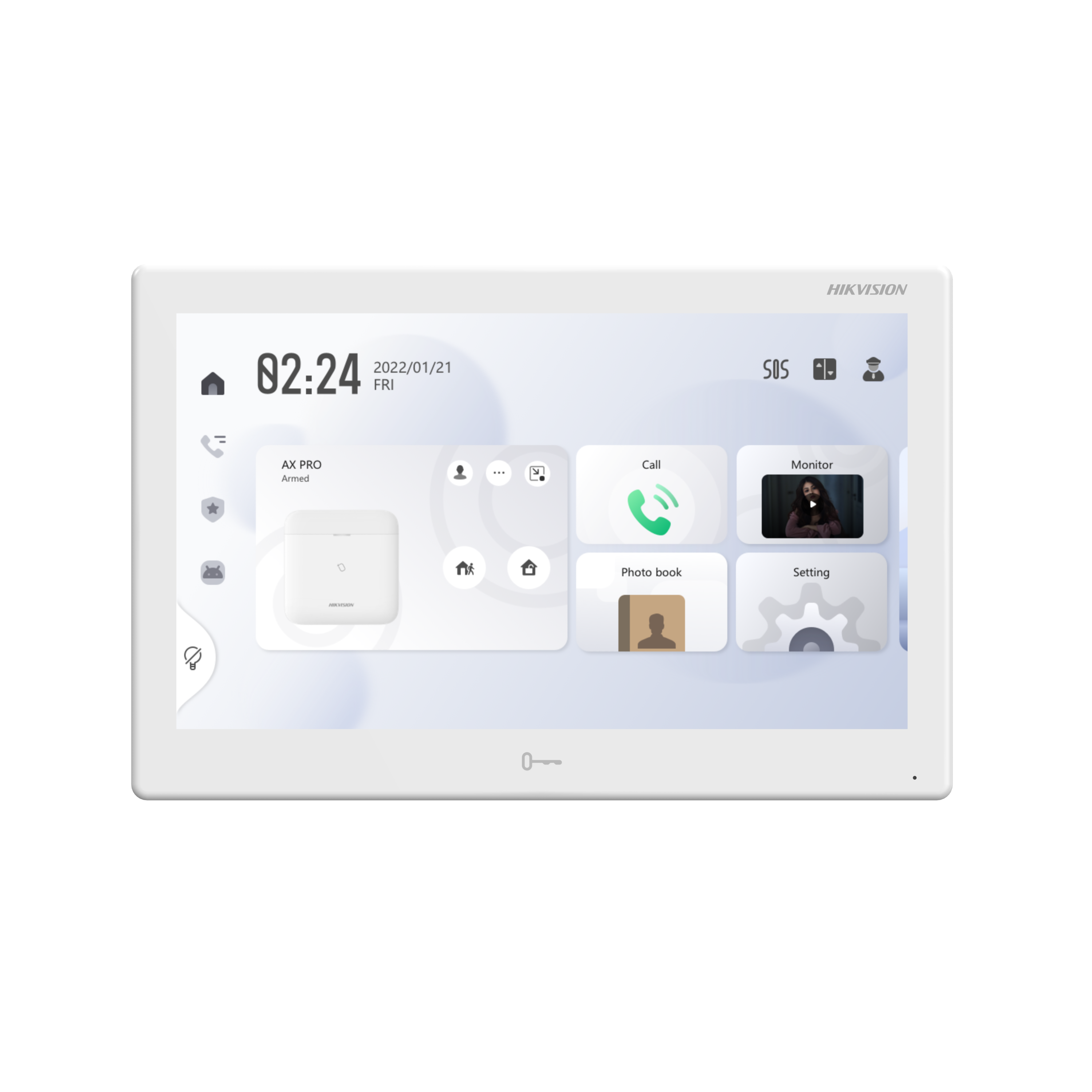

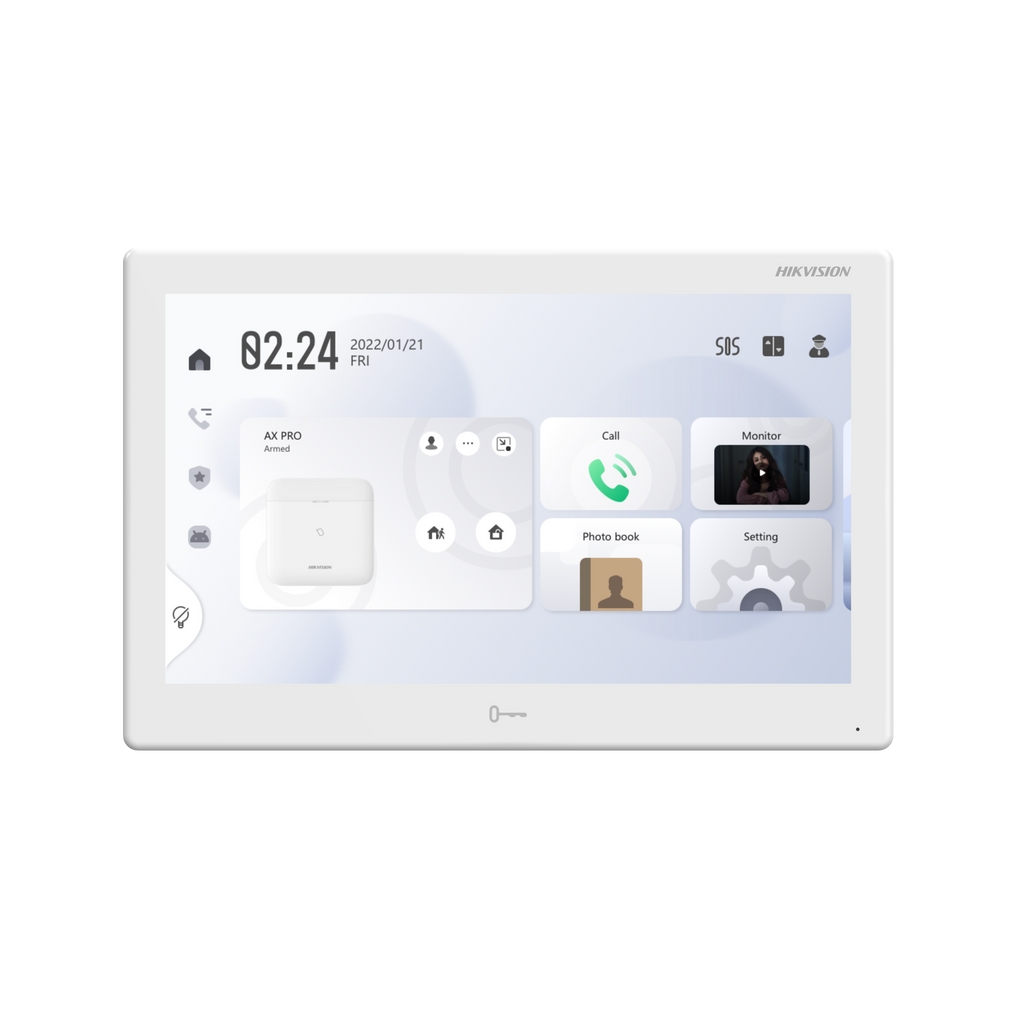

The DS-KH9510-WTE1 features a large 10.1-inch colour IPS capacitive touchscreen with 1024 × 600 resolution, providing an intuitive interface for video intercom calls, live camera viewing and system management.

The larger screen is particularly useful for premium residential and commercial installations where the indoor station may also be used as a central security interface.

All-in-One Hikvision Security Management

Unlike a basic video intercom monitor, the DS-KH9510-WTE1 is designed as an all-in-one management station for compatible Hikvision systems.

Through its integrated platform, users can access compatible:

• Video Intercom Systems
• CCTV Cameras
• Intrusion Alarm Systems
• Access Control Devices
• Door Stations
• Network Cameras
• Security Devices

Hikvision specifically positions the All-in-One Indoor Station for management of video intercom, intrusion alarm, video security and access control devices from one interface.

Built-In Android Platform

The DS-KH9510-WTE1 uses an embedded Android operating system, providing greater flexibility than a conventional closed-platform intercom monitor.

The Android platform supports compatible application installation and allows integration with selected third-party software.

This makes the indoor station suitable for projects requiring a more flexible touchscreen interface rather than a dedicated intercom-only monitor.

Built-In Hik-Connect

Hik-Connect is built into the DS-KH9510-WTE1, providing an integrated interface for compatible Hikvision devices.

This allows the indoor station to function as a convenient central security touchscreen without requiring users to constantly switch between separate systems.

Video Intercom

When connected to a compatible Hikvision IP door station, the DS-KH9510-WTE1 provides full video intercom functionality.

Users can conveniently:

• Receive Visitor Calls
• View the Door Station
• Communicate with Visitors
• Remotely Unlock the Door
• Monitor Compatible Door Stations
• Review Intercom Information
• Access Security Functions

This makes the DS-KH9510-WTE1 ideal as the main indoor station for a premium Hikvision IP intercom system.

Built-In Microphone & Speaker

The indoor station includes a built-in omnidirectional microphone and loudspeaker for two-way intercom communication.

Audio processing includes noise suppression and echo cancellation, helping provide clearer communication between the indoor station and compatible door stations.

View Hikvision CCTV Cameras

The DS-KH9510-WTE1 can link with up to 16 compatible network cameras, allowing users to view CCTV cameras directly from the indoor touchscreen.

This provides convenient security monitoring without requiring a separate monitor at the same location.

Typical cameras could be positioned around:

• Front Entrances
• Driveways
• Garages
• Side Access
• Rear Entrances
• Lobbies
• Common Areas
• Gates
• Building Perimeters

Door & Intercom Integration

The DS-KH9510-WTE1 supports connection with multiple compatible intercom devices.

The original DS-KH9510-WTE1 specification supports:

• Up to 8 Linked Doorphones
• Up to 5 Indoor Extensions
• Up to 16 Linked Network Cameras

This makes it suitable for larger homes and projects where multiple entrances or indoor stations are required.

Wi-Fi & Wired Network Connectivity

The DS-KH9510-WTE1 supports both wired Ethernet and 2.4GHz Wi-Fi connectivity, providing installation flexibility depending on the network design.

Supported communication protocols include:

• TCP/IP
• SIP
• RTSP
• IEEE 802.11 b/g/n Wi-Fi

For professional security and intercom installations, wired network connectivity is generally preferred where suitable cabling is available.

Alarm System Integration

The indoor station can also function as an interface for compatible Hikvision intrusion alarm systems.

Hikvision lists support for a wireless intrusion panel for on-site management and the ability to receive 7-second video verification from compatible alarm systems.

This enables the indoor station to form part of a broader integrated Hikvision security solution combining:

Video Intercom + CCTV + Intrusion Alarm + Access Control

8 Alarm Inputs

The DS-KH9510-WTE1 provides 8 alarm input terminals, expanding its integration possibilities for compatible wired alarm and security devices.

It also provides RS-485 and relay interfaces for supported integration applications.

Remote Mobile Connectivity

Compatible Hikvision configurations can extend video intercom functionality to mobile devices through the Hik-Connect ecosystem.

This can allow users to manage compatible intercom and security functions from their smartphone when properly configured, providing greater flexibility when away from the indoor station.

Professional Wall-Mount Installation

The DS-KH9510-WTE1 is designed for wall-mounted indoor installation.

The Hikvision installation documentation provides connections for:

• Network Interface
• 12V DC Power
• Alarm Inputs
• RS-485
• Relay Interfaces
• MicroUSB Service Interface

The supplied mounting arrangement allows the large touchscreen to sit neatly against the wall for a professional installation.

Main Specifications

• Model: DS-KH9510-WTE1
• Product Type: IP Video Intercom Network Indoor Station
• Generation: 2nd Generation
• Operating System: Embedded Android
• Display Size: 10.1-Inch
• Display Type: Colour IPS
• Touchscreen: Capacitive
• Display Resolution: 1024 × 600
• Audio Input: Built-In Omnidirectional Microphone
• Audio Output: Built-In Loudspeaker
• Audio Compression: G.711 U / G.711 A
• Audio Processing: Noise Suppression & Echo Cancellation
• Linked Network Cameras: Up to 16
• Linked Indoor Extensions: Up to 5
• Linked Doorphones: Up to 8
• Notice Capacity: 200
• Network: Wired Ethernet
• Wi-Fi: 2.4GHz IEEE 802.11 b/g/n
• Protocols: TCP/IP, SIP, RTSP
• Alarm Inputs: 8
• RS-485: Supported
• Power Supply: 12V DC
• Application: Indoor
• Installation: Wall Mount

Ideal For

• Residential Video Intercom Systems
• Luxury Homes
• Smart Homes
• Apartments
• Townhouses
• Villas
• Offices
• Commercial Buildings
• Reception Areas
• Building Entrances
• Integrated Hikvision Security Systems
• CCTV & Intercom Integration
• Alarm & Intercom Integration
• Access Control Systems
• Multi-Entrance Properties

Benefits

• Large 10.1-inch touchscreen
• Premium IPS display
• Android-based platform
• Built-in Hik-Connect
• Supports compatible Android applications
• Video intercom and door unlocking
• View compatible CCTV cameras directly from the monitor
• Supports up to 16 network cameras
• Supports multiple door stations and indoor extensions
• Built-in microphone and speaker
• Noise suppression and echo cancellation
• Wired Ethernet and Wi-Fi connectivity
• Alarm system integration
• Access control integration
• Professional wall-mounted design
• Central interface for compatible Hikvision security devices

The Hikvision DS-KH9510-WTE1 10.1-Inch Android IP Indoor Station is an excellent choice for installations requiring more than a conventional intercom monitor.

By combining video intercom, CCTV viewing, intrusion alarm management, access control integration, Android application support and Hik-Connect within a large touchscreen interface, the DS-KH9510-WTE1 can become the central control point for a professionally integrated Hikvision security system.

DS-KH9510-WTE1 (White)
