Key Features

• 10.1-Inch Colour IPS Touchscreen
• 1920 × 1200 High-Resolution Display
• Capacitive Multi-Touch Operation
• Android 14 Operating System
• Embedded High-Performance Processor
• 4GB RAM
• 8GB ROM
• Dual-Band Wi-Fi 6 – 2.4GHz & 5GHz
• Bluetooth BLE 5.0
• Wired 10/100Mbps Ethernet
• IP Video Intercom Functionality
• Door Station Live View
• Two-Way Audio Communication
• Remote Door Unlocking
• CCTV Camera Integration
• Supports Up to 16 Network Cameras
• Supports Up to 17 Doorphones
• Supports Multiple Indoor Extensions
• Dual Built-In Omnidirectional Microphones
• Dual Built-In Loudspeakers
• Noise Suppression & Echo Cancellation
• TF Card Support up to 256GB
• SIP & ONVIF Support
• RS-485 Interface
• Proximity Sensor
• 12V DC Power
• Professional Surface-Mount Installation

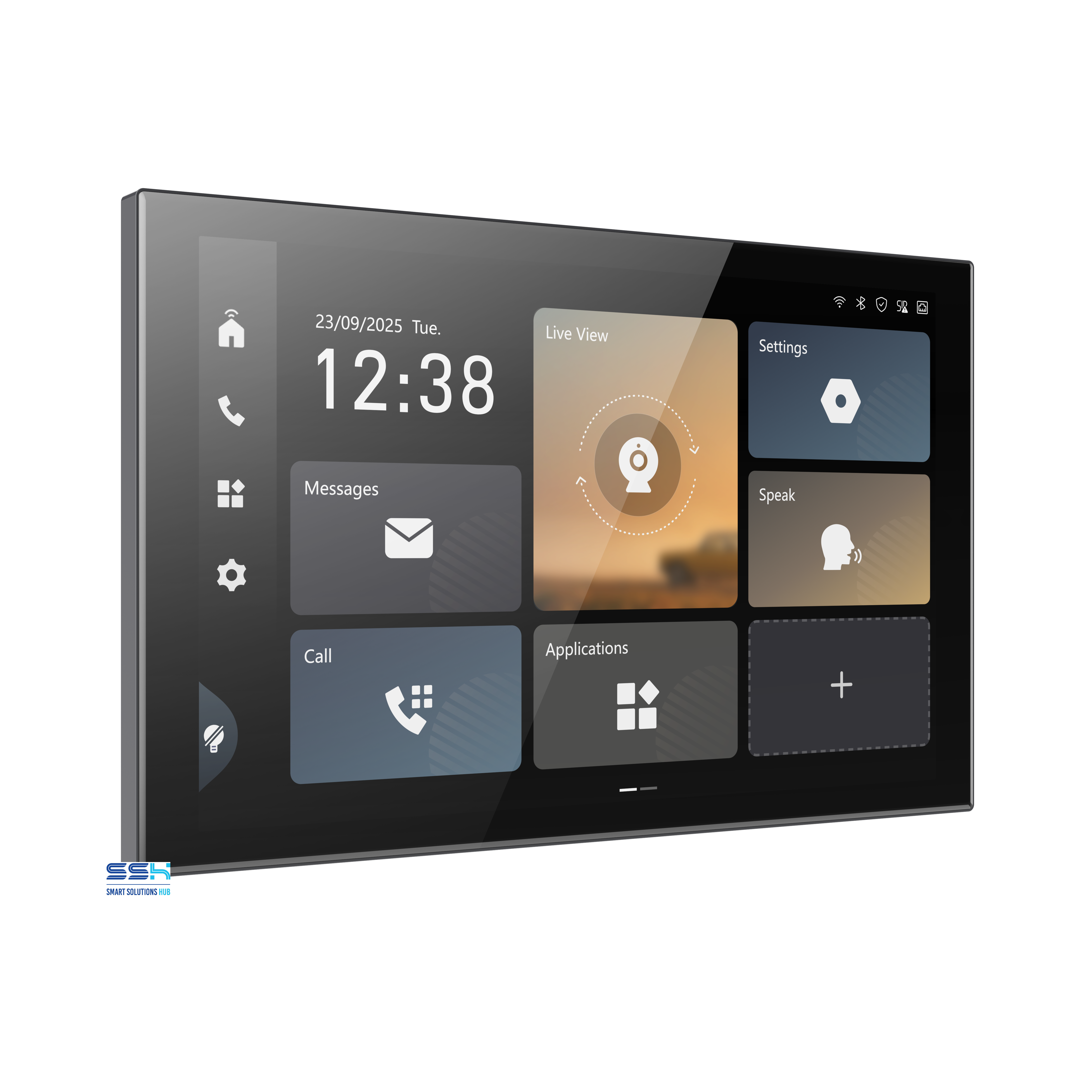

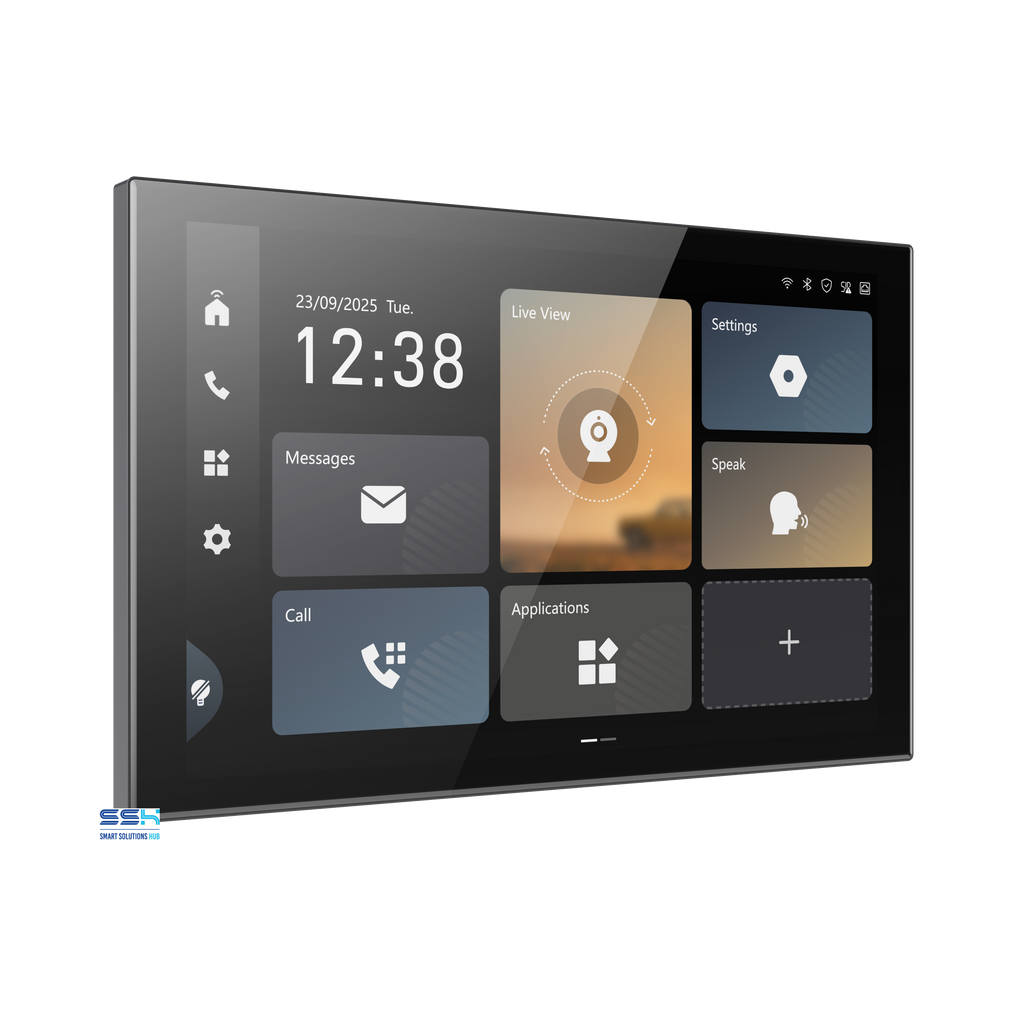

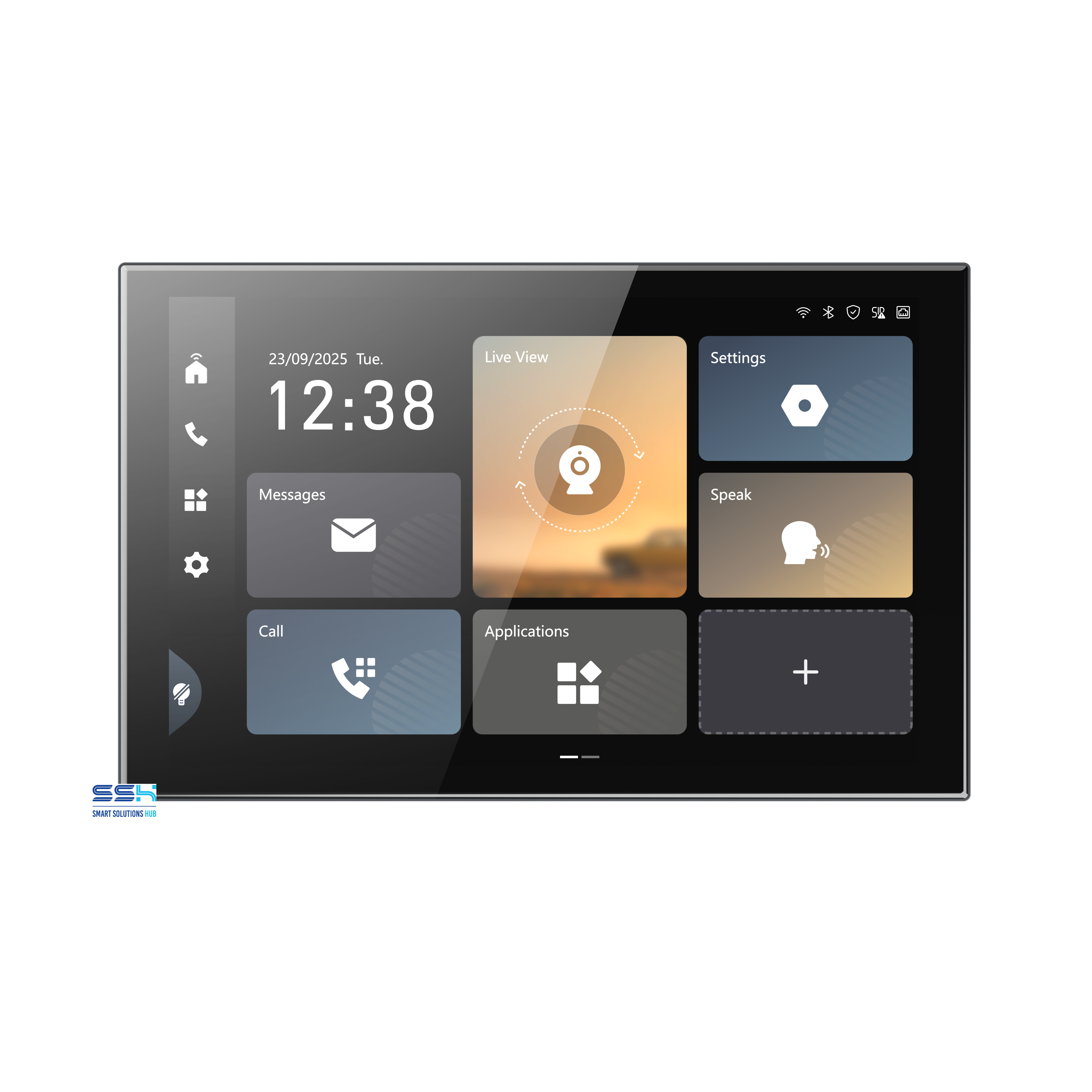

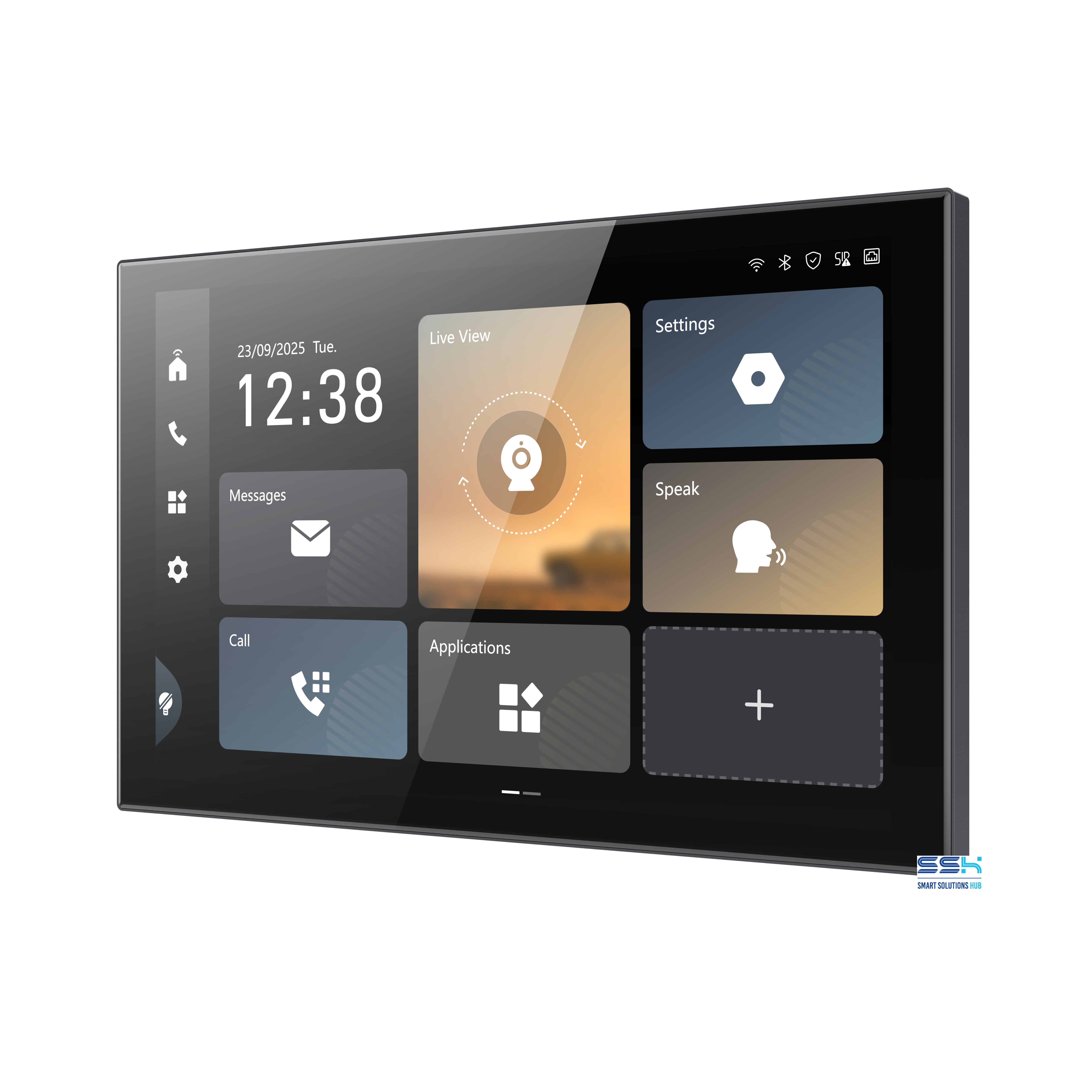

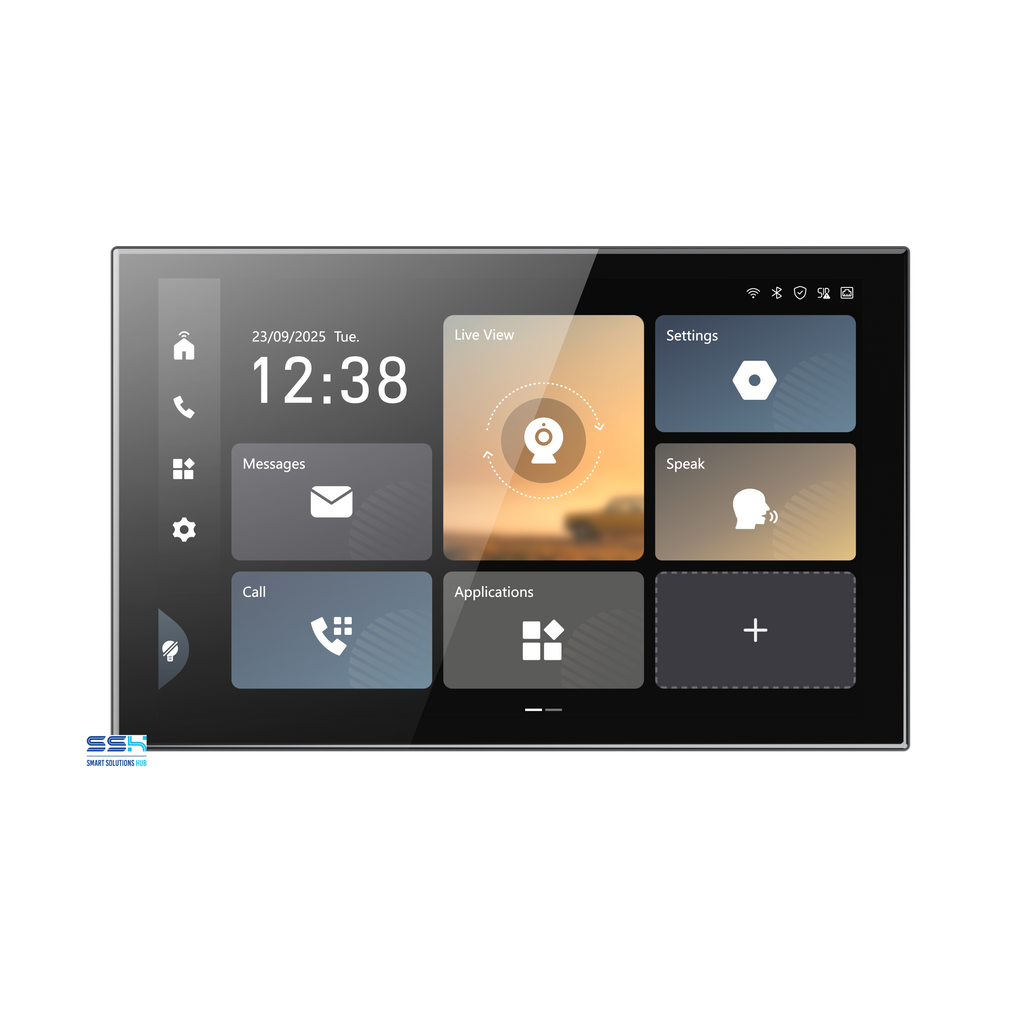

10.1-Inch 1920 × 1200 IPS Touchscreen

The DS-KH9570-WTE1 features a premium 10.1-inch colour IPS capacitive touchscreen with a resolution of 1920 × 1200 pixels.

The high-resolution display provides significantly more screen detail than earlier 1024 × 600 indoor stations, making it particularly suitable for viewing visitors, CCTV cameras and security interfaces.

The IPS panel also provides excellent viewing characteristics for a wall-mounted control station positioned in frequently used areas such as:

• Entrance Hallways
• Living Areas
• Kitchens
• Home Offices
• Reception Areas
• Security Desks
• Executive Offices

Android 14 Operating System

At the heart of the DS-KH9570-WTE1 is the Android 14 operating system, providing a modern platform for Hikvision's latest-generation intercom and security-management functions.

The indoor station uses an embedded high-performance processor together with:

• 4GB RAM
• 8GB ROM
• Android 14

This represents a significant hardware and software upgrade over previous-generation Hikvision Android indoor stations.

9 Series Premium Management Indoor Station

The DS-KH9570-WTE1 is designed to function as more than an intercom screen.

It can act as a central touchscreen interface within a compatible Hikvision security environment, bringing together functions such as:

• Video Intercom
• Door Access
• CCTV Monitoring
• Network Camera Viewing
• Security Events
• Visitor Communication
• Door Unlocking
• System Management

This makes the DS-KH9570-WTE1 particularly attractive for premium integrated security projects where a large permanently mounted touchscreen is preferred.

IP Video Intercom

When paired with compatible Hikvision IP door stations, the DS-KH9570-WTE1 provides comprehensive video-intercom functionality.

Users can conveniently:

• Receive Visitor Calls
• Communicate With Visitors
• View Compatible Door Stations
• Unlock Doors
• Monitor Entrances
• Review Security Events
• Access Connected Cameras

The large 10.1-inch touchscreen provides a convenient interface for day-to-day operation of the intercom system.

Supports Up to 17 Doorphones

The DS-KH9570-WTE1 supports connection with up to 17 compatible doorphones, making it suitable for larger residential and commercial installations with multiple entrances.

Possible applications include:

• Main Pedestrian Entrance
• Driveway Gate
• Garage Entrance
• Rear Entrance
• Building Lobby
• Individual Apartment Entrances
• Staff Entrances
• Delivery Entrances

View Up to 16 Network Cameras

The indoor station supports linking up to 16 compatible network cameras, allowing CCTV live viewing directly from the touchscreen.

This can provide convenient access to cameras monitoring areas such as:

• Driveways
• Front Gates
• Garages
• Side Access
• Rear Yards
• Lobbies
• Hallways
• Common Areas
• Building Entrances
• Property Perimeters

The DS-KH9570-WTE1 therefore provides a convenient combination of intercom and CCTV monitoring from one wall-mounted interface.

Dual Microphones & Dual Speakers

The DS-KH9570-WTE1 incorporates two built-in omnidirectional microphones and two built-in loudspeakers.

Supported audio technologies include:

• Noise Suppression
• Echo Cancellation
• Adjustable Volume
• G.711A
• G.711U
• G.722.1
• G.726
• Opus
• AAC
• AAC-LD

This provides clear two-way communication between the indoor station and compatible intercom devices.

Wi-Fi 6 – 2.4GHz & 5GHz

The DS-KH9570-WTE1 introduces modern dual-band Wi-Fi 6 connectivity, supporting both:

• 2.4GHz Wi-Fi
• 5GHz Wi-Fi

This provides greater network flexibility than earlier indoor stations limited to 2.4GHz Wi-Fi.

For fixed professional security installations, wired Ethernet can also be used where suitable network cabling is available.

Bluetooth 5.0

Built-in Bluetooth Low Energy 5.0 provides additional connectivity options for compatible applications and devices.

Together with Wi-Fi 6 and wired Ethernet, the DS-KH9570-WTE1 provides a comprehensive range of modern network connectivity options.

Up to 256GB TF Card Storage

The indoor station supports a TF card with capacity up to 256GB, providing additional local storage capability for supported functions.

This offers substantially greater expansion potential for applications requiring local event or system storage.

Advanced Network Protocol Support

The DS-KH9570-WTE1 supports a comprehensive range of network and integration protocols, including:

• IPv4
• SIP
• SIP v1
• SIP v2
• HTTP
• HTTPS
• DNS
• RTSP
• RTP
• TCP
• UDP
• ICMP
• DHCP
• ARP
• SADP
• ISAPI
• ONVIF

This makes the DS-KH9570-WTE1 a highly capable IP-based indoor management terminal for professional security installations.

Proximity Sensor

A built-in proximity sensor can detect a person approaching the indoor station from approximately 50cm, supporting more intuitive interaction with the touchscreen.

The specified detection field is approximately:

• Distance: 50cm
• Horizontal: 25°
• Vertical: 25°

Security Event Records

The DS-KH9570-WTE1 supports local records including:

• Up to 200 Captured Pictures
• Up to 200 Alarm Records
• Up to 200 Unlock Records
• Up to 200 Tamper Records

This provides convenient access to recent intercom and security-related activity directly from the indoor station.

Professional Surface-Mount Installation

The DS-KH9570-WTE1 is designed for professional surface-mounted indoor installation.

Interfaces include:

• 1 × RJ45 10/100Mbps Network Interface
• 1 × RS-485 Half-Duplex Interface
• 8 × Reserved Alarm Inputs
• 1 × Reserved Relay Output
• TF Card Slot
• 12V DC Power Input
• 12V DC / 200mA Power Output

This provides flexibility for professional video intercom and integrated security installations.

Main Specifications

• Model: DS-KH9570-WTE1
• Series: Hikvision 9 Series
• Product Type: IP Video Intercom Indoor / Management Station
• Operating System: Android 14
• Processor: Embedded High-Performance Processor
• RAM: 4GB
• ROM: 8GB
• Screen Size: 10.1-Inch
• Display Type: Colour IPS
• Resolution: 1920 × 1200
• Operation: Capacitive Touchscreen
• Audio Input: 2 × Built-In Omnidirectional Microphones
• Audio Output: 2 × Built-In Loudspeakers
• Audio Processing: Noise Suppression & Echo Cancellation
• Linked Network Cameras: Up to 16
• Linked Doorphones: Up to 17
• Network Interface: RJ45 10/100Mbps
• Wi-Fi: Wi-Fi 6, 2.4GHz & 5GHz
• Bluetooth: BLE 5.0
• TF Card: Up to 256GB
• RS-485: 1 × Half Duplex
• Alarm Inputs: 8 Reserved
• Relay: 1 Reserved, Max. 30V DC / 1A
• Power Input: 12V DC
• Power Output: 12V DC / 200mA
• Proximity Sensor: Approx. 50cm
• Installation: Surface Mount
• Application: Indoor

Ideal For

• Luxury Homes
• Smart Homes
• Premium Residential Projects
• Apartments
• Townhouses
• Villas
• Offices
• Reception Areas
• Commercial Buildings
• Building Management
• Multi-Entrance Properties
• Video Intercom Systems
• CCTV & Intercom Integration
• Access Control Integration
• Integrated Hikvision Security Systems

Benefits

• Latest Android 14 platform
• Large 10.1-inch IPS touchscreen
• High-resolution 1920 × 1200 display
• Powerful 4GB RAM configuration
• Wi-Fi 6 with 2.4GHz and 5GHz support
• Bluetooth 5.0
• Wired Ethernet connectivity
• Up to 16 linked network cameras
• Up to 17 linked doorphones
• Dual microphones
• Dual loudspeakers
• Noise suppression and echo cancellation
• Up to 256GB TF card support
• ONVIF support
• Integrated proximity sensor
• Video intercom and CCTV integration
• Professional wall-mounted management interface
• Suitable for sophisticated residential and commercial security systems

The Hikvision DS-KH9570-WTE1 9 Series 10.1-Inch Android 14 IP Indoor Station is a major step forward from previous-generation Hikvision intercom monitors.

Combining a 1920 × 1200 IPS touchscreen, Android 14, 4GB RAM, Wi-Fi 6, Bluetooth 5.0, dual microphones and speakers, support for up to 16 network cameras and up to 17 doorphones, it provides a premium central interface for modern Hikvision IP intercom and integrated security installations.
