Key Features

• Complete Hikvision Villa IP Video Intercom Kit
• 2MP Full HD Door Station Camera
• 1920 × 1080 Main Stream
• Wide 131° Horizontal Field of View
• 120dB WDR
• Infrared Supplementary Light up to 3m
• One-Press Visitor Call Button
• Built-In Microphone & Speaker
• Two-Way Audio
• Noise Suppression & Echo Cancellation
• 4.3-Inch Touchscreen Indoor Station
• Indoor Station Wi-Fi Connectivity
• Hik-Connect Mobile App Support
• Receive Visitor Calls on Compatible Smartphones
• Remote Door Unlocking
• Door Station Live View
• PoE Door Station
• IP65-Rated Door Station
• Surface-Mount Installation
• Single Lock Control
• Door Contact & Exit Button Interfaces
• SIP Support
• Expandable IP Intercom Platform
• Rain Shield Included

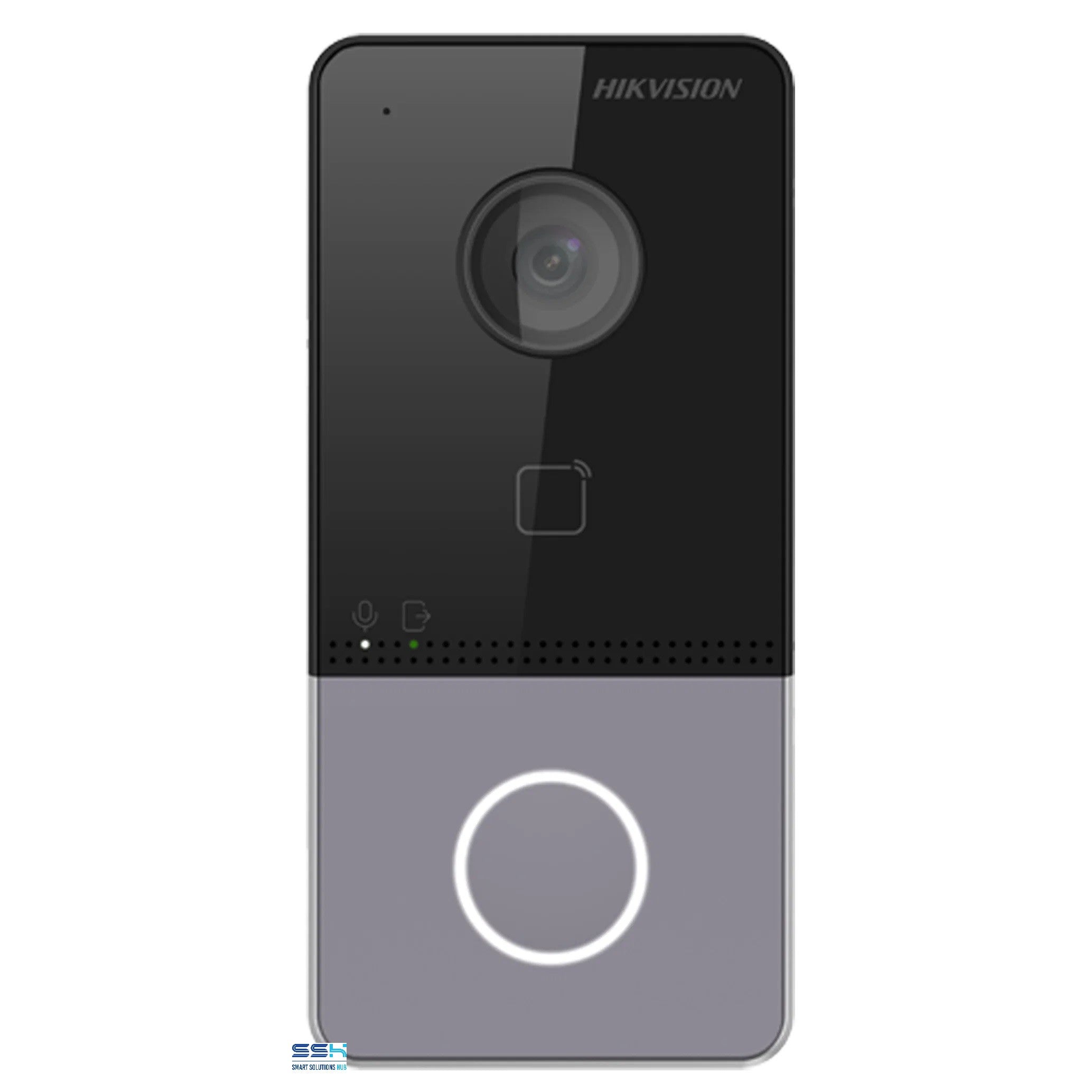

DS-KV6113-PE1(C) 2MP Villa Door Station

The included DS-KV6113-PE1(C) provides the external visitor interface for the system.

It features a 2MP HD camera capable of a 1920 × 1080 main stream and provides a wide 131° horizontal and 78° vertical viewing angle, helping capture visitors standing close to the entrance.

The door station also features:

• 2MP HD Camera
• 1920 × 1080 Main Stream
• 704 × 576 Sub Stream
• 131° Horizontal Field of View
• 78° Vertical Field of View
• 120dB WDR
• IR Supplement Light up to 3m
• Built-In Omnidirectional Microphone
• Built-In Loudspeaker
• Noise Suppression
• Echo Cancellation
• Physical Call Button
• Surface-Mount Installation

120dB Wide Dynamic Range

The door station incorporates 120dB WDR, helping produce more usable images where bright and dark areas exist within the same scene.

This is particularly useful at entrances where visitors may stand against bright daylight or where the doorway itself is shaded.

Infrared Night Viewing

Integrated IR supplementary lighting provides illumination up to approximately 3 metres, helping the door station capture visitors when ambient lighting is limited.

This provides additional entrance visibility during:

• Evening
• Night-Time
• Poor Weather
• Dimly Lit Entrances
• Covered Doorways

One-Press Calling

Visitors can simply press the physical call button on the door station to initiate a call to the indoor station.

The straightforward one-button design makes the DS-KIS606-P particularly suitable for single-residence villa and home installations.

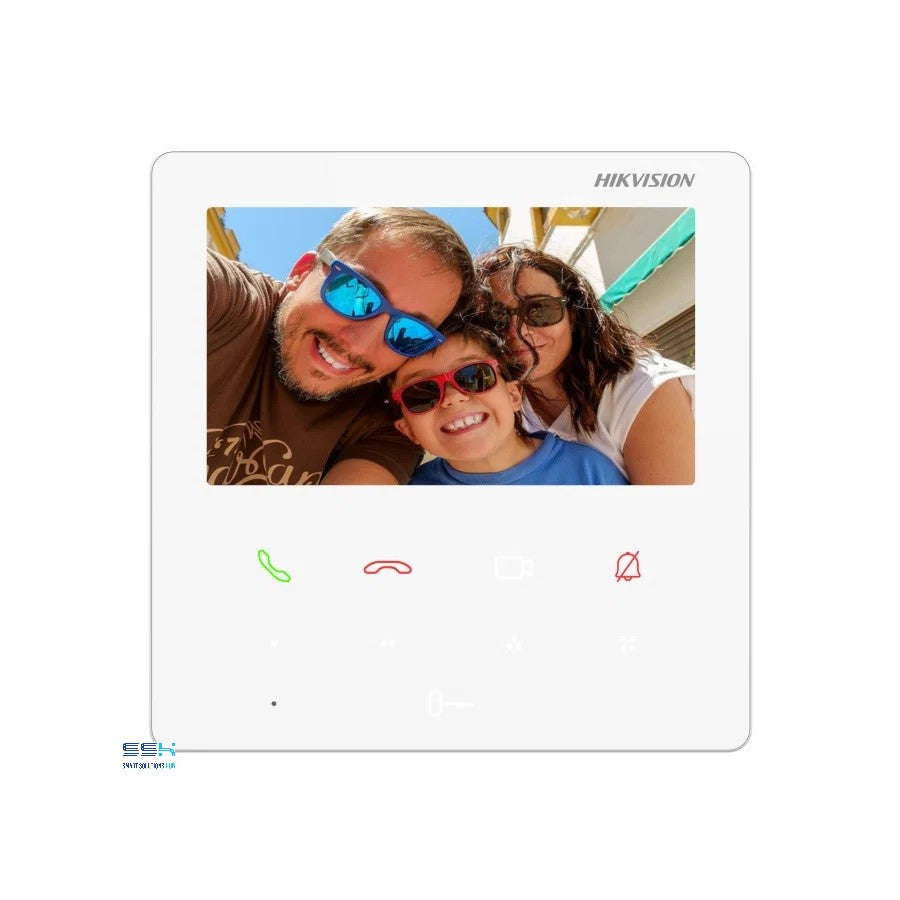

4.3-Inch Touchscreen Indoor Station

The included DS-KH6110-WE1 provides a compact 4.3-inch touchscreen interface inside the property.

From the indoor station, occupants can manage everyday intercom functions including:

• Answering Visitor Calls
• Viewing the Entrance
• Two-Way Communication
• Door Unlocking
• Entrance Monitoring
• Reviewing Captured Images
• Intercom Management

Hikvision's current Australian intercom range specifically identifies the DS-KIS606-P as the 4.3-inch touchscreen option within its IP intercom kit family.

Hik-Connect Mobile App

One of the major benefits of the DS-KIS606-P is Hik-Connect mobile integration.

When the system is correctly networked and configured, compatible mobile devices can be used to:

• Receive Door Station Calls
• View Visitors
• Communicate Remotely
• Remotely Unlock the Door
• Check the Entrance
• Manage Compatible Intercom Functions

Hikvision specifically lists mobile control as a DS-KIS606-P feature, while the Hik-Connect ecosystem supports remote notifications and management of compatible security devices.

Two-Way Audio

The external door station incorporates both a built-in omnidirectional microphone and loudspeaker, providing real-time two-way communication with visitors.

Noise suppression and echo cancellation help improve voice clarity during intercom conversations.

Remote Door Unlocking

The DS-KV6113-PE1(C) provides one lock-control relay, rated by Hikvision at up to 30V DC / 2A.

When connected to a compatible electric locking system and correctly configured, authorised users can unlock the entrance through the intercom system.

The door station also provides:

• 1 × Lock Control
• 1 × Exit Button Input
• 1 × Door Contact Input
• 4 × Alarm Inputs
• 1 × RS-485 Interface
• Tamper Protection

PoE Door Station

The external door station supports Power over Ethernet, helping simplify professional installation by allowing network data and operating power to be delivered through the network infrastructure.

This makes the DS-KIS606-P particularly suitable for new installations where Cat5e or Cat6 network cabling can be installed between the intercom equipment and network infrastructure.

IP65 Outdoor Protection

The villa door station features an IP65 protection rating, making it suitable for appropriately installed outdoor entrance applications.

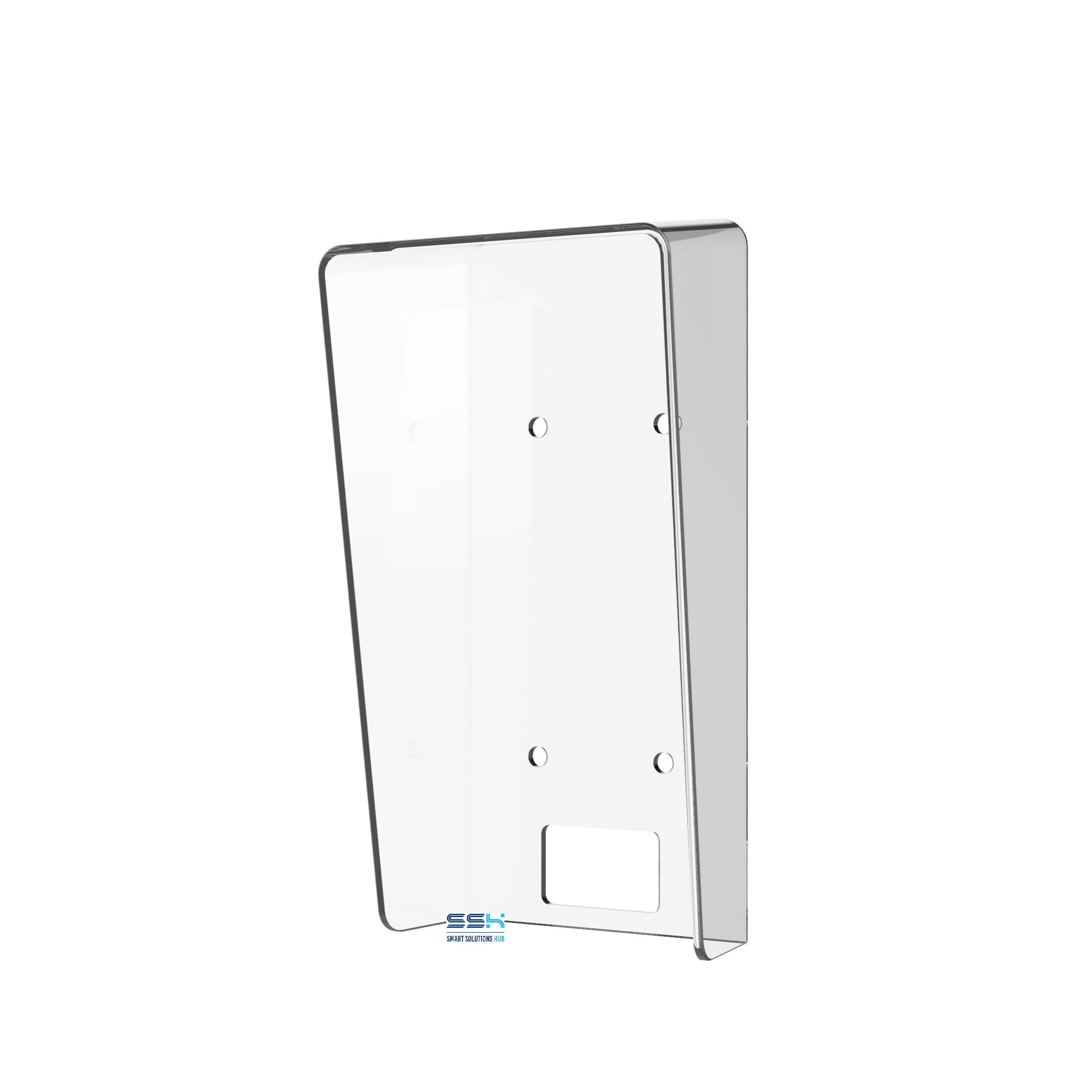

The kit also includes the DS-KABV6113-RS rain shield, providing additional protection around the door station installation.

Expandable IP Intercom System

Although supplied as a complete single-door kit, the DS-KIS606-P is based on Hikvision's IP intercom architecture and provides expansion capability for larger installations.

Hikvision's current Australian intercom documentation lists capacity of up to:

• 1 Main + 16 Additional Indoor Stations
• 1 Main + 16 Additional Door Stations

Actual expansion design, networking and compatibility should be confirmed for the specific project before installation.

Door Station Capacity

The included door station supports:

• Up to 2,000 Users
• Up to 10,000 Cards
• Up to 16 Linked Indoor Stations

This provides significant capacity where compatible access-control functionality is required as part of the intercom installation.

Network Integration

The IP-based architecture allows the intercom system to operate across compatible network infrastructure.

The door station includes:

• RJ45 10/100Mbps Network Interface
• TCP/IP Support
• RTSP Support
• SIP Standard Support
• PoE Connectivity

This makes the DS-KIS606-P a flexible solution for professional residential IP intercom installations.

Ideal For

• Residential Homes
• Villas
• Townhouses
• Duplexes
• Granny Flats
• Home Entrances
• Front Gates
• Pedestrian Gates
• Small Offices
• Small Commercial Properties
• New Home Builds
• Renovation Projects
• IP Intercom Upgrades

Benefits

• Complete Hikvision IP intercom kit
• 2MP Full HD external camera
• Wide 131° horizontal viewing angle
• 120dB WDR
• Infrared night illumination
• One-touch visitor calling
• 4.3-inch touchscreen indoor monitor
• Wi-Fi-enabled indoor station
• Hik-Connect mobile app support
• Remote visitor communication
• Remote door unlocking
• Two-way audio
• PoE external door station
• IP65 outdoor protection
• Rain shield included
• Lock, exit button and door contact connectivity
• Expandable IP architecture
• Suitable for professional residential installations

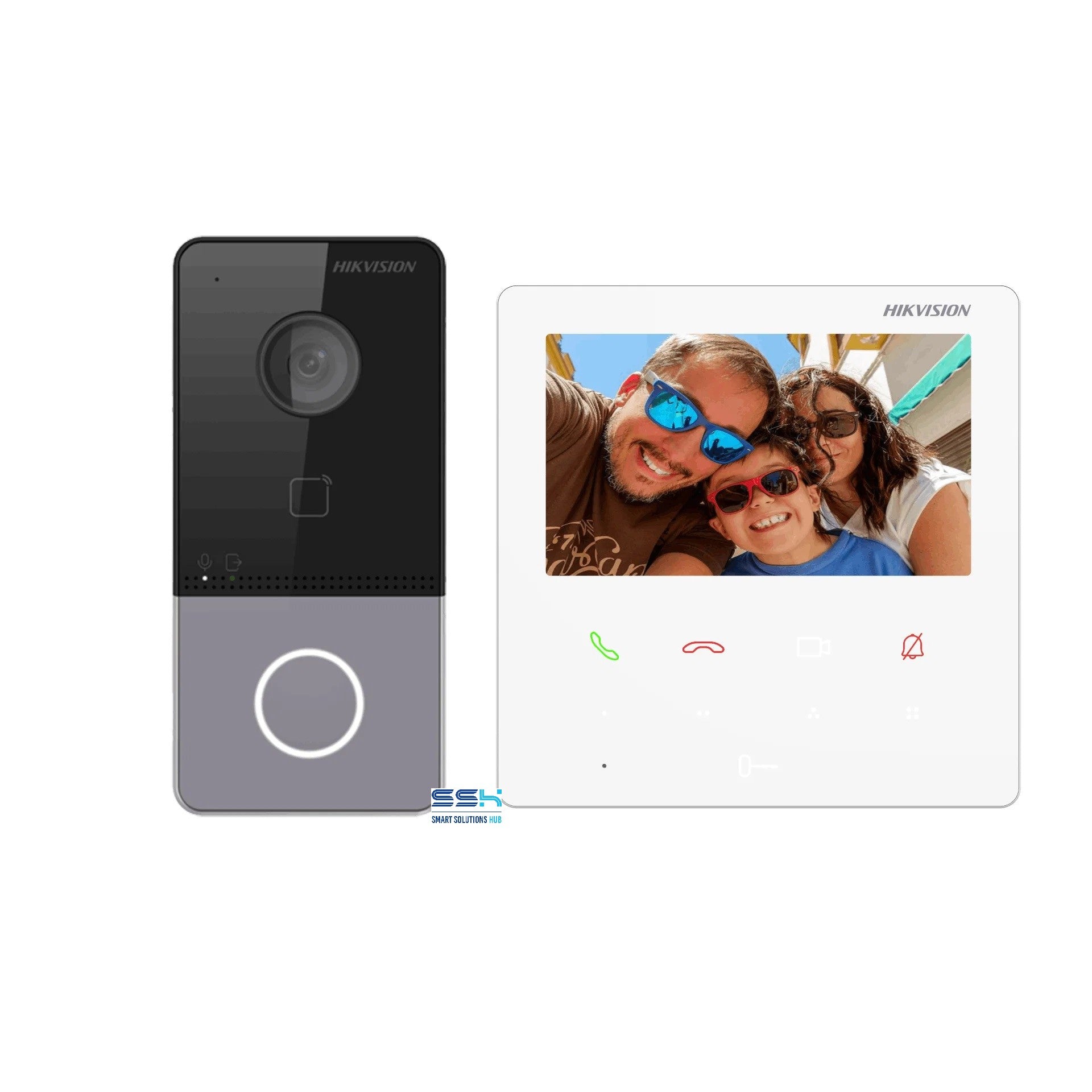

The Hikvision DS-KIS606-P Villa IP Video Intercom Kit provides a practical complete solution for residential entrance communication and access control.

Combining a 2MP Full HD PoE door station, 4.3-inch touchscreen Wi-Fi indoor station, Hik-Connect mobile access, two-way audio, remote door unlocking and IP65 outdoor protection, the DS-KIS606-P is particularly well suited to homes, villas and townhouses requiring a professional IP-based video intercom system.

DS-KIS606-P (White)
