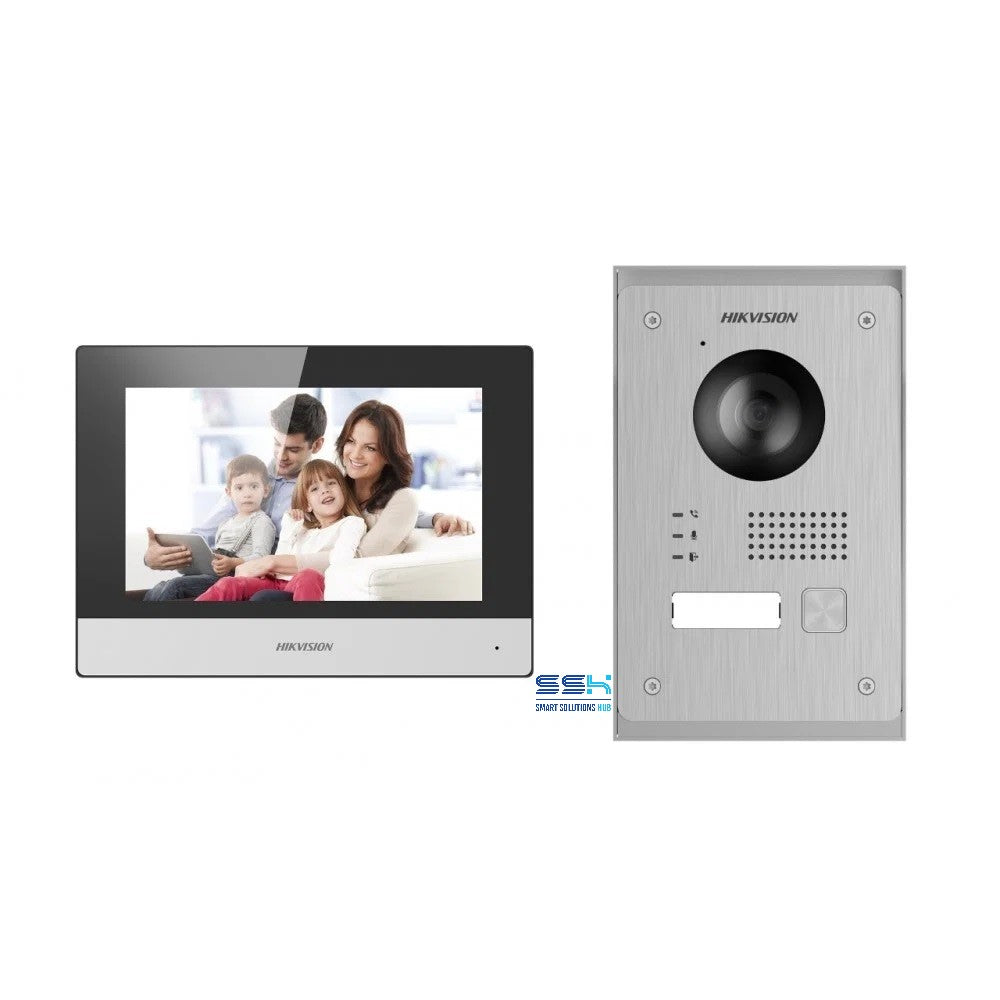

Hikvision DS-KIS703Y-P Two-Wire IP Video Intercom Kit

Key Features

• Complete Hikvision 2-Wire Digital IP Video Intercom Kit
• Ideal for New Installations & Selected Intercom Upgrades
• 7-Inch TFT Touchscreen Indoor Station
• 1024 × 600 Display Resolution
• Capacitive Touch Operation
• 2MP HD Door Station Camera
• Up to 1920 × 1080 Video
• Wide 140° Horizontal Viewing Angle
• 85° Vertical Viewing Angle
• WDR Support
• IR Night Viewing up to 3m
• One-Press Physical Call Button
• Two-Way Audio
• Built-In Microphone & Speaker
• Noise Suppression & Echo Cancellation
• Hik-Connect Mobile App
• Receive Visitor Calls Remotely
• Remote Door Unlocking
• Remote Live View
• Voice Message Support
• Two-Lock Control
• Direct 12V DC / 500mA Lock Power Output
• IP65-Rated Outdoor Door Station
• Premium Stainless-Steel Door Station Panel
• Surface or Flush-Mount Door Station
• Wi-Fi Indoor Station
• Quick Setup Wizard

2-Wire Digital IP Technology

One of the major advantages of the DS-KIS703Y-P is Hikvision's 2-Wire IP architecture.

Communication and power between the compatible indoor and outdoor stations can operate over the two-wire connection, reducing the cabling requirements compared with conventional IP installations.

This makes the system particularly attractive for:

• Existing Intercom Replacement
• Home Renovations
• Older Intercom Upgrades
• Townhouses
• Villas
• Residential Properties
• Locations Where Installing New Ethernet Cabling Is Difficult

Existing cabling should always be assessed for cable type, condition, distance and installation suitability before confirming that it can be reused.

DS-KH6320Y-WTPE2 7-Inch Touchscreen Indoor Station

The included DS-KH6320Y-WTPE2 provides a modern 7-inch TFT capacitive touchscreen with 1024 × 600 resolution.

The touchscreen provides a convenient interface for everyday intercom functions, including:

• Answering Visitor Calls
• Viewing the Door Station
• Two-Way Communication
• Unlocking the Door
• Checking Live View
• Managing Intercom Functions
• Accessing Voice Messages

The display brightness and audio volume can also be adjusted locally.

Hik-Connect Mobile App

The DS-KIS703Y-P supports Hik-Connect mobile control, extending intercom functionality beyond the indoor touchscreen.

When the system is correctly networked and configured, compatible smartphones can be used to:

• Receive Video Calls
• See Who Is at the Door
• Communicate With Visitors
• Unlock the Door Remotely
• Check Door Station Live View

This is particularly convenient when occupants are away from home or unable to reach the indoor monitor.

2MP HD Door Station Camera

The included DS-KV8103Y-IMPE2 features a 2MP HD camera supporting a main video stream up to 1920 × 1080.

The camera provides a wide viewing area with approximately:

• 140° Horizontal Field of View
• 85° Vertical Field of View

This wide-angle coverage is particularly useful at residential entrances where visitors often stand relatively close to the door station.

WDR for Challenging Entrances

The external door station supports Wide Dynamic Range, helping provide a more usable visitor image where both bright and dark areas appear within the same scene.

This can be particularly beneficial for:

• Covered Entrances
• Bright Driveways
• Backlit Visitors
• Entrances Facing Daylight
• Gates Exposed to Changing Lighting Conditions

Infrared Night Viewing

The door station incorporates infrared supplementary lighting with a specified range of approximately 3 metres.

This helps maintain entrance visibility in low-light conditions and during night-time visitor calls.

One-Press Calling

A dedicated physical call button provides straightforward visitor operation.

Visitors simply press the button to initiate an intercom call, making the DS-KIS703Y-P particularly suitable for single-residence and villa applications.

Two-Way Audio

Both the indoor and outdoor stations incorporate built-in microphones and speakers for real-time two-way communication.

Audio processing includes:

• Noise Suppression
• Echo Cancellation
• G.711U
• G.711A

This helps provide clearer conversations between occupants and visitors.

Dual-Lock Control

The DS-KIS703Y-P supports two-lock control, providing greater flexibility for entrances requiring more than one controlled locking point.

This can be useful for configurations such as:

• Pedestrian Gate + Front Door
• Gate + Entrance Door
• Two Separate Locks
• Electric Strike + Secondary Locking Arrangement

The exact locking configuration should be designed according to the lock type, power requirements and site conditions.

Direct Electronic Lock Power Output

A particularly useful feature of the external door station is its 12V DC / 500mA power output.

Hikvision specifies that this output can directly power one suitable electronic lock without an additional lock power supply, provided the selected lock is compatible with the available voltage and current.

This can simplify installation for appropriate locking configurations.

IP65 Outdoor Protection

The DS-KV8103Y-IMPE2 external door station carries an IP65 protection rating, making it suitable for appropriately installed outdoor entrance applications.

The door station also features a high-quality stainless-steel front panel, providing a professional appearance suitable for residential entrances.

Rain Shield Included

The kit includes the DS-KAB8103-IMEX rain shield, providing additional protection around the external door station.

This makes the package particularly suitable for exposed residential entrance applications.

Surface or Flush-Mount Installation

The external door station supports both:

• Surface Mounting
• Flush Mounting

This provides installation flexibility depending on the entrance design, existing wall construction and required finished appearance.

Voice Message Function

If a visitor calls while the indoor station is unanswered, the system supports voice messages.

This provides an additional communication option when occupants cannot immediately answer an intercom call.

Quick Setup Wizard

The DS-KIS703Y-P incorporates an easy setup wizard, helping streamline initial system configuration.

Hikvision specifically promotes on-device configuration without requiring a PC for basic setup, making commissioning more straightforward for professional installers.

Indoor Station Wi-Fi

The DS-KH6320Y-WTPE2 supports 2.4GHz Wi-Fi using IEEE 802.11 b/g/n, providing network connectivity for compatible online and Hik-Connect functions.

The physical intercom connection between compatible system components remains based on the dedicated 2-wire interface.

Door Station Interfaces

The external door station provides:

• 1 × 2-Wire Interface
• 2 × Alarm Inputs for Exit Button / Door Contact Applications
• 1 × 12V DC / 500mA Power Output
• Tamper Switch
• Dual-Lock Control

These interfaces provide flexibility when integrating the intercom with compatible entrance hardware.

Main Specifications

Indoor Station – DS-KH6320Y-WTPE2

• Display: 7-Inch TFT
• Resolution: 1024 × 600
• Touch: Capacitive Touchscreen
• Operating System: Embedded Linux
• Microphone: Built-In Omnidirectional
• Speaker: Built-In
• Audio: Noise Suppression & Echo Cancellation
• Wi-Fi: 2.4GHz IEEE 802.11 b/g/n
• Wired Communication: 2-Wire IP
• RS-485: 1
• Power Input: 24V DC / 1.5A
• Maximum Power Consumption: ≤8W
• Operating Temperature: -10°C to +50°C

Door Station – DS-KV8103Y-IMPE2

• Camera: 2MP HD
• Maximum Main Stream: 1920 × 1080
• Field of View: 140° Horizontal / 85° Vertical
• WDR: Supported
• IR Supplement: Up to 3m
• Call Button: 1 × Physical Button
• Microphone: Built-In Omnidirectional
• Speaker: Built-In
• Audio: Noise Suppression & Echo Cancellation
• Lock Control: Two Locks
• Lock Power Output: 12V DC / 500mA
• Protection: IP65
• Panel: Stainless Steel
• Installation: Surface or Flush Mount
• Power: Supplied from Indoor Station
• Operating Temperature: -40°C to +60°C

Ideal For

• Residential Homes
• Villas
• Townhouses
• Duplexes
• Home Renovations
• Existing Intercom Replacements
• Intercom Upgrade Projects
• Front Doors
• Pedestrian Gates
• Home Entrances
• Small Residential Developments
• Locations Where New Network Cabling Is Difficult

Benefits

• Complete Hikvision two-wire intercom solution
• Ideal for selected retrofit applications
• 7-inch capacitive touchscreen
• 2MP Full HD entrance camera
• Wide 140° horizontal field of view
• WDR for challenging lighting
• Infrared night viewing
• Hik-Connect mobile app support
• Remote visitor calls
• Remote door unlocking
• Remote live view
• Two-way audio
• Voice message functionality
• Two-lock control
• Direct 12V / 500mA lock power output
• IP65 outdoor door station
• Stainless-steel front panel
• Rain shield included
• Surface or flush-mount options
• Simple setup wizard
• Professional residential intercom solution

The Hikvision DS-KIS703Y-P 7-Inch Two-Wire IP Video Intercom Kit is an excellent solution for residential projects requiring modern IP intercom functionality without necessarily installing conventional Ethernet cabling between every intercom component.

Combining a 7-inch touchscreen indoor station, 2MP Full HD stainless-steel door station, two-wire connectivity, dual-lock control and Hik-Connect remote mobile access, the DS-KIS703Y-P provides a versatile solution for both new residential installations and suitable existing intercom upgrades.

DS-KIS703Y-P
