Key Features

• Dual-Lens 4MP + 4MP Network Camera
• Fixed 4MP Wide-Angle Overview Camera
• Separate 4MP Motorised PTZ Camera
• 4× Optical Zoom
• 16× Digital Zoom
• Dual 1/2.8" Progressive Scan CMOS Sensors
• Powered-by-DarkFighter Low-Light Technology
• Human & Vehicle Detection
• Intelligent Motion Detection
• Line Crossing Detection
• Intrusion Detection
• Wide-Area + Close-Up Monitoring
• IR & White Supplementary Lighting
• Red & Blue Flashing Active Deterrence
• Built-In Microphone
• Built-In Speaker
• Audible Warning
• 120dB WDR
• HLC / BLC
• 3D Digital Noise Reduction
• Defog
• Regional Exposure
• Regional Focus
• H.265 Video Compression
• microSD Edge Storage Support
• PoE+ Connectivity
• 12V DC Power Option
• IP66 Weather Resistance
• Suitable for Professional Indoor & Outdoor Surveillance

Intelligent Dual-Lens Design

The major advantage of the PTZ-ND4404/SL is its dual-lens architecture.

The camera combines:

1 × 4MP Fixed Overview Camera

and

1 × 4MP Motorised PTZ Camera with 4× Optical Zoom

This allows the system to maintain a wide view of the monitored area while the PTZ camera is simultaneously directed toward a specific target or area of interest.

With a traditional single-lens PTZ camera, moving or zooming the camera means the original wide view is temporarily lost.

The PTZ-ND4404/SL helps overcome this limitation by maintaining a separate fixed overview channel.

4MP + 4MP High-Resolution Imaging

Both imaging channels provide high-quality 4MP surveillance.

This dual-channel design allows the camera to provide:

• Wide-Area Situational Awareness
• Detailed PTZ Monitoring
• Close-Up Inspection
• Target Following
• General Overview Recording

The combination makes the camera particularly useful for locations where both general coverage and closer inspection are required.

Fixed 4MP Overview Camera

The fixed channel continuously provides a wide-angle overview of the monitored scene.

Its horizontal field of view is approximately:

114.9°

This wide viewing angle is ideal for maintaining general surveillance of:

• Driveways
• Car Parks
• Yards
• Warehouses
• Building Entrances
• Commercial Areas
• Loading Areas
• Open Spaces

The fixed channel continues providing scene context while the PTZ channel is directed elsewhere.

4MP Motorised PTZ Camera

The second imaging channel is a motorised 4MP PTZ camera.

It allows the surveillance system to actively change the viewing direction and zoom into areas requiring closer inspection.

This provides much greater flexibility than a conventional fixed camera.

4× Optical Zoom

The PTZ camera provides:

4× Optical Zoom

Optical zoom physically adjusts the camera lens to magnify distant subjects while retaining significantly more image detail than digital enlargement alone.

This is particularly useful when monitoring:

• People
• Vehicles
• Gates
• Entrances
• Driveways
• Car Parks
• Property Boundaries
• Loading Areas
• Distant Activity

16× Digital Zoom

In addition to its optical zoom, the PTZ channel supports:

16× Digital Zoom

Digital zoom can provide additional on-screen enlargement when reviewing or monitoring areas of interest.

For identification purposes, optical zoom should generally be prioritised because it retains more genuine image detail.

Powered-by-DarkFighter Technology

The PTZ-ND4404/SL incorporates Powered-by-DarkFighter technology for improved surveillance in challenging low-light conditions.

Its dual 1/2.8" Progressive Scan CMOS sensors are designed to provide useful image performance in environments where available lighting is limited.

This makes the camera suitable for:

• Residential Properties
• Car Parks
• Warehouses
• Commercial Sites
• Building Perimeters
• Yards
• Low-Light Outdoor Areas

Human & Vehicle Detection

The PTZ-ND4404/SL supports intelligent detection of:

• Humans
• Vehicles

This helps the surveillance system distinguish important targets from other movement occurring within the monitored area.

Human and vehicle classification can help reduce unnecessary security events generated by environmental movement such as:

• Trees
• Leaves
• Rain
• Shadows
• Animals
• Changing Lighting

Smart AI Events

Supported intelligent security events include:

• Motion Detection
• Line Crossing Detection
• Intrusion Detection

Human and vehicle target classification can be applied to supported events according to system configuration.

This allows the camera to provide more focused security monitoring around areas such as:

• Driveways
• Gates
• Property Boundaries
• Restricted Areas
• Car Parks
• Warehouses
• Building Entrances
• Commercial Sites

Active Deterrence

The PTZ-ND4404/SL is not limited to passive video recording.

It incorporates active deterrence features designed to warn potential intruders when supported security events are triggered.

The camera combines:

• Red Flashing Light
• Blue Flashing Light
• Built-In Speaker
• Audible Warning

This provides an immediate visual and audible security response at the monitored location.

Red & Blue Flashing Warning Lights

Integrated red-and-blue flashing lights provide a highly visible deterrent when activated.

This can be particularly useful for:

• After-Hours Commercial Sites
• Warehouses
• Driveways
• Car Parks
• Building Perimeters
• Restricted Areas
• Loading Areas
• Residential Properties

The flashing lights can draw immediate attention to a security event and make the camera's active response clearly visible.

Built-In Audio

The camera incorporates:

• Built-In Microphone
• Built-In Speaker

The microphone allows compatible systems to capture audio from the monitored area, while the speaker is used for supported audible warning functions.

This adds another layer of security beyond video surveillance alone.

Infrared & White Supplementary Lighting

The PTZ-ND4404/SL uses both:

• Infrared Light
• White Light

to support surveillance under low-light and night-time conditions.

The dual-light design provides greater flexibility than cameras relying solely on conventional infrared illumination.

Wide Dynamic Range

The camera incorporates Wide Dynamic Range technology to improve image quality in scenes containing both bright and dark areas.

This is particularly useful around:

• Building Entrances
• Garage Entrances
• Warehouse Doors
• Loading Areas
• Covered Driveways
• Areas Facing Bright Daylight

HLC & BLC

The camera supports:

HLC – Highlight Compensation

and

BLC – Backlight Compensation

These image-processing technologies help improve visibility under difficult lighting conditions.

HLC can help reduce the impact of intense bright light sources, while BLC can improve the visibility of subjects positioned against a bright background.

3D Digital Noise Reduction

3D DNR helps reduce image noise, particularly in low-light conditions.

This can improve image clarity while also helping video compression operate more efficiently.

Defog

Digital defog processing can improve image visibility in scenes affected by atmospheric haze or similar low-contrast conditions.

This can be particularly useful for outdoor surveillance across larger open areas.

Regional Exposure & Focus

The PTZ channel supports:

• Regional Exposure
• Regional Focus

These functions allow image optimisation to concentrate on selected areas of the monitored scene.

H.265 Video Compression

The PTZ-ND4404/SL supports efficient H.265 video compression, helping reduce network bandwidth and recording storage requirements.

Efficient compression is particularly useful for this camera because the dual-lens design can provide multiple video streams to the recording system.

Local microSD Storage

The camera supports onboard microSD storage for compatible memory cards.

Local storage can provide additional flexibility for:

• Event Recording
• Edge Recording
• Backup Recording
• Standalone Applications
• Recording Resilience

A compatible microSD card is sold separately.

PoE+ Connectivity

The PTZ-ND4404/SL supports:

PoE+

allowing network data and camera power to be supplied through a compatible Ethernet connection.

This simplifies professional installation by reducing the requirement for a separate power cable at the camera location.

For PoE operation, the connected NVR or network switch must provide sufficient compatible PoE+ power.

12V DC Power Option

In addition to PoE+, the camera supports:

12V DC

This provides installation flexibility where a separate local power supply is preferred.

IP66 Weather Resistance

The PTZ-ND4404/SL carries an:

IP66 Weather Protection Rating

making it suitable for properly installed outdoor surveillance applications.

Typical locations include:

• Residential Properties
• Driveways
• Commercial Buildings
• Warehouses
• Car Parks
• Industrial Sites
• Building Perimeters
• Loading Areas
• Open Yards

Ideal for Wide-Area Surveillance

The combination of a fixed overview camera and motorised PTZ makes the PTZ-ND4404/SL particularly effective for areas where a single fixed camera may not provide sufficient flexibility.

Instead of choosing between a wide overview and a closer PTZ view, this camera provides both.

Main Specifications

• Model: PTZ-ND4404/SL
• Australian Model: PTZ-ND4404/SL#AUS
• Brand: Hikvision HiLook
• Camera Type: Dual-Lens PTZ Network Camera
• Overview Camera: 4MP
• PTZ Camera: 4MP
• Camera Configuration: 4MP + 4MP
• Image Sensors: Dual 1/2.8" Progressive Scan CMOS
• Fixed Camera Lens: Wide-Angle Fixed Lens
• Fixed Camera Horizontal FOV: Approx. 114.9°
• PTZ Camera: Motorised Pan/Tilt/Zoom
• Optical Zoom: 4×
• Digital Zoom: 16×
• PTZ Horizontal FOV: Up to Approx. 98°
• Low-Light Technology: Powered-by-DarkFighter
• Human Detection: Supported
• Vehicle Detection: Supported
• Motion Detection: Supported
• Line Crossing: Supported
• Intrusion Detection: Supported
• Supplementary Lighting: IR + White Light
• Active Deterrence: Supported
• Red Flashing Light: Yes
• Blue Flashing Light: Yes
• Audio Warning: Supported
• Built-In Microphone: Yes
• Built-In Speaker: Yes
• WDR: Supported
• HLC: Supported
• BLC: Supported
• 3D DNR: Supported
• Defog: Supported
• Regional Exposure: Supported
• Regional Focus: Supported
• Video Compression: H.265
• Local Storage: microSD Supported
• Network: Ethernet
• Power: 12V DC or PoE+
• Weather Protection: IP66
• Application: Professional Indoor & Outdoor Surveillance

Ideal For

• Residential Homes
• Large Residential Properties
• Driveways
• Car Parks
• Warehouses
• Commercial Properties
• Retail Premises
• Workshops
• Industrial Sites
• Building Perimeters
• Loading Areas
• Commercial Yards
• Property Entrances
• Restricted Areas
• Wide Open Areas
• Active Deterrence CCTV Systems
• Human & Vehicle Detection
• Professional IP CCTV Systems

Benefits

• Two 4MP imaging channels in one camera
• Fixed overview plus separate PTZ surveillance
• Wide-area monitoring without losing scene context
• 4× true optical zoom
• 16× digital zoom
• Powered-by-DarkFighter low-light performance
• Human and vehicle detection
• Intelligent motion detection
• Line crossing and intrusion detection
• Active red-and-blue visual deterrence
• Built-in audible warning
• Built-in microphone
• Built-in speaker
• IR and white supplementary lighting
• WDR, HLC and BLC
• 3D digital noise reduction
• Defog processing
• Local microSD storage
• PoE+ installation
• 12V DC power option
• IP66 outdoor protection
• Excellent solution for wide residential and commercial areas

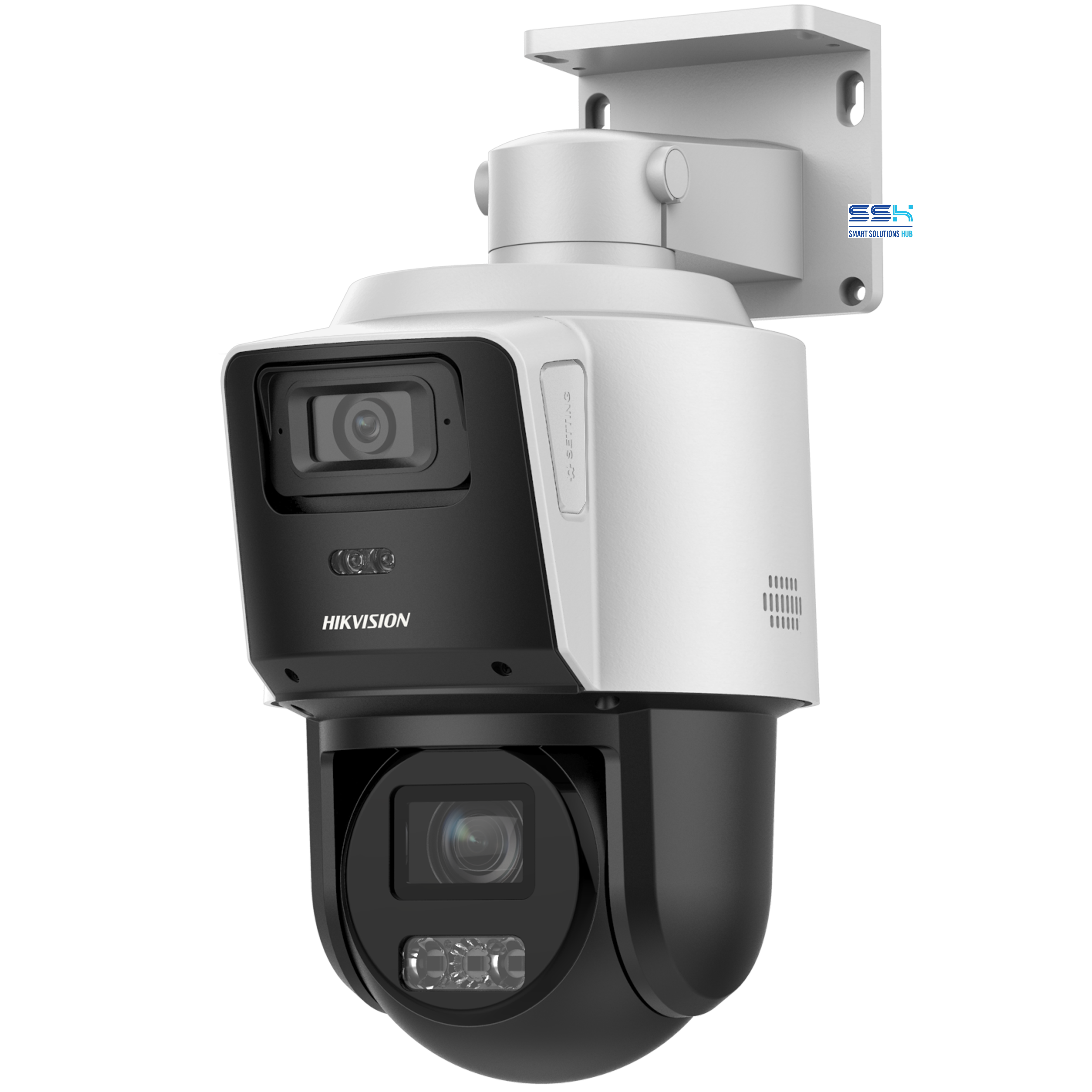

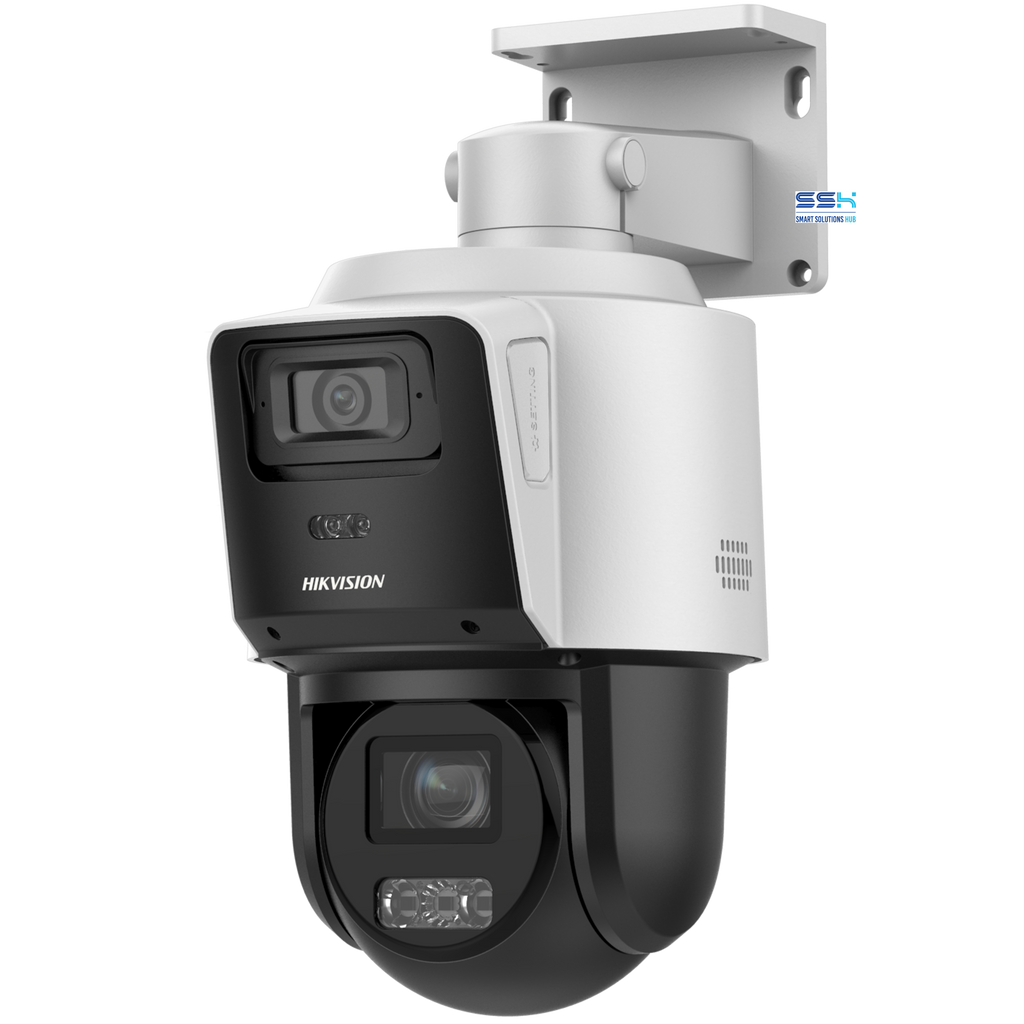

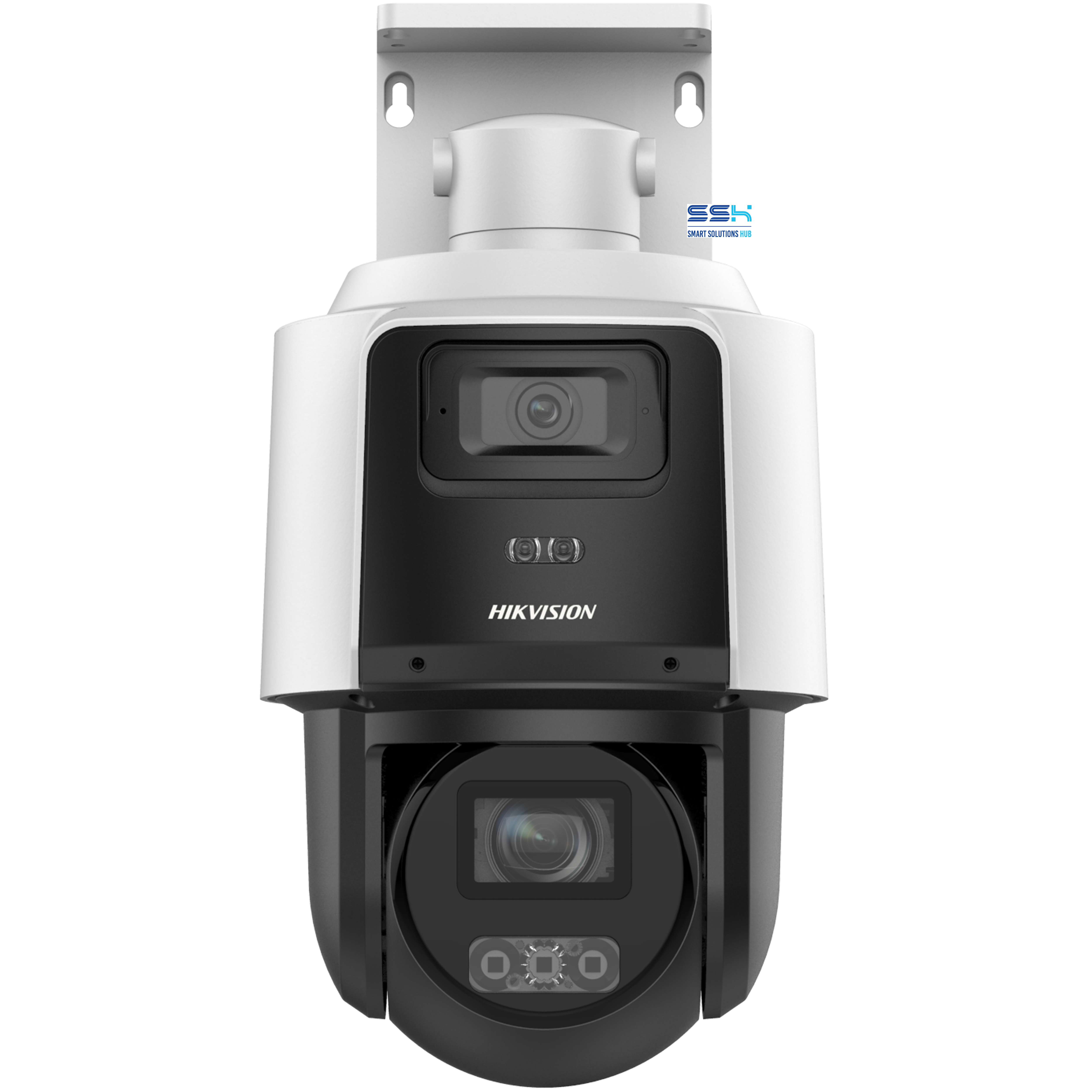

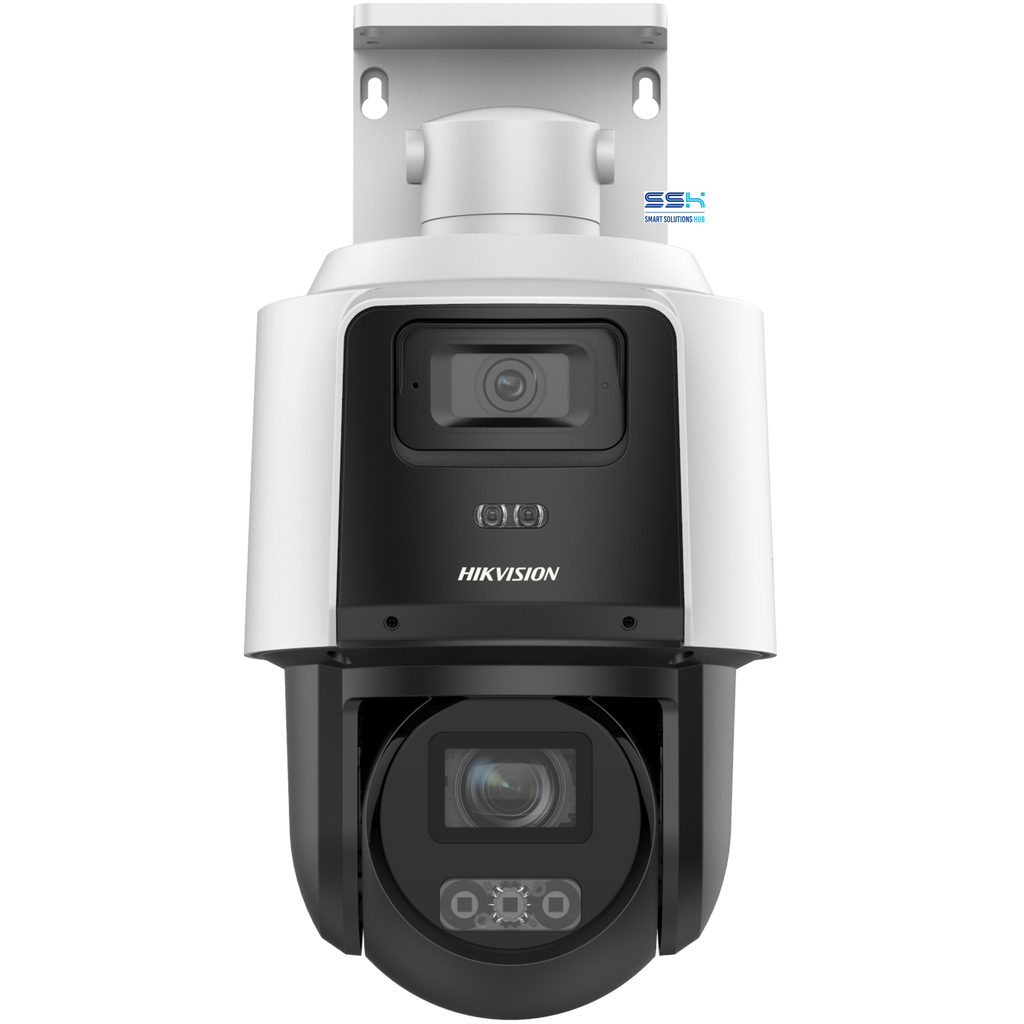

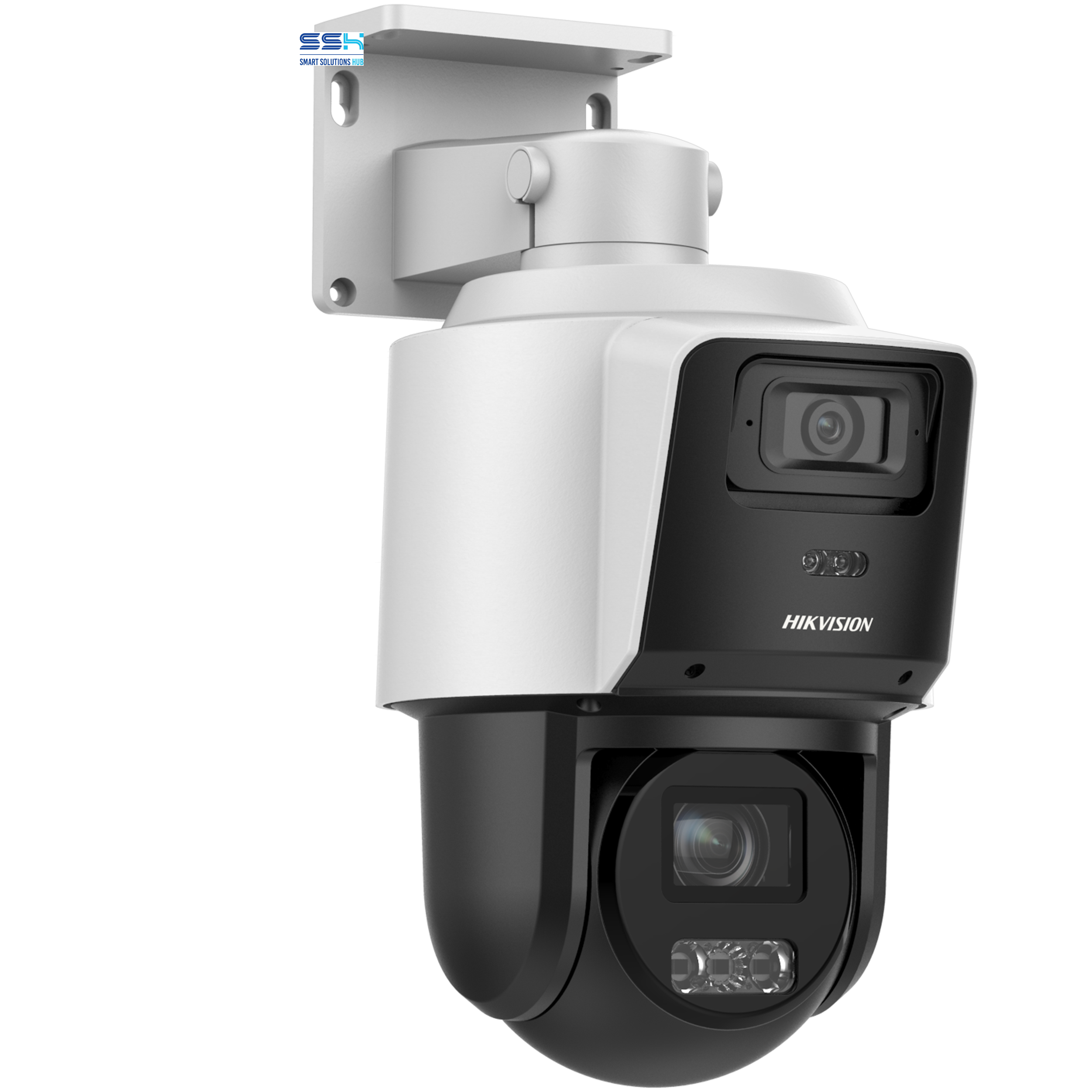

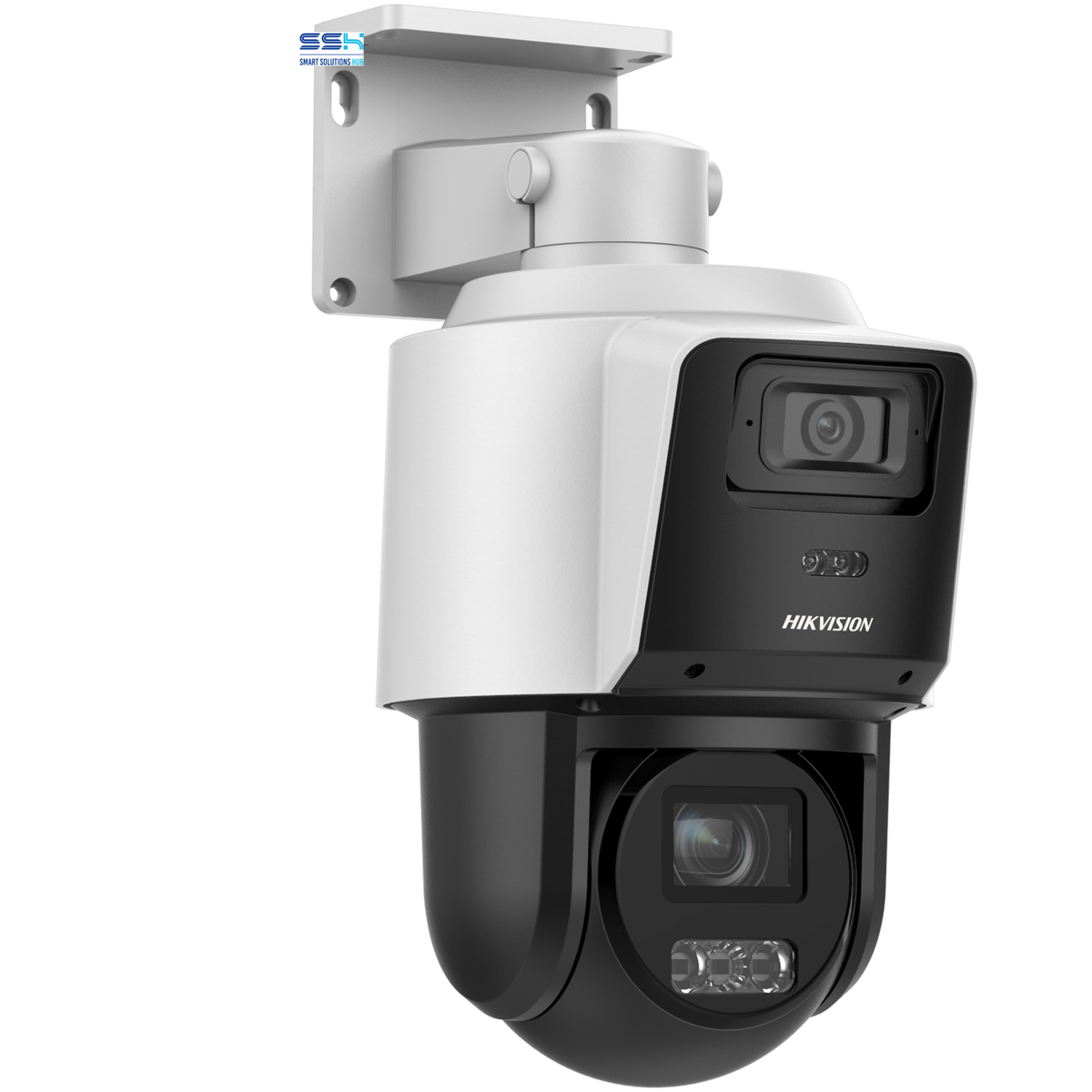

The Hikvision HiLook PTZ-ND4404/SL 4MP+4MP Dual-Lens PoE+ PTZ Network Camera provides a highly flexible alternative to conventional single-lens PTZ cameras.

By combining a 4MP fixed wide-angle overview camera with a separate 4MP motorised PTZ channel, the camera can maintain broad situational awareness while simultaneously providing detailed PTZ surveillance with 4× optical zoom.

Combined with Powered-by-DarkFighter low-light technology, human and vehicle detection, intelligent security events, IR and white supplementary lighting, red-and-blue flashing deterrence lights, built-in audio and PoE+ connectivity, it provides a powerful all-in-one security solution for residential, commercial and industrial surveillance.

PTZ-ND4404/SL
