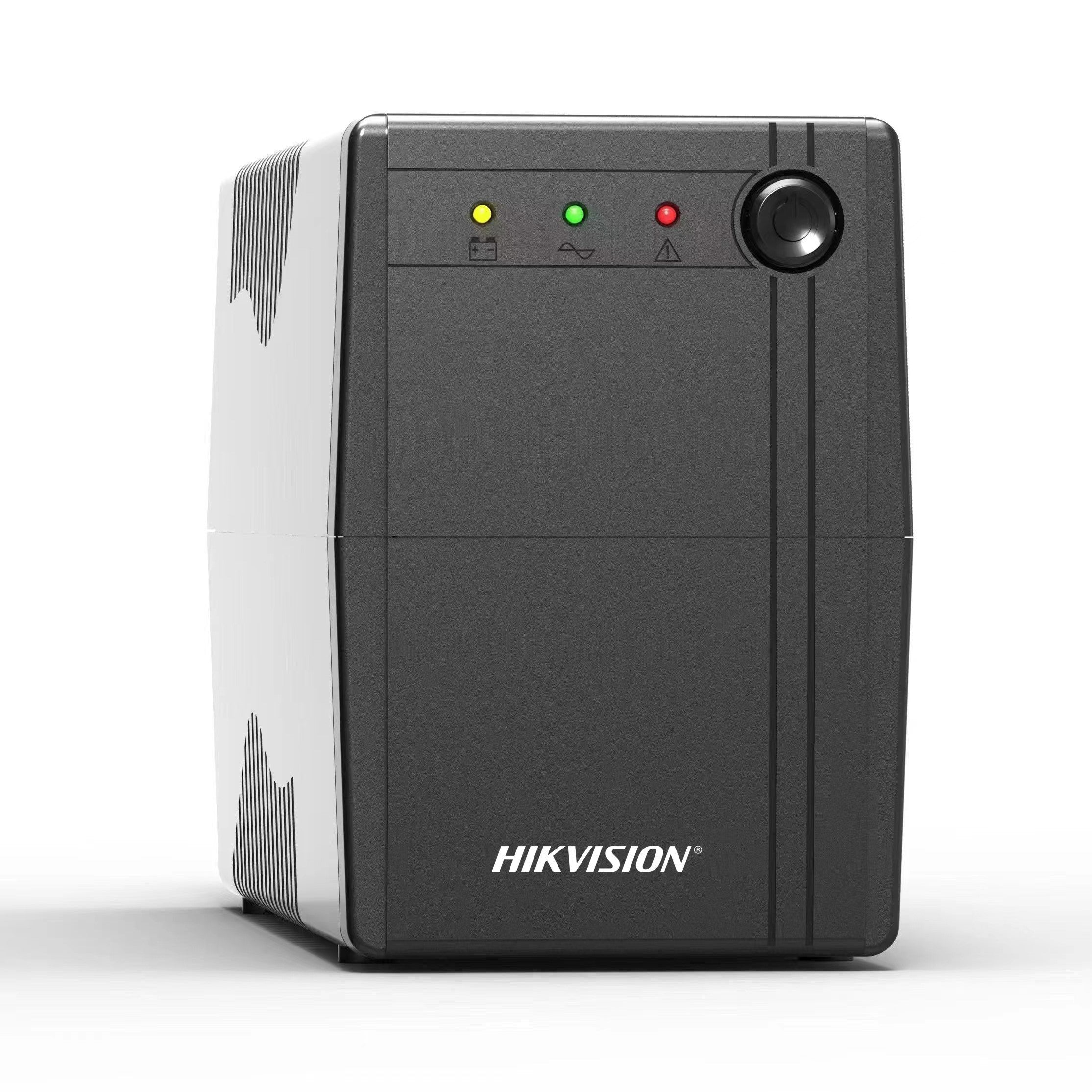

Hikvision DS-UPS600VA 600VA / 360W UPS Uninterruptible Power Supply – Battery Backup & Surge Protection
The Hikvision DS-UPS600VA is a compact 600VA / 360W Uninterruptible Power Supply (UPS) designed to provide temporary battery backup and power protection for CCTV, networking and other compatible electronic equipment.
Featuring a built-in 12V 7Ah lead-acid battery, fast ≤10ms transfer time, automatic voltage regulation and multiple electrical protection functions, the DS-UPS600VA helps keep connected equipment operating during short power interruptions while providing valuable time for systems to continue recording or be safely shut down during longer outages.
It is particularly suitable for supporting compatible CCTV NVRs, DVRs, network switches, routers, modems, access control equipment and other low-power security devices where uninterrupted operation is important.
Key Features
- 600VA UPS Capacity
- 360W Maximum Rated Power
- Built-In 12V 7Ah Lead-Acid Battery
- Uninterruptible Power Supply
- Battery Backup During Power Failure
- ≤10ms Transfer Time
- Wide Input Voltage Range
- 50/60Hz Input Frequency
- Automatic Frequency Detection
- PWM Output
- LED Status Indicators
- Audible Warning Alarms
- Surge Protection
- Overload Protection
- Battery Discharge Protection
- Battery Overcharge Protection
- Approximately 4–6 Hour Recharge Time to 90%
- Compact Desktop/Tower Design
- Ideal for CCTV & Networking Equipment
600VA / 360W UPS Capacity
The DS-UPS600VA provides a rated UPS capacity of:
600VA / 360W
This makes it suitable for protecting compatible low-to-medium-power electronic equipment.
Typical applications can include:
- CCTV Network Video Recorders
- CCTV Digital Video Recorders
- Network Switches
- PoE Switches within suitable power limits
- Routers
- Modems
- Access Control Equipment
- Video Intercom Equipment
- Small Network Devices
- Other Compatible Electronics
The combined load of all connected equipment must remain within the UPS's rated capacity.
Battery Backup During Power Failure
When normal mains power is interrupted, the UPS automatically switches to its internal battery.
This can help keep connected equipment operating during short power failures and provide additional time during longer outages.
For CCTV systems, this can be particularly useful because sudden loss of mains power can otherwise immediately stop:
- Camera Recording
- NVR Operation
- Network Connectivity
- Remote CCTV Access
- Internet Connectivity
- Security Monitoring
Built-In 12V 7Ah Battery
The DS-UPS600VA incorporates:
1 × 12V / 7Ah Lead-Acid Battery
The integrated battery stores energy while mains power is available and supplies temporary backup power when an interruption occurs.
No separate external backup battery is required for normal operation.
Typical Backup Runtime
Battery runtime depends heavily on the total connected load.
Typical Hikvision test figures include approximately:
- 60W Load: Up to 35 Minutes
- 100W Load: Up to 20 Minutes
- 200W Load: Up to 3 Minutes
These figures should be treated as indicative rather than guaranteed operating times.
Actual runtime can vary according to:
- Connected Equipment
- Total Power Consumption
- Battery Age
- Battery Condition
- Battery Charge Level
- Ambient Temperature
- Power Factor
- Operating Conditions
Higher loads will significantly reduce available backup time.
Ideal for CCTV Systems
The DS-UPS600VA is particularly useful for small CCTV installations.
A UPS can provide temporary backup power for compatible equipment such as:
- Hikvision NVRs
- HiLook NVRs
- CCTV Recorders
- Network Switches
- Routers
- Modems
- Network Equipment
Keeping both the recorder and networking equipment powered can help maintain recording and remote connectivity during short mains interruptions, provided the total connected load remains within the UPS capacity.
CCTV Recorder Protection
Sudden power loss can interrupt active recording and cause a CCTV recorder to shut down unexpectedly.
Using a UPS provides a temporary power buffer between the mains supply and compatible equipment.
This is especially valuable for security systems expected to operate continuously.
≤10ms Transfer Time
The DS-UPS600VA provides a transfer time of:
≤10ms
When mains power fails, the UPS rapidly transfers the connected load to battery operation.
This fast transition is designed to help compatible electronic equipment continue operating through short power interruptions.
Wide Input Voltage Range
The documented 230V version provides a wide input voltage operating range of approximately:
140VAC to 290VAC
This allows the UPS to operate across varying mains conditions.
The exact plug, outlet and voltage configuration should be confirmed for the regional version supplied.
Output Voltage
For the documented 230V configuration, the UPS provides an output voltage range of approximately:
210VAC to 235VAC
with output frequency automatically operating according to the applicable mains frequency.
50/60Hz Self-Adaptive Operation
The UPS supports:
50/60Hz Self-Adaptive Input Frequency
This allows the unit to automatically operate according to the supported mains frequency.
Battery Recharge
Hikvision specifies approximately:
4–6 Hours to Recover to 90% Battery Capacity
after battery discharge.
Actual charging time can vary according to battery condition, discharge level and operating environment.
LED Status Indicators
The DS-UPS600VA uses simple LED indicators to communicate its operating status.
Indicators provide visual information for conditions including:
- Normal AC Operation
- Battery / Charging Operation
- Overload Condition
This allows the user or installer to quickly identify the current operating state.
Audible Warning Alarms
The UPS also provides audible alarms for important operating conditions.
Warnings include:
- Battery Operation
- Low Battery
- Overload
- System Fault
Different alarm patterns help identify the current condition without requiring a display.
Surge Protection
Built-in surge protection helps protect compatible connected equipment against certain electrical disturbances.
This adds an additional layer of protection for sensitive electronics such as:
- NVRs
- DVRs
- Network Switches
- Routers
- Modems
- Security Equipment
A UPS should form part of an appropriately designed electrical protection system and is not a substitute for required building-level surge or lightning protection.
Overload Protection
The DS-UPS600VA incorporates overload protection.
If the connected equipment exceeds the UPS's supported operating capacity, the unit can provide a warning and protection response.
For reliable operation, the connected load should always be designed comfortably within the UPS's 360W maximum rated capacity.
Battery Discharge Protection
Built-in discharge protection helps protect the internal battery from excessive discharge.
This is important for maintaining battery reliability and reducing damage caused by excessively deep discharge cycles.
Battery Overcharge Protection
The UPS also provides overcharge protection, helping protect the internal battery during charging.

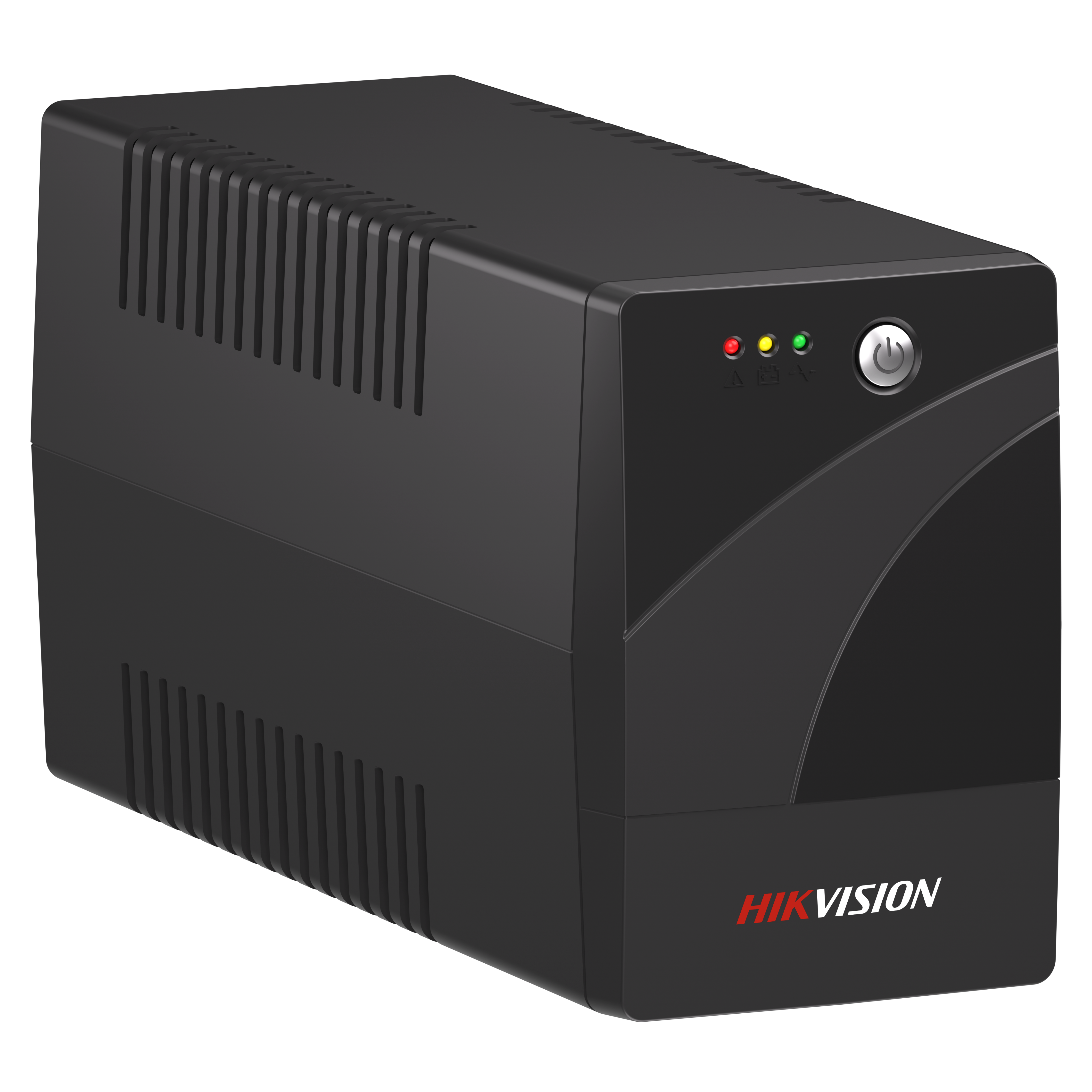

Compact Design
The DS-UPS600VA uses a compact tower-style enclosure suitable for installation near CCTV and networking equipment.
Approximate dimensions for the documented version are:
274 × 95 × 139mm
Approximate weight:
4.2kg
The compact size makes it suitable for:
- CCTV Cabinets
- Communications Areas
- Offices
- Home Network Areas
- Equipment Rooms
- Small Security Installations
Operating Environment
The UPS is designed for indoor operation within appropriate environmental conditions.
Specified operating temperature:
0°C to 40°C
Specified operating humidity:
30% to 90% RH, non-condensing
The UPS should be installed in a dry, ventilated location with adequate airflow.
Choosing the Correct UPS Size
UPS capacity should be selected according to the combined power consumption of all connected equipment.
For example, a CCTV system may include:
- NVR
- Hard Drives
- PoE Cameras
- Network Switch
- Router
- Modem
If cameras are powered directly from a PoE NVR connected to the UPS, their power consumption indirectly contributes to the total load on the UPS.
For this reason, the complete system power requirement should be calculated before selecting a UPS.
Main Specifications
- Model: DS-UPS600 / DS-UPS600VA
- Product Type: Uninterruptible Power Supply
- UPS Capacity: 600VA
- Maximum Rated Power: 360W
- Battery: 12V / 7Ah
- Battery Type: Lead-Acid
- Recharge Time: Approx. 4–6 Hours to 90%
- Transfer Time: ≤10ms
- Input Frequency: 50/60Hz Self-Adaptive
- Output Frequency: 50/60Hz ±0.5Hz on applicable version
- Output Waveform: PWM / Simulated Waveform depending on regional revision
- Typical Runtime @ 60W: Approx. 35 Minutes
- Typical Runtime @ 100W: Approx. 20 Minutes
- Typical Runtime @ 200W: Approx. 3 Minutes
- Surge Protection: Yes
- Overload Protection: Yes
- Discharge Protection: Yes
- Overcharge Protection: Yes
- Status Indicator: LED
- Audible Alarm: Yes
- Communication Port: No
- Operating Temperature: 0°C to 40°C
- Operating Humidity: 30% to 90% Non-Condensing
- Approx. Dimensions: 274 × 95 × 139mm
- Approx. Weight: 4.2kg
- Application: Indoor

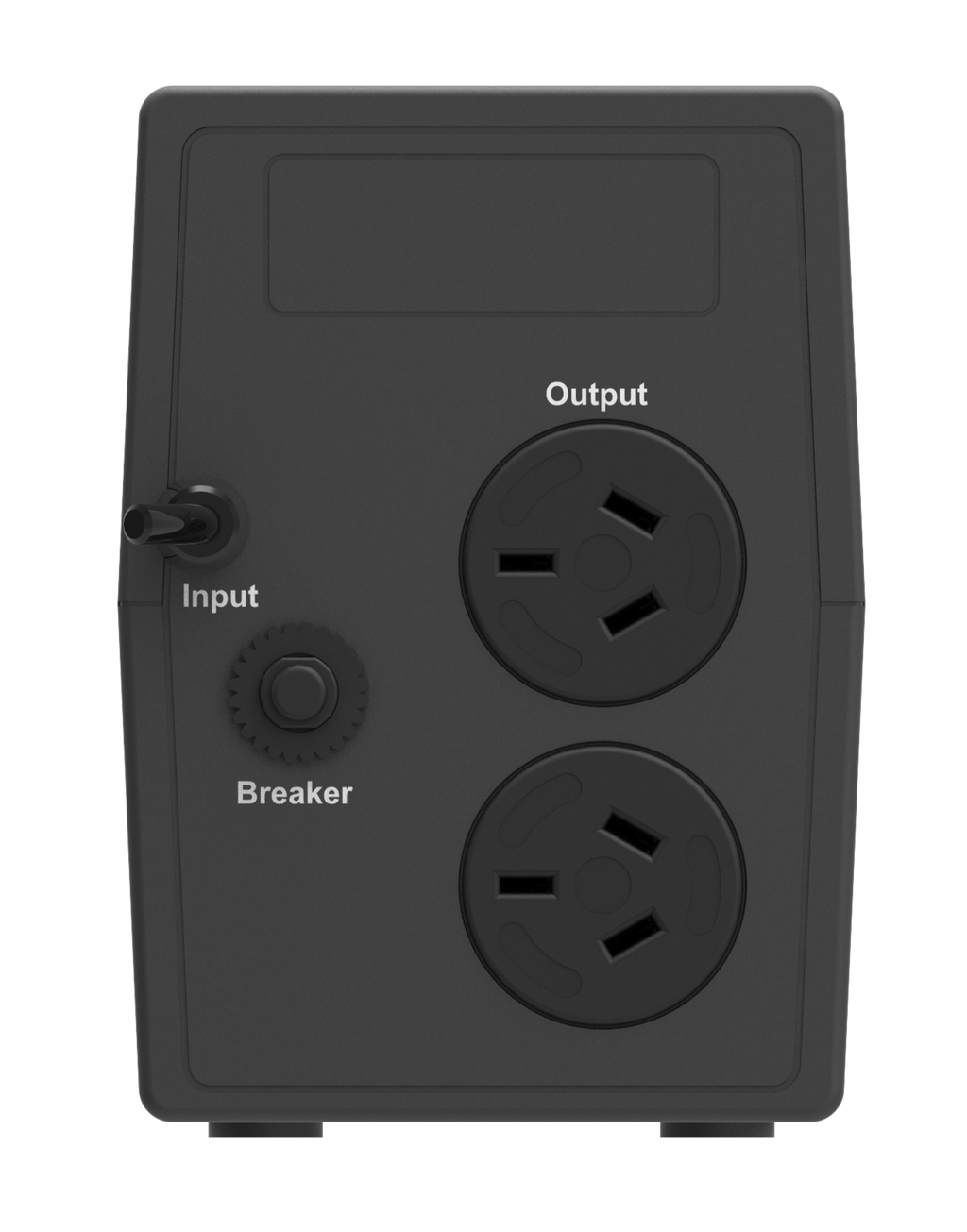

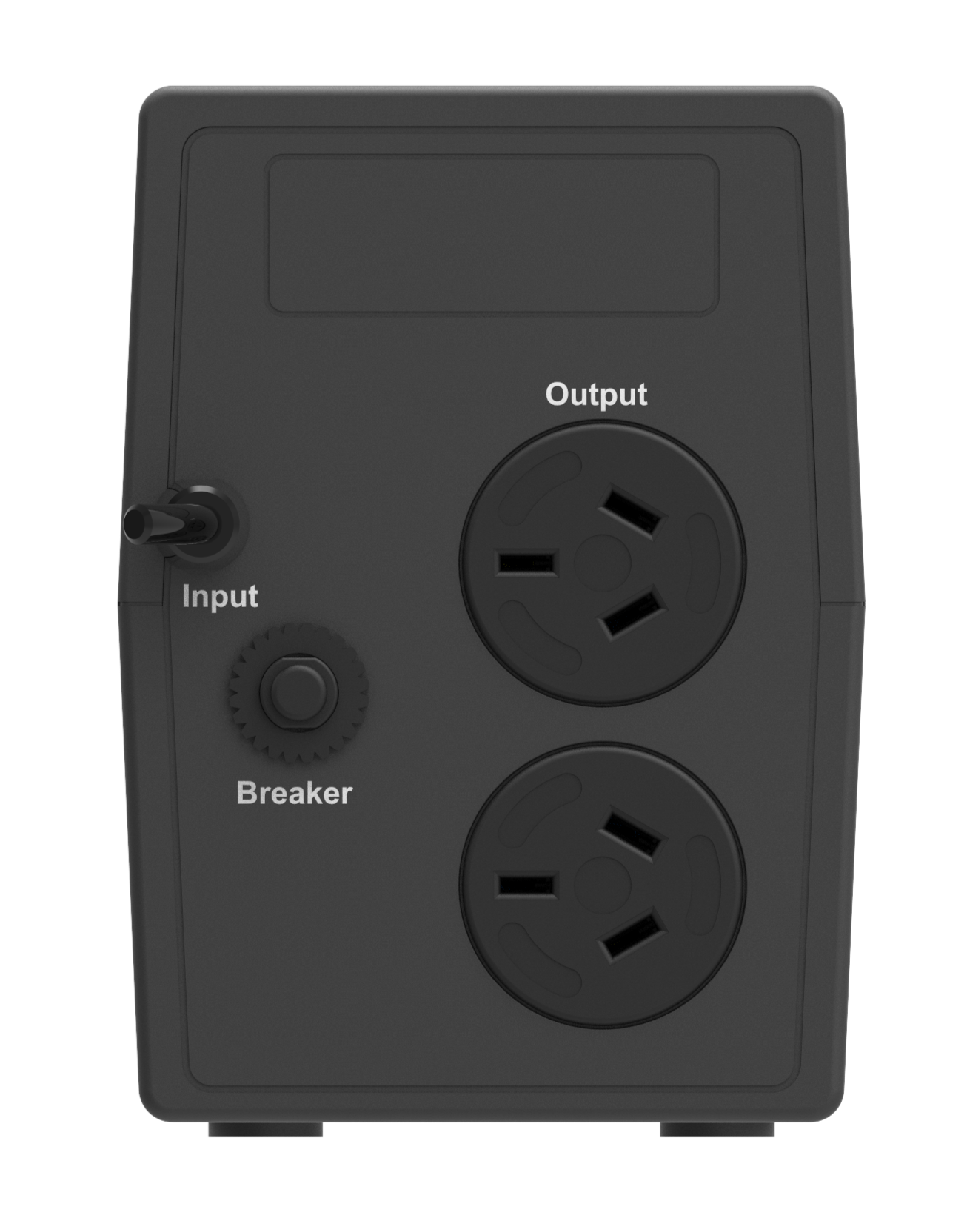

- Regional Plug/Outlet Configuration: Confirm supplied Australian version before ordering
Ideal For
- CCTV Systems
- Hikvision NVRs
- HiLook NVRs
- Network Video Recorders
- Digital Video Recorders
- Security Systems
- Network Switches
- Small PoE Systems
- Routers
- Modems
- Access Control Systems
- Video Intercom Equipment
- Small Office Networks
- Home Networks
- Communications Equipment
- Compatible Electronic Equipment
Benefits
- 600VA / 360W power capacity
- Temporary battery backup during mains failure
- Built-in 12V 7Ah battery
- Fast ≤10ms transfer time
- Useful for CCTV and network equipment
- Helps maintain recording during short power interruptions
- Can help maintain network connectivity during outages
- Surge protection
- Overload protection
- Battery discharge protection
- Battery overcharge protection
- LED status indication
- Audible warning alarms
- 4–6 hour recharge to approximately 90%
- Compact design
- Simple installation
- Designed for continuous security and networking applications
The Hikvision DS-UPS600VA 600VA / 360W Uninterruptible Power Supply provides a practical backup-power solution for small CCTV, security and networking installations.
With a built-in 12V 7Ah battery, ≤10ms transfer time, surge and overload protection, battery protection, LED status indication and audible alarms, it can help keep compatible NVRs, network equipment and security devices operating during short mains interruptions while providing additional protection against common power-related problems.
