Description
HiLook 4K 8MP All-in-One Active Colour Deterrence 8CH CCTV Kit – 4 × IP Active Colour Cameras + 8CH PoE NVR
The HiLook 4K 8MP All-in-One Active Colour Deterrence 8CH CCTV Kit is a professional expandable security system combining 4 × HiLook IPC-T289H-MU/SL 8MP Active Deterrence IP turret cameras with a HiLook NVR-108MH-K/8P 8-channel PoE Network Video Recorder.
Designed for homes, offices, retail stores, workshops, warehouses and commercial properties, this system combines 4K Ultra HD surveillance, Smart Hybrid Light, intelligent human and vehicle classification, red-and-blue flashing warning lights, audible deterrence and built-in audio in a powerful PoE CCTV package.
With four cameras supplied and an eight-channel recorder, the system provides 4 spare camera channels and 4 spare PoE ports, allowing easy future expansion to as many as 8 compatible IP cameras without replacing the NVR.
Network cabling and installation accessories are supplied separately unless specifically stated otherwise.

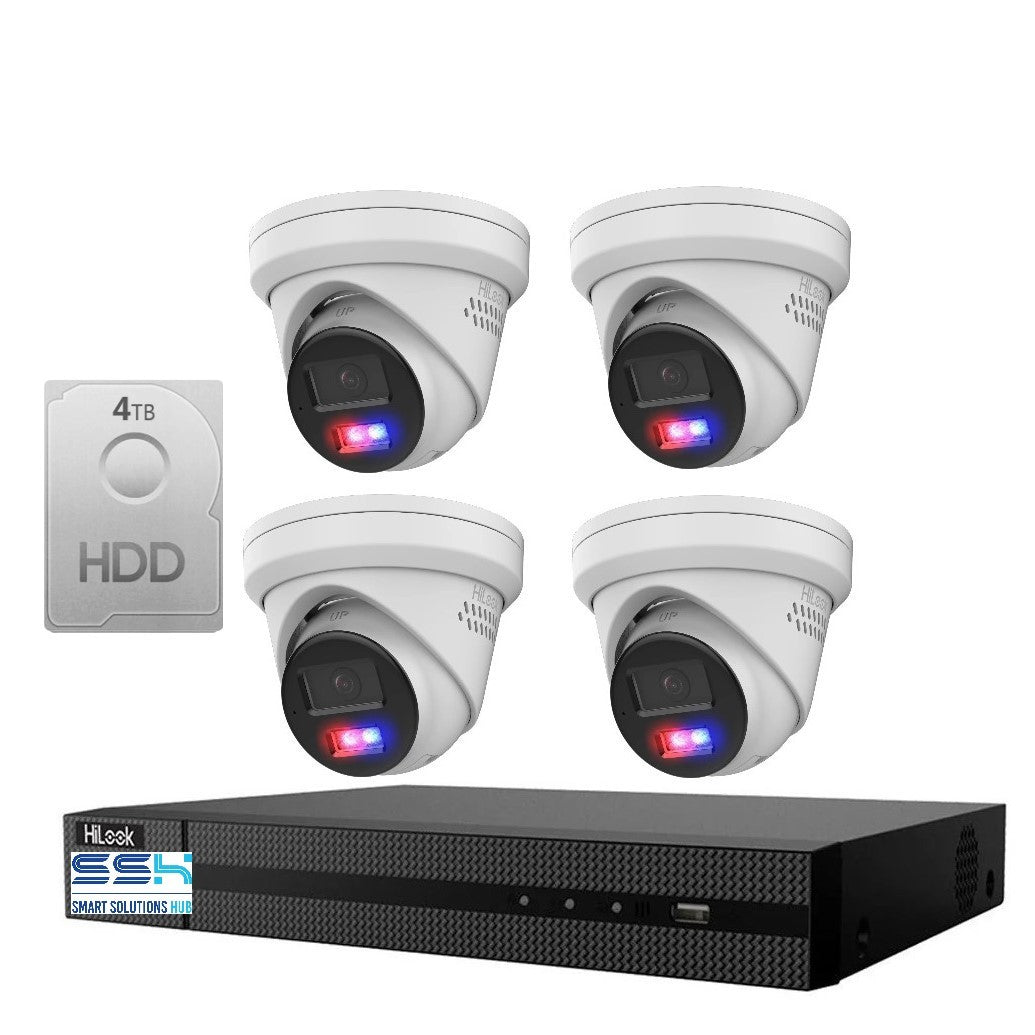

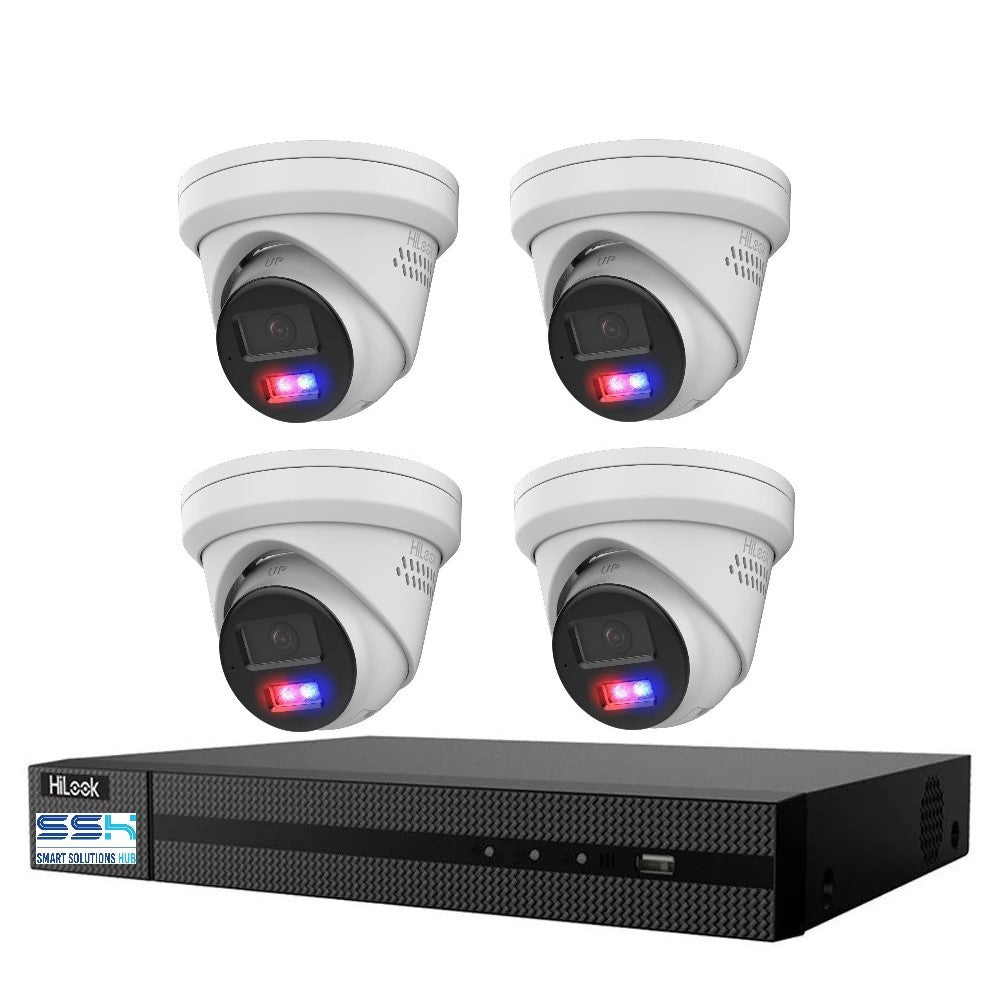

This CCTV Kit includes:
4 x 8 Megapixel All-in-One IP Camera with Active Colour Deterrence (IPC-T289H-MU/SL) (White Only)
1 x 8 Channel PoE NVR (NVR 108MH-C/8P)
Key Features
- 4 × 8MP / 4K Active Deterrence Cameras
- Maximum 3840 × 2160 Resolution
- All-in-One Active Deterrence
- Smart Hybrid Light
- IR + White Supplementary Light
- Three Supplementary Lighting Modes
- Intelligent Human & Vehicle Classification
- Motion Detection
- Line Crossing Detection
- Intrusion Detection
- Red & Blue Flashing Warning Lights
- Built-In Audible Alarm
- Built-In Arrayed Dual Microphones
- Built-In Speaker
- 120dB True WDR
- H.265+ Video Compression
- IP67 Weather Protection
- 8-Channel PoE NVR
- 8 Built-In PoE Camera Ports
- 4 Cameras Included
- 4 Spare Channels
- 4 Spare PoE Ports
- Expandable to 8 Cameras
- Up to 12MP NVR Recording Resolution
- 80Mbps Incoming Bandwidth
- Up to 4 × 8MP Decoding with AI Off
- Motion Detection 2.0
- 4K HDMI Output
- Independent HDMI & VGA Outputs
- 8-Channel Synchronous Playback
- 1 × SATA HDD Interface
- Gigabit Ethernet
- PoE Plug-and-Play
- Remote Viewing

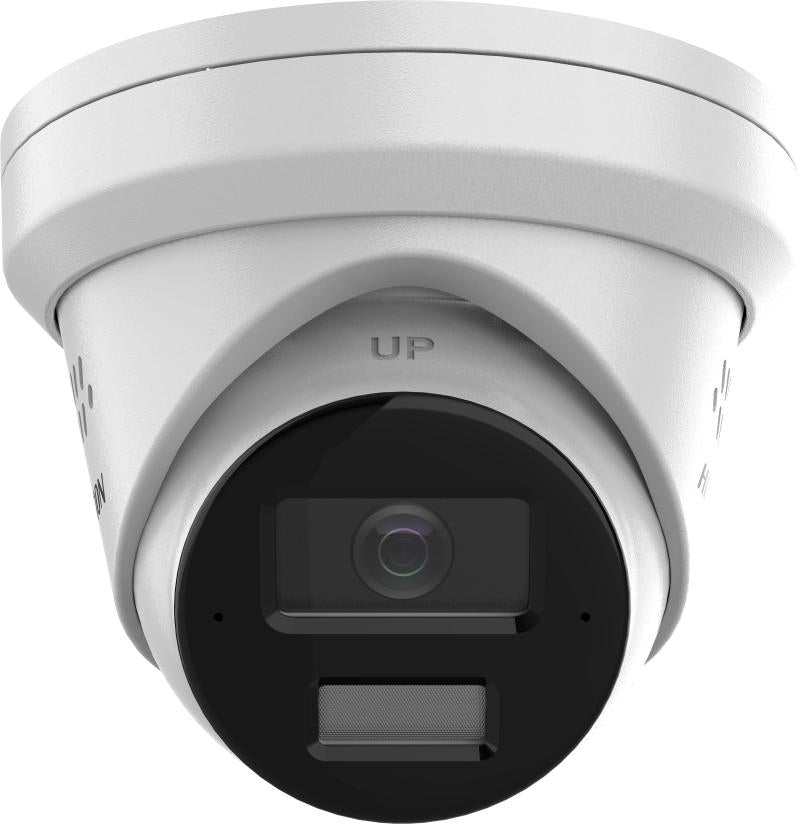

8MP / 4K Ultra HD Cameras
The package includes:
4 × HiLook IPC-T289H-MU/SL 8MP All-in-One Active Deterrence IP Turret Cameras
Each camera provides up to:
3840 × 2160 – 8 Megapixel / 4K Ultra HD
The high-resolution image provides significantly greater detail than conventional 1080p surveillance and is particularly useful when reviewing:
- People
- Clothing
- Vehicles
- Entrances
- Driveways
- Property Activity
- Shopfronts
- Warehouses
- Car Parks
- Loading Areas
- Security Incidents

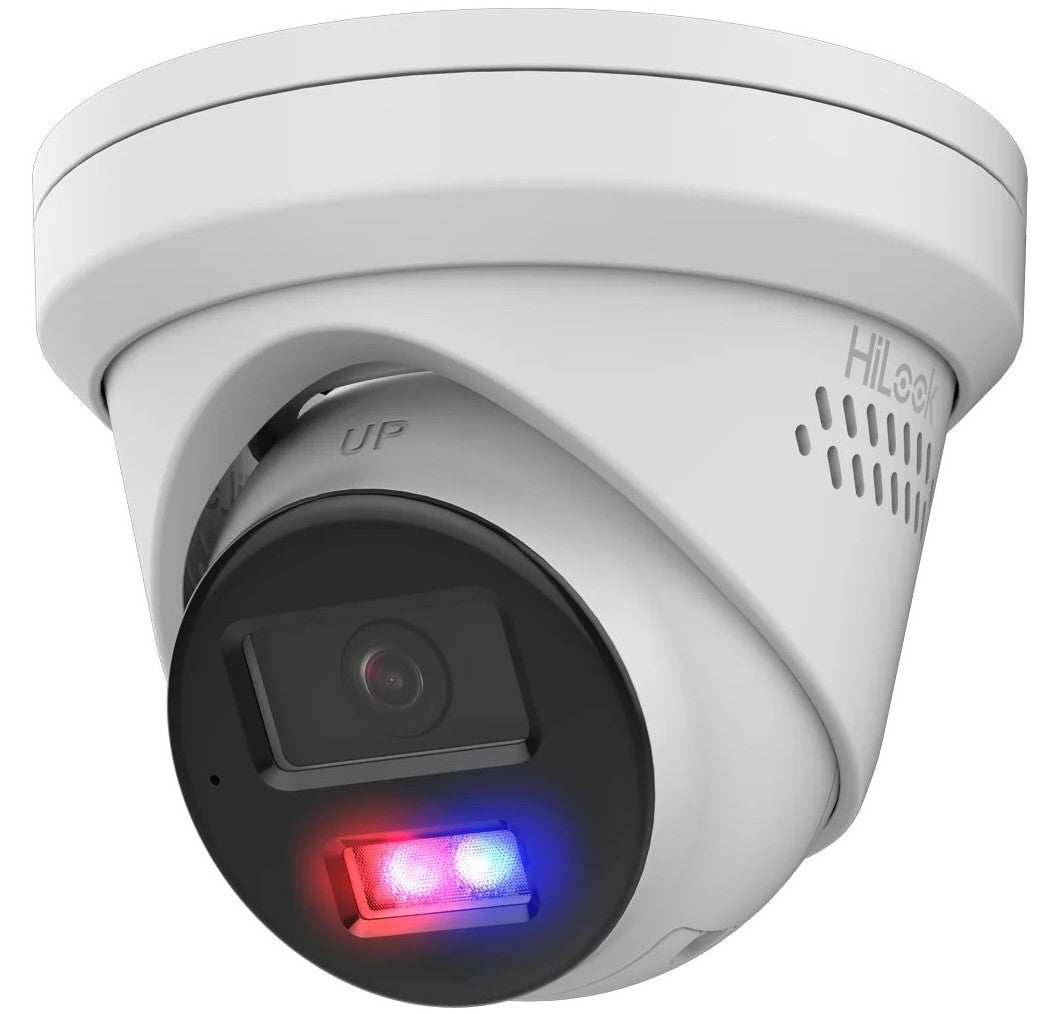

All-in-One Active Deterrence
The IPC-T289H-MU/SL is designed to provide more than conventional passive CCTV recording.
The camera combines:
Intelligent Detection + Red/Blue Flashing Lights + Audible Alarm + Video + Audio
When configured security events occur, the camera can activate highly visible and audible warnings at the monitored location.
This provides a proactive layer of security by making potential intruders aware that the property is being actively monitored.
Red & Blue Flashing Warning Lights
The camera incorporates integrated:
Red & Blue Flashing Lights
These can be activated when configured security events are triggered.
This feature provides a strong visual warning and is particularly suitable for:
- Driveways
- Front Entrances
- Side Access
- Rear Entrances
- Shopfronts
- Warehouses
- Car Parks
- Loading Areas
- Commercial Perimeters
- Restricted Areas
Built-In Audible Alarm
In addition to the flashing lights, the camera incorporates a built-in speaker capable of providing an audible warning.
The combination of:
Red & Blue Flashing Light + Audio Alarm
creates an immediate deterrence response at the camera location.
Smart Hybrid Light
The IPC-T289H-MU/SL features:
HiLook Smart Hybrid Light
Smart Hybrid Light combines:
- Infrared Light
- White Supplementary Light
to provide flexible night surveillance.
Three Supplementary Lighting Modes
The camera provides three lighting approaches.
IR Mode
Uses infrared illumination for discreet black-and-white night surveillance.
White Light Mode
Uses visible white supplementary lighting to provide colour imaging in darkness.
Smart Mode
The camera can use infrared for normal night surveillance and activate white supplementary lighting when a relevant event occurs.
This provides colour detail during important security events while reducing unnecessary continuous visible lighting.
Intelligent Human & Vehicle Classification
The camera uses deep-learning technology to distinguish:
- Humans
- Vehicles
This allows the surveillance system to focus on security-relevant targets.
Compared with basic motion detection, intelligent classification can help reduce unnecessary events generated by environmental movement.
Intelligent Security Events
The IPC-T289H-MU/SL supports intelligent functions including:
- Motion Detection
- Line Crossing Detection
- Intrusion Detection
These provide greater flexibility when protecting entrances, driveways, boundaries and restricted areas.
Built-In Arrayed Dual Microphones
Each camera incorporates:
Built-In Arrayed Dual Microphones
allowing compatible recordings to include:
Video + Audio
without requiring a separate external microphone at each camera location.
Audio recording should be configured and used in accordance with applicable privacy and surveillance requirements.
Built-In Speaker
The integrated speaker provides the camera's audible deterrence capability.
This allows the camera to generate a warning at the monitored location when configured events occur.
120dB True WDR
The camera features:
120dB True Wide Dynamic Range
WDR helps provide clearer imaging when very bright and dark areas are present within the same scene.
This can be particularly useful for:
- Doorways
- Building Entrances
- Driveways
- Shopfronts
- Loading Areas
- Areas Facing Bright Outdoor Light
H.265+ Video Compression
The cameras and NVR support efficient:
- H.265+
- H.265
- H.264+
- H.264
video compression.
H.265+ can help reduce HDD storage and network bandwidth requirements compared with older compression technologies.
This is particularly beneficial when recording multiple 8MP / 4K cameras.
IP67 Weather Protection
The IPC-T289H-MU/SL features:
IP67 Water & Dust Resistance
making it suitable for correctly installed indoor and outdoor surveillance applications.
Typical applications include:
- Driveways
- Entrances
- Building Perimeters
- Car Parks
- Warehouses
- Workshops
- Loading Areas
- Commercial Properties
- Residential Exteriors
HiLook NVR-108MH-K/8P 8-Channel PoE NVR
The package includes:
HiLook NVR-108MH-K/8P 8-Channel PoE Network Video Recorder
The recorder provides:
8 × IP Camera Channels
and:
8 × Built-In PoE Camera Interfaces
With only four cameras supplied in this package, half of the recorder's capacity remains available for future expansion.
Expand from 4 to 8 Cameras
A major advantage of this package is future expandability.
Cameras Included
4
Maximum NVR Camera Capacity
8
Channels Currently Used
4
Spare Camera Channels
4
You can therefore potentially double the camera count without replacing the recorder.
Four Spare Physical PoE Ports
Because the NVR incorporates eight PoE interfaces:
4 PoE Ports Are Used
and:
4 PoE Ports Remain Available
for compatible future cameras.
Additional cameras could be installed later to monitor areas such as:
- Additional Entrances
- Side Access
- Rear Yard
- Garage
- Car Park
- Internal Areas
- Warehouse
- Storage Area
- Additional Building Perimeter
PoE Plug-and-Play Connectivity
PoE – Power over Ethernet – allows compatible cameras to receive electrical power and network data through a single compatible Ethernet cable.
A typical connection is:
Camera → Cat5e/Cat6 Cable → NVR PoE Port
This reduces the need for separate camera power supplies and simplifies professional IP CCTV installation.
80Mbps Incoming Bandwidth
The NVR provides:
Up to 80Mbps Incoming Bandwidth
for connected IP camera streams.
System configuration should consider:
- Number of Cameras
- Camera Resolution
- Frame Rate
- Video Bit Rate
- Audio Recording
- Compression
- Intelligent Functions
High-Resolution Recording
The current NVR-108MH-K/8P platform supports recording resolutions up to:
12 Megapixels
including:
- 12MP
- 8MP
- 6MP
- 5MP
- 4MP
- 3MP
- 1080p
- Lower Supported Resolutions
This provides ample recording resolution for the supplied 8MP cameras.
Powerful Decoding
With NVR-side AI disabled, the current platform supports decoding configurations up to:
- 2 × 12MP @ 30fps
- 4 × 8MP @ 30fps
- 8 × 4MP @ 30fps
- 16 × 1080p @ 30fps
With NVR-side AI enabled, decoding capacity varies according to the intelligent functions in use.
This makes the recorder particularly well matched to this package of four 8MP cameras.
Motion Detection 2.0
The NVR supports:
Motion Detection 2.0
with human and vehicle recognition.
This can help reduce false alarms and improve the efficiency of event searches and recorded playback.
4K HDMI Output
The NVR provides HDMI video output up to:
3840 × 2160 / 4K @ 30Hz
This allows connection to a compatible 4K television or monitor for high-resolution local viewing.
Independent HDMI & VGA Outputs
The current K-Series recorder provides:
Independent HDMI and VGA Outputs
allowing greater flexibility when configuring local surveillance displays.
VGA supports up to:
1920 × 1080 @ 60Hz
8-Channel Synchronous Playback
The NVR supports:
8-Channel Synchronous Playback
allowing recorded footage from all eight camera channels to be reviewed simultaneously when required.
HDD Storage
The NVR provides:
1 × SATA HDD Interface
for compatible surveillance storage.
HDD: Select storage capacity from available options
The appropriate HDD capacity depends on:
- Number of Cameras
- 8MP Recording Resolution
- Frame Rate
- Video Bit Rate
- Audio Recording
- H.265+ Compression
- Continuous or Event Recording
- Required Recording Retention
A surveillance-rated HDD is recommended for CCTV recording.
Gigabit Ethernet
The NVR provides:
10/100/1000Mbps Gigabit Ethernet
for connection to the local network.
This supports:
- Remote Viewing
- Network Management
- Remote Playback
- Mobile Access
- System Configuration
Remote Viewing
When correctly connected and configured, compatible HiLook remote-access functionality can provide:
- Live Camera Viewing
- Recorded Playback
- Event Notifications
- Multi-Camera Viewing
- Remote CCTV Monitoring
This provides convenient authorised access to the CCTV system while away from the property.
Ideal 4-Camera Residential Configuration
A typical residential configuration could include:
Camera 1 – Front Entrance
Camera 2 – Driveway
Camera 3 – Rear Entrance
Camera 4 – Side Access
Four additional camera channels remain available for future expansion.
Ideal Commercial Configuration
For a small commercial property:
Camera 1 – Main Entrance
Camera 2 – Car Park
Camera 3 – Internal Customer Area
Camera 4 – Rear / Loading Entrance
The remaining four channels can later be used as the business grows or additional security coverage is required.
Main Camera Specifications
- Model: IPC-T289H-MU/SL
- Quantity: 4
- Camera Type: All-in-One Active Deterrence IP Turret
- Resolution: 8MP
- Maximum Resolution: 3840 × 2160
- Video Quality: 4K Ultra HD
- Image Sensor: 1/2.8" Progressive Scan CMOS
- Minimum Illumination: Approx. 0.005 Lux @ F1.6
- Lens Options: 2.8mm / 4mm
- Horizontal FOV: Up to Approx. 108° with 2.8mm Lens
- Supplementary Light: IR + White Light
- Technology: Smart Hybrid Light
- Lighting Modes: IR / White Light / Smart
- Human Classification: Supported
- Vehicle Classification: Supported
- Smart Events: Motion / Line Crossing / Intrusion
- Active Deterrence: Supported
- Visual Warning: Red & Blue Flashing Light
- Audio Alarm: Supported
- Microphone: Built-In Arrayed Dual Microphones
- Speaker: Built-In
- WDR: 120dB True WDR
- Video Compression: H.265+ / H.265 / H.264+ / H.264
- PoE: Supported
- Weather Protection: IP67
- Application: Indoor & Outdoor Surveillance
Main NVR Specifications
- Model: NVR-108MH-K/8P
- Product Type: 8-Channel PoE Network Video Recorder
- IP Camera Inputs: 8
- Built-In PoE Ports: 8
- Cameras Included: 4
- Channels Used: 4
- Spare Camera Channels: 4
- Spare Physical PoE Ports: 4
- Maximum Recording Resolution: Up to 12MP
- Incoming Bandwidth: 80Mbps
- Outgoing Bandwidth: 80Mbps
- Decoding with AI Off: Up to 4 × 8MP @ 30fps
- Synchronous Playback: 8 Channels
- Video Compression: H.265+ / H.265 / H.264+ / H.264
- Motion Detection 2.0: Supported
- HDMI Output: Up to 4K / 3840 × 2160 @ 30Hz
- VGA Output: Up to 1920 × 1080 @ 60Hz
- HDMI/VGA: Independent Output
- SATA: 1
- Network: Gigabit Ethernet
- PoE: 8 Built-In Interfaces
- Remote Viewing: Supported
- HDD: Select Storage Capacity from Available Options
Ideal For
- Residential CCTV
- Homes
- Offices
- Retail Stores
- Workshops
- Small Warehouses
- Commercial Buildings
- Driveways
- Building Perimeters
- Car Parks
- Entrances
- Active Deterrence CCTV
- 4-Camera CCTV Systems
- Expandable 8-Camera CCTV Systems
- 8MP / 4K Security Systems
- Smart Hybrid Light CCTV
- Professional IP CCTV Installations
Benefits
- Four 8MP / 4K cameras
- All-in-One active deterrence
- Red-and-blue flashing warning lights
- Built-in audible alarm
- Human and vehicle classification
- Smart Hybrid Light
- IR and white supplementary lighting
- Motion, line-crossing and intrusion detection
- Built-in arrayed dual microphones
- Built-in speaker
- 120dB True WDR
- H.265+ compression
- IP67 weather protection
- 8-channel PoE NVR
- 8 built-in PoE interfaces
- 4 spare camera channels
- 4 spare physical PoE ports
- Expandable from 4 to 8 cameras
- Up to 12MP NVR recording
- 80Mbps incoming bandwidth
- Up to 4 × 8MP decoding
- Motion Detection 2.0
- 4K HDMI output
- 8-channel synchronous playback
- Gigabit Ethernet
- Remote viewing
- Selectable HDD storage
The HiLook 4K 8MP All-in-One Active Colour Deterrence 8CH CCTV Kit with 4 IP cameras and 8-channel PoE NVR provides a strong combination of high-resolution surveillance, proactive deterrence and future expansion.
Combining four IPC-T289H-MU/SL 8MP Active Deterrence cameras with the NVR-108MH-K/8P, the system provides 4K surveillance, human and vehicle classification, Smart Hybrid Light, red-and-blue flashing warnings, audible deterrence, built-in audio and professional PoE connectivity, while leaving four spare channels and four spare PoE ports for future cameras.
Hikvision Hilook 8MP IPC-T289-MU/SL All in One Camera with Blue and Red Strobe, two way Audio
As a leader in surveillance technology, Hikvision presents the revolutionary IPC-T289H-MU-SL all-in-one camera featuring 8MP 4K resolution, Blue and Red Strobe, and two-way audio for active colour deterrence. With advanced features and crystal-clear imaging, this camera is a powerful tool for professional surveillance.
- Active Colour Deterrence 8MP 4K high resolution camera
- Alarms, notifications, any audio clips can be broadcasted by camera when event occurs. Users can use Mobile App to customize audio message easily.
- Working with Intelligent human & vehicle classification technology to reduce FALSE alarm.
- Strobe light alarm and Audio alarm to warn intruders off in real-time
- The All-in-One camera has colourful images at night with White light supplement
- Working with Hilook NVR(new firmware needed), you can simply control alarms with one tap on the easy-to-use mobile APP HiLookVision
- IP67 Ingress Protection
- One Tap to Alarm/Disarm with Mobile APP
NVR-108MH-C/8P
The Hilook NVR-108MH-C/8P is an eight-channel network video recorder that supports up to 1 SATA interfaces, as well as H.265+/H.264/MPEG4 formats. To monitor remotely from your mobile, this NVR can be connected via the Hik-Connect app. This Plug&Play 4K NVR can be connected to third-party network cameras, and can support up to eight cameras simultaneously.
Features:
- 8CH 8xPoE Plug & Play 4K NVR
- Third-party network cameras supported
- 1 HDMI, 1 VGA, HMDI up to 4K(3840x2160)
- 8ch network cameras with 80M bandwidth
- Up to 1 SATA interfaces
- Plug & Play with up to 8 independent PoE
- Support VCA detection and VCA search
- Support H.265+/H.264/MPEG4 formats
- Support mobile monitoring via Hik-Connect
- 315 x 240 x 48 mm
