HiLook Hi Color Pro 6MP 16CH CCTV Kit – 8 × IP Hi Color Cameras + 16CH PoE NVR

The HiLook Hi Color Pro 6MP 16CH CCTV Kit is a professional high-capacity IP surveillance system combining 8 × HiLook IPC-T561H-MU 6MP Hi Color Pro IP turret cameras with a 16-channel PoE Network Video Recorder.

Designed for larger homes, warehouses, offices, retail premises, workshops and commercial properties, this package combines 6MP high-resolution surveillance, 24/7 colour imaging, intelligent security events, built-in audio recording, PoE connectivity and high-capacity NVR recording.

With eight cameras supplied and a sixteen-channel recorder, the system leaves eight spare camera channels, providing substantial capacity to expand the CCTV system to as many as 16 compatible IP cameras without replacing the NVR.

This CCTV Kit includes:

8 x Hikvision Hilook Pro IPC-T561H-MU 6 MP Hi-Color Fixed Turret Network Camera (White Only)

1 x Hikvision HiLook NVR-216MH-C-16P D series 16CH PoE 4K NVR  (No Hard Drive included)

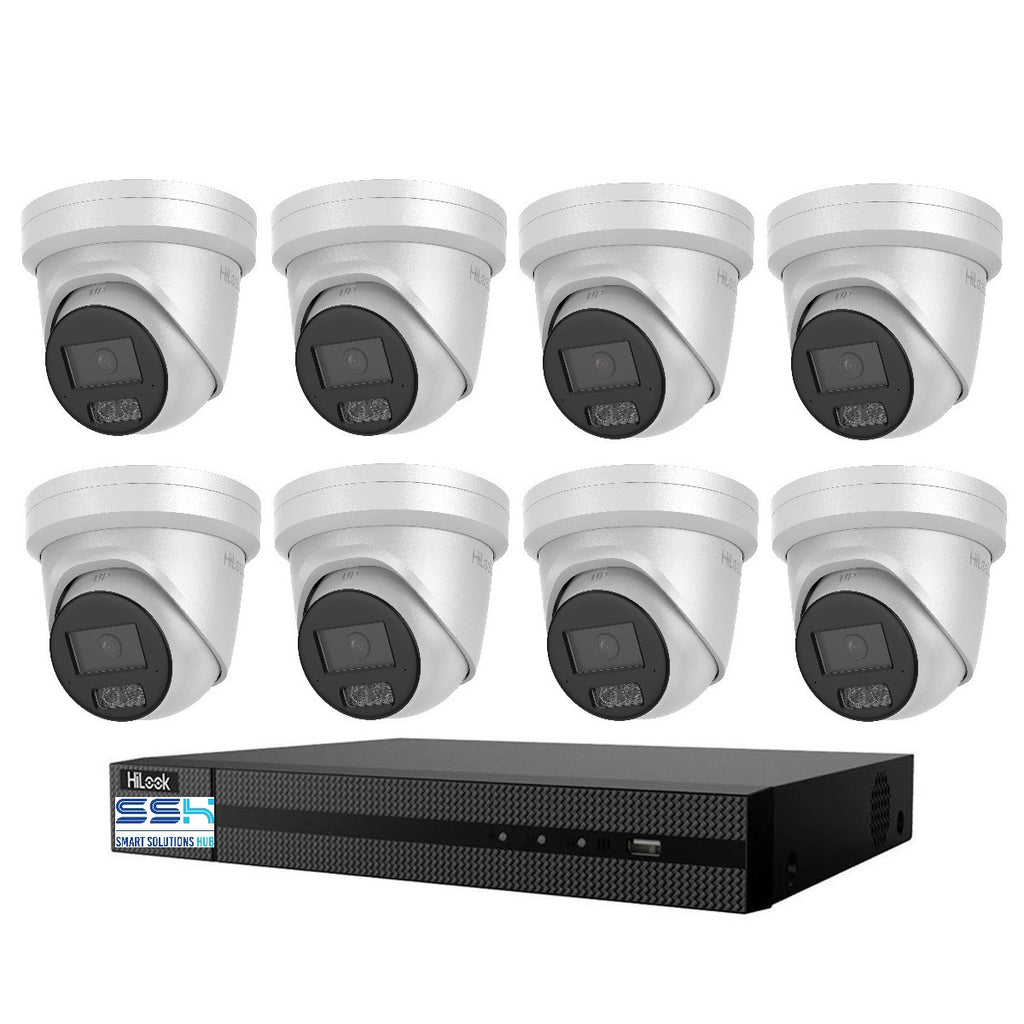

Kit Includes

• 8 × HiLook IPC-T561H-MU 6MP Hi Color Pro IP Turret Cameras
• 1 × HiLook 16-Channel / 16-PoE Network Video Recorder
• 8 Cameras Included
• 8 Spare Camera Channels for Future Expansion
• Expandable to 16 Cameras
• HDD: Select storage capacity from available options

Network cabling, installation accessories and other components are supplied separately unless specifically included in the selected package.

Key Features

• 8 × HiLook Hi Color Pro 6MP Cameras
• Maximum 3200 × 1800 Resolution
• Large 1/1.8" Progressive Scan CMOS Sensor
• Ultra-Wide F1.0 Aperture
• 0.0005 Lux Colour Sensitivity
• 24/7 Colour Surveillance
• White Supplementary Light
• Up to 30m Supplementary Light Range
• Intelligent Motion Detection
• Line Crossing Detection
• Intrusion Detection
• Human & Vehicle Classification on Supported Events
• Built-In Dual Microphones
• H.265+ Video Compression
• IP67 Weather Resistance
• 16-Channel PoE NVR
• 16 Built-In PoE Interfaces
• 8 Cameras Supplied
• 8 Spare Camera Channels
• Expandable to 16 Cameras
• Up to 160Mbps Incoming Bandwidth
• 4K HDMI Output
• VGA Output
• Two Internal HDD Bays on K-Series NVR
• Up to 16TB Per HDD on Current K-Series Platform
• Remote Live View & Playback
• Professional Residential & Commercial CCTV Solution

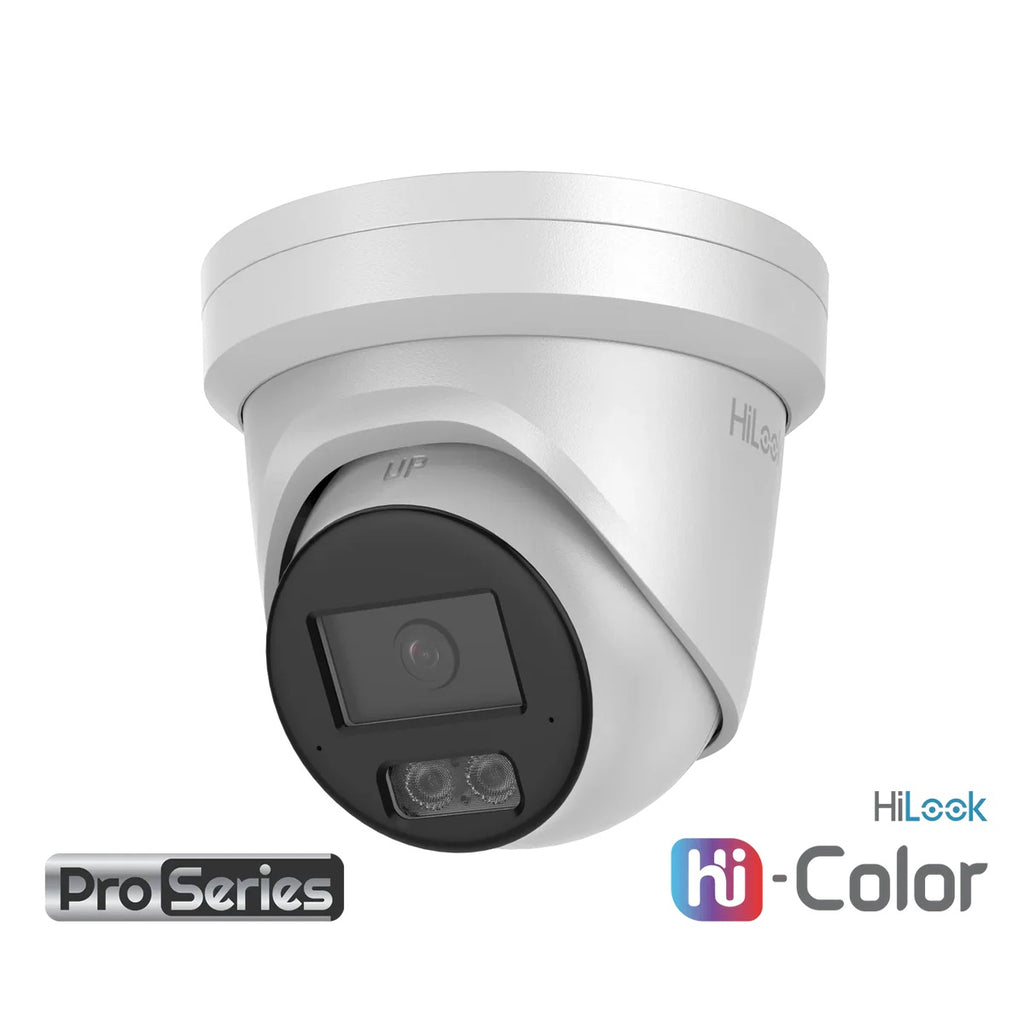

8 × HiLook IPC-T561H-MU Hi Color Pro Cameras

This package includes:

8 × HiLook IPC-T561H-MU 6MP Hi Color Pro IP Turret Cameras

The IPC-T561H-MU combines high-resolution 6MP imaging with HiLook's Hi Color technology, intelligent event detection and built-in audio recording.

Eight cameras provide comprehensive surveillance coverage for larger residential and commercial properties while leaving another eight NVR channels available for future expansion.

6MP High-Resolution Surveillance

Each camera provides a maximum resolution of:

3200 × 1800 – 6 Megapixels

6MP surveillance provides substantially more image detail than conventional 1080p Full HD CCTV.

The additional resolution can provide greater detail when reviewing:

• People
• Clothing
• Vehicles
• Entrances
• Driveways
• Loading Areas
• Warehouses
• Car Parks
• Property Boundaries
• Commercial Activity
• Security Incidents

Hi Color Pro Technology

HiLook Hi Color Pro technology is designed to provide enhanced colour surveillance in extremely low-light environments.

Conventional infrared CCTV cameras commonly switch to black-and-white images after dark.

Hi Color Pro uses a combination of a large high-sensitivity sensor, ultra-wide F1.0 aperture and supplementary white lighting to maintain useful colour information in challenging lighting conditions.

Colour footage can provide additional information such as:

• Clothing Colour
• Vehicle Colour
• Object Colour
• Property Features
• Building Details
• Scene Information

Large 1/1.8" Image Sensor

The IPC-T561H-MU incorporates a large:

1/1.8" Progressive Scan CMOS Sensor

The large sensor is designed to capture more available light, helping the camera maintain useful image quality under challenging lighting conditions.

This is one of the key advantages of the Hi Color Pro camera platform.

Ultra-Wide F1.0 Aperture

The IPC-T561H-MU features an ultra-wide:

F1.0 Aperture

The large aperture allows more available light to reach the camera's image sensor.

Combined with the 1/1.8" sensor, this provides the foundation for the camera's enhanced low-light colour performance.

0.0005 Lux Colour Sensitivity

The IPC-T561H-MU provides extremely high low-light sensitivity:

Colour: 0.0005 Lux @ F1.0, AGC ON

and:

0 Lux with Supplementary Light

This allows the camera to retain colour information under very low ambient-light conditions.

Up to 30m White Supplementary Light

When available ambient lighting is insufficient, the camera can use integrated white supplementary lighting.

Maximum supplementary light range:

Up to 30 Metres

Unlike conventional infrared illumination, white supplementary lighting allows the camera to continue producing colour images.

Actual illumination performance depends on the scene, installation height, mounting angle, environmental conditions and reflective surfaces.

Wide-Angle Coverage

The IPC-T561H-MU is available with fixed lens options.

2.8mm Lens

Provides up to approximately:

108.8° Horizontal Field of View

This wide field of view is well suited to general surveillance applications such as:

• Entrances
• Driveways
• Front Yards
• Retail Areas
• Warehouses
• Building Perimeters

4mm Lens

Provides a narrower field of view where greater concentration on a more distant area is required.

Lens availability depends on the selected camera variant.

Intelligent Security Events

The Hi Color Pro platform supports intelligent security functions including:

• Motion Detection
• Line Crossing Detection
• Intrusion Detection

Supported intelligent functions can use target classification to focus events on relevant targets such as:

• Humans
• Vehicles

This can help reduce unnecessary event activity compared with conventional pixel-based motion detection.

Built-In Dual Microphones

The IPC-T561H-MU incorporates:

Built-In Dual Microphones

This allows compatible NVR recordings to capture:

Video + Audio

without requiring a separate external microphone at each camera location.

Environmental noise filtering is also supported.

Audio recording must be used in accordance with applicable privacy and surveillance laws.

IP67 Weather Resistance

The cameras feature:

IP67 Weather Protection

making them suitable for properly installed indoor and outdoor CCTV applications.

This makes the kit suitable for:

• Building Exteriors
• Driveways
• Car Parks
• Warehouses
• Commercial Premises
• Residential Properties

Correct installation, cable protection and weatherproofing remain important for outdoor installations.

Professional 16-Channel PoE NVR

The system includes a professional:

16-Channel / 16-PoE HiLook Network Video Recorder

providing capacity for up to:

16 IP Cameras

This package includes eight cameras.

Therefore:

8 Channels Used

and:

8 Channels Available

for future expansion.

Expand from 8 to 16 Cameras

One of the major advantages of this package is the amount of expansion capacity available.

Cameras Included

8

NVR Maximum Capacity

16 Cameras

Channels Currently Used

8

Spare Capacity

8 Additional Cameras

The CCTV system can therefore effectively double in camera count without replacing the recorder.

16 Built-In PoE Interfaces

The compatible HiLook 16-channel PoE NVR provides:

16 × PoE Camera Interfaces

PoE – Power over Ethernet – allows compatible IP cameras to receive power and network data through a single Ethernet cable.

A compatible Cat5e or Cat6 connection can carry:

• Camera Power
• Network Data
• Video
• Audio
• Intelligent Event Information

This provides a clean and scalable professional CCTV architecture.

Eight Spare PoE Ports

Because this kit includes eight cameras and the NVR provides sixteen PoE interfaces, another:

8 × PoE Ports

remain available for compatible future cameras.

Additional cameras could later be installed to cover areas such as:

• Additional Entrances
• Loading Areas
• Warehouse Aisles
• Rear Boundaries
• Car Parks
• Internal Areas
• Workshops
• Storage Rooms

Up to 160Mbps Incoming Bandwidth

The current HiLook 16-channel NVR platform provides up to:

160Mbps Incoming Bandwidth

This provides substantial network capacity for multi-camera IP surveillance.

Camera streams should still be configured according to:

• Camera Quantity
• Resolution
• Frame Rate
• Video Bit Rate
• Audio
• Compression
• Recording Requirements

H.265+ Video Compression

The system supports efficient video compression including:

• H.265+
• H.265
• H.264+
• H.264

H.265+ can significantly reduce storage and network bandwidth requirements compared with older compression technologies, depending on the monitored scene and configuration.

This is particularly valuable in a system capable of recording up to sixteen high-resolution cameras.

4K HDMI Display Output

The NVR provides high-resolution HDMI display output up to:

4K Ultra HD

along with VGA output.

This allows the recorder to connect directly to a compatible monitor or television for:

• Live Camera Viewing
• Multi-Camera Display
• Recorded Playback
• Event Search
• NVR Configuration

Dual HDD Storage Capability

The current HiLook 16-channel K-Series NVR platform provides:

2 × Internal SATA HDD Interfaces

with support for up to:

16TB Per HDD

This provides a potential maximum internal storage capacity of:

Up to 32TB

when configured with two compatible 16TB surveillance HDDs.

Actual supported storage may depend on recorder revision, firmware and compatible HDD models.

HDD: Select storage capacity from available options

Storage Designed for Larger CCTV Systems

Dual HDD capability is particularly valuable for larger surveillance installations because recording retention requirements increase as additional cameras are added.

Required storage depends on:

• Number of Cameras
• Recording Resolution
• Frame Rate
• Video Bit Rate
• Audio Recording
• H.265+ Configuration
• Continuous or Event Recording
• Required Retention Period

Remote Viewing

When connected to the internet and correctly configured, the system supports compatible HiLook remote-access functionality.

Remote functions can include:

• Live Camera Viewing
• Recorded Playback
• Event Notifications
• Multi-Camera Viewing
• Remote CCTV Monitoring

This allows authorised users to access the CCTV system from compatible mobile devices while away from the property.

Flexible Recording Options

The system can be configured according to the security requirements of the installation.

Recording options can include:

• Continuous Recording
• Scheduled Recording
• Motion Recording
• Event Recording
• Intelligent Event Recording

The selected recording configuration directly affects HDD storage retention.

Ideal 8-Camera Residential Configuration

For larger homes, eight cameras can provide comprehensive perimeter coverage.

A typical configuration could include:

Camera 1 – Front Entrance

Camera 2 – Driveway

Camera 3 – Garage

Camera 4 – Left Side Access

Camera 5 – Right Side Access

Camera 6 – Rear Yard

Camera 7 – Rear Entrance

Camera 8 – Additional Boundary / Outdoor Area

Another eight camera channels remain available if additional coverage is required later.

Ideal for Commercial CCTV

The combination of eight cameras and a sixteen-channel NVR makes this package particularly suitable for commercial installations.

Typical applications include:

• Warehouses
• Retail Stores
• Offices
• Workshops
• Factories
• Storage Facilities
• Restaurants
• Commercial Buildings
• Schools
• Car Parks
• Loading Areas
• Industrial Properties
• Multi-Area Business Premises

Main Camera Specifications

• Camera Model: IPC-T561H-MU
• Camera Series: HiLook Hi Color Pro
• Camera Quantity: 8
• Camera Type: Fixed Turret Network Camera
• Resolution: 6MP
• Maximum Resolution: 3200 × 1800
• Maximum Frame Rate: Up to 25fps at 3200 × 1800 on 50Hz configuration
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Minimum Illumination: 0.0005 Lux @ F1.0, AGC ON
• Minimum Illumination with Light: 0 Lux
• Aperture: F1.0
• Lens Options: 2.8mm / 4mm
• 2.8mm Horizontal FOV: Up to 108.8°
• 4mm Horizontal FOV: Up to 93.3°
• Low-Light Technology: Hi Color Pro
• Supplementary Light: White Light
• Supplementary Light Range: Up to 30m
• Smart Events: Motion, Line Crossing & Intrusion
• Human/Vehicle Classification: Supported on compatible intelligent events
• Audio: Built-In Dual Microphones
• Environmental Noise Filtering: Supported
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• PoE: Supported
• Weather Protection: IP67
• Application: Indoor & Outdoor CCTV Surveillance

Main NVR Specifications

• Recorder Type: 16-Channel PoE Network Video Recorder
• Recommended Current Platform: HiLook NVR-216MH-K/16P
• IP Camera Channels: 16
• Built-In PoE Channels: 16
• Cameras Included: 8
• Channels Used: 8
• Spare Camera Channels: 8
• Maximum System Capacity: 16 Cameras
• Incoming Bandwidth: Up to 160Mbps
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• HDMI Output: Supported
• VGA Output: Supported
• Maximum HDMI Output: Up to 4K
• Current K-Series Decoding Capability: Up to 4 × 8MP
• HDD Bays: 2
• Maximum HDD Capacity: Up to 16TB per HDD on current K-Series platform
• Maximum Potential Internal Storage: Up to 32TB
• Network Interface: Gigabit Ethernet
• PoE: Built-In
• Remote Viewing: Supported
• HDD: Select storage capacity from available options
• Application: Large Residential & Commercial CCTV Recording

Ideal For

• Large Residential Homes
• Warehouses
• Retail Stores
• Offices
• Workshops
• Factories
• Commercial Buildings
• Storage Facilities
• Restaurants
• Schools
• Industrial Properties
• Car Parks
• Loading Areas
• Building Perimeters
• 8-Camera CCTV Installations
• Expandable 16-Camera CCTV Systems
• 6MP Security Camera Systems
• Colour Night Surveillance
• Professional IP CCTV Systems

Benefits

• Eight professional 6MP Hi Color Pro cameras
• 3200 × 1800 high-resolution imaging
• Large 1/1.8" image sensor
• Ultra-wide F1.0 aperture
• Ultra-low 0.0005 lux colour sensitivity
• 24/7 colour surveillance
• Up to 30m white supplementary lighting
• Intelligent motion, intrusion and line-crossing events
• Human and vehicle classification
• Built-in dual microphones
• IP67 weather protection
• 16-channel PoE NVR
• Eight spare camera channels
• Expandable from 8 to 16 cameras
• 160Mbps incoming bandwidth
• H.265+ compression
• 4K HDMI output
• Dual HDD storage capability
• Up to 16TB per HDD on current K-Series platform
• Selectable surveillance HDD
• Remote viewing capability
• Professional residential and commercial applications

The HiLook Hi Color Pro 6MP 16CH CCTV Kit with 8 IP cameras and 16-channel PoE NVR provides a powerful surveillance platform for customers who need extensive coverage now while retaining significant capacity for future expansion.

With eight IPC-T561H-MU 6MP Hi Color Pro cameras, large 1/1.8" sensors, F1.0 optics, 0.0005 lux colour sensitivity, built-in dual microphones and a 16-channel PoE NVR with eight spare channels, this package provides an excellent combination of image quality, colour surveillance, storage capacity and scalability for larger residential and commercial installations.

IPC-T561H-MU

6 MP Hi-Color Fixed Turret Network Camera

• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• White Supplement Light for dark night
• Water and dust resistant (IP67)

Manufacturer Specs

Hikvision HiLook NVR-216MH-C-16P 16CH PoE 4K NVR Latest Version D Series NO HDD

16-ch 1U 16 PoE 4K NVR

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 160 Mbps incoming bandwidth

Available models:

Manufacturer Specs
