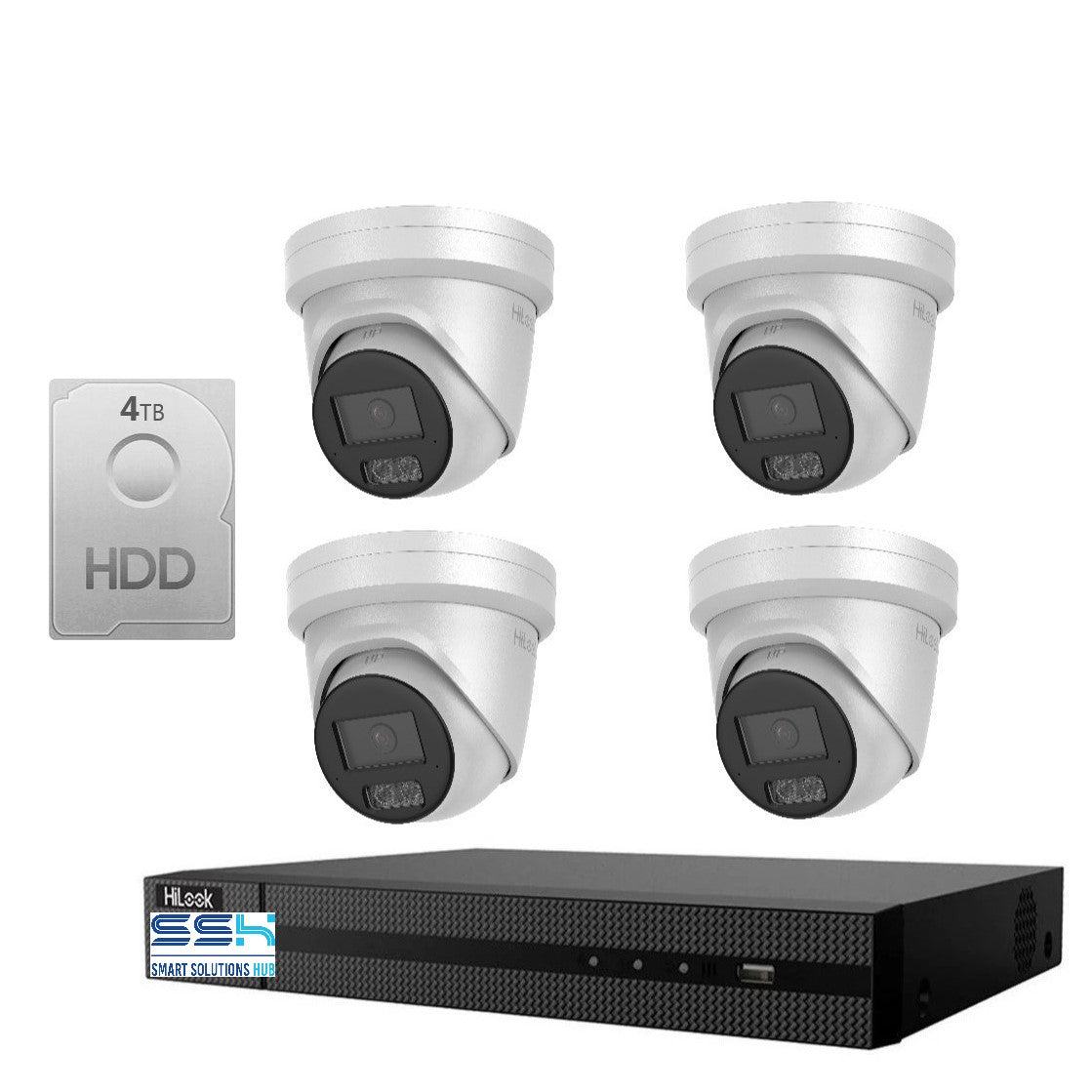

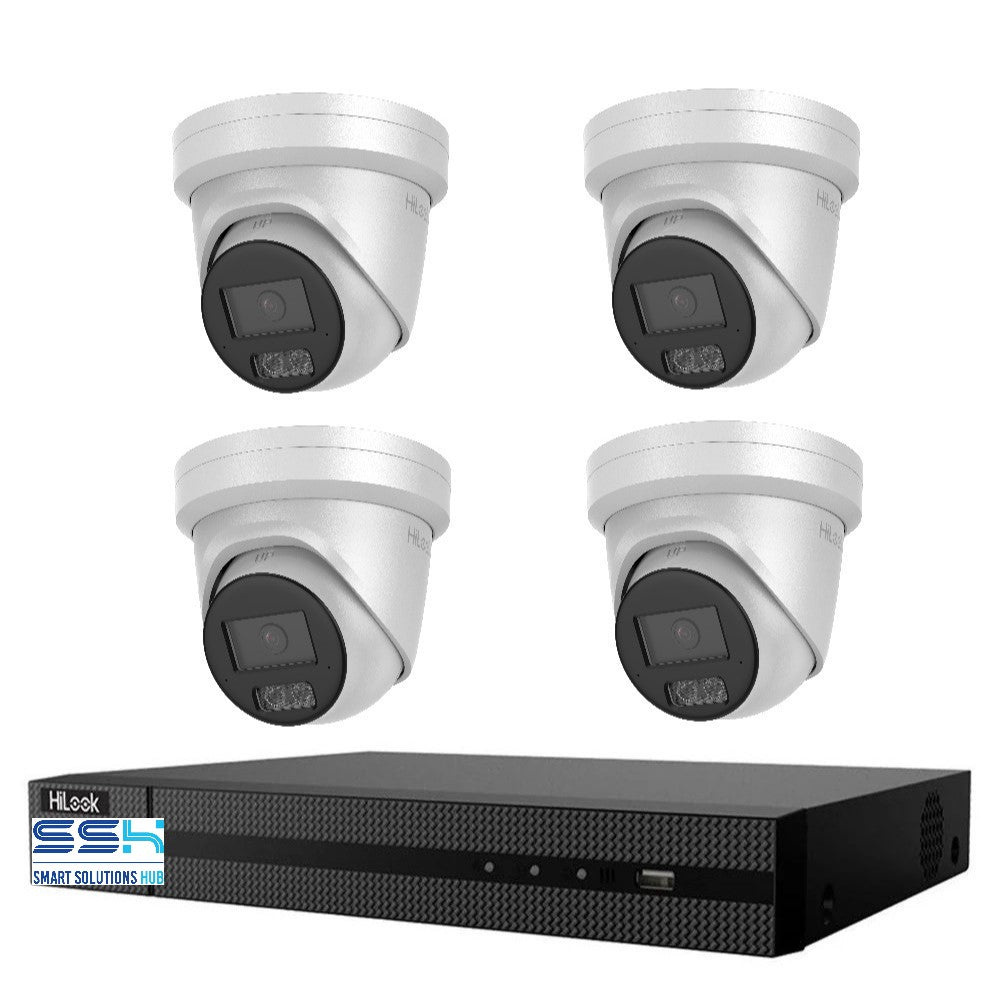

HiLook Hi Color Pro 6MP 8CH CCTV Kit – 4 × IP Hi Color Cameras + 8CH PoE NVR

The HiLook Hi Color Pro 6MP 8CH CCTV Kit is a professional expandable IP surveillance system combining 4 × HiLook IPC-T561H-MU 6MP Hi-Color turret cameras with a HiLook NVR-108MH-K/8P 8-channel PoE Network Video Recorder.

Designed for customers who prioritise high-quality colour imaging in extremely low-light environments, the IPC-T561H-MU combines a large 1/1.8" image sensor, F1.0 super-aperture lens and white supplementary lighting to deliver vivid colour surveillance day and night.

With four cameras supplied and an eight-channel NVR, this package provides 4 spare camera channels and 4 spare physical PoE ports, allowing the CCTV system to be expanded to as many as 8 compatible IP cameras without replacing the recorder.

Network cabling and installation accessories are supplied separately unless specifically stated otherwise.

This CCTV Kit includes:

4 x Hikvision Hilook Pro IPC-T561H-MU 6 MP Hi-Color Fixed Turret Network Camera  (White Only)

1 x Hikvision HiLook NVR-108MH-C/8P D series 8CH PoE 4K NVR

Key Features

• 4 × 6MP Hi-Color Pro IP Cameras
• Maximum 3200 × 1800 Resolution
• 24/7 Colour Imaging
• Large 1/1.8" Progressive Scan CMOS Sensor
• F1.0 Super-Aperture Lens
• Ultra-Low-Light Performance
• Minimum Illumination Down to 0.0005 Lux @ F1.0
• White Supplementary Light
• Up to 30m Supplementary Lighting
• Deep-Learning Human & Vehicle Classification
• Intelligent Motion Detection
• Line Crossing Detection
• Intrusion Detection
• Scene-Adaptive WDR
• Built-In Arrayed Dual Microphones
• H.265+ Video Compression
• PoE Connectivity
• IP67 Weather Protection
• 8-Channel PoE NVR
• 8 Built-In PoE Ports
• 4 Cameras Included
• 4 Spare Camera Channels
• 4 Spare PoE Ports
• Expandable to 8 Cameras
• 80Mbps Incoming Bandwidth
• Up to 12MP NVR Recording Resolution
• Up to 4 × 8MP Decoding with NVR-Side AI Off
• Motion Detection 2.0
• 4K HDMI Output
• Independent HDMI & VGA Output
• 8-Channel Synchronous Playback
• 1 × SATA HDD Interface
• Up to 16TB HDD on Current Australian K-Series Platform
• Gigabit Ethernet
• Remote Viewing

HiLook Hi Color Pro – 24/7 Colour Surveillance

The key feature of the IPC-T561H-MU is:

HiLook Hi-Color Technology

Conventional surveillance cameras commonly switch to black-and-white infrared imaging when available light becomes insufficient.

Hi-Color is designed to retain:

Vivid Colour Imaging

in extremely low-light environments.

Colour information can provide valuable additional detail when investigating an incident.

Instead of only identifying the shape of a person or vehicle, colour footage may help identify details such as:

• Clothing Colour
• Vehicle Colour
• Object Colour
• Bags
• Jackets
• Shoes
• Property Features
• Other Visual Characteristics

This makes Hi-Color particularly useful where night-time identification is important.

6MP High-Resolution Imaging

Each IPC-T561H-MU provides up to:

3200 × 1800 – 6 Megapixel Resolution

6MP surveillance provides significantly more recorded detail than conventional 1080p CCTV.

This additional resolution can be valuable when reviewing:

• People
• Vehicles
• Entrances
• Driveways
• Property Activity
• Shopfronts
• Warehouses
• Car Parks
• Building Perimeters
• Security Incidents

Large 1/1.8" Image Sensor

The IPC-T561H-MU uses a large:

1/1.8" Progressive Scan CMOS Sensor

Sensor size is particularly important for low-light surveillance.

A larger sensor can collect more available light, helping the camera produce brighter and more useful images in challenging lighting conditions.

Combined with the F1.0 aperture, this forms the foundation of the camera's Hi-Color low-light performance.

F1.0 Super-Aperture

The camera features an advanced:

F1.0 Super-Aperture Lens

The large aperture allows substantially more available light to reach the image sensor.

This helps produce:

• Brighter Night Images
• Improved Colour Reproduction
• Better Low-Light Detail
• More Useful Night-Time Surveillance

The combination of:

1/1.8" Sensor + F1.0 Aperture + White Supplementary Light

provides the IPC-T561H-MU with excellent colour imaging performance in low-light environments.

Ultra-Low-Light Performance

The IPC-T561H-MU provides colour imaging down to approximately:

0.0005 Lux @ F1.0, AGC On

and:

0 Lux with Supplementary Light

This makes the camera particularly suitable for areas where conventional cameras may otherwise switch to monochrome infrared imaging.

White Supplementary Light

The camera incorporates:

White Supplementary Lighting

with a range of up to approximately:

30 Metres

The white light assists the camera in maintaining colour imaging when ambient lighting becomes insufficient.

This can provide useful colour evidence during night-time surveillance.

Person & Vehicle Classification

The IPC-T561H-MU uses deep-learning technology to classify relevant targets as:

• Person
• Vehicle

This helps the surveillance system focus on security-relevant activity.

Compared with conventional motion detection, intelligent classification can help reduce unnecessary events generated by:

• Trees
• Leaves
• Rain
• Shadows
• Animals
• Changing Lighting
• Other Environmental Movement

Intelligent Motion Detection

The camera supports intelligent motion detection with person and vehicle classification.

This can improve event accuracy and make recorded footage easier to investigate.

Line Crossing Detection

The camera supports:

Line Crossing Detection

A virtual line can be configured within the camera scene.

When a relevant target crosses that line according to the configured rules, the system can generate an event.

Typical applications include:

• Driveways
• Property Boundaries
• Side Access
• Warehouse Entrances
• Restricted Areas
• Building Perimeters

Intrusion Detection

The camera also supports:

Intrusion Detection

A defined surveillance area can be configured and monitored for relevant targets entering or remaining within the zone.

This is useful for:

• Restricted Areas
• Car Parks
• Storage Areas
• Warehouses
• Building Perimeters
• Commercial Properties

Scene-Adaptive WDR

The IPC-T561H-MU features:

Scene-Adaptive Wide Dynamic Range

to improve image performance in scenes containing both bright and dark areas.

This is particularly useful around:

• Building Entrances
• Doorways
• Driveways
• Shopfronts
• Loading Areas
• Areas Facing Strong Outdoor Light

Built-In Arrayed Dual Microphones

The IPC-T561H-MU incorporates:

Built-In Arrayed Dual Microphones

for high-quality real-time audio capture.

Compatible NVR recordings can therefore include:

Video + Audio

without requiring a separate external microphone at each camera.

Audio recording should always be configured and used in accordance with applicable privacy and surveillance requirements.

H.265+ Video Compression

The system supports efficient video compression including:

• H.265+
• H.265
• H.264+
• H.264

H.265+ can help reduce network bandwidth and HDD storage requirements compared with older compression formats.

This is particularly valuable when recording multiple high-resolution 6MP cameras continuously.

IP67 Weather Protection

Each IPC-T561H-MU provides:

IP67 Water & Dust Resistance

making the cameras suitable for correctly installed indoor and outdoor surveillance applications.

Typical locations include:

• Driveways
• Entrances
• Building Perimeters
• Car Parks
• Warehouses
• Workshops
• Retail Premises
• Commercial Properties
• Residential Exteriors

HiLook NVR-108MH-K/8P 8-Channel PoE NVR

The package includes the current:

HiLook NVR-108MH-K/8P 8-Channel K-Series AI 4K PoE NVR

The recorder provides:

8 × IP Camera Inputs

and:

8 × Built-In PoE Camera Interfaces

With four cameras included in this package, only half of the NVR's available camera capacity is initially used.

Expand from 4 to 8 Cameras

Cameras Included

4

Maximum NVR Capacity

8 Cameras

Channels Currently Used

4

Spare Camera Channels

4

This allows the CCTV system to potentially double in size without replacing the recorder.

Four Spare Physical PoE Ports

The NVR incorporates eight physical PoE camera interfaces.

With four cameras connected:

4 PoE Ports Are Used

and:

4 PoE Ports Remain Available

Additional compatible cameras can therefore be connected directly to the NVR later.

Future cameras could be added to monitor:

• Additional Entrances
• Garage
• Side Access
• Rear Yard
• Internal Areas
• Additional Building Perimeters
• Car Parks
• Storage Areas

PoE Plug-and-Play Connectivity

PoE – Power over Ethernet – allows compatible cameras to receive:

• Electrical Power
• Network Data
• Video
• Audio
• Intelligent Event Information

through compatible Ethernet cabling.

A typical connection is:

Camera → Cat5e/Cat6 → NVR PoE Port

This simplifies professional CCTV installation and reduces the need for separate camera power supplies.

80Mbps Incoming Bandwidth

The NVR provides:

80Mbps Incoming Bandwidth

for connected IP camera streams.

This provides sufficient bandwidth for this four-camera 6MP package while retaining capacity for future system expansion when appropriately configured.

Camera settings should consider:

• Resolution
• Frame Rate
• Bit Rate
• Camera Quantity
• Audio
• Compression
• Intelligent Functions

Up to 12MP Recording Resolution

The NVR supports recording resolutions up to:

12 Megapixels

including:

• 12MP
• 8MP
• 6MP
• 5MP
• 4MP
• 3MP
• 1080p
• Lower Supported Resolutions

This provides ample recording resolution for the supplied 6MP Hi-Color cameras.

Powerful Decoding

With NVR-side AI disabled, the NVR supports decoding configurations up to:

• 2 × 12MP @ 30fps
• 4 × 8MP @ 30fps
• 8 × 4MP @ 30fps
• 16 × 1080p @ 30fps

With NVR-side AI enabled, available decoding capacity varies according to the intelligent functions being used.

Motion Detection 2.0

The NVR supports:

Motion Detection 2.0

with human and vehicle recognition.

This provides an additional intelligent event-management layer and can improve recorded footage searches.

4K HDMI Output

The NVR provides HDMI video output up to:

3840 × 2160 / 4K @ 30Hz

This allows connection to a compatible 4K monitor or television for high-resolution local CCTV viewing.

Independent HDMI & VGA Outputs

The current K-Series platform provides:

Independent HDMI and VGA Outputs

for flexible local monitoring configurations.

VGA supports up to:

1920 × 1080 @ 60Hz

8-Channel Synchronous Playback

The NVR supports:

8-Channel Synchronous Playback

allowing recorded footage from multiple cameras to be reviewed simultaneously.

HDD Storage

The NVR provides:

1 × SATA HDD Interface

The current Australian HiLook Pro K-Series platform supports surveillance HDD capacities up to:

16TB Per HDD

HDD: Select storage capacity from available options

The appropriate storage capacity depends on:

• Number of Cameras
• 6MP Resolution
• Frame Rate
• Video Bit Rate
• Audio Recording
• H.265+ Compression
• Continuous or Event Recording
• Required Recording Retention

A surveillance-rated HDD is recommended.

Gigabit Ethernet

The NVR provides:

10/100/1000Mbps Gigabit Ethernet

for connection to the local network.

This supports:

• Remote Viewing
• Remote Playback
• Network Management
• Mobile Access
• System Configuration

Remote Viewing

When correctly connected and configured, compatible HiLook remote-access functionality allows authorised users to access the system remotely.

Functions can include:

• Live Camera Viewing
• Recorded Playback
• Event Notifications
• Multi-Camera Viewing
• Remote CCTV Monitoring

Ideal 4-Camera Residential Configuration

A typical home installation could include:

Camera 1 – Front Entrance

Camera 2 – Driveway

Camera 3 – Rear Entrance

Camera 4 – Side Access

Four spare channels remain available for future expansion.

Ideal Commercial Configuration

A typical small commercial installation could include:

Camera 1 – Main Entrance

Camera 2 – Customer / Reception Area

Camera 3 – Rear / Loading Entrance

Camera 4 – Car Park

Four additional cameras can be added later as surveillance requirements increase.

Main Camera Specifications

• Camera Model: IPC-T561H-MU
• Quantity: 4
• Series: HiLook Hi-Color Pro
• Camera Type: Fixed Turret Network Camera
• Resolution: 6MP
• Maximum Resolution: 3200 × 1800
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Aperture: F1.0
• Minimum Illumination: 0.0005 Lux @ F1.0, AGC On
• Minimum Illumination with Light: 0 Lux
• Lens Options: 2.8mm / 4mm
• Horizontal FOV: Up to Approx. 108.8°
• Supplementary Light: White Light
• Supplementary Light Distance: Up to Approx. 30m
• Colour Imaging: 24/7 Hi-Color
• Person Classification: Supported
• Vehicle Classification: Supported
• Smart Events: Motion / Line Crossing / Intrusion
• WDR: Scene-Adaptive WDR
• Microphone: Built-In Arrayed Dual Microphones
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• PoE: Supported
• Weather Protection: IP67
• Application: Indoor & Outdoor Colour Surveillance

Main NVR Specifications

• NVR Model: NVR-108MH-K/8P
• Series: HiLook K-Series AI 4K NVR
• IP Camera Inputs: 8
• Built-In PoE Interfaces: 8
• Cameras Included: 4
• Channels Used: 4
• Spare Camera Channels: 4
• Spare PoE Ports: 4
• Incoming Bandwidth: 80Mbps
• Outgoing Bandwidth: 80Mbps
• Maximum Recording Resolution: Up to 12MP
• Decoding with AI Off: Up to 4 × 8MP @ 30fps
• Synchronous Playback: 8 Channels
• Motion Detection 2.0: Supported
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• HDMI Output: Up to 4K / 3840 × 2160 @ 30Hz
• VGA Output: Up to 1920 × 1080 @ 60Hz
• HDMI/VGA: Independent Output
• SATA Interfaces: 1
• Maximum HDD Capacity: Up to 16TB on Current Australian K-Series Platform
• Network Interface: Gigabit Ethernet
• PoE: 8 Built-In Interfaces
• Remote Viewing: Supported
• HDD: Select Storage Capacity from Available Options

Ideal For

• Residential CCTV
• Home Security
• Driveways
• Entrances
• Offices
• Retail Stores
• Workshops
• Warehouses
• Commercial Properties
• Car Parks
• Building Perimeters
• 24/7 Colour CCTV
• Low-Light CCTV
• 6MP CCTV Systems
• 4-Camera CCTV Systems
• Expandable 8-Camera CCTV Systems
• Hi-Color CCTV
• Professional IP CCTV Installations

Benefits

• Four 6MP Hi-Color cameras
• 24/7 vivid colour imaging
• Large 1/1.8" image sensor
• F1.0 super-aperture
• Ultra-low-light 0.0005 lux performance
• White supplementary light
• Up to 30m supplementary lighting
• Human and vehicle classification
• Intelligent motion detection
• Line crossing detection
• Intrusion detection
• Scene-adaptive WDR
• Built-in arrayed dual microphones
• H.265+ compression
• IP67 weather protection
• 8-channel PoE NVR
• 8 built-in PoE ports
• 4 spare camera channels
• 4 spare physical PoE ports
• Expandable from 4 to 8 cameras
• 80Mbps incoming bandwidth
• Up to 12MP recording
• Up to 4 × 8MP decoding
• Motion Detection 2.0
• 4K HDMI output
• 8-channel synchronous playback
• Gigabit Ethernet
• Selectable HDD storage
• Remote viewing capability

The HiLook Hi Color Pro 6MP 8CH CCTV Kit with 4 IP Hi Color cameras and 8-channel PoE NVR is an excellent choice for customers wanting high-quality colour surveillance in challenging low-light environments while retaining substantial capacity for future expansion.

Combining four IPC-T561H-MU 6MP Hi-Color cameras with the NVR-108MH-K/8P, the package provides 24/7 colour imaging, F1.0 low-light performance, intelligent human and vehicle classification, built-in audio and professional PoE connectivity, while leaving four spare channels and four spare PoE ports for additional cameras.

IPC-T561H-MU

6 MP Hi-Color Fixed Turret Network Camera

• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• White Supplement Light for dark night
• Water and dust resistant (IP67)

Manufacturer Specs

Hikvision HiLook NVR-108MH-C/8P 8CH PoE 4K NVR Latest version D series

Features:

• Up to 8-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 80 Mbps incoming bandwidth

Manufacturer Specs
