Description
HiLook Hi Color Pro 6MP 8CH CCTV Kit – 6 × IP Hi Color Cameras + 8CH PoE NVR
The HiLook Hi Color Pro 6MP 8CH CCTV Kit is a professional expandable IP surveillance system combining 6 × HiLook IPC-T561H-MU 6MP Hi Color Pro IP turret cameras with an 8-channel PoE Network Video Recorder.
Designed for homes, offices, retail stores, warehouses, workshops and commercial properties, this package combines 6MP high-resolution surveillance, 24/7 colour imaging, intelligent human and vehicle classification, built-in audio recording, PoE connectivity and remote viewing.
With six cameras supplied and an eight-channel recorder, the system leaves two spare camera channels and two spare PoE ports, allowing the CCTV system to be expanded to as many as 8 compatible IP cameras without replacing the NVR.

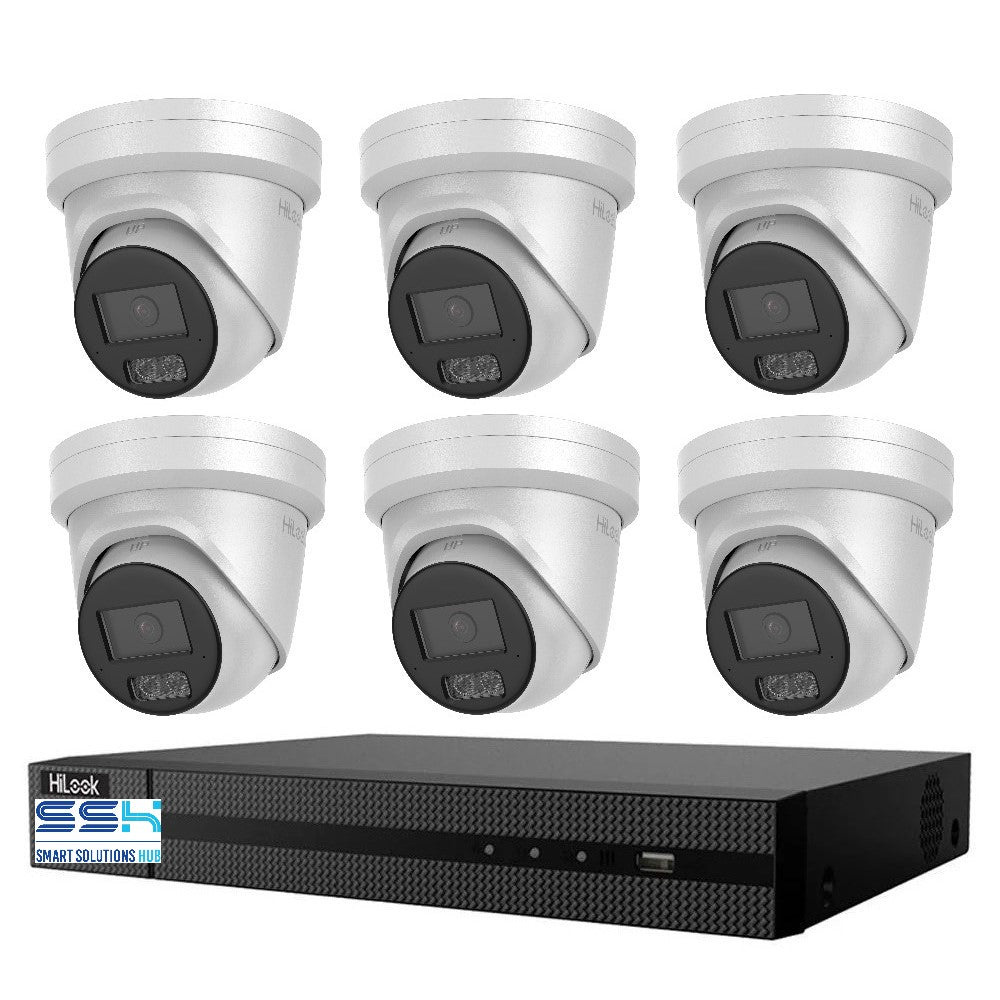

This CCTV Kit includes:
6 x Hikvision Hilook Pro IPC-T561H-MU 6 MP Hi-Color Fixed Turret Network Camera (White Only)
1 x Hikvision HiLook NVR-108MH-C/8P D series 8CH PoE 4K NVR
Key Features
- 6 × HiLook Hi Color Pro 6MP Cameras
- Maximum 3200 × 1800 Resolution
- Large 1/1.8" CMOS Image Sensor
- Ultra-Wide F1.0 Aperture
- Ultra-Low 0.0005 Lux Colour Sensitivity
- 24/7 Colour Surveillance
- White Supplementary Lighting
- Up to 30m Supplementary Light Range
- Intelligent Motion Detection
- Line Crossing Detection
- Intrusion Detection
- Human & Vehicle Classification on Supported Events
- Built-In Audio Recording
- H.265+ Video Compression
- IP67 Weather Protection
- 8-Channel PoE NVR
- 8 Built-In PoE Ports
- 6 Cameras Supplied
- 2 Spare Camera Channels
- Expandable to 8 Cameras
- Up to 80Mbps Incoming Bandwidth
- Advanced K-Series Decoding
- 4K HDMI Output
- VGA Output
- Up to 8-Channel Synchronous Playback
- Motion Detection 2.0
- Gigabit Ethernet
- Selectable Surveillance HDD
- Remote Live View & Playback
- Professional Residential & Commercial CCTV Solution

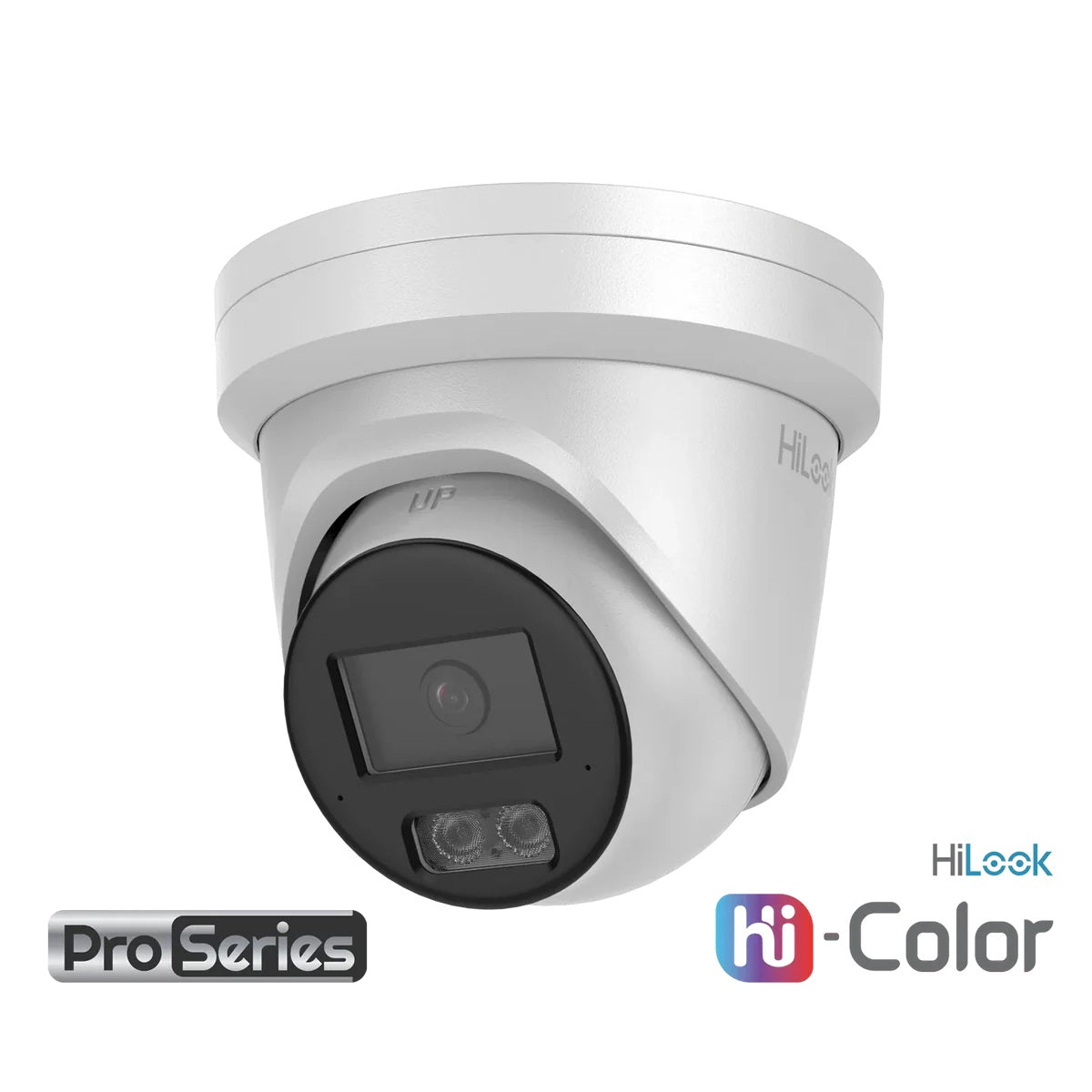

6 × HiLook IPC-T561H-MU Hi Color Pro Cameras
This package includes:
6 × HiLook IPC-T561H-MU 6MP Hi Color Pro IP Turret Cameras
The IPC-T561H-MU combines high-resolution 6MP imaging with HiLook's Hi Color low-light technology, intelligent security functions and built-in audio recording.
Six cameras provide excellent coverage across the main security areas of a residential or commercial property while leaving two NVR channels available for future expansion.
6MP High-Resolution Surveillance
Each camera provides a maximum resolution of:
3200 × 1800 – 6 Megapixels
6MP surveillance provides substantially greater image detail than conventional 1080p Full HD CCTV.
The additional resolution can provide improved recorded detail when reviewing:
- People
- Clothing
- Vehicles
- Entrances
- Driveways
- Property Boundaries
- Retail Areas
- Warehouses
- Car Parks
- Commercial Activity
- Security Incidents
Hi Color Pro Technology
HiLook Hi Color Pro technology is designed to provide enhanced colour surveillance in challenging low-light environments.
Conventional infrared CCTV cameras commonly switch to black-and-white images when ambient lighting becomes too low.
Hi Color Pro combines a large high-sensitivity image sensor, ultra-wide F1.0 aperture and supplementary white lighting to help maintain useful colour information after dark.
Colour footage can provide additional information such as:
- Clothing Colour
- Vehicle Colour
- Object Colour
- Property Features
- Building Details
- Scene Information
Large 1/1.8" Image Sensor
The IPC-T561H-MU incorporates a large:
1/1.8" CMOS Image Sensor
The large sensor is designed to capture more available light, helping maintain useful image quality under challenging lighting conditions.
This is particularly important for high-resolution surveillance where night-time image quality is a priority.
Ultra-Wide F1.0 Aperture
The IPC-T561H-MU incorporates an ultra-wide:
F1.0 Aperture
The large aperture allows more available light to reach the camera's image sensor.
Combined with the large 1/1.8" sensor, this provides the foundation for enhanced Hi Color low-light performance.
0.0005 Lux Colour Sensitivity
The IPC-T561H-MU provides extremely high low-light sensitivity:
Colour: 0.0005 Lux @ F1.0, AGC ON
and:
0 Lux with Supplementary Light
This allows the camera to retain useful colour information under extremely low ambient-light conditions.
Up to 30m White Supplementary Light
When available ambient lighting becomes insufficient, integrated white supplementary lighting can illuminate the monitored area.
Maximum supplementary light range:
Up to 30 Metres
Unlike conventional infrared illumination, white supplementary lighting allows the camera to continue producing colour footage.
Actual illumination performance depends on:
- Installation Height
- Camera Angle
- Scene Reflectivity
- Ambient Lighting
- Environmental Conditions
- Camera Configuration
Wide-Angle Surveillance
The IPC-T561H-MU is available with fixed-lens options.
2.8mm Lens
Provides a horizontal field of view up to approximately:
108.8°
This wide field of view is particularly suitable for:
- Entrances
- Driveways
- Front Yards
- Retail Areas
- Warehouses
- Building Perimeters
4mm Lens
Provides a narrower viewing angle where greater concentration on a more distant area is required.
Lens availability depends on the selected camera variant.
Intelligent Human & Vehicle Classification
The Hi Color Pro platform supports intelligent target classification for supported security events.
Targets can be classified as:
- Humans
- Vehicles
This helps focus relevant security events and can reduce unnecessary activity generated by environmental movement.
Potential sources of conventional false motion events include:
- Trees
- Leaves
- Rain
- Shadows
- Animals
- Changing Lighting
- Other Environmental Movement
Intelligent Security Events
Supported intelligent camera events include:
- Motion Detection
- Line Crossing Detection
- Intrusion Detection
These functions provide greater flexibility than conventional basic motion detection and can be configured according to the surveillance requirements of the property.
Built-In Audio Recording
The IPC-T561H-MU incorporates built-in microphone functionality.
Compatible NVR recordings can therefore include:
Video + Audio
without requiring a separate external microphone at each camera location.
Audio recording must be used in accordance with applicable privacy and surveillance requirements.
IP67 Weather Protection
The cameras feature:
IP67 Weather Resistance
making them suitable for correctly installed indoor and outdoor surveillance applications.
Typical outdoor applications include:
- Driveways
- Entrances
- Building Perimeters
- Car Parks
- Warehouses
- Loading Areas
- Residential Exteriors
Correct cable protection and weatherproof installation remain important.
Professional 8-Channel PoE NVR
The package includes the:
HiLook NVR-108MH-K/8P 8-Channel PoE Network Video Recorder
The recorder supports:
8 IP Camera Channels
and provides:
8 Built-In PoE Camera Interfaces
This package includes six cameras.
Therefore:
6 Channels Used
and:
2 Channels Available
for future expansion.
Expand from 6 to 8 Cameras
One of the major advantages of this package is its expansion capability.
Cameras Included
6
NVR Maximum Capacity
8 Cameras
Channels Currently Used
6
Spare Capacity
2 Additional Cameras
This allows compatible seventh and eighth cameras to be added later without replacing the NVR.
Two Spare PoE Ports
Because the NVR provides eight built-in PoE interfaces and only six are initially required, another:
2 × PoE Camera Ports
remain available.
Additional cameras could later be installed to cover:
- Additional Side Access
- Rear Boundary
- Garage
- Shed
- Internal Area
- Additional Entrance
- Car Park
- Storage Area
8 Built-In PoE Camera Ports
The NVR provides:
8 × PoE Camera Interfaces
PoE – Power over Ethernet – allows compatible IP cameras to receive both electrical power and network data through a single Ethernet cable.
A compatible Cat5e or Cat6 connection can carry:
- Camera Power
- Network Data
- Video
- Audio
- Intelligent Event Information
This provides a clean and scalable professional CCTV architecture.
Plug-and-Play Camera Connectivity
Compatible HiLook cameras can connect directly to the NVR's built-in PoE interfaces.
This reduces the requirement for:
- Separate Camera Power Supplies
- Individual PoE Injectors
- Separate Camera Power Cabling
The NVR becomes the central recording and connection point for the complete CCTV system.
80Mbps Incoming Bandwidth
The NVR supports up to:
80Mbps Incoming Bandwidth
providing network capacity for multi-camera IP surveillance.
Camera streams should be configured according to:
- Camera Quantity
- Resolution
- Frame Rate
- Video Bit Rate
- Compression
- Audio
- Recording Requirements
Advanced K-Series Decoding
The current HiLook NVR-108MH-K/8P platform provides decoding capability up to:
4 × 8MP
providing strong local playback and display performance for a professional multi-camera surveillance system.
Motion Detection 2.0
The current K-Series NVR platform supports Motion Detection 2.0.
This provides additional intelligent event functionality and can help improve the efficiency of recorded-event searching and playback.
H.265+ Video Compression
The system supports efficient video compression including:
- H.265+
- H.265
- H.264+
- H.264
H.265+ can help reduce storage and network bandwidth requirements compared with older compression formats, depending on scene activity and camera configuration.
This is particularly beneficial when recording multiple high-resolution cameras.
4K HDMI Output
The NVR supports:
4K HDMI Output
along with VGA display output.
This allows the recorder to connect directly to a compatible monitor or television for:
- Live Camera Viewing
- Multi-Camera Display
- Recorded Playback
- Event Search
- NVR Configuration
Up to 8-Channel Synchronous Playback
The NVR supports simultaneous playback across multiple camera channels.
This can be particularly useful when investigating an incident that moves across several surveillance areas.

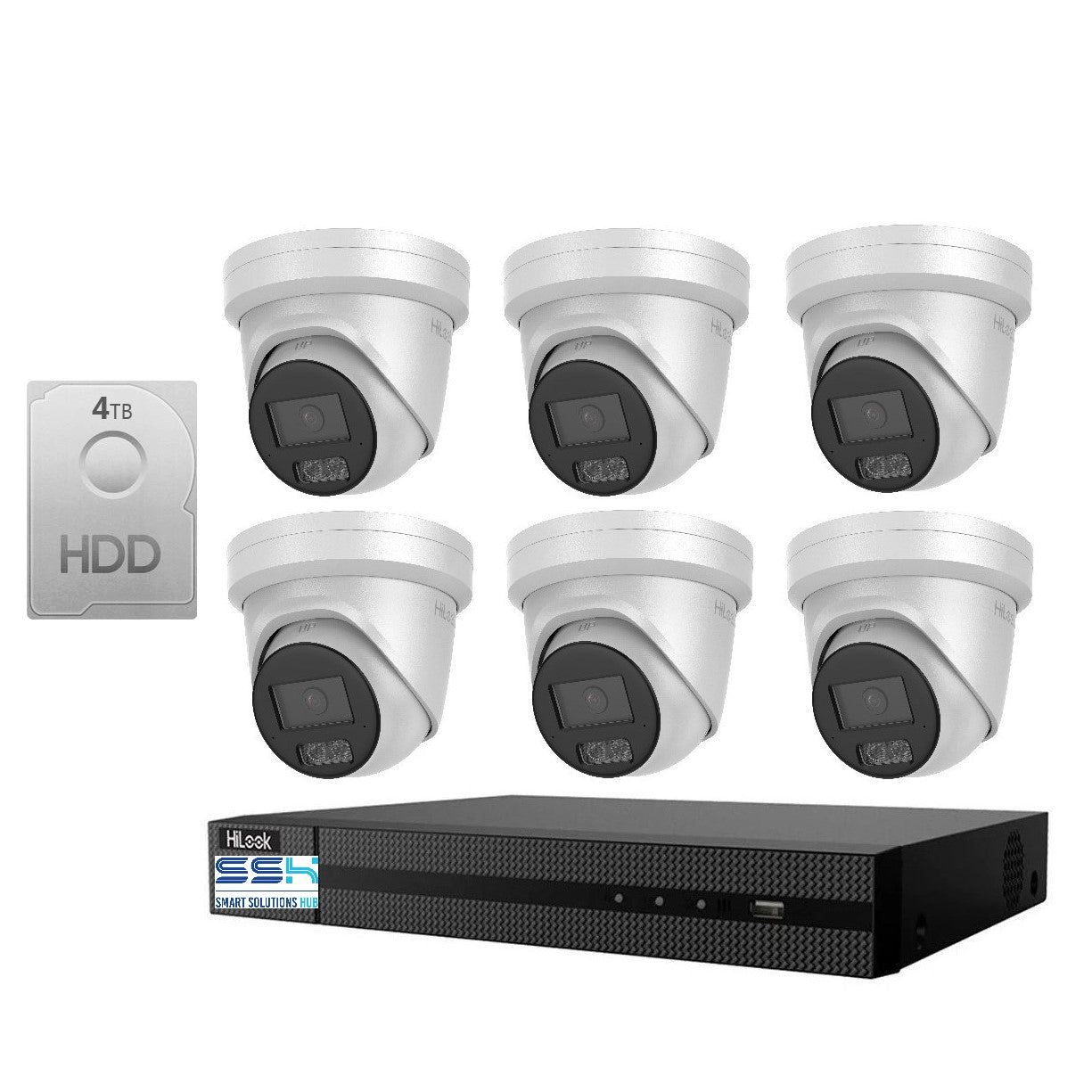

Selectable Surveillance HDD
The current K-Series NVR provides an internal SATA HDD interface for surveillance storage.
HDD: Select storage capacity from available options
Current Australian HiLook K-Series documentation lists support for high-capacity surveillance HDD storage, with exact maximum capacity dependent on recorder revision.
Storage requirements depend on:
- Number of Cameras
- 6MP Recording Resolution
- Frame Rate
- Video Bit Rate
- H.265+ Compression
- Audio Recording
- Continuous or Event Recording
- Required Recording Retention
If the system is later expanded to eight cameras, the additional storage requirements should also be considered.
Gigabit Network Connectivity
The current NVR platform provides Gigabit Ethernet network connectivity.
This supports:
- Remote Viewing
- Network Management
- Mobile Access
- Internet Connectivity
- NVR Configuration
Remote Viewing
When connected to the internet and correctly configured, the system supports compatible HiLook remote-access functionality.
Remote functions can include:
- Live Camera Viewing
- Recorded Playback
- Event Notifications
- Multi-Camera Viewing
- Remote CCTV Monitoring
This allows authorised users to access their security system from compatible mobile devices while away from the property.
Flexible Recording Options
The system can be configured according to the property's security requirements.
Recording options can include:
- Continuous Recording
- Scheduled Recording
- Motion Recording
- Event Recording
- Intelligent Event Recording
The selected recording configuration directly affects available HDD retention.
Ideal 6-Camera Residential Configuration
Six cameras can provide excellent coverage around a medium-to-large residential property.
A typical configuration could include:
Camera 1 – Front Entrance
Camera 2 – Driveway
Camera 3 – Garage
Camera 4 – Side Access
Camera 5 – Rear Yard
Camera 6 – Rear Entrance
The two remaining NVR channels can then be used later for:
Camera 7 – Additional Side / Boundary
Camera 8 – Additional Outdoor or Internal Area
Ideal for Commercial CCTV
Six cameras also provide excellent coverage for small-to-medium commercial properties.
Typical applications include:
- Retail Stores
- Offices
- Warehouses
- Workshops
- Restaurants
- Storage Facilities
- Commercial Buildings
- Small Factories
- Car Parks
- Loading Areas
Main Camera Specifications
- Camera Model: IPC-T561H-MU
- Camera Series: HiLook Hi Color Pro
- Camera Quantity: 6
- Camera Type: Fixed Turret Network Camera
- Resolution: 6MP
- Maximum Resolution: 3200 × 1800
- Image Sensor: 1/1.8" CMOS
- Minimum Illumination: 0.0005 Lux @ F1.0, AGC ON
- Minimum Illumination with Light: 0 Lux
- Aperture: F1.0
- Lens Options: 2.8mm / 4mm
- 2.8mm Horizontal FOV: Up to 108.8°
- Low-Light Technology: Hi Color Pro
- Supplementary Light: White Light
- Supplementary Light Range: Up to 30m
- Smart Events: Motion, Line Crossing & Intrusion
- Human/Vehicle Classification: Supported on compatible intelligent events
- Audio: Built-In Microphone
- Video Compression: H.265+ / H.265 / H.264+ / H.264
- Network Connection: Ethernet
- PoE: Supported
- Weather Protection: IP67
- Application: Indoor & Outdoor CCTV Surveillance
Main NVR Specifications
- NVR Model: NVR-108MH-K/8P
- Recorder Type: 8-Channel PoE Network Video Recorder
- IP Camera Channels: 8
- Built-In PoE Interfaces: 8
- Cameras Included: 6
- Channels Used: 6
- Spare Camera Channels: 2
- Maximum System Capacity: 8 Cameras
- Incoming Bandwidth: Up to 80Mbps
- Decoding Capability: Up to 4 × 8MP on current K-Series platform
- Motion Detection 2.0: Supported
- Video Compression: H.265+ / H.265 / H.264+ / H.264
- Synchronous Playback: Up to 8 Channels
- HDMI Output: Up to 4K
- VGA Output: Supported
- HDD Bays: 1
- Network Interface: Gigabit Ethernet
- PoE: Built-In
- Remote Viewing: Supported
- HDD: Select storage capacity from available options
- Application: Residential & Commercial CCTV Recording
Ideal For
- Residential Homes
- Large Homes
- Retail Stores
- Offices
- Warehouses
- Workshops
- Restaurants
- Small Factories
- Commercial Buildings
- Storage Facilities
- Car Parks
- Loading Areas
- Building Perimeters
- Six-Camera CCTV Installations
- Expandable Eight-Camera CCTV Systems
- 6MP Security Camera Systems
- Colour Night Surveillance
- Professional IP CCTV Systems
Benefits
- Six professional 6MP Hi Color Pro cameras
- 3200 × 1800 high-resolution surveillance
- Large 1/1.8" image sensor
- Ultra-wide F1.0 aperture
- 0.0005 lux colour sensitivity
- 24/7 colour surveillance
- Up to 30m supplementary white lighting
- Intelligent motion, line-crossing and intrusion events
- Human and vehicle classification
- Built-in audio recording
- IP67 weather protection
- 8-channel PoE NVR
- Two spare camera channels
- Two spare PoE ports
- Expandable from six to eight cameras
- 80Mbps incoming bandwidth
- Advanced K-Series decoding
- Motion Detection 2.0
- H.265+ compression
- 4K HDMI output
- Gigabit Ethernet
- Selectable surveillance HDD
- Remote viewing capability
The HiLook Hi Color Pro 6MP 8CH CCTV Kit with 6 IP cameras and 8-channel PoE NVR provides an excellent balance between comprehensive surveillance coverage and future expansion.
Combining six IPC-T561H-MU 6MP Hi Color Pro cameras with the NVR-108MH-K/8P, the package delivers high-resolution surveillance, excellent low-light colour imaging, intelligent event detection, built-in audio and professional PoE connectivity while retaining two spare channels for future cameras.
IPC-T561H-MU
6 MP Hi-Color Fixed Turret Network Camera
- 24/7 colorful imaging via ColorVu technology
- Scene-adaptive WDR
- Focus on Person and Vehicle classification based on deep learning
- Built-in arrayed dual-microphone for real-time high quality audio security
- White Supplement Light for dark night
- Water and dust resistant (IP67)
Hikvision HiLook NVR-108MH-C/8P 8CH PoE 4K NVR Latest version D series
Features:
- Up to 8-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
- Up to 80 Mbps incoming bandwidth
