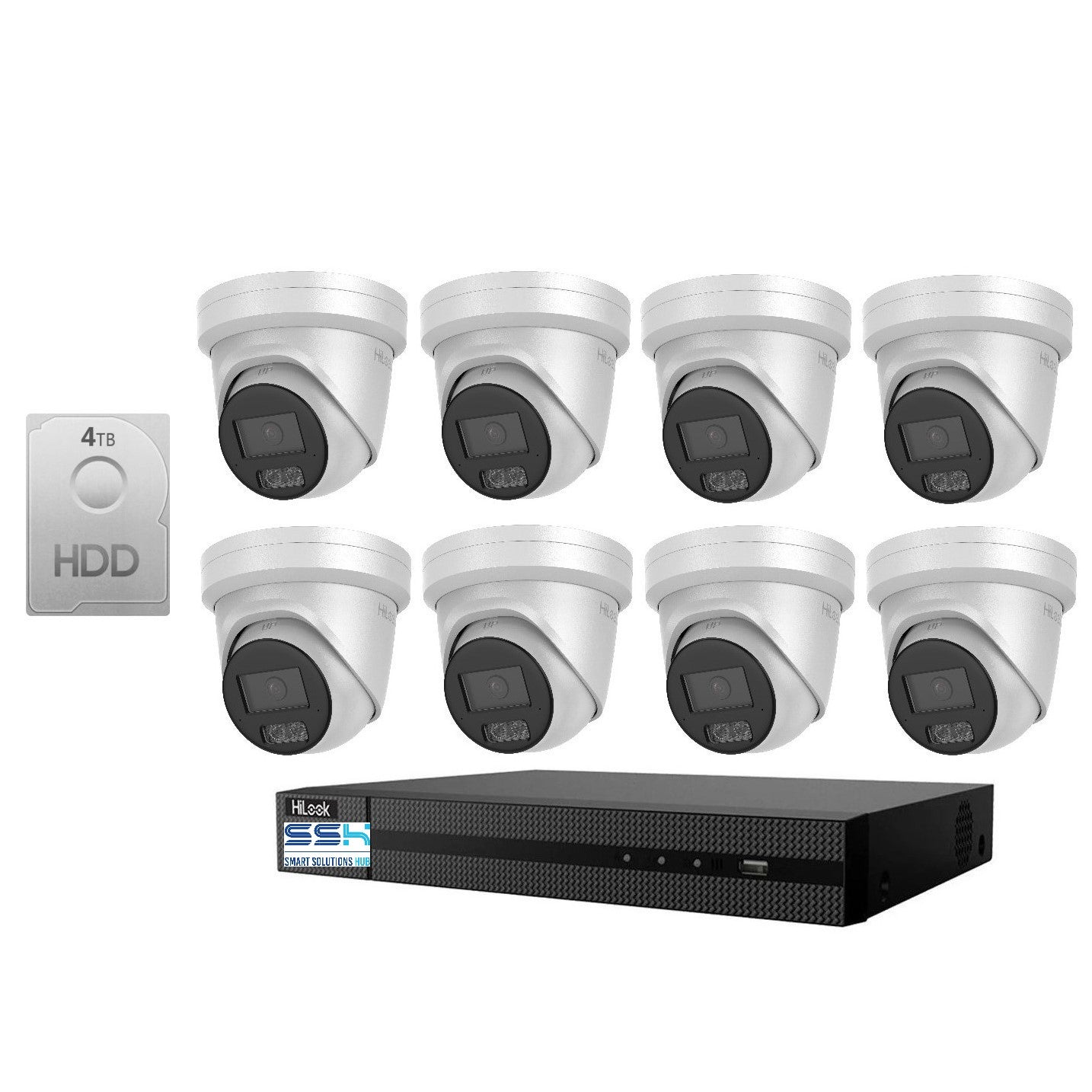

HiLook Hi Color Pro 6MP 8CH CCTV Kit – 8 × IP Hi Color Cameras + 8CH PoE NVR

The HiLook Hi Color Pro 6MP 8CH CCTV Kit is a complete professional IP surveillance system combining 8 × HiLook IPC-T561H-MU 6MP Hi Color Pro IP turret cameras with an 8-channel PoE Network Video Recorder.

Designed for larger homes, offices, retail stores, warehouses, workshops and commercial properties requiring comprehensive eight-camera coverage, this system combines 6MP high-resolution imaging, advanced low-light colour surveillance, intelligent security events, built-in audio recording, PoE connectivity and remote viewing.

With eight cameras supplied and an eight-channel recorder, this package provides a fully populated 8-camera CCTV system, with all eight NVR channels and PoE camera ports utilised.

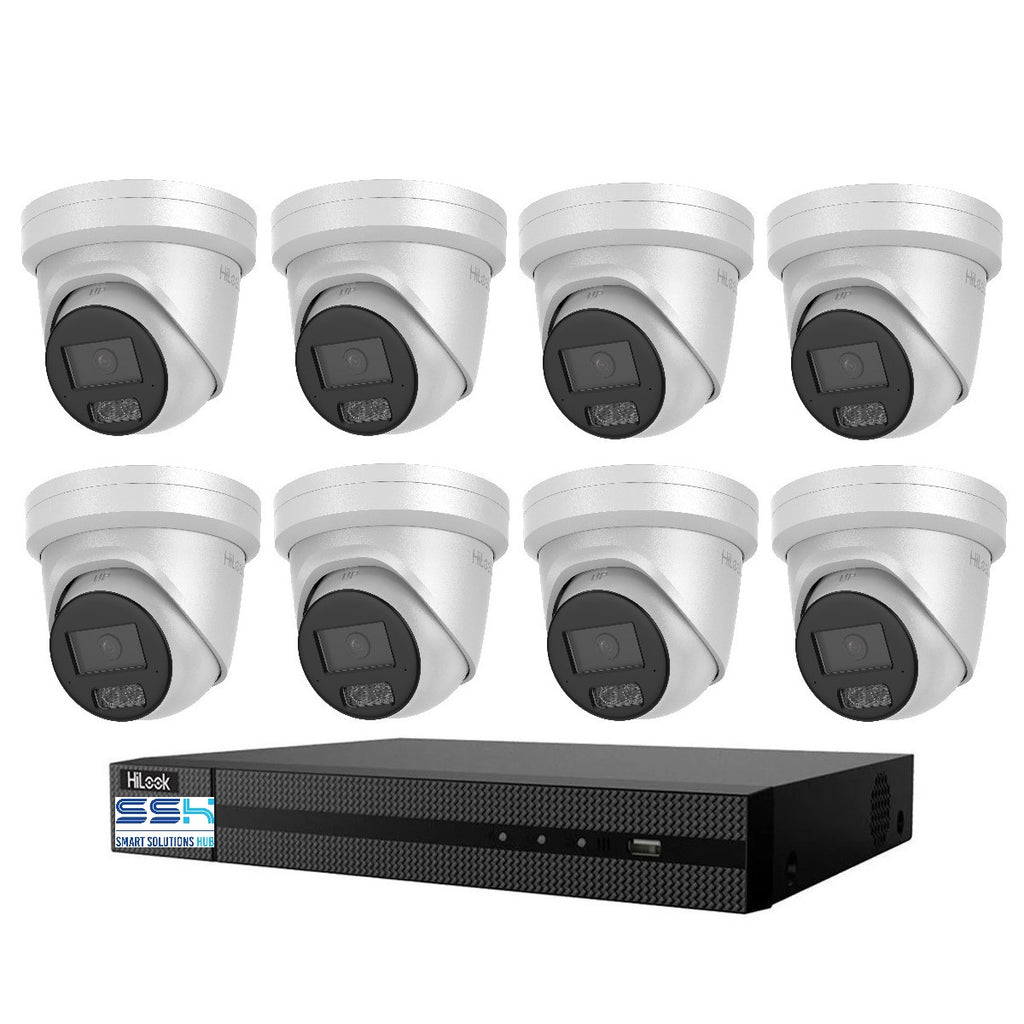

This CCTV Kit includes:

8 x Hikvision Hilook Pro IPC-T561H-MU 6 MP Hi-Color Fixed Turret Network Camera (White Only)

1 x Hikvision HiLook NVR-108MH-C/8P D series 8CH PoE 4K NVR

Key Features

• 8 × HiLook Hi Color Pro 6MP Cameras
• Maximum 3200 × 1800 Resolution
• Large 1/1.8" CMOS Image Sensor
• Ultra-Wide F1.0 Aperture
• Ultra-Low 0.0005 Lux Colour Sensitivity
• 24/7 Colour Surveillance
• White Supplementary Lighting
• Up to 30m Supplementary Light
• Smart Motion Detection
• Line Crossing Detection
• Intrusion Detection
• Human & Vehicle Classification on Supported Events
• Built-In Audio Recording
• H.265+ Video Compression
• IP67 Weather Protection
• 8-Channel PoE NVR
• 8 Built-In PoE Ports
• All 8 Camera Channels Populated
• Up to 80Mbps Incoming Bandwidth
• 4K HDMI Output
• VGA Output
• Up to 8-Channel Synchronous Playback
• 1 × Internal SATA HDD Interface
• Up to 16TB HDD Support on Current K-Series Platform
• Gigabit Ethernet
• PoE Plug-and-Play Connectivity
• Remote Live View & Playback
• Professional Residential & Commercial CCTV Solution

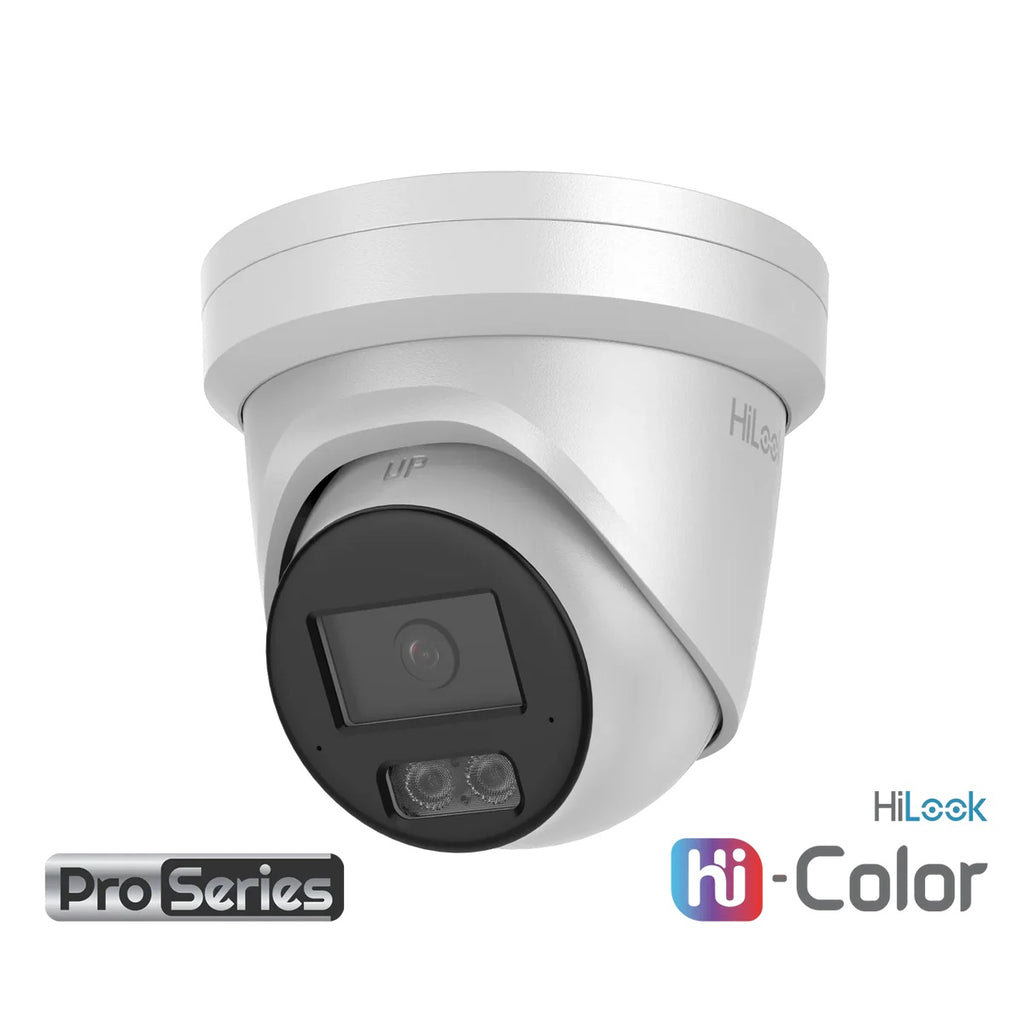

8 × HiLook IPC-T561H-MU Hi Color Pro Cameras

This package includes:

8 × HiLook IPC-T561H-MU 6MP Hi Color Pro IP Turret Cameras

The IPC-T561H-MU combines high-resolution 6MP imaging with HiLook Hi Color low-light technology, intelligent security functions and built-in audio recording.

Eight cameras provide extensive surveillance coverage across multiple areas of a residential or commercial property.

6MP High-Resolution Surveillance

Each camera provides a maximum resolution of:

3200 × 1800 – 6 Megapixels

6MP surveillance provides substantially greater image detail than conventional 1080p Full HD CCTV.

The additional resolution can provide improved recorded detail when reviewing:

• People
• Clothing
• Vehicles
• Entrances
• Driveways
• Property Boundaries
• Loading Areas
• Warehouses
• Car Parks
• Commercial Activity
• Security Incidents

Hi Color Pro Technology

HiLook Hi Color Pro technology is designed to provide enhanced colour surveillance in challenging low-light environments.

Traditional infrared cameras commonly switch to black-and-white imaging when ambient lighting becomes too low.

Hi Color Pro combines a large high-sensitivity image sensor, F1.0 aperture and white supplementary lighting to help maintain useful colour information after dark.

Colour footage can provide additional information such as:

• Clothing Colour
• Vehicle Colour
• Object Colour
• Building Features
• Property Details
• Scene Information

Large 1/1.8" Image Sensor

The IPC-T561H-MU incorporates a large:

1/1.8" CMOS Image Sensor

A larger sensor can capture more available light, helping improve image quality in challenging lighting environments.

This is one of the major advantages of the Hi Color Pro platform.

Ultra-Wide F1.0 Aperture

The camera incorporates an ultra-wide:

F1.0 Aperture

The large aperture allows more available light to reach the camera's image sensor.

Combined with the large 1/1.8" sensor, this supports enhanced low-light colour surveillance.

0.0005 Lux Colour Sensitivity

The IPC-T561H-MU provides extremely high low-light sensitivity:

0.0005 Lux @ F1.0

This allows the camera to retain colour information under very low ambient-light conditions.

When there is insufficient ambient light, integrated white supplementary lighting can provide additional illumination.

Up to 30m White Supplementary Light

The camera incorporates white supplementary lighting with a range of up to:

30 Metres

Unlike conventional infrared illumination, white supplementary light allows the camera to continue capturing colour footage in extremely dark conditions.

Actual illumination distance and image performance depend on:

• Installation Height
• Camera Angle
• Scene Reflectivity
• Ambient Lighting
• Environmental Conditions
• Camera Configuration

Wide-Angle Surveillance

The IPC-T561H-MU offers fixed-lens options suitable for general surveillance applications.

The wide-angle configuration provides a horizontal field of view up to approximately:

108.8°

This makes the camera particularly suitable for:

• Entrances
• Driveways
• Building Perimeters
• Retail Areas
• Warehouses
• Car Parks
• Residential Properties

Intelligent Security Events

The Hi Color Pro camera platform supports intelligent security events including:

• Motion Detection
• Line Crossing Detection
• Intrusion Detection

Supported events can use intelligent target classification to distinguish relevant targets such as:

• Humans
• Vehicles

This helps reduce unnecessary event activity compared with conventional motion detection.

Built-In Audio Recording

The IPC-T561H-MU incorporates built-in microphone functionality.

Compatible NVR recordings can therefore include:

Video + Audio

without requiring a separate external microphone at each camera location.

Audio recording must be used in accordance with applicable privacy and surveillance requirements.

IP67 Weather Protection

The cameras feature:

IP67 Weather Resistance

making them suitable for correctly installed indoor and outdoor CCTV applications.

Typical outdoor applications include:

• Driveways
• Building Entrances
• Car Parks
• Building Perimeters
• Loading Areas
• Warehouses
• Residential Exteriors

Correct cable protection and weatherproof installation remain important.

Complete 8-Channel CCTV System

The package includes the:

HiLook NVR-108MH-K/8P 8-Channel PoE Network Video Recorder

The recorder supports:

8 IP Camera Channels

and provides:

8 Built-In PoE Camera Interfaces

This package includes eight cameras.

Therefore:

8 Channels Used

and:

0 Spare Camera Channels

Fully Populated 8-Camera System

This package is designed for customers who require a complete eight-camera CCTV system.

Cameras Included

8

NVR Camera Capacity

8

Channels Used

8 of 8

Spare Channels

None

Customers expecting to expand beyond eight cameras should consider the 16-channel HiLook Hi Color Pro CCTV kit instead.

8 Built-In PoE Camera Ports

The NVR provides:

8 × Independent PoE Network Interfaces

PoE – Power over Ethernet – allows compatible IP cameras to receive electrical power and network data through a single compatible Ethernet cable.

A Cat5e or Cat6 cable can carry:

• Camera Power
• Network Data
• Video
• Audio
• Intelligent Event Information

This provides a clean professional CCTV installation architecture.

Plug-and-Play Camera Connectivity

Compatible HiLook cameras can connect directly to the NVR's built-in PoE interfaces.

This reduces the requirement for:

• Separate Camera Power Supplies
• Individual PoE Injectors
• Separate Camera Power Cabling

The NVR becomes the central recording and connection point for the complete eight-camera system.

80Mbps Incoming Bandwidth

The NVR supports up to:

80Mbps Incoming Bandwidth

providing network capacity for multi-camera IP surveillance.

Camera streams should be configured according to:

• Number of Cameras
• Resolution
• Frame Rate
• Video Bit Rate
• Compression
• Audio
• Recording Requirements

Advanced NVR Decoding

The current HiLook NVR-108MH-K/8P platform provides powerful local decoding capability.

The current Australian HiLook Pro range specifies decoding capability of up to:

4 × 8MP

This provides strong local playback and display performance for a professional multi-camera CCTV system.

H.265+ Video Compression

The system supports efficient video compression including:

• H.265+
• H.265
• H.264+
• H.264

H.265+ can help reduce HDD storage requirements and network bandwidth compared with older compression formats, depending on scene activity and camera configuration.

Efficient compression is particularly important when recording eight high-resolution cameras continuously.

4K HDMI Output

The NVR supports high-resolution:

4K HDMI Output

along with VGA display output.

This allows the recorder to connect directly to a compatible monitor or television for:

• Live Camera Viewing
• Multi-Camera Display
• Recorded Playback
• Event Search
• NVR Configuration

8-Channel Synchronous Playback

The NVR supports:

Up to 8-Channel Synchronous Playback

allowing recorded footage from multiple cameras to be reviewed simultaneously.

This can be particularly valuable when investigating an incident that moves through several camera locations.

Motion Detection 2.0

The current NVR-108MH-K/8P platform supports Motion Detection 2.0 across all channels.

This provides additional intelligent event functionality at recorder level and can improve the efficiency of security event searching and playback.

Smart Search & Smart Playback

Supported NVR functionality includes intelligent search and playback tools designed to make recorded footage easier to investigate.

This can help users locate relevant events without manually reviewing long periods of continuous video.

Surveillance HDD Storage

The current K-Series NVR provides:

1 × Internal SATA HDD Interface

The current Australian HiLook Pro range specifies support for up to:

16TB HDD Capacity

This provides substantial storage potential for an eight-camera CCTV system.

HDD: Select storage capacity from available options

Selecting the Correct HDD Capacity

Storage requirements depend on:

• Eight Camera Streams
• 6MP Recording Resolution
• Frame Rate
• Video Bit Rate
• H.265+ Compression
• Audio Recording
• Continuous or Event Recording
• Required Recording Retention

Customers requiring longer recording retention should select a larger surveillance HDD.

Gigabit Network Interface

The NVR includes a Gigabit Ethernet interface for connection to the local network.

This supports:

• Remote Access
• Mobile Viewing
• Network Management
• NVR Connectivity
• Internet-Based Remote Services

Remote Viewing

When connected to the internet and correctly configured, the system supports compatible HiLook remote-access functionality.

Remote features can include:

• Live Camera Viewing
• Recorded Playback
• Event Notifications
• Multi-Camera Viewing
• Remote CCTV Monitoring

This allows authorised users to access their CCTV system while away from the property.

Flexible Recording Options

The system can be configured according to the security requirements of the property.

Recording options can include:

• Continuous Recording
• Scheduled Recording
• Motion Recording
• Event Recording
• Intelligent Event Recording

The selected recording configuration directly affects HDD storage retention.

Ideal 8-Camera Residential Configuration

Eight cameras can provide extensive coverage around a larger residential property.

A typical configuration could include:

Camera 1 – Front Entrance

Camera 2 – Driveway

Camera 3 – Garage

Camera 4 – Left Side Access

Camera 5 – Right Side Access

Camera 6 – Rear Yard

Camera 7 – Rear Entrance

Camera 8 – Additional Boundary / Outdoor Area

This creates a comprehensive eight-camera perimeter surveillance system.

Ideal for Commercial CCTV

Eight cameras also provide excellent coverage for small-to-medium commercial premises.

Typical applications include:

• Warehouses
• Retail Stores
• Offices
• Workshops
• Restaurants
• Storage Facilities
• Commercial Buildings
• Small Factories
• Car Parks
• Loading Areas
• Industrial Properties

Main Camera Specifications

• Camera Model: IPC-T561H-MU
• Camera Series: HiLook Hi Color Pro
• Camera Quantity: 8
• Camera Type: Fixed Turret Network Camera
• Resolution: 6MP
• Maximum Resolution: 3200 × 1800
• Image Sensor: 1/1.8" CMOS
• Minimum Illumination: 0.0005 Lux @ F1.0
• Aperture: F1.0
• Horizontal Field of View: Up to 108.8°
• Low-Light Technology: Hi Color Pro
• Supplementary Light: White Light
• Supplementary Light Range: Up to 30m
• Smart Events: Motion, Line Crossing & Intrusion
• Human/Vehicle Classification: Supported on compatible intelligent events
• Audio: Built-In Microphone
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Network Connection: Ethernet
• PoE: Supported
• Weather Protection: IP67
• Application: Indoor & Outdoor CCTV Surveillance

Main NVR Specifications

• NVR Model: NVR-108MH-K/8P
• Recorder Type: 8-Channel PoE Network Video Recorder
• IP Camera Channels: 8
• Built-In PoE Interfaces: 8
• Cameras Included: 8
• Channels Used: 8 of 8
• Spare Camera Channels: None
• Incoming Bandwidth: Up to 80Mbps
• Decoding Capability: Up to 4 × 8MP on current Australian K-Series platform
• Motion Detection 2.0: Supported
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Synchronous Playback: Up to 8 Channels
• HDMI Output: Up to 4K
• VGA Output: Supported
• HDD Bays: 1
• Maximum HDD Capacity: Up to 16TB on current Australian K-Series platform
• Network Interface: Gigabit Ethernet
• PoE: Built-In
• Remote Viewing: Supported
• HDD: Select storage capacity from available options
• Application: Residential & Commercial CCTV Recording

Ideal For

• Large Residential Homes
• Warehouses
• Retail Stores
• Offices
• Workshops
• Restaurants
• Small Factories
• Commercial Buildings
• Storage Facilities
• Car Parks
• Loading Areas
• Building Perimeters
• Eight-Camera CCTV Installations
• 6MP CCTV Systems
• Hi Color CCTV Systems
• Colour Night Surveillance
• Professional IP CCTV Systems

Benefits

• Eight professional 6MP Hi Color Pro cameras
• 3200 × 1800 high-resolution surveillance
• Large 1/1.8" image sensor
• Ultra-wide F1.0 aperture
• 0.0005 lux colour sensitivity
• 24/7 colour surveillance
• Up to 30m white supplementary lighting
• Intelligent motion, intrusion and line-crossing events
• Human and vehicle classification
• Built-in audio recording
• IP67 weather protection
• 8-channel PoE NVR
• Eight built-in PoE camera ports
• Complete 8-camera system
• 80Mbps incoming bandwidth
• Advanced K-Series decoding
• Motion Detection 2.0
• H.265+ compression
• 4K HDMI output
• 8-channel synchronous playback
• Up to 16TB HDD support on current Australian K-Series platform
• Gigabit Ethernet
• Selectable surveillance HDD
• Remote viewing capability

The HiLook Hi Color Pro 6MP 8CH CCTV Kit with 8 IP cameras and 8-channel PoE NVR is an excellent choice for customers requiring a complete high-resolution eight-camera surveillance system.

Combining eight IPC-T561H-MU 6MP Hi Color Pro cameras with the NVR-108MH-K/8P, the package provides high-resolution surveillance, excellent low-light colour imaging, intelligent event detection, built-in audio, H.265+ recording and professional PoE connectivity in a complete eight-camera platform.

IPC-T561H-MU

6 MP Hi-Color Fixed Turret Network Camera

• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• White Supplement Light for dark night
• Water and dust resistant (IP67)

Manufacturer Specs

Hikvision HiLook NVR-108MH-C/8P 8CH PoE 4K NVR Latest version D series

Features:

• Up to 8-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 80 Mbps incoming bandwidth

Manufacturer Specs
