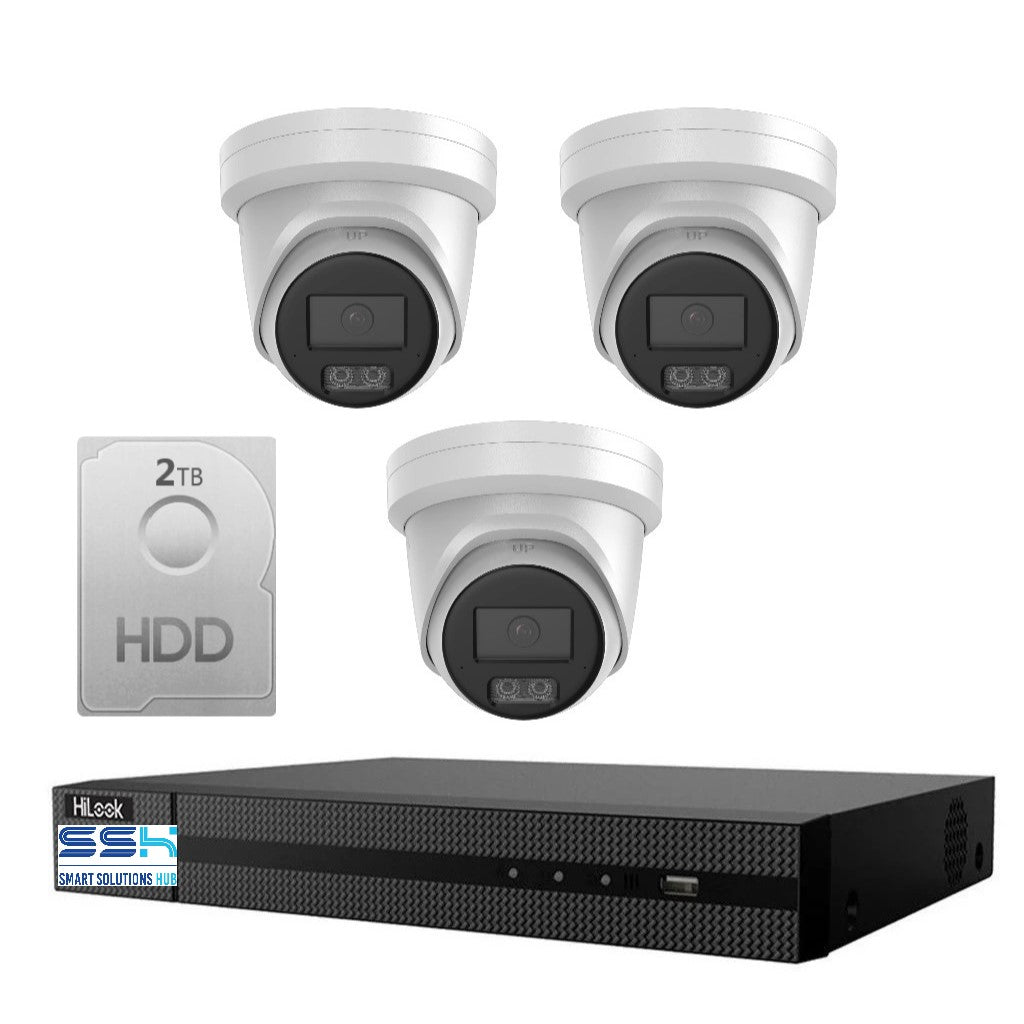

HiLook Hi Color Pro 8MP 4K 4CH CCTV Kit – 3 × IP Hi Color Cameras + 4CH PoE NVR

The HiLook Hi Color Pro 8MP 4K 4CH CCTV Kit is a professional IP surveillance package combining 3 × HiLook Hi Color Pro 8MP / 4K IP turret cameras with a 4-channel PoE Network Video Recorder, providing high-resolution security coverage while retaining one spare camera channel for future expansion.

Designed for homes, townhouses, small offices, retail stores and other residential or commercial properties, this system combines 4K Ultra HD surveillance, enhanced low-light colour imaging, intelligent human and vehicle classification, built-in audio recording, PoE connectivity and remote viewing.

With three cameras supplied and a four-channel recorder, the system provides an ideal solution for customers requiring three primary surveillance areas now while retaining the flexibility to add a fourth compatible IP camera later.

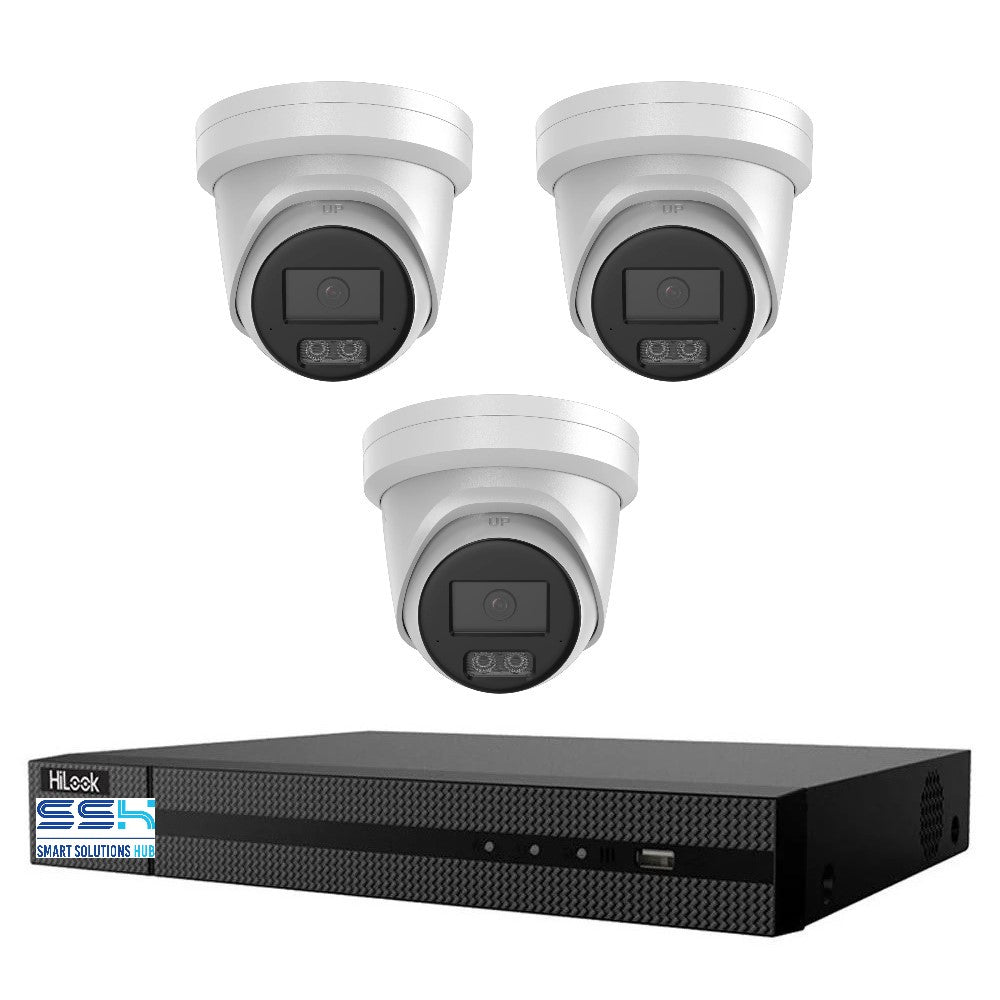

This CCTV Kit includes:

3 x Hikvision Hilook Pro IPC-T581H-MU 8 MP Hi-Color Fixed Turret Network Camera  (White Only)

1 x 4 Channel PoE NVR (NVR 104MH-C/4P) D Series

Key Features

• 3 × HiLook Hi Color Pro 8MP Cameras
• 8MP / 4K Ultra HD Resolution
• Maximum 3840 × 2160 Imaging
• Large 1/1.8" Image Sensor
• Ultra-Wide F1.0 Aperture
• Enhanced Low-Light Colour Imaging
• 24/7 Colour Surveillance
• Intelligent Human & Vehicle Classification
• Built-In Audio Recording
• H.265+ Video Compression
• IP67 Weather-Resistant Cameras
• 4-Channel PoE NVR
• 4 Built-In PoE Camera Ports
• 3 Cameras Supplied
• 1 Spare Camera Channel
• Expandable to 4 Cameras
• Up to 8MP Camera Input
• 40Mbps Incoming Bandwidth
• 80Mbps Outgoing Bandwidth
• 4K HDMI Output
• VGA Output
• 4-Channel Synchronous Playback
• PoE Plug-and-Play Connectivity
• Selectable Surveillance HDD
• Remote Live View & Playback
• Professional Residential & Small Commercial CCTV Solution

3 × HiLook Hi Color Pro 8MP Cameras

This package includes:

3 × HiLook IPC-T581H-MU 8MP Hi Color Pro IP Turret Cameras

Three cameras provide a practical surveillance configuration for properties where the main security requirement is to monitor key areas such as:

• Front Entrance
• Driveway / Garage
• Rear Yard

The fourth NVR channel remains available if another surveillance area needs to be covered later.

8MP / 4K Ultra HD Surveillance

Each camera provides up to:

3840 × 2160 – 8 Megapixel / 4K Ultra HD

8MP surveillance provides approximately four times the pixel count of conventional 1080p Full HD video.

The additional resolution can provide greater recorded image detail when reviewing:

• People
• Clothing
• Vehicles
• Entrances
• Driveways
• Property Activity
• Shopfronts
• Security Incidents

Hi Color Pro Technology

HiLook Hi Color Pro technology is designed to provide enhanced colour imaging in challenging low-light environments.

Traditional infrared CCTV cameras generally change to black-and-white footage when ambient lighting becomes too low.

Hi Color technology uses high-sensitivity imaging hardware and a large aperture to help retain useful colour information for longer.

Colour footage can provide valuable additional details when reviewing security incidents, including:

• Clothing Colour
• Vehicle Colour
• Object Colour
• Property Features
• Scene Information

Large 1/1.8" Image Sensor

The IPC-T581H-MU incorporates a large:

1/1.8" CMOS Image Sensor

The larger sensor is designed to capture more available light, helping improve image quality in challenging lighting conditions.

This is particularly valuable for high-resolution 8MP surveillance where maintaining useful image quality after dark is important.

Ultra-Wide F1.0 Aperture

The Hi Color Pro camera incorporates an ultra-wide:

F1.0 Aperture

The large aperture allows more available light to reach the image sensor.

Combined with the 1/1.8" sensor, this provides the foundation for enhanced Hi Color low-light performance.

24/7 Colour Imaging

Hi Color Pro is designed to provide 24/7 colour surveillance under suitable lighting and installation conditions.

Maintaining colour can provide additional visual information compared with conventional monochrome night footage.

For example, footage may help identify:

• Vehicle Colours
• Clothing Colours
• Objects
• Property Features
• Other Important Scene Details

Actual night-time performance depends on ambient lighting, installation position, camera settings and environmental conditions.

Intelligent Human & Vehicle Classification

The Hi Color Pro camera platform supports intelligent classification of:

• Humans
• Vehicles

This helps focus supported security events on relevant targets.

Compared with conventional motion detection, intelligent target classification can help reduce unnecessary events generated by environmental movement such as:

• Trees
• Leaves
• Rain
• Shadows
• Animals
• Changing Lighting

Built-In Audio Recording

The Hi Color Pro cameras incorporate built-in audio capability.

Compatible NVR recordings can therefore include:

Video + Audio

without requiring a separate external microphone at each camera location.

Audio recording must be used in accordance with applicable privacy and surveillance requirements.

Professional 4-Channel PoE NVR

The package includes the:

HiLook NVR-104MH-C/4P 4-Channel PoE Network Video Recorder

The recorder supports:

Up to 4 IP Cameras

This package includes three cameras, leaving:

1 Spare Camera Channel

for future expansion.

Expand from 3 to 4 Cameras

A key advantage of this package is its future expansion capability.

Cameras Included

3

NVR Maximum Capacity

4 Cameras

Channels Currently Used

3

Spare Capacity

1 Additional Camera

This allows a compatible fourth camera to be added later without replacing the recorder.

One Spare PoE Port

Because the NVR incorporates four PoE camera interfaces and only three are initially used, one PoE port remains available.

A future compatible IP camera can therefore be connected directly to the remaining NVR PoE interface.

This makes the package particularly suitable for customers who currently require three cameras but expect their surveillance requirements may increase.

4 Built-In PoE Camera Ports

The NVR provides:

4 × RJ45 PoE Camera Interfaces

PoE – Power over Ethernet – allows compatible cameras to receive both electrical power and network data through a single compatible Ethernet cable.

A Cat5e or Cat6 connection can carry:

• Camera Power
• Network Data
• Video
• Audio
• Intelligent Event Information

This provides a straightforward professional CCTV installation architecture.

Plug-and-Play Camera Connectivity

Compatible HiLook cameras can connect directly to the NVR's built-in PoE interfaces.

This reduces the requirement for:

• Individual Camera Power Supplies
• Separate PoE Injectors
• Additional Camera Power Cabling

The NVR acts as the central connection and recording point for the CCTV system.

Up to 8MP Camera Input

The NVR supports compatible IP cameras at resolutions up to:

8 Megapixels

making it suitable for the three 8MP Hi Color Pro cameras supplied with the kit.

40Mbps Incoming Bandwidth

The NVR provides:

40Mbps Incoming Bandwidth

and up to:

80Mbps Outgoing Bandwidth

Camera stream configuration should take into account:

• Resolution
• Frame Rate
• Video Bit Rate
• Compression
• Audio
• Number of Cameras
• Recording Requirements

H.265+ Video Compression

The system supports efficient compression including:

• H.265+
• H.265
• H.264+
• H.264

H.265+ can help reduce HDD storage and network bandwidth requirements compared with older compression technologies, depending on scene activity and camera settings.

This is particularly beneficial for high-resolution 8MP CCTV recording.

4K HDMI Output

The NVR provides high-resolution HDMI output up to:

4K Ultra HD

allowing connection to a compatible 4K television or monitor for local surveillance.

The recorder also provides VGA output for compatible displays.

4-Channel Synchronous Playback

The NVR supports:

4-Channel Synchronous Playback

allowing recorded footage from multiple cameras to be reviewed simultaneously.

This can be particularly useful when investigating activity that moves between different surveillance areas.

Selectable Surveillance HDD

The NVR supports internal surveillance HDD storage.

HDD: Select storage capacity from available options

The appropriate storage capacity depends on:

• Number of Cameras
• 8MP Recording Resolution
• Frame Rate
• Video Bit Rate
• H.265+ Configuration
• Continuous or Event Recording
• Required Recording Retention

If a fourth camera is added later, the additional recording load should also be considered when determining storage requirements.

Remote Viewing

When connected to the internet and correctly configured, the system supports compatible HiLook remote-access functionality.

Remote features can include:

• Live Camera Viewing
• Recorded Playback
• Event Notifications
• Multi-Camera Viewing
• Remote CCTV Monitoring

This allows users to access the security system from compatible mobile devices while away from the property.

Flexible Recording Options

The system can be configured according to the property's surveillance requirements.

Recording options can include:

• Continuous Recording
• Scheduled Recording
• Motion Recording
• Event Recording
• Intelligent Event Recording

The selected recording mode directly affects available HDD retention time.

IP67 Weather Resistance

The Hi Color Pro turret cameras are suitable for properly installed indoor and outdoor surveillance applications.

The cameras feature:

IP67 Weather Protection

providing protection against dust and water ingress.

Correct cable protection and weatherproof installation remain important for outdoor applications.

Ideal 3-Camera Residential Configuration

Three cameras can provide effective coverage of the primary security areas around many homes and townhouses.

A typical configuration could include:

Camera 1 – Front Entrance

Camera 2 – Driveway / Garage

Camera 3 – Rear Yard

The remaining NVR channel can then be used later for:

Camera 4 – Side Access / Additional Area

This makes the kit particularly practical for customers who want to start with three cameras without limiting future expansion.

Ideal for Small Commercial CCTV

The system is also suitable for smaller commercial environments.

Typical applications include:

• Retail Stores
• Small Offices
• Workshops
• Cafes
• Restaurants
• Small Warehouses
• Storage Facilities
• Shopfronts
• Reception Areas
• Small Commercial Properties

Main Camera Specifications

• Camera Model: IPC-T581H-MU
• Camera Series: HiLook Hi Color Pro
• Camera Quantity: 3
• Camera Type: Fixed Turret Network Camera
• Resolution: 8MP
• Maximum Resolution: 3840 × 2160
• Video Quality: 4K Ultra HD
• Image Sensor: 1/1.8" CMOS
• Aperture: F1.0
• Low-Light Technology: Hi Color Pro
• Colour Imaging: 24/7 Colour
• Human Classification: Supported
• Vehicle Classification: Supported
• Audio: Built-In
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Network Connection: Ethernet
• PoE: Supported
• Weather Protection: IP67
• Application: Indoor & Outdoor CCTV Surveillance

Main NVR Specifications

• NVR Model: NVR-104MH-C/4P
• Recorder Type: PoE Network Video Recorder
• IP Camera Channels: 4
• Cameras Included: 3
• Channels Used: 3
• Spare Camera Channels: 1
• Maximum System Capacity: 4 Cameras
• Maximum Camera Input Resolution: Up to 8MP
• Incoming Bandwidth: 40Mbps
• Outgoing Bandwidth: 80Mbps
• PoE Interfaces: 4 × RJ45
• PoE Standard: IEEE 802.3af/at
• PoE Power Budget: Up to 50W
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Recording Resolution: Up to 8MP
• Synchronous Playback: Up to 4 Channels
• HDMI Output: Up to 4K
• VGA Output: Supported
• Audio Output: 1 × RCA
• Two-Way Audio Input: 1 × RCA
• Network Interface: 1 × RJ45
• SATA: 1 × Internal SATA Interface
• USB: 2 × USB 2.0
• HDD: Select storage capacity from available options
• Remote Access: Supported
• Application: Residential & Small Commercial CCTV Recording

Ideal For

• Residential Homes
• Townhouses
• Small Offices
• Retail Stores
• Workshops
• Cafes
• Restaurants
• Small Warehouses
• Commercial Properties
• Shopfronts
• Driveways
• Building Entrances
• Three-Camera CCTV Installations
• Expandable Four-Camera CCTV Systems
• 4K CCTV Systems
• Colour Night Surveillance
• Professional IP CCTV Systems

Benefits

• Three professional 8MP / 4K cameras
• Hi Color Pro low-light technology
• Large 1/1.8" image sensor
• Ultra-wide F1.0 aperture
• 24/7 colour imaging
• Intelligent human and vehicle classification
• Built-in audio recording
• IP67 weather protection
• Four-channel PoE NVR
• One spare PoE camera channel
• Expandable from three to four cameras
• Up to 8MP recording
• 40Mbps incoming bandwidth
• H.265+ video compression
• 4K HDMI output
• Selectable surveillance HDD
• Remote viewing capability
• Professional residential and commercial applications

The HiLook Hi Color Pro 8MP 4K 4CH CCTV Kit with 3 IP cameras and 4-channel PoE NVR provides an excellent balance between immediate security coverage and future expansion.

With three IPC-T581H-MU 8MP Hi Color Pro cameras, 1/1.8" sensors, F1.0 optics, 24/7 colour imaging, intelligent human and vehicle classification, built-in audio and a four-channel PoE NVR with one spare camera channel, the package is particularly well suited to homes and smaller commercial properties requiring three cameras now with the flexibility to add a fourth later.



IPC-T581H-MU

8 MP Hi-Color Fixed Turret Network Camera

• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• White Supplement Light for dark night
• Water and dust resistant (IP67)

Manufacturer Specs

Hikvision HiLook NVR-104MH-C/4P 4CH PoE 4K NVR Latest Version D Series

Features:

• Up to 4-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• Up to 40 Mbps incoming bandwidth

Available models:

Manufacturer Specs
