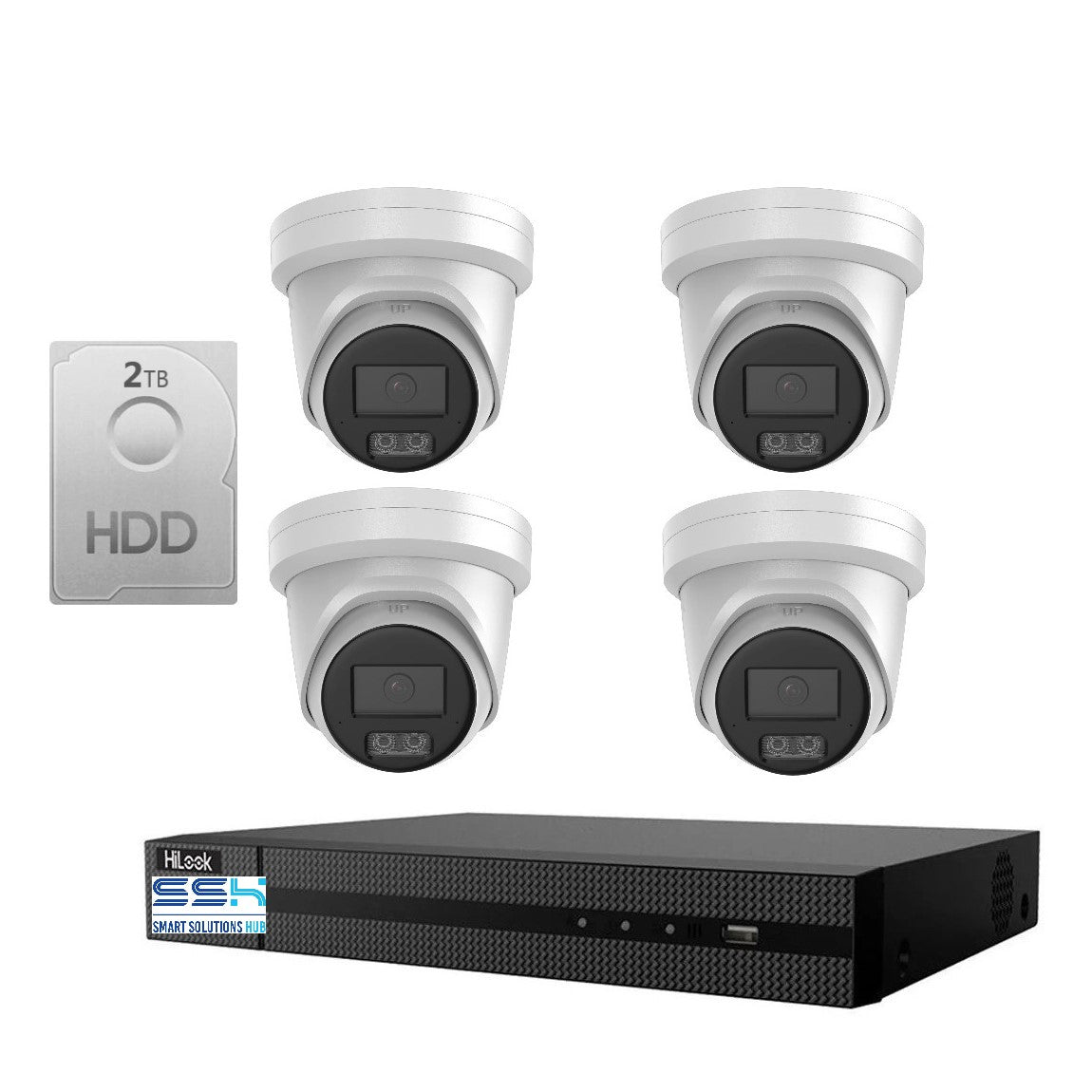

HiLook Hi Color Pro 8MP 4K 4CH CCTV Kit – 4 × IP Hi Color Cameras + 4CH PoE NVR

The HiLook Hi Color Pro 8MP 4K 4CH CCTV Kit is a complete professional IP surveillance package combining 4 × HiLook Hi Color Pro 8MP / 4K IP cameras with a 4-channel PoE Network Video Recorder.

Designed for homes, offices, retail stores and small commercial properties requiring four-camera coverage, this system combines 4K Ultra HD imaging, enhanced low-light colour surveillance, intelligent human and vehicle classification, PoE connectivity and remote viewing in a compact CCTV solution.

With four cameras supplied and four NVR channels available, this package provides a fully populated 4-camera CCTV system without paying for additional unused recorder channels.

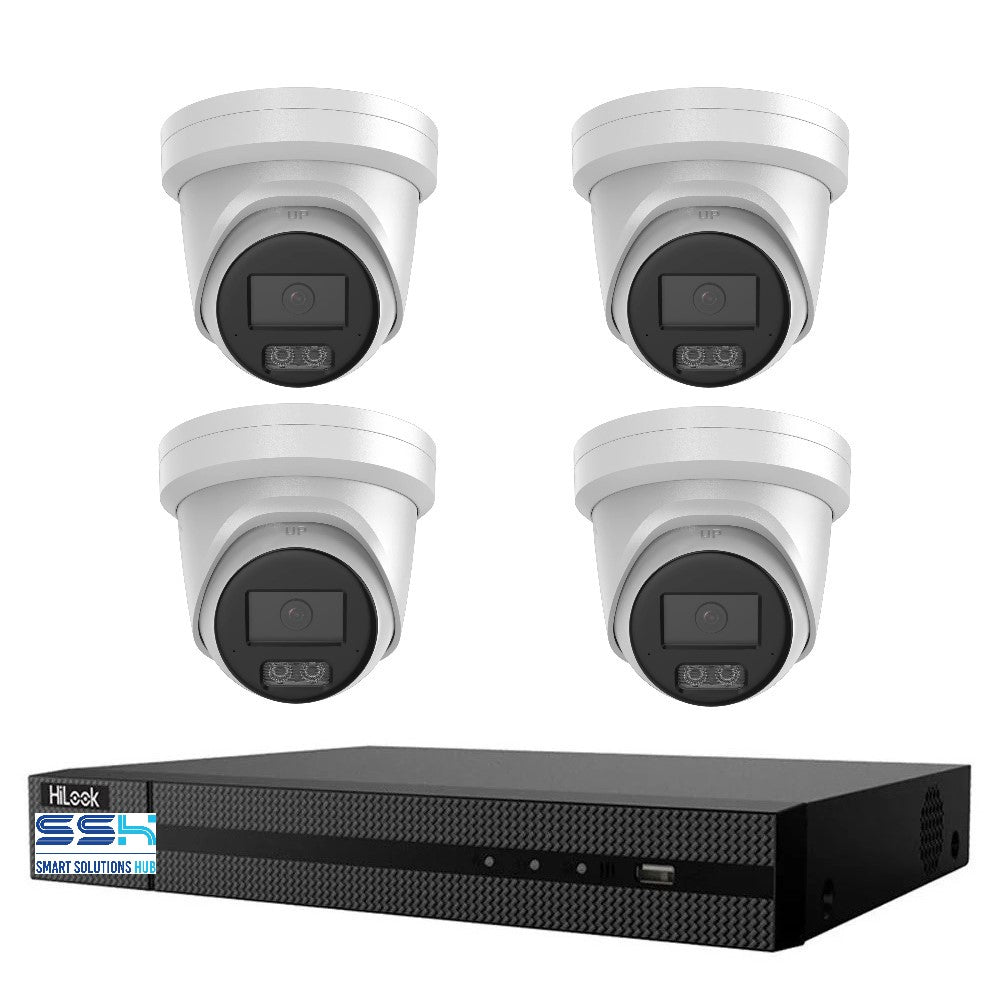

This CCTV Kit includes:

4 x Hikvision Hilook Pro IPC-T581H-MU 8 MP Hi-Color Fixed Turret Network Camera  (White Only)

1 x 4 Channel PoE NVR (NVR 104MH-C/4P) D Series

Key Features

• 4 × 8MP / 4K Hi Color Pro Cameras
• Maximum 3840 × 2160 Resolution
• Large 1/1.8" Image Sensor
• Ultra-Wide F1.0 Aperture
• Enhanced Low-Light Colour Imaging
• 24/7 Colour Surveillance
• Intelligent Human & Vehicle Classification
• Built-In Audio Recording
• H.265+ Video Compression
• IP67 Weather-Resistant Cameras
• 4-Channel PoE NVR
• 4 Built-In PoE Ports
• All 4 Camera Channels Populated
• Up to 8MP IP Camera Input
• 40Mbps Incoming Bandwidth
• 80Mbps Outgoing Bandwidth
• 4K HDMI Output
• VGA Output
• 4-Channel Synchronous Playback
• Single SATA HDD Storage
• PoE Plug-and-Play Connectivity
• Remote Live View & Playback
• Ideal for Residential & Small Commercial CCTV

4 × HiLook Hi Color Pro 8MP Cameras

This package includes:

4 × HiLook IPC-T581H-MU 8MP Hi Color Pro IP Turret Cameras

The Hi Color Pro platform combines high-resolution 4K imaging with advanced low-light technology to provide detailed surveillance during both daytime and night-time conditions.

Four cameras provide an excellent configuration for monitoring the main security areas of a residential or small commercial property.

8MP / 4K Ultra HD Surveillance

Each camera provides up to:

3840 × 2160 – 8 Megapixel / 4K Ultra HD

8MP surveillance provides approximately four times the pixel count of conventional 1080p Full HD video.

The additional image detail can be particularly useful when reviewing:

• People
• Clothing
• Vehicles
• Entrances
• Driveways
• Property Activity
• Shopfronts
• Car Parks
• Security Incidents

Hi Color Pro Technology

HiLook Hi Color Pro technology is designed to deliver enhanced colour imaging in challenging low-light environments.

Conventional infrared CCTV cameras generally change to black-and-white images when ambient lighting becomes too low.

Hi Color technology is designed to retain useful colour information for longer, providing additional visual information when reviewing recorded security footage.

Colour footage can help identify details such as:

• Clothing Colour
• Vehicle Colour
• Object Colour
• Building Features
• Property Details
• Scene Information

Large 1/1.8" Image Sensor

The IPC-T581H-MU uses a large:

1/1.8" CMOS Image Sensor

The large sensor is designed to capture more available light, supporting better image performance in challenging lighting conditions.

This is particularly valuable for high-resolution 8MP surveillance where maintaining useful image quality after dark is important.

Ultra-Wide F1.0 Aperture

The camera incorporates an ultra-wide:

F1.0 Aperture

The large aperture allows more available light to reach the image sensor.

Combined with the large 1/1.8" sensor, this provides the foundation for Hi Color Pro's enhanced low-light colour imaging.

24/7 Colour Imaging

Hi Color Pro is designed to provide 24/7 colour surveillance under suitable installation and lighting conditions.

Maintaining colour information can provide additional evidence compared with conventional monochrome night footage.

For example, recorded footage may help distinguish:

• Vehicle Colours
• Clothing Colours
• Objects
• Property Features
• Other Important Scene Details

Actual night-time performance depends on available ambient light, camera position, installation conditions and camera configuration.

Intelligent Human & Vehicle Classification

The Hi Color Pro camera platform supports intelligent classification of:

• Humans
• Vehicles

This allows supported security events to focus on more relevant targets.

Compared with conventional motion detection, human and vehicle classification can help reduce unnecessary events generated by environmental movement such as:

• Trees
• Leaves
• Rain
• Shadows
• Animals
• Changing Lighting

Built-In Audio Recording

The Hi Color Pro camera incorporates built-in audio capability, allowing compatible NVR recordings to include:

Video + Audio

This provides additional information when reviewing supported security events without requiring a separate external microphone at each camera location.

Audio recording must be used in accordance with applicable privacy and surveillance requirements.

Complete 4-Channel CCTV System

The package includes a:

HiLook NVR-104MH-C/4P 4-Channel PoE NVR

The recorder supports up to:

4 IP Cameras

and this package includes:

4 Cameras

Therefore, all four available NVR camera channels are utilised.

Fully Populated 4-Camera System

This package is designed for customers who require a complete four-camera CCTV solution without needing additional unused recorder capacity.

Cameras Included

4

NVR Camera Capacity

4

Channels Used

4 of 4

Spare Channels

0

If future expansion beyond four cameras is anticipated, an 8-channel HiLook CCTV kit should be considered instead.

4 Built-In PoE Camera Ports

The NVR provides:

4 × RJ45 PoE Camera Interfaces

PoE – Power over Ethernet – allows each compatible IP camera to receive power and network data through a single Ethernet cable.

A compatible Cat5e or Cat6 cable can carry:

• Camera Power
• Network Data
• Video
• Audio
• Intelligent Event Information

This provides a clean and straightforward professional CCTV installation.

Plug-and-Play Camera Connectivity

Compatible HiLook cameras connect directly to the NVR's built-in PoE interfaces.

This simplifies a standard installation by reducing the requirement for:

• Separate Camera Power Supplies
• Individual PoE Injectors
• Separate Power Cabling

The NVR acts as the central recording and connection point for the complete CCTV system.

Up to 8MP Camera Input

The NVR supports compatible IP cameras at resolutions up to:

8 Megapixels

making it suitable for the four 8MP Hi Color Pro cameras supplied in this package.

Supported recording resolutions include:

• 8MP
• 6MP
• 5MP
• 4MP
• 3MP
• 1080p
• Lower Supported Resolutions

40Mbps Incoming Bandwidth

The NVR provides up to:

40Mbps Incoming Bandwidth

and:

80Mbps Outgoing Bandwidth

Camera stream settings should be configured according to the available recorder bandwidth and required:

• Resolution
• Frame Rate
• Bit Rate
• Compression
• Audio
• Recording Quality

H.265+ Video Compression

The system supports efficient video compression including:

• H.265+
• H.265
• H.264+
• H.264

H.265+ can help reduce storage and network bandwidth requirements compared with older compression technologies, depending on scene activity and camera configuration.

Efficient compression is particularly important when recording multiple high-resolution 8MP cameras.

4K HDMI Output

The NVR provides HDMI output up to:

4096 × 2160 @ 30Hz

with additional supported 4K display modes.

This allows connection to a compatible 4K monitor or television for high-resolution local surveillance viewing.

VGA Output

A VGA monitor output is also provided for compatible displays.

This gives installers flexibility when connecting the recorder to existing surveillance monitors and display equipment.

4-Channel Synchronous Playback

The NVR supports:

4-Channel Synchronous Playback

allowing recorded footage from all four cameras to be reviewed simultaneously.

This can be particularly useful when investigating an incident that moves across multiple camera locations.

Selectable Surveillance HDD

The NVR provides an internal SATA interface for surveillance storage.

HDD: Select storage capacity from available options

The appropriate HDD capacity depends on:

• Number of Cameras
• Recording Resolution
• Frame Rate
• Video Bit Rate
• H.265+ Configuration
• Continuous or Event Recording
• Required Recording Retention

Because this package contains four 8MP cameras, HDD capacity should be selected according to the required recording period.

Remote Viewing

When connected to the internet and correctly configured, the system supports compatible HiLook remote-access functionality.

Remote functions can include:

• Live Camera Viewing
• Recorded Playback
• Event Notifications
• Multi-Camera Viewing
• Remote CCTV Monitoring

This allows users to access the security system from compatible mobile devices while away from the property.

Flexible Recording Options

The system can be configured according to the security requirements of the property.

Recording options can include:

• Continuous Recording
• Scheduled Recording
• Motion Recording
• Event Recording
• Intelligent Event Recording

The selected recording mode and camera settings directly affect available HDD retention time.

IP67 Weather Resistance

The Hi Color Pro turret cameras are designed for suitable indoor and outdoor security applications.

An IP67 weather-resistant housing provides protection against dust and water ingress when correctly installed.

Correct cable protection, weatherproofing and professional installation remain important for outdoor CCTV applications.

Ideal Residential Camera Layout

A four-camera configuration can provide effective coverage of the primary security areas around many homes.

A typical installation could include:

Camera 1 – Front Entrance

Camera 2 – Driveway / Garage

Camera 3 – Side Access

Camera 4 – Rear Yard

This provides a practical surveillance layout for properties where four cameras provide sufficient coverage.

Ideal for Small Commercial CCTV

The kit is also well suited to smaller commercial installations.

Typical applications include:

• Retail Stores
• Small Offices
• Workshops
• Cafes
• Restaurants
• Small Warehouses
• Storage Facilities
• Shopfronts
• Reception Areas
• Small Car Parks

Main Camera Specifications

• Camera Model: IPC-T581H-MU
• Camera Series: HiLook Hi Color Pro
• Camera Quantity: 4
• Camera Type: Fixed Turret Network Camera
• Resolution: 8MP
• Maximum Resolution: 3840 × 2160
• Video Quality: 4K Ultra HD
• Image Sensor: 1/1.8" CMOS
• Aperture: F1.0
• Low-Light Technology: Hi Color Pro
• Colour Imaging: 24/7 Colour
• Human Classification: Supported
• Vehicle Classification: Supported
• Audio: Built-In
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Network Connection: Ethernet
• PoE: Supported
• Weather Protection: IP67
• Application: Indoor & Outdoor CCTV Surveillance

Main NVR Specifications

• NVR Model: NVR-104MH-C/4P
• Recorder Type: PoE Network Video Recorder
• IP Camera Channels: 4
• Cameras Included: 4
• Channels Used: 4 of 4
• Spare Camera Channels: None
• Maximum Camera Input Resolution: Up to 8MP
• Incoming Bandwidth: 40Mbps
• Outgoing Bandwidth: 80Mbps
• PoE Interfaces: 4 × RJ45
• PoE Standard: IEEE 802.3af/at
• PoE Power Budget: Up to 50W
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• Recording Resolution: Up to 8MP
• Decoding Capability: Up to 1 × 8MP @ 30fps
• Synchronous Playback: 4 Channels
• HDMI Output: Up to 4K
• VGA Output: Up to 1080p
• Video Output Mode: HDMI/VGA Simultaneous
• Audio Output: 1 × RCA
• Two-Way Audio Input: 1 × RCA
• Network Interface: 1 × RJ45 10/100Mbps
• SATA: 1 × Internal SATA Interface
• USB: 2 × USB 2.0
• HDD: Select storage capacity from available options
• Remote Access: Supported
• Application: Residential & Small Commercial CCTV Recording

Ideal For

• Residential Homes
• Townhouses
• Small Offices
• Retail Stores
• Workshops
• Cafes
• Restaurants
• Small Warehouses
• Commercial Properties
• Shopfronts
• Driveways
• Building Entrances
• Four-Camera CCTV Installations
• 4K CCTV Systems
• Colour Night Surveillance
• Professional IP CCTV Systems

Benefits

• Complete four-camera CCTV system
• Four professional 8MP / 4K cameras
• Hi Color Pro low-light technology
• Large 1/1.8" image sensor
• Ultra-wide F1.0 aperture
• 24/7 colour imaging
• Intelligent human and vehicle classification
• Built-in audio recording
• IP67 weather protection
• Four-channel PoE NVR
• Four built-in PoE camera interfaces
• Up to 8MP recording
• 40Mbps incoming bandwidth
• H.265+ video compression
• 4K HDMI output
• Four-channel synchronous playback
• Selectable surveillance HDD
• Remote viewing capability
• Professional residential and commercial applications

The HiLook Hi Color Pro 8MP 4K 4CH CCTV Kit with 4 IP cameras and 4-channel PoE NVR is an excellent choice for customers who require a complete high-resolution four-camera surveillance system without additional unused recorder channels.

Combining four IPC-T581H-MU 8MP Hi Color Pro cameras with a four-channel PoE NVR, the package provides 4K surveillance, enhanced low-light colour imaging, intelligent human and vehicle classification, built-in audio recording, H.265+ compression and convenient remote access in a straightforward professional CCTV solution.

IPC-T581H-MU

8 MP Hi-Color Fixed Turret Network Camera

• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• White Supplement Light for dark night
• Water and dust resistant (IP67)

Manufacturer Specs

Hikvision HiLook NVR-104MH-C/4P 4CH PoE 4K NVR Latest Version D Series

Features:

• Up to 4-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• Up to 40 Mbps incoming bandwidth

Available models:

Manufacturer Specs
