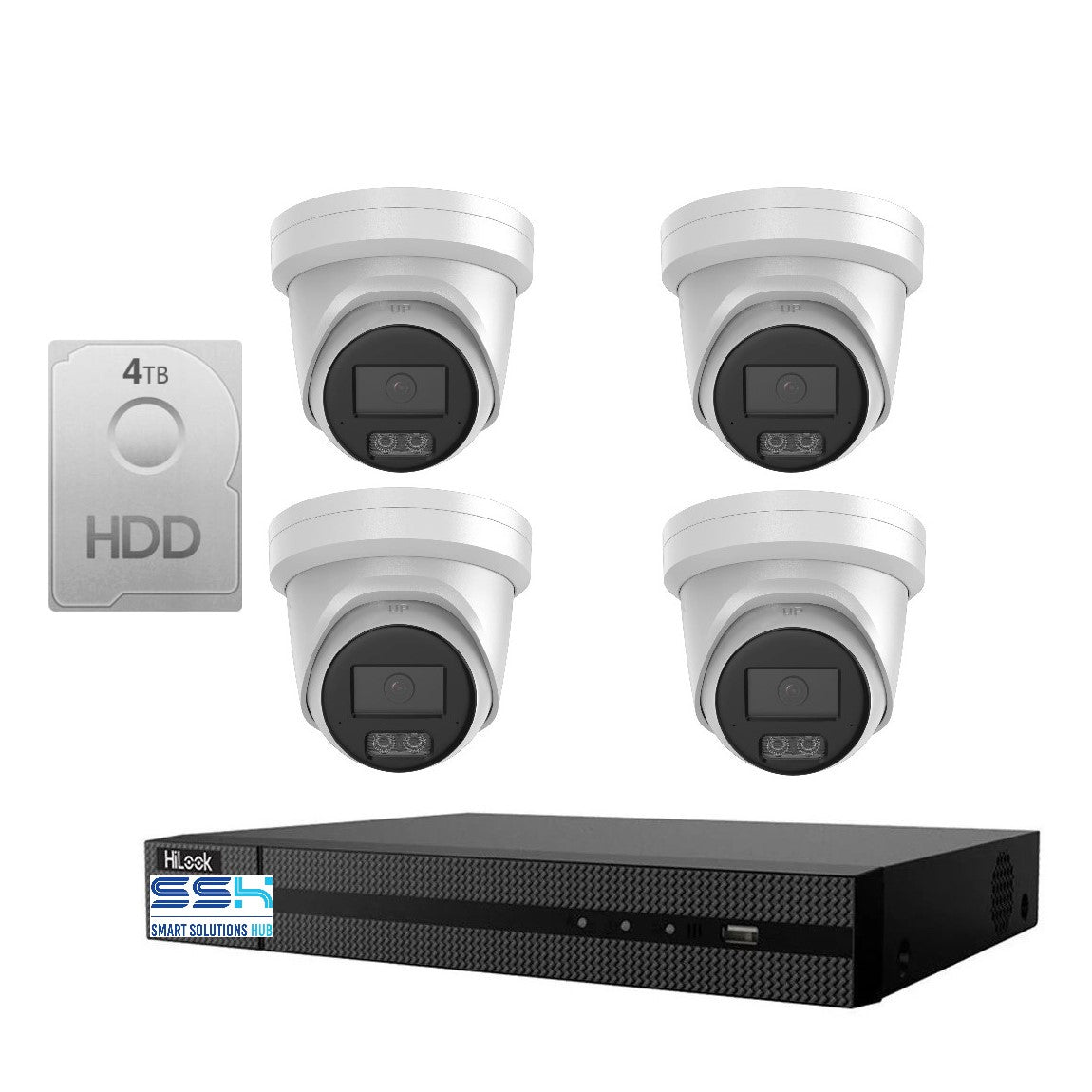

HiLook Hi Color Pro 8MP 4K 8CH CCTV Kit – 4 × IP Hi Color Cameras + 8CH PoE NVR

The HiLook Hi Color Pro 8MP 4K 8CH CCTV Kit is a professional IP surveillance package combining 4 × HiLook Hi Color Pro 8MP / 4K IP turret cameras with an 8-channel PoE Network Video Recorder, delivering high-resolution security coverage with substantial capacity for future expansion.

Designed for homes, offices, retail stores, warehouses and other residential or commercial properties, this system combines 4K Ultra HD imaging, 24/7 colour surveillance, intelligent human and vehicle classification, built-in audio recording, PoE connectivity and remote viewing.

With four cameras supplied and an eight-channel recorder, the system leaves four spare camera channels, allowing the CCTV system to be expanded to as many as eight compatible IP cameras without replacing the NVR.

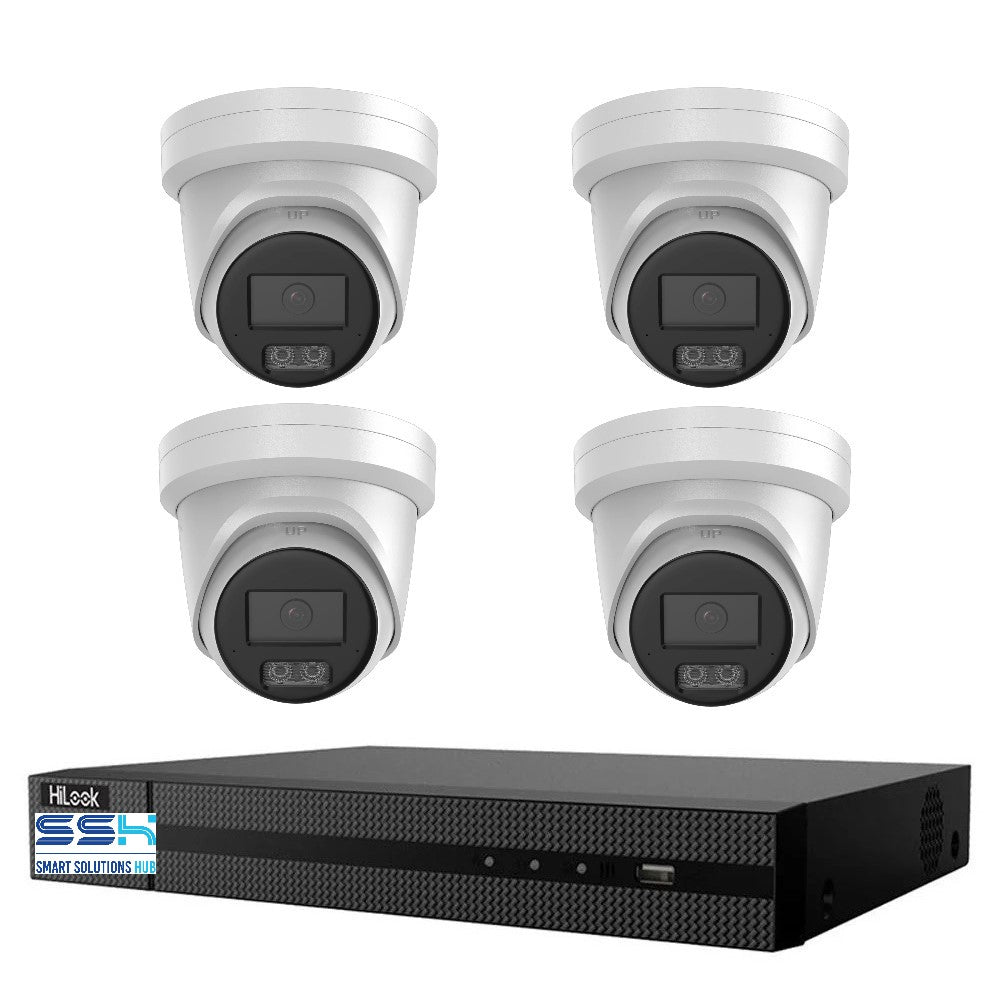

This CCTV Kit includes:

4 x Hikvision Hilook Pro IPC-T581H-MU 8 MP Hi-Color Fixed Turret Network Camera (White Only)

1 x Hikvision HiLook NVR-108MH-C/8P D series 8CH PoE 4K NVR

Key Features

• 4 × 8MP / 4K Hi Color Pro Cameras
• 3840 × 2160 Ultra HD Resolution
• Large 1/1.8" Progressive Scan CMOS Sensor
• Ultra-Wide F1.0 Aperture
• Ultra-Low 0.0005 Lux Colour Sensitivity
• 24/7 Full-Colour Imaging
• White Supplementary Light for Dark Environments
• Up to 30m Supplementary Light Range
• 130 dB Scene-Adaptive WDR
• Deep-Learning Human & Vehicle Classification
• Built-In Arrayed Dual Microphones
• H.265+ Video Compression
• IP67 Weather-Resistant Camera Housing
• 8-Channel PoE NVR
• 8 Built-In PoE Camera Ports
• 4 Cameras Supplied
• 4 Spare Channels
• Expandable to 8 Cameras
• Up to 8MP Camera Input
• Up to 80 Mbps Incoming Bandwidth
• 4K HDMI Output
• VGA Output
• Remote Viewing & Playback
• Professional Residential & Commercial CCTV Solution

4 × HiLook IPC-T581H-MU Hi Color Pro Cameras

This package includes:

4 × HiLook IPC-T581H-MU 8MP Hi Color Pro Turret Cameras

The IPC-T581H-MU combines high-resolution 4K imaging with HiLook's Hi-Color technology, intelligent target classification and built-in audio recording.

Four cameras provide an excellent starting configuration for covering the main security areas of a residential or commercial property.

8MP / 4K Ultra HD Resolution

Each camera provides a maximum resolution of:

3840 × 2160 – 8 Megapixel / 4K Ultra HD

8MP surveillance provides approximately four times the pixel count of conventional 1080p Full HD video.

The additional resolution can provide significantly more recorded image detail when reviewing:

• People
• Clothing
• Vehicles
• Entrances
• Driveways
• Property Activity
• Car Parks
• Commercial Areas
• Security Incidents

Hi Color Pro – 24/7 Colour Surveillance

HiLook Hi Color Pro technology is designed to maintain useful colour imaging in extremely low-light environments.

Instead of relying exclusively on conventional black-and-white infrared night vision, the IPC-T581H-MU combines a highly sensitive image sensor, large aperture and supplementary white lighting to provide colour surveillance after dark.

Colour footage can provide additional information when reviewing an incident, including:

• Clothing Colour
• Vehicle Colour
• Object Colour
• Building Features
• Property Details
• Scene Information

Large 1/1.8" Image Sensor

The IPC-T581H-MU incorporates a large:

1/1.8" Progressive Scan CMOS Sensor

The large sensor is designed to capture more available light, helping maintain image quality in challenging lighting conditions.

This is particularly valuable for high-resolution 8MP surveillance where low-light image quality is important.

Ultra-Wide F1.0 Aperture

The camera incorporates an ultra-wide:

F1.0 Aperture

The large aperture allows substantially more available light to reach the image sensor.

Combined with the large 1/1.8" sensor, this provides the foundation for the camera's Hi Color low-light performance.

Ultra-Low 0.0005 Lux Colour Sensitivity

The IPC-T581H-MU provides extremely high low-light sensitivity:

Colour: 0.0005 Lux @ F1.0, AGC ON

and:

0 Lux with Supplementary Light

This allows the camera to maintain colour imagery under extremely low ambient-light conditions before supplementary lighting is required.

White Supplementary Light

For extremely dark environments, the camera incorporates built-in white supplementary lighting.

Supplementary light range:

Up to 30 Metres

The white light enables the camera to continue producing colour images where insufficient ambient light is available.

130 dB Scene-Adaptive WDR

The camera features:

130 dB Scene-Adaptive Wide Dynamic Range

WDR helps maintain image detail when very bright and dark areas appear within the same scene.

This is particularly useful for locations such as:

• Building Entrances
• Doorways
• Driveways
• Garages
• Shopfronts
• Areas Facing Strong Sunlight
• Backlit Subjects

Intelligent Human & Vehicle Classification

Deep-learning technology allows the camera to distinguish supported targets such as:

• Humans
• Vehicles

This can help focus security events on relevant activity and reduce unnecessary alerts caused by environmental movement.

Potential sources of unwanted conventional motion events can include:

• Trees
• Leaves
• Rain
• Shadows
• Animals
• Changing Lighting
• Other Environmental Movement

Built-In Dual Microphones

The IPC-T581H-MU incorporates arrayed dual microphones for high-quality audio recording.

This allows compatible NVR recording to include:

Video + Audio

without requiring a separate external microphone at each camera location.

Audio recording must be used in accordance with applicable privacy and surveillance laws.

Professional 8-Channel PoE NVR

The kit includes an 8-channel HiLook PoE Network Video Recorder.

Maximum camera capacity:

8 IP Cameras

This package includes four cameras, leaving:

4 Spare Camera Channels

for future expansion.

Expand from 4 to 8 Cameras

A major advantage of this package is the ability to expand the CCTV system later.

Cameras Included

4

Maximum NVR Capacity

8 Cameras

Spare Capacity

4 Additional Cameras

This means the customer can start with four cameras and add compatible cameras as security requirements grow.

Potential future camera locations include:

• Additional Side Access
• Rear Boundary
• Garage
• Shed
• Internal Areas
• Second Driveway
• Car Park
• Workshop

8 Built-In PoE Camera Ports

The HiLook NVR provides:

8 × PoE Camera Interfaces

PoE – Power over Ethernet – allows compatible IP cameras to receive both electrical power and network data through a single Ethernet cable.

A compatible Cat5e or Cat6 connection can carry:

• Camera Power
• Video
• Audio
• Network Data
• Intelligent Event Information

This provides a straightforward professional CCTV installation architecture.

Plug-and-Play Camera Connectivity

Compatible HiLook cameras can connect directly to the NVR's built-in PoE interfaces.

This helps eliminate the need for separate camera power supplies or individual PoE injectors in a standard installation.

The NVR acts as the central connection and recording point for the CCTV system.

Up to 8MP Camera Input

The NVR supports compatible IP cameras at resolutions up to:

8 Megapixels

making it suitable for the four 8MP Hi Color Pro cameras supplied with this package.

80 Mbps Incoming Bandwidth

The compatible HiLook 8-channel NVR platform supports up to:

80 Mbps Incoming Bandwidth

This provides network capacity for multi-camera IP CCTV recording.

Actual camera configuration should take into account:

• Number of Cameras
• Resolution
• Frame Rate
• Video Bit Rate
• Compression Settings
• Audio
• Recording Requirements

H.265+ Video Compression

The system supports efficient video compression including:

• H.265+
• H.265
• H.264+
• H.264

H.265+ can help reduce HDD storage and network bandwidth requirements compared with older compression technologies, depending on the monitored scene and camera configuration.

This is particularly beneficial when recording high-resolution 8MP video.

Selectable Surveillance HDD

The NVR supports internal surveillance hard-drive storage.

HDD: Select storage capacity from available options

The appropriate storage capacity depends on:

• Number of Cameras
• 8MP Recording Resolution
• Frame Rate
• Video Bit Rate
• H.265+ Configuration
• Continuous or Event Recording
• Required Recording Retention

Larger HDD capacities provide longer potential recording periods.

4K HDMI & VGA Display Output

The compatible HiLook NVR provides:

• 4K HDMI Output
• VGA Output

This allows the recorder to connect directly to a compatible monitor or television for local surveillance.

Users can access:

• Live Camera Views
• Multi-Camera Display
• Recorded Playback
• Event Search
• NVR Configuration

Remote Viewing

When connected to the internet and correctly configured, the system supports compatible HiLook remote-access services.

Remote functionality can include:

• Live Camera Viewing
• Recorded Playback
• Event Notifications
• Multi-Camera Viewing
• Remote CCTV Monitoring

An internet connection is required for remote access.

Flexible Recording Options

The system can be configured according to the surveillance requirements of the property.

Recording modes can include:

• Continuous Recording
• Scheduled Recording
• Motion Recording
• Event Recording
• Intelligent Event Recording

Recording configuration directly affects available HDD retention time.

IP67 Weather Resistance

The IPC-T581H-MU is rated:

IP67

providing protection against dust and water ingress for suitable indoor and outdoor CCTV installations.

Correct installation, cable protection and weatherproofing remain important for outdoor applications.

Ideal 4-Camera Residential Configuration

Four cameras can provide effective coverage of the primary security areas around many homes.

A typical configuration could include:

Camera 1 – Front Entrance

Camera 2 – Driveway / Garage

Camera 3 – Side Access

Camera 4 – Rear Yard

The remaining four NVR channels can then be used if additional coverage is required later.

Ideal for Commercial CCTV

The system is also suitable for small-to-medium commercial premises.

Typical applications include:

• Retail Stores
• Offices
• Warehouses
• Workshops
• Cafes
• Restaurants
• Storage Facilities
• Commercial Buildings
• Small Industrial Sites
• Car Parks

Main Camera Specifications

• Camera Model: IPC-T581H-MU
• Camera Series: HiLook Hi Color Pro
• Camera Quantity: 4
• Camera Type: Fixed Turret Network Camera
• Resolution: 8MP
• Maximum Resolution: 3840 × 2160
• Video Quality: 4K Ultra HD
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Minimum Illumination: 0.0005 Lux @ F1.0, AGC ON
• Minimum Illumination with Light: 0 Lux
• Aperture: F1.0
• Lens: 2.8mm or 4mm depending on selected model
• Low-Light Technology: Hi Color
• Colour Imaging: 24/7 Colour
• Supplementary Light: White Light
• Supplementary Light Distance: Up to 30m
• WDR: 130 dB Scene-Adaptive WDR
• Human Classification: Supported
• Vehicle Classification: Supported
• Audio: Built-In Arrayed Dual Microphones
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• PoE: Supported
• Weather Protection: IP67
• Application: Indoor & Outdoor CCTV Surveillance

Main NVR Specifications

• Recorder Type: PoE Network Video Recorder
• IP Camera Channels: 8
• Cameras Included: 4
• Channels Used: 4
• Spare Camera Channels: 4
• Maximum System Capacity: 8 Cameras
• Maximum Camera Input Resolution: Up to 8MP
• Incoming Bandwidth: Up to 80 Mbps on NVR-108MH-C/8P platform
• PoE Interfaces: 8
• Video Compression: H.265+ / H.265 / H.264+ / H.264
• HDMI Output: Up to 4K
• VGA Output: Supported
• HDD: Select storage capacity from available options
• Remote Access: Supported
• Application: Professional Residential & Commercial CCTV Recording

Ideal For

• Residential Homes
• Townhouses
• Retail Stores
• Offices
• Warehouses
• Workshops
• Restaurants
• Cafes
• Commercial Properties
• Storage Facilities
• Car Parks
• Driveways
• Building Perimeters
• 4-Camera CCTV Installations
• Expandable CCTV Systems
• 4K CCTV Systems
• Full-Colour Night Surveillance
• Professional IP Security Systems

Benefits

• Four professional 8MP / 4K cameras
• Hi Color Pro technology
• Large 1/1.8" image sensor
• Ultra-wide F1.0 aperture
• 0.0005 lux colour sensitivity
• 24/7 colour imaging
• Up to 30m supplementary white light
• 130 dB scene-adaptive WDR
• Intelligent human and vehicle classification
• Built-in dual microphones
• IP67 outdoor protection
• 8-channel PoE NVR
• Four spare camera channels
• Expandable from 4 to 8 cameras
• Up to 8MP camera input
• H.265+ video compression
• 4K HDMI output
• Selectable surveillance HDD
• Remote viewing capability
• Professional residential and commercial applications

The HiLook Hi Color Pro 8MP 4K 8CH CCTV Kit with 4 IP cameras and 8-channel PoE NVR is an excellent choice for customers who need professional four-camera coverage now while retaining significant capacity for future expansion.

With four IPC-T581H-MU 8MP Hi Color Pro cameras, 1/1.8" sensors, F1.0 optics, 24/7 colour imaging, human and vehicle classification, built-in dual microphones and an 8-channel PoE NVR with four spare channels, the package provides a powerful and flexible platform for residential and commercial CCTV installations.

IPC-T581H-MU

8 MP Hi-Color Fixed Turret Network Camera

• 24/7 colorful imaging via ColorVu technology
• Scene-adaptive WDR
• Focus on Person and Vehicle classification based on deep learning
• Built-in arrayed dual-microphone for real-time high quality audio security
• White Supplement Light for dark night
• Water and dust resistant (IP67)

Manufacturer Specs

Hikvision HiLook NVR-108MH-C/8P 8CH PoE 4K NVR Latest version D series

Features:

• Up to 8-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 80 Mbps incoming bandwidth

Manufacturer Specs
