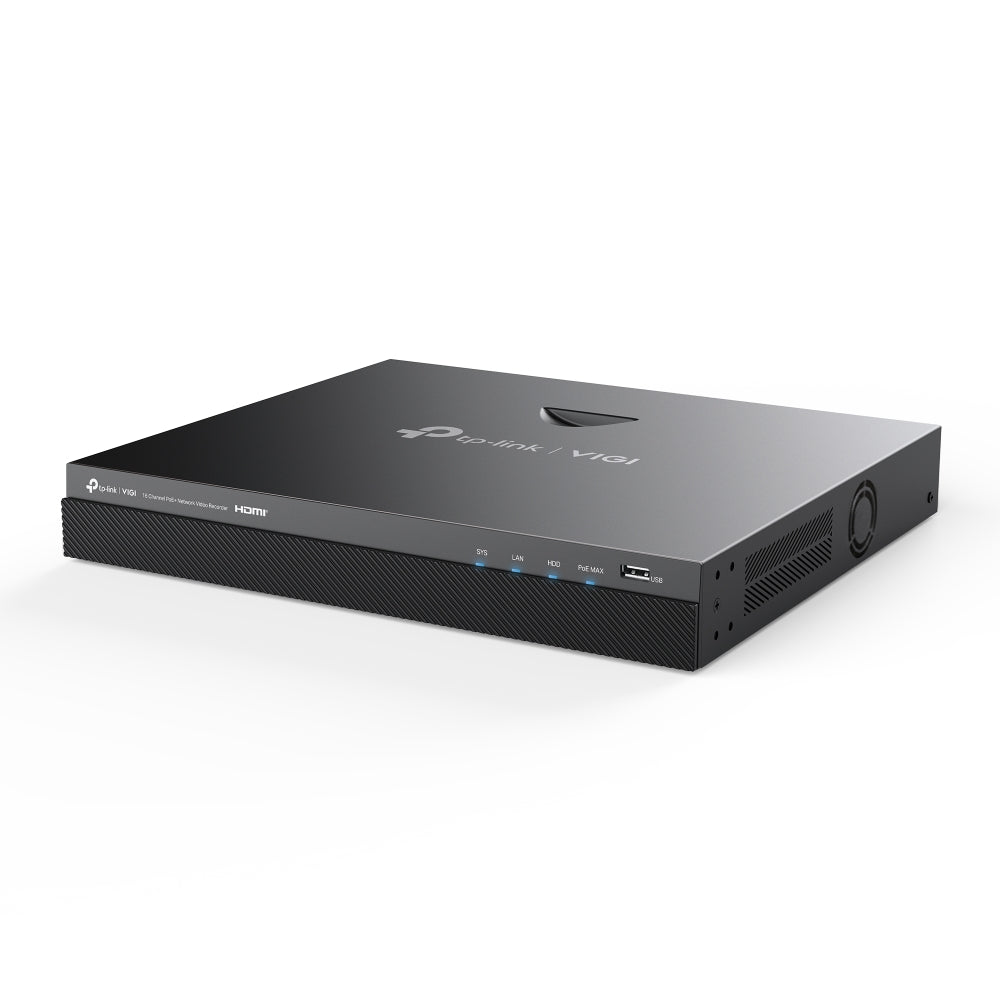

Tp-Link VIGI NVR2016H-16MP V2 16 Channel PoE Network Video Recorder
The TP-Link VIGI NVR2016H-16MP V2 delivers professional-grade surveillance management with 16 dedicated PoE channels, eliminating the need for separate power infrastructure. This 16MP-capable network video recorder combines robust processing power with intuitive interface design, making it ideal for medium to large-scale security deployments. Support for H.265+ compression optimizes storage efficiency without compromising image quality, while dual-stream technology enables simultaneous high-resolution recording and remote monitoring. Built-in PoE power delivery simplifies installation across distributed camera networks, reducing cabling complexity and installation costs. The V2 iteration brings enhanced stability and performance refinements for demanding surveillance environments.
VIGI NVR2016H-16MP V2
VIGI 16 Channel PoE+ Network Video Recorder

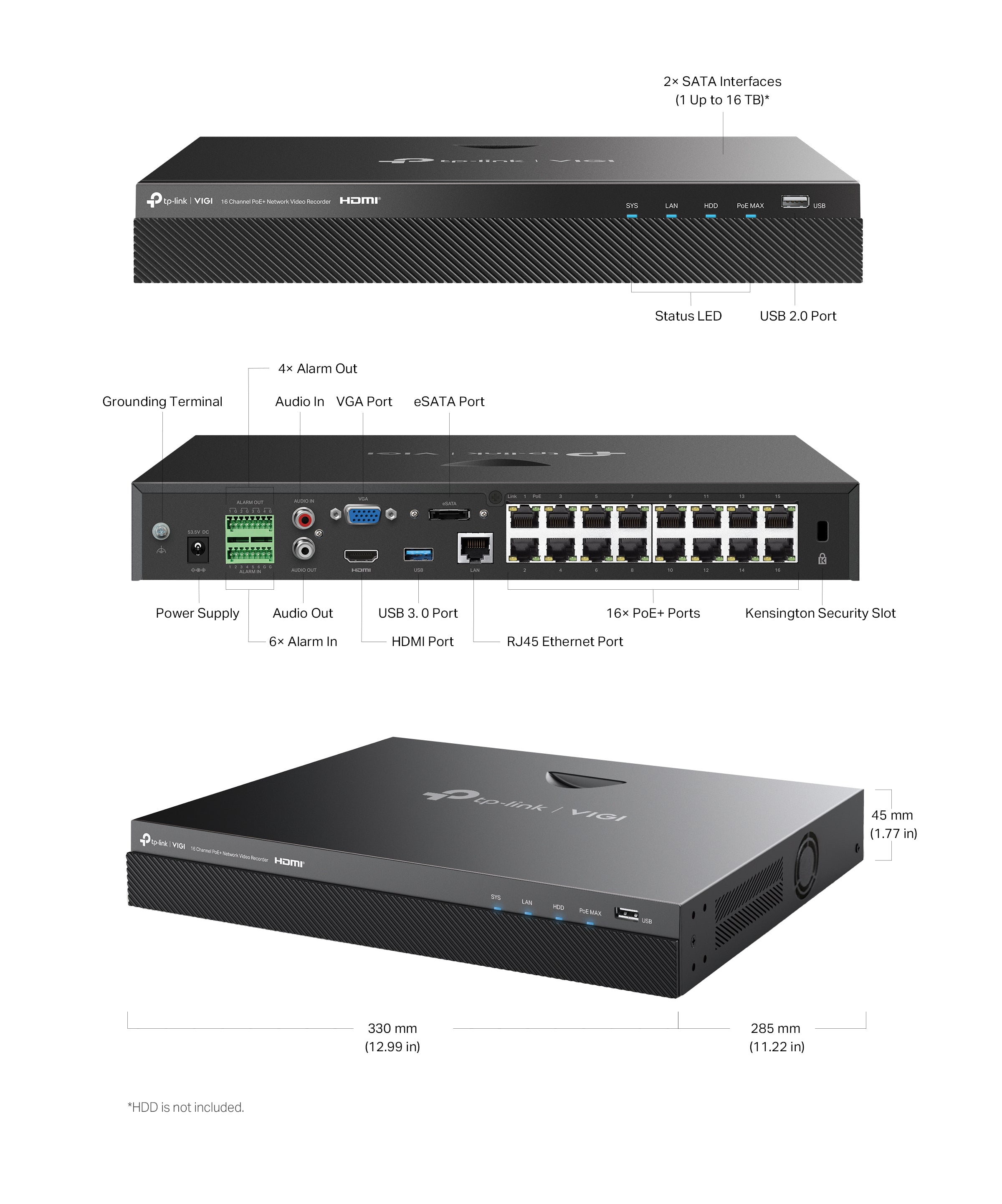

- 16-Channel Live View and 4K HDMI Video Output
- 16× 10/100 Mbps PoE+ Ports with 140 W PoE Budget△
- Up to 10-ch @ 3MP (25fps) / 16-ch @ 1080P (25fps) Decoding Capability
- 16-Channel Synchronous Playback†
- 320 Mbps Incoming and Outgoing Bandwidth
- 2× SATA Interfaces and 1 Up to 16 TB*
- H.265+ Compression Technology
- Alarm In/Out: 6/4
- HDMI and VGA Independent Output
△Calculations are based on laboratory testing. Actual data is not guaranteed and will vary as a result of client limitations and environmental factors.
*A hard disk drive (not included) must be installed for operation.
†The number of simultaneously playable channels may be fewer than 16, or none, if the total resolution exceeds 32MP.
